MARKETING INFORMATION

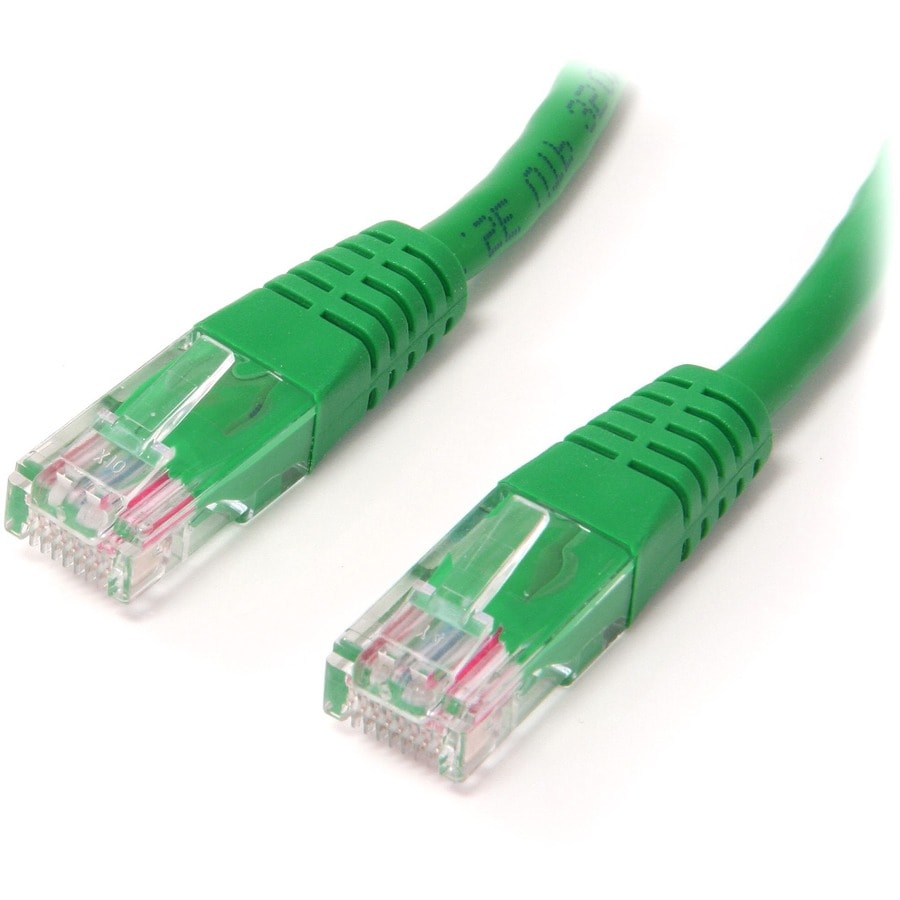

The M45PATCH10GNCat5e Patch Cable (10 ft) meets or exceeds all Cat 5e specifications to ensure reliable Ethernet network connections, and features a durable green PVC jacket that enables you to color code your network cable runs as needed.

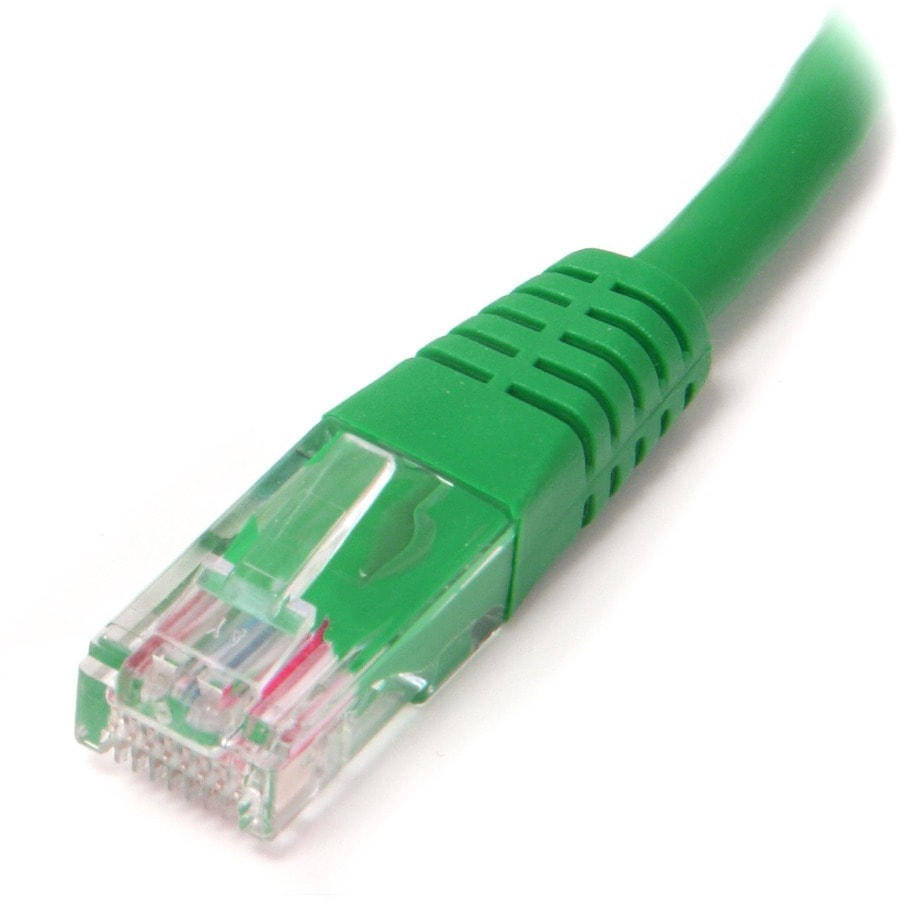

To ensure long-lasting performance, this high quality Cat5e patch cable features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles - reducing the risk of cable damage, which could decrease network performance.

Constructed of only top quality materials, this Cat5e Patch Cord delivers reliable performance and is backed by our Lifetime Warranty.

100% Copper - a better value

StarTech.com Cat5e cables are manufactured using high-quality copper conductors. While many cable manufacturers offer a "cheaper" cable, based on a copper-coated aluminum core, we make no compromises on quality to ensure you receive top value and performance for your network cable investment.

24 AWG Wire

This Cat 5e cable is constructed with 24 gauge copper wire, to support a broad range of Ethernet applications such as Power over Ethernet (PoE). Because we use a high quality copper wire, our cables easily sustain the power required for Power over Ethernet applications, whereas the inferior quality offered by copper-coated aluminum cables may be subject to insufficient power delivery, heat buildup, equipment damage and potentially, fire.

50-micron Gold Connectors

This molded patch cable offers high quality connectors comprised of 50-micron gold, to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

More from the Manufacturer

DETAILS

• Cable Type : Category 5e
• Cable Characteristic : Patch Cable
• Cable Length : 10 ft (3.05 m)
• Connector Type on First End : RJ-45 Network - Male
• Connector Gender on First End : Male
• Connector on First End Details : 1 x RJ-45 Network - Male
• Connector Type on Second End : RJ-45 Network - Male
• Connector Gender on Second End : Male
• Connector on Second End Details : 1 x RJ-45 Network - Male
• Contact Plating : Gold
• Shielding : No
• Jacket Type : CMG
• Device Supported : Network Device,Workstation,Distribution Panel
• American Wire Gauge : 24 AWG
• Features : Molded,Strain Relief,Minimized Near-End Crosstalk (NEXT),PoE,Damage Resistant,Corrosion Resistant,Bend Resistant,Stranded
• Color Family : Green
• Product Color : Green
• Jacket Material : Polyvinyl Chloride (PVC)
• Weight (Approximate) : 3.70 oz (104.89 g)
• Environmentally Friendly : Yes
• Country of Origin : China
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
• Limited Warranty : Lifetime

• Molded RJ45 connectors
• Carefully constructed and tested, to keep Near End Crosstalk (NEXT) well within acceptable limits
• Colored hoods for departmental color coding
• Constructed with top quality components
• High quality 24 AWG copper wire
