MARKETING INFORMATION

The Lenovo ThinkSystem ST650 V3 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

DETAILS

• Number of Processors Supported : 2
• Number of Processors Installed : 1
• Processor Type : Xeon Silver
• Processor Generation : 4th Gen
• Processor Model : 4416+
• Processor Core : Icosa-core (20 Core)
• Processor Speed : 2 GHz
• Cache : 37.50 MB
• Chipset Manufacturer : Intel
• Chipset Model : C741
• Standard Memory : 32 GB
• Maximum Memory Supported : 4 TB
• Memory Technology : TruDDR5
• Memory Clock Speed : 4.80 GHz
• Total Number of Memory Slots : 32
• Number of Occupied Memory Slots : 1
• Error Checking : ECC
• Signal Processing : Registered (Buffered)
• Controller Type : Serial ATA,12Gb/s SAS
• Controller Model : 9350-8i
• RAID Supported : Yes
• Number of Total Expansion Bays : 10
• Number of External 5.25" Bays : 2
• Number of Internal 2.5" Bays : 8
• Number of Media Drive Bays : 2
• Number of SFF Bays : 8
• Hot Swappable Bays : Yes
• Total Number of Expansion Slots : 9
• PCI Express Details : Up to nine PCIe slots, five of which are PCIe 5.0.
• Graphics Memory Capacity : 16 MB
• Ethernet Technology : 10 Gigabit Ethernet
• Total Number of USB Ports : 8
• Number of USB 2.0 Ports : 1
• Network (RJ-45) : Yes
• Number of Network (RJ-45) Ports : 2
• VGA : Yes
• Remote Management : Yes
• Remote Management Controller : XCC Platinum
• Operating System Supported : Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 8.6,Red Hat Enterprise Linux 8.7,Red Hat Enterprise Linux 9.0,Red Hat Enterprise Linux 9.1,SUSE Linux Enterprise Server 15 SP4,Ubuntu 22.04 LTS x64
• Input Voltage : 120 V AC,230 V AC
• Number of Power Supplies Supported : 2
• Number of Power Supplies Installed : 1
• Plug/Connector Type : C13
• Maximum Power Supply Wattage : 750 W
• Hot Swappable Power Supply : Yes
• Package Contents :
  • ThinkSystem ST650 V3 7D7A1005NA Server
  • Power Cord
• Security Features :
  • Power-on password
  • Administrator's password
  • Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR).
• Energy Star : Yes
• Environmentally Friendly : Yes
• Environmental Certification : China Environmental Labeling Program (CELP),Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze),GREENGUARD
• Energy Efficiency Certification : China Energy Conservation Program (CECP),ENERGY STAR 3.0
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Form Factor : Tower
• Rack Height : 4U
• Height : 18.19" (462 mm)
• Width : 6.89" (175 mm)
• Depth : 28.90" (734 mm)
• Weight (Approximate) : 86.20 lb (39100 g)
• Limited Warranty : 3 Year
• Additional Warranty Information :

  Three-year customer-repla

  • With 32 GB memory, improve system performance to execute complex applications
  • RAID provides data reliability, fault tolerance and improves overall performance
  • Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
  • 750 W power supply unit (PSU) fulfills your system's power requirements

  SPECIFICATIONS

  Manufacturer	Lenovo Group Limited
  Manufacturer Part Number	7D7A1005NA
  Manufacturer Website Address	http://www.lenovo.com
  Brand Name	Lenovo
  Product Line	ThinkSystem
  Product Series	ST650 V3
  Product Model	7D7A1005NA

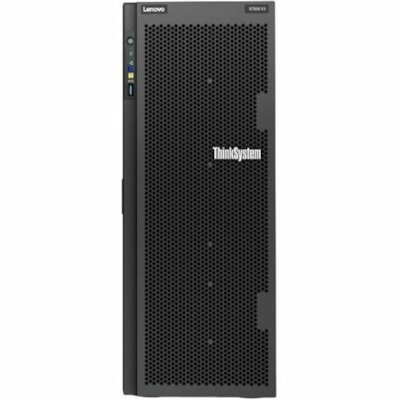

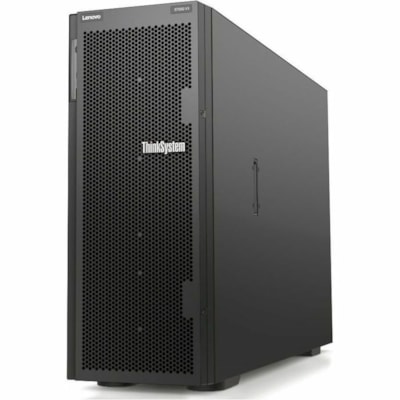

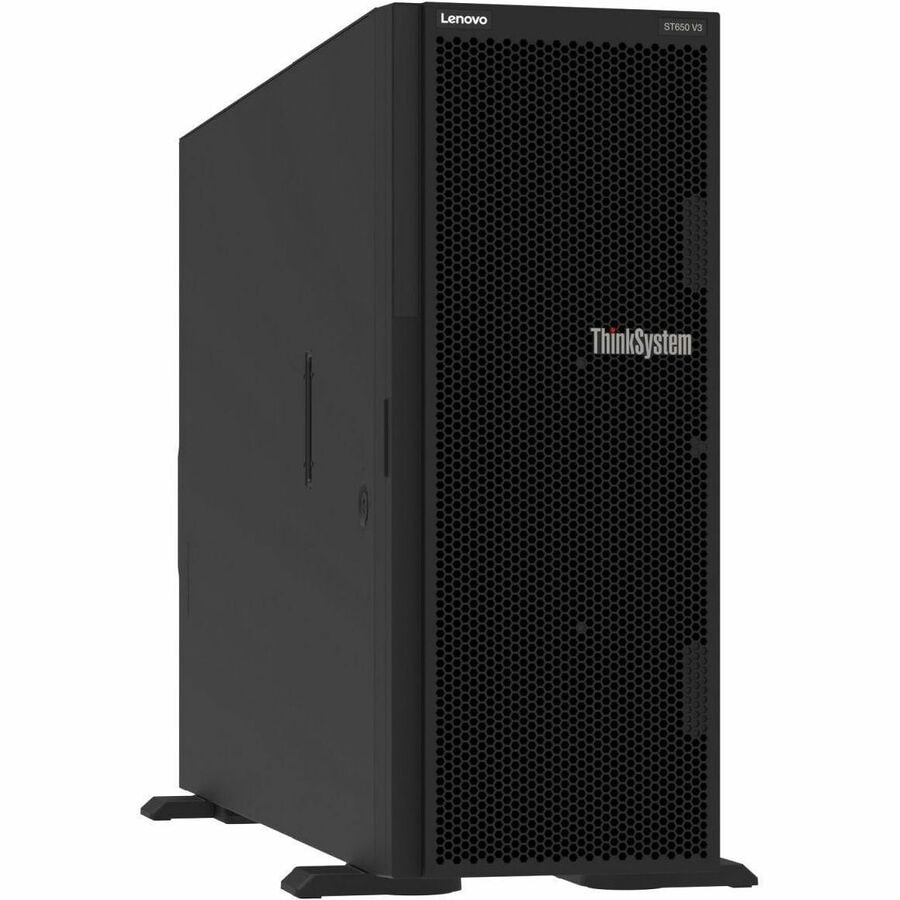

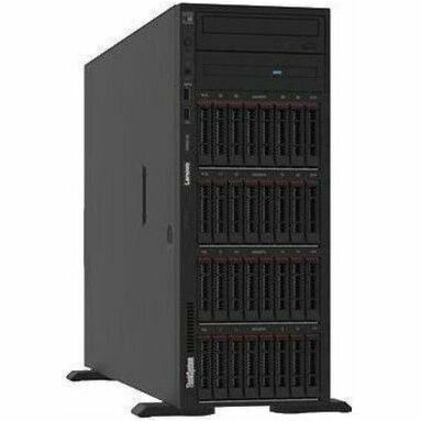

  Product Name	ThinkSystem ST650 V3 7D7A1005NA Server
  Product Type	Server
  Number of Processors Supported	2
  Number of Processors Installed	1
  Processor Type	Xeon Silver
  Processor Generation	4th Gen
  Processor Model	4416+
  Processor Core	Icosa-core (20 Core)
  Processor Speed	2 GHz
  Cache	37.50 MB
  Chipset Manufacturer	Intel
  Chipset Model	C741
  Standard Memory	32 GB
  Maximum Memory Supported	4 TB
  Memory Technology	TruDDR5
  Memory Clock Speed	4.80 GHz
  Error Checking	ECC
  Total Number of Memory Slots	32
  Number of Occupied Memory Slots	1
  Signal Processing	Registered (Buffered)
  Controller Type	Serial ATA
  Controller Type	12Gb/s SAS
  Controller Model	9350-8i
  RAID Supported	Yes
  Number of Total Expansion Bays	10
  Number of External 5.25" Bays	2
  Number of Internal 2.5" Bays	8
  Number of Media Drive Bays	2
  Number of SFF Bays	8
  Hot Swappable Bays	Yes
  Total Number of Expansion Slots	9
  PCI Express Details	Up to nine PCIe slots, five of which are PCIe 5.0.
  Graphics Memory Capacity	16 MB
  Ethernet Technology	10 Gigabit Ethernet
  Total Number of USB Ports	8
  Number of USB 2.0 Ports	1
  Network (RJ-45)	Yes
  Number of Network (RJ-45) Ports	2
  VGA	Yes
  Number of VGA Ports	1
  Remote Management	Yes
  Remote Management Controller	XCC Platinum
  Operating System Supported	Windows Server 2019
  Operating System Supported	Windows Server 2022
  Operating System Supported	Red Hat Enterprise Linux 8.6
  Operating System Supported	Ubuntu 22.04 LTS x64
  Operating System Supported	Red Hat Enterprise Linux 9.0
  Operating System Supported	Red Hat Enterprise Linux 9.1
  Operating System Supported	SUSE Linux Enterprise Server 15 SP4
  Operating System Supported	Red Hat Enterprise Linux 8.7
  Input Voltage	230 V AC
  Input Voltage	120 V AC
  Number of Power Supplies Supported	2
  Number of Power Supplies Installed	1
  Plug/Connector Type	C13
  Maximum Power Supply Wattage	750 W
  Hot Swappable Power Supply	Yes
  Power Source	Power Supply
  Form Factor	Tower
  Rack Height	4U
  Height	18.19" (462 mm)
  Width	6.89" (175 mm)
  Depth	28.90" (734 mm)
  Weight (Approximate)	86.20 lb (39100 g)
  Package Contents	ThinkSystem ST650 V3 7D7A1005NA Server Power Cord
  Security Features	Power-on password Administrator's password Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR).
  Energy Star	Yes
  Environmentally Friendly	Yes
  Environmental Certification	GREENGUARD
  Environmental Certification	China Environmental Labeling Program (CELP)
  Environmental Certification	Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
  Energy Efficiency Certification	China Energy Conservation Program (CECP)
  Energy Efficiency Certification	ENERGY STAR 3.0
  Environmental Compliance	Restriction of Hazardous Substances (RoHS)
  Limited Warranty	3 Year
  Additional Warranty Information	Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
