MARKETING INFORMATION

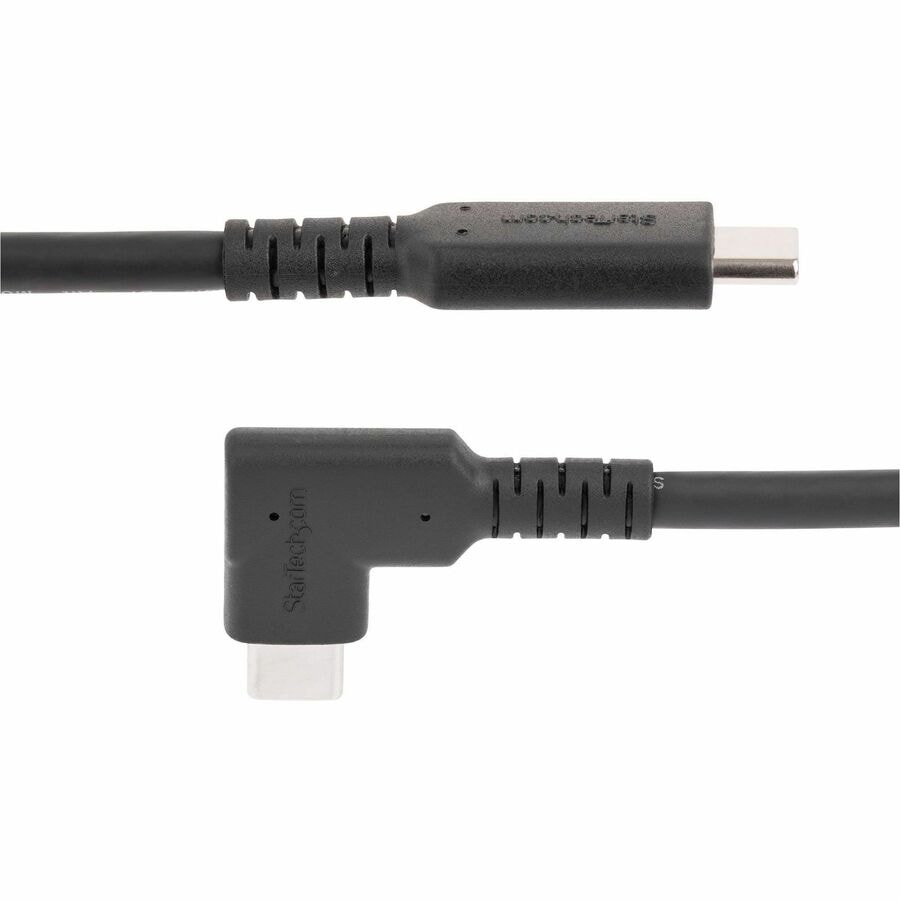

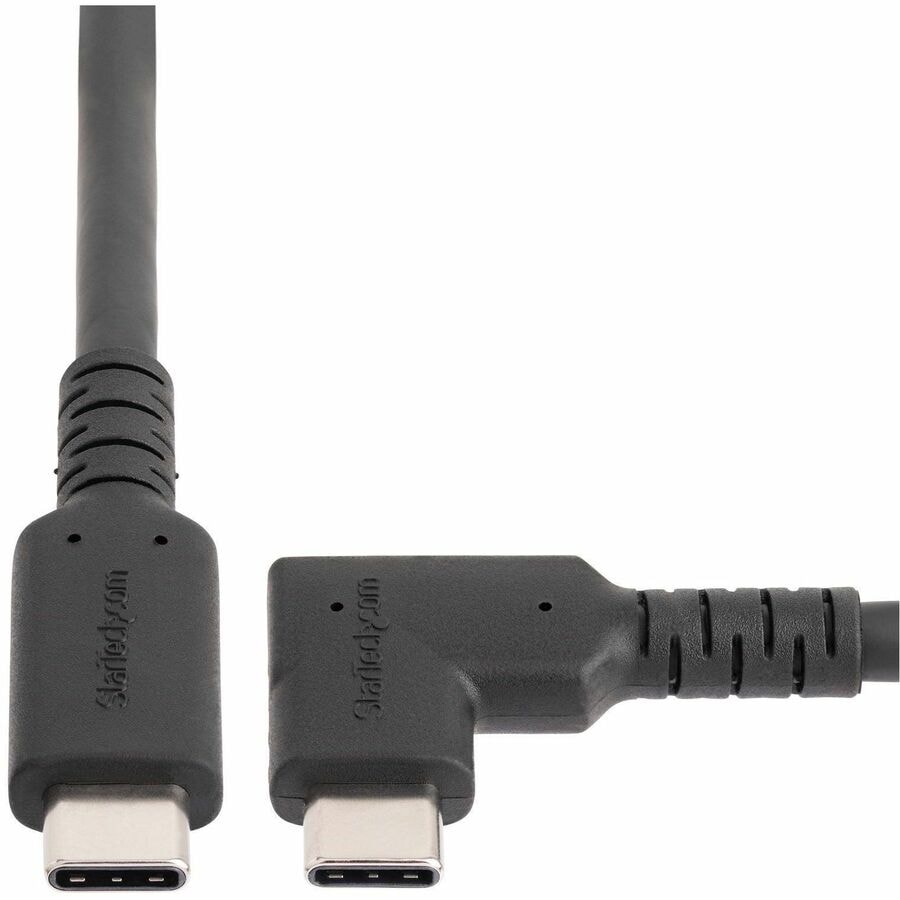

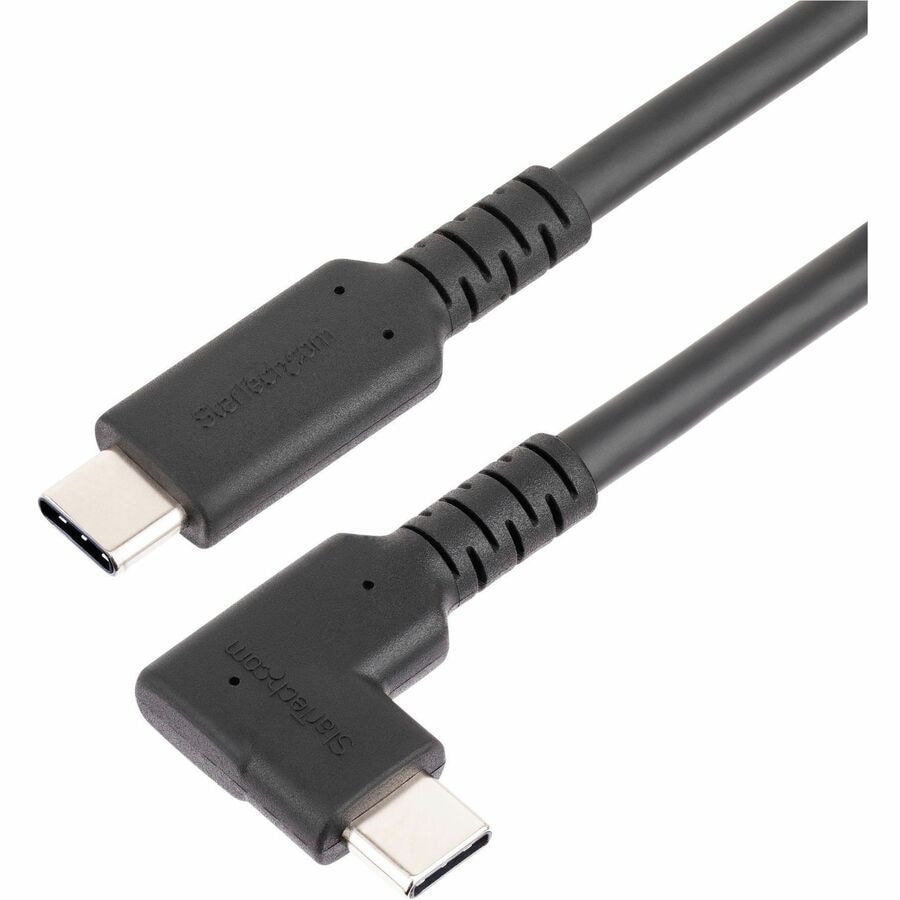

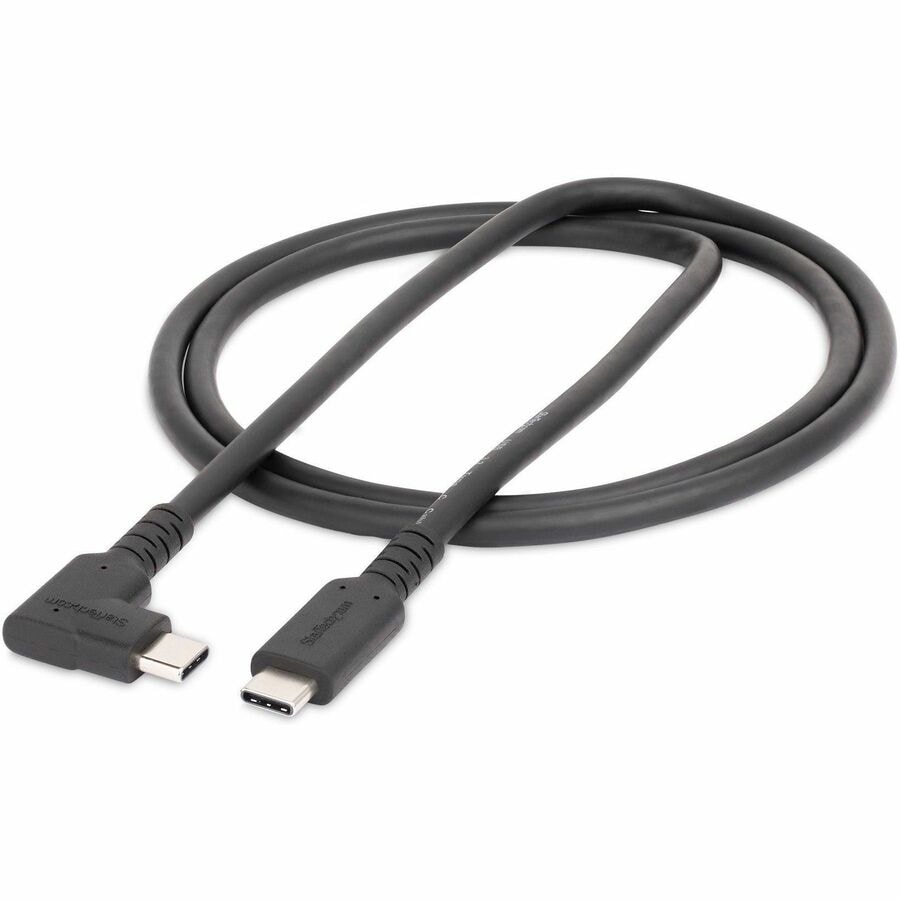

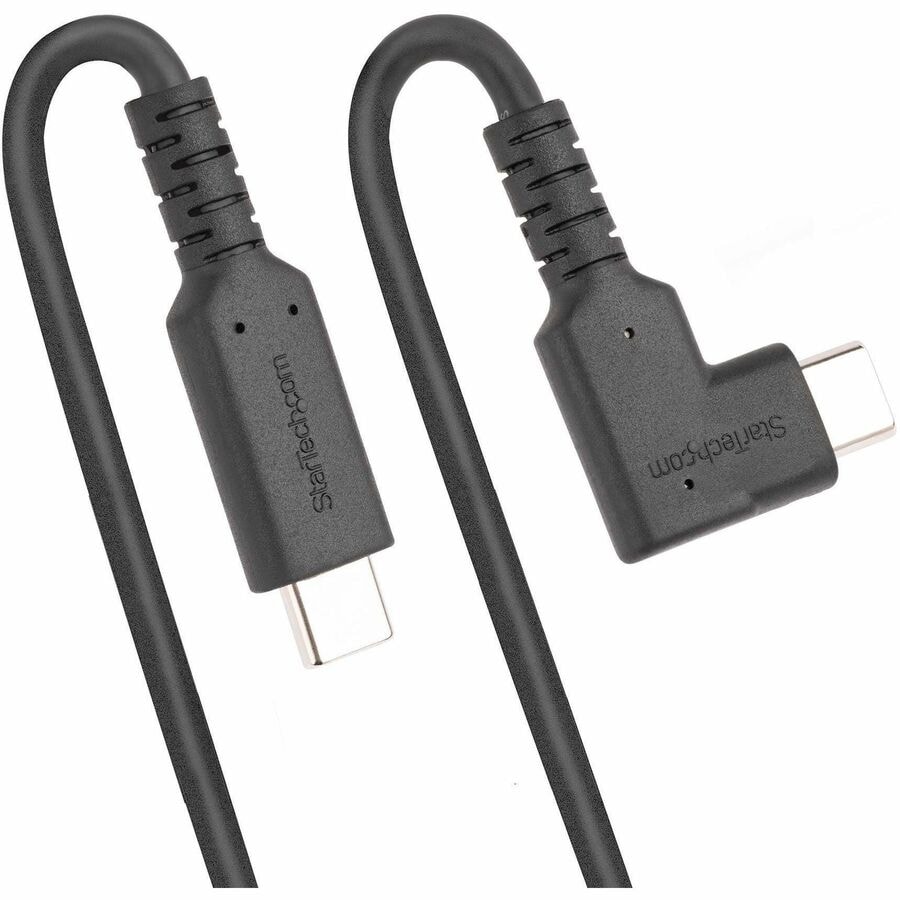

Connect USB 10Gbps source and peripheral devices, using this 3.3ft (1m) Rugged Right Angle USB Type-C Cable. Position the right angle USB-C connection along the device to reduce cable clutter and avoid prolonged strain from bending.

It is ideal for 10Gbps data transfer to external USB-C-enabled external storage devices, or as a single-cable connection from a USB-C dock to a laptop.

Experience 4K Video with DisplayPort 1.2 Alt Mode

The Rugged USB-C cable supports up to 4K 60Hz video over DisplayPort 1.2 Alt Mode, and is compatible with 1080p and lower resolutions.

Enhanced Durability

Designed to withstand heavy use, the USB-C cable features an Aramid fiber core and durable TPE outer jacket. This heavy-duty construction protects against fraying or breakage and resists tangling.

Full-Featured USB-C Power and Data

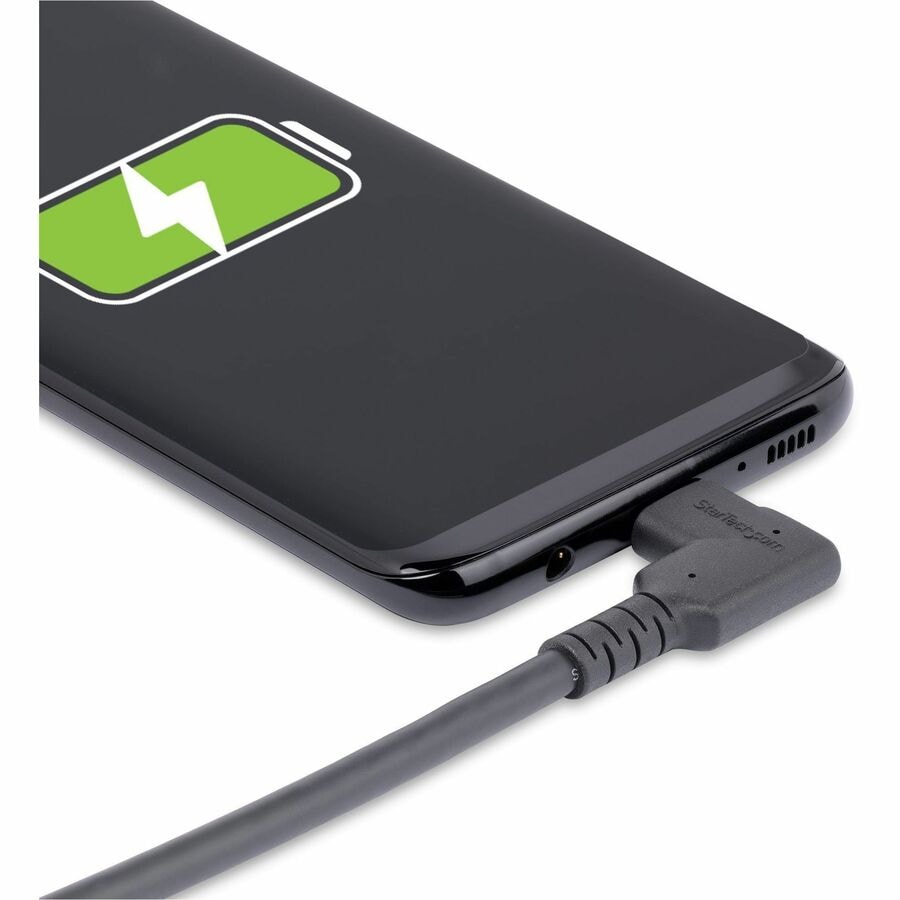

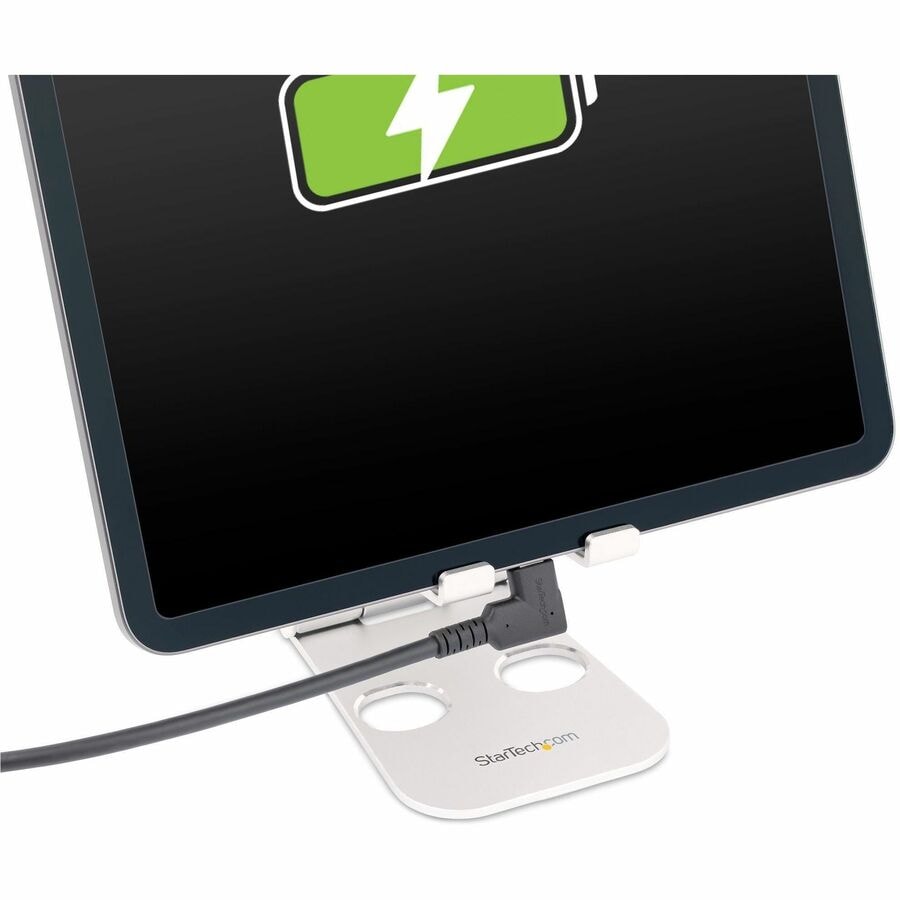

This USB Type-C cable features Power Delivery (PD) 3.0 with up to 100W PD output. Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB-C cable from a laptop to a USB-C wall charger or docking station.

DETAILS

• Cable Type : USB-C
• Cable Length : 3 ft (0.91 m)
• Connector Type on First End : USB 3.2 (Gen 2) Type C - Male
• Connector Gender on First End : Male
• Connector on First End Details : 1 x 24-pin USB 3.2 (Gen 2) Type C - Male
• Connector Type on Second End : USB 3.2 (Gen 2) Type C - Male
• Connector Gender on Second End : Male
• Connector on Second End Details : 1 x 24-pin USB 3.2 (Gen 2) Type C - Male
• Connector Plating : Nickel,Gold
• Device Supported : Notebook,Docking Station,Monitor,MacBook,Wall Charger
• Data Transfer Rate : 10 Gbit/s
• Supported Resolution : 1920 x 1080
• Features : Rugged,Right-angled Connector,DisplayPort Alternate (ALT) Mode,USB- Power Delivery (USB PD),90° Angled Connector,Charging,Strain Resistant,Flexible,Bendable,Wear Resistant,Halogen Free,EMI Protection,Break Resistant,Fray Resistant,Tangle Resistant,Passive
• Color Family : Black
• Product Color : Black
• Product Material : Aramid Fiber
• Shielding Material : Aluminum Mylar Foil
• Jacket Material : Thermoplastic Elastomer (TPE)
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
• Limited Warranty : 2 Year

• RIGHT ANGLE USB CABLE: Rugged USB Type-C Cable features a right angle USB-C connector; Ideal for connecting in tight spaces; 90 degree connector optimizes cable routing without placing unnecessary strain on the connector and device
• DURABLE CONSTRUCTION: The USB-C cable is reinforced with Aramid fiber to enhance flexibility and protection from frequent bending and wear; Robust strain reliefs with 8mm Bend Radius; Nickel-plated connectors rated beyond 10,000 Insertion Cycles
• FULL-FEATURE USB-C: Right angle USB-C cable supports up to 10 Gbps transfer rates, 4K 60Hz DP Alt Mode, and 100W Power Delivery; Universal compatibility between USB-C laptops, docking stations, UHD monitors, and external devices
• THOUGHTFUL DESIGN: Built-in E-Marker chip for consistent data, video, and Power Delivery output; Flexible TPE outer jacket is nontoxic, halogen-free, and RoHS compliant; Aluminum-mylar shield for enhanced EMI protection
• PERFORMANCE: USB 3.2 Gen 2 (10 Gbps); 4K 60Hz DP Alt Mode 1.2; 100W Power Delivery; 3.3ft (1m); Black; 4.8mm O.D.; Dock and charge a USB-C laptop over a single connection; Optimize cable routing to a USB-C device
