MARKETING INFORMATION

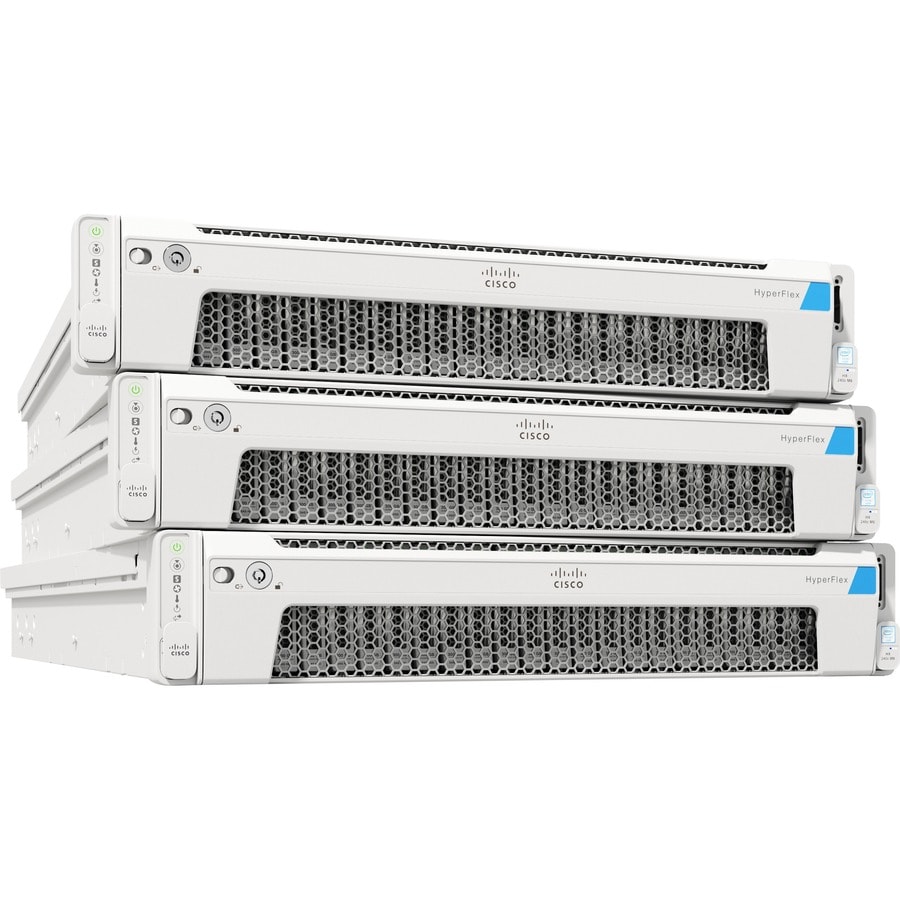

Cisco HyperFlex Edge Systems are optimized for remote sites, branch offices, and edge environments. As a smaller form factor of Cisco HyperFlex, Cisco HyperFlex Edge keeps the full power of a next generation hyperconverged platform even without connecting to Cisco UCS Fabric Interconnects. Cisco HyperFlex Edge Systems support a variable configuration of 2, 3, or 4 HX converged nodes and supports the scale up of CPU, memory, and storage capacity (hot-add additional capacity drives).

The Cisco HyperFlex Edge operates using existing top of rack 1GE or 10/25GE switching with options for both single and dual switch configurations. HyperFlex Edge is typically deployed in environments with a minimal infrastructure footprint, hence the use of UCS compute-only nodes is not supported.

DETAILS

• Number of Processors Supported : 2
• Processor Supported : Xeon Platinum,Xeon Gold,Xeon Silver,Xeon Bronze
• 64-bit Processing : Yes
• Chipset Manufacturer : Intel
• Chipset Model : C621A
• Maximum Memory Supported : 8 TB
• Memory Technology : DDR4 SDRAM
• Memory Standard : DDR4-3200/PC4-25600
• Total Number of Memory Slots : 32
• Intel Optane Memory Ready : Yes
• Optical Drive Type : No
• Controller Type : 12Gb/s SAS
• RAID Supported : Yes
• Graphics Controller Model : G200e
• Graphics Memory Capacity : 8 MB
• Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
• Number of Total Expansion Bays : 24
• Total Number of Expansion Slots : 5
• Total Number of USB Ports : 2
• Number of USB 3.0 Ports : 2
• Number of VGA Ports : 1
• Operating System Supported : Windows Server 2019 Datacenter,Windows Server 2019 Standard
• Input Voltage : 120 V AC,230 V AC
• Plug/Connector Type : C14
• Form Factor : Rack-mountable
• Rack Height : 2U
• Height : 3.42" (86.87 mm)
• Width : 16.90" (429.26 mm)
• Depth : 30" (762 mm)
• Weight (Approximate) : 61.73 lb (28000 g)

• Perform computational tasks effectively accrediting the Xeon Platinum processor
• DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
• Featuring Gigabit Ethernet port for ultra-fast network speeds
• Provides 2 USB ports for responsive and expanded device connections
• 12Gb/s SAS interface for high speed and reliability
