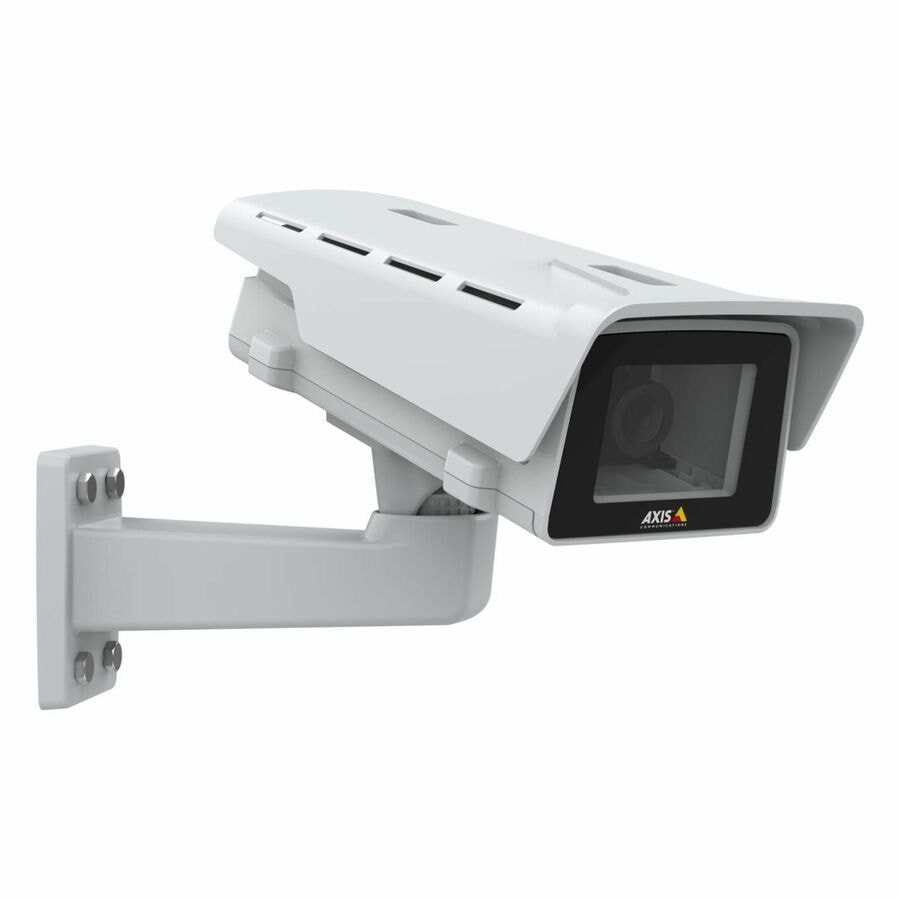

AXIS M1135-E Mk II i-CS 2 Megapixel Outdoor Full HD Network Camera - Color - Box - White - H.265, H.264, Zipstream, H.264B, H.264H, H.264M, Motion JPEG, H.264 (MPEG-4 Part 10/AVC), H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC) - 1920 x 1080 - 3.5 mm (0.14")- 1
02622-001
Also known as SY7098142
DETAILS
- HD Recording : Yes
- Recording Formats : Full HD
- Image Sensor Type : CMOS
- Image Sensor Size : 1/2.9"
- Color Supported : Color
- Field of View : Horizontal field of view: 101°-33° Vertical field of view: 53°-18°
- Effective Camera Resolution : 2 Megapixel
- Video Formats : H.265,H.264,Zipstream,H.264B,H.264H,H.264M,Motion JPEG,H.264 (MPEG-4 Part 10/AVC),H.264B (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC)
- Maximum Video Resolution : 1920 x 1080
- Maximum Frame Rate : 30 fps
- Lens Type : Varifocal
- Minimum Focal Length : 3.5 mm (0.14")
- Maximum Focal Length : 10 mm (0.39")
- Lens Included : Yes
- Lens Mount Type : CS-Mount
- Maximum Aperture : f/1.4
- Optical Zoom : 2.9x
- Shortest Shutter Speed : 1/33500 Second
- Longest Shutter Speed : 2 Second
- Connectivity Technology : Wired
- Remote Management : Yes
- Storage Type : Memory Card
- Network (RJ-45) : Yes
- Power Source Type : PoE,DC
- Color Family : White
- Product Color : White
- Mount Type : Wall Mount
- Form Factor : Box
- Durability : Water Resistant,Corrosion Resistant,Dust Resistant,Impact Resistant
- Weight (Approximate) : 3.97 lb (1800 g)
- Minimum Operating Temperature : -4°F (-20°C)
- Maximum Operating Temperature : 122°F (50°C)
- Maximum Operating Humidity : 100%
- Features : Human Detection,Vehicle Detection,Back Light Compensation (BLC),Highlight Compensation (HLC),HTTPS Encryption,3D Digital Noise Reduction,Noise Reduction,Mirror,Privacy Masking,Automatic White Balance
- Indoor/Outdoor : Outdoor
- Impact Protection Rating : IK10
- Ingress Protection Rating : IP66
- Up to 1920 x 1080 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
SPECIFICATIONS
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02622001 |
| Manufacturer Website Address | http://www.axis.com |
| Brand Name | AXIS |
| Product Series | M11 |
| Product Model | M1135-E Mk II i-CS |
| Product Name | M1135-E Mk II Box Camera |
| Product Type | Network Camera |
| Recording Formats | Full HD |
| HD Recording | Yes |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.9" |
| Color Supported | Color |
| Field of View | Horizontal field of view: 101°-33° Vertical field of view: 53°-18° |
| Effective Camera Resolution | 2 Megapixel |
| Video Formats | H.264H (MPEG-4 Part 10/AVC) |
| Video Formats | H.264M (MPEG-4 Part 10/AVC) |
| Video Formats | H.264B (MPEG-4 Part 10/AVC) |
| Video Formats | H.264 (MPEG-4 Part 10/AVC) |
| Video Formats | H.264M |
| Video Formats | H.264H |
| Video Formats | H.264B |
| Video Formats | Zipstream |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Video Formats | Motion JPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.5 mm (0.14") |
| Maximum Focal Length | 10 mm (0.39") |
| Lens Included | Yes |
| Lens Mount Type | CS-Mount |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 2.9x |
| Shortest Shutter Speed | 1/33500 Second |
| Longest Shutter Speed | 2 Second |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage Type | Memory Card |
| Network (RJ-45) | Yes |
| Power Source Type | DC |
| Power Source Type | PoE |
| Mount Type | Wall Mount |
| Form Factor | Box |
| Durability | Water Resistant |
| Durability | Corrosion Resistant |
| Durability | Dust Resistant |
| Durability | Impact Resistant |
| Color Family | White |
| Product Color | White |
| Weight (Approximate) | 3.97 lb (1800 g) |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 100% |
| Features | HTTPS Encryption |
| Features | 3D Digital Noise Reduction |
| Features | Noise Reduction |
| Features | Human Detection |
| Features | Privacy Masking |
| Features | Automatic White Balance |
| Features | Highlight Compensation (HLC) |
| Features | Back Light Compensation (BLC) |
| Features | Vehicle Detection |
| Features | Mirror |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
