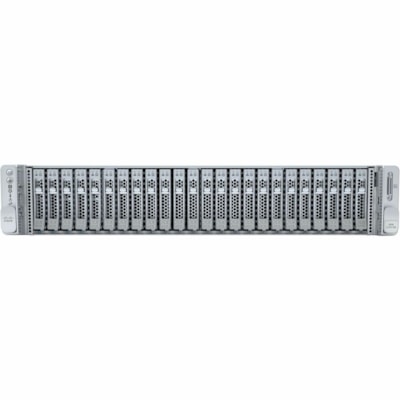

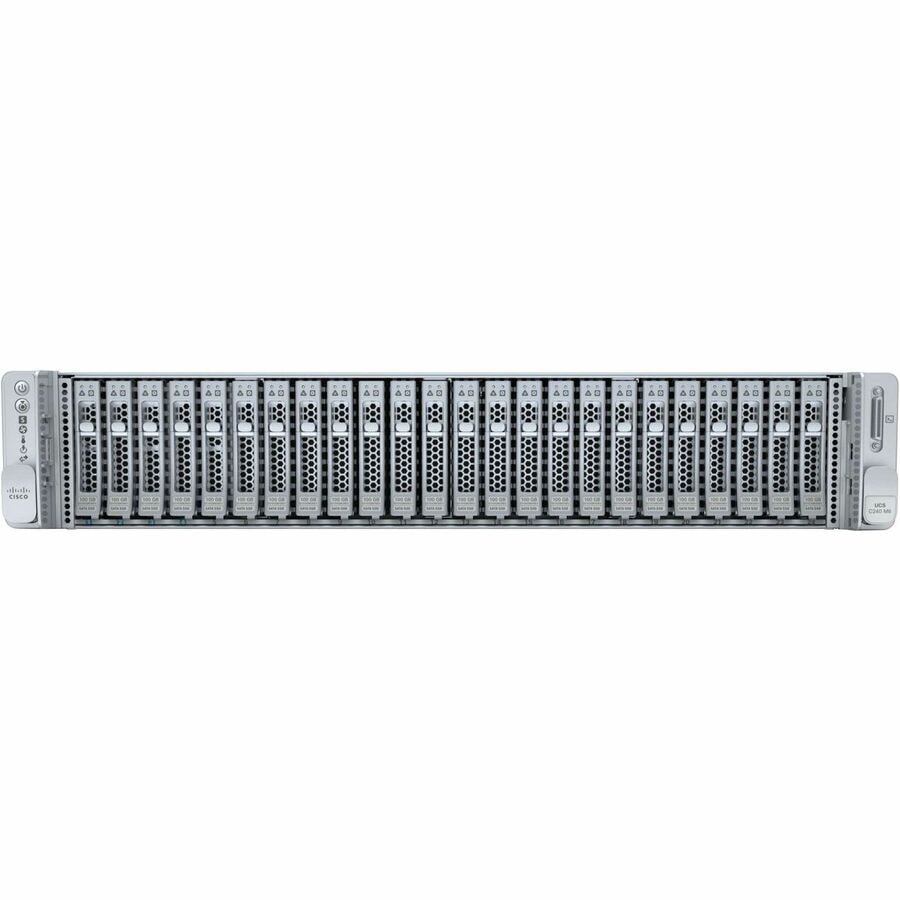

Cisco HyperFlex Server Barebone System - 2U Rack-mountable - 2 x Processor Support - Intel C621A Chip - 3 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - Serial Attached SCSI (SAS), Serial ATA Controller - G200e 8 MB Graphic(s) - Network (RJ-45) - Processor Support (Xeon Gold, Xeon Silver, X
HXAF240C-M6SN-EXP
Also known as SY7067479
MARKETING INFORMATION
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with' the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.DETAILS
- Number of Processors Supported : 2
- Processor Supported : Xeon Gold,Xeon Silver,Xeon Bronze,Xeon Platinum
- 64-bit Processing : Yes
- Chipset Manufacturer : Intel
- Chipset Model : C621A
- Maximum Memory Supported : 3 TB
- Memory Technology : DDR4 SDRAM
- Memory Standard : DDR4-3200/PC4-25600
- Intel Optane Memory Ready : Yes
- Controller Type : Serial Attached SCSI (SAS),Serial ATA
- Graphics Controller Model : G200e
- Graphics Memory Capacity : 8 MB
- Ethernet Technology : 10 Gigabit Ethernet,Gigabit Ethernet
- Number of Total Expansion Bays : 24
- Total Number of Expansion Slots : 8
- Total Number of USB Ports : 4
- Number of USB 3.0 Ports : 2
- Network (RJ-45) : Yes
- Number of Network (RJ-45) Ports : 3
- Number of VGA Ports : 2
- Operating System Supported : Windows Server 2019 Datacenter,Windows Server 2019 Standard
- Input Voltage : 120 V AC,230 V AC
- Form Factor : Rack-mountable
- Rack Height : 2U
- Height : 3.42" (86.87 mm)
- Width : 16.90" (429.26 mm)
- Depth : 30" (762 mm)
- Limited Warranty : 3 Year
- Compatible Xeon Gold processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Connect USB-enabled devices via 4 USB ports
- Serial Attached SCSI (SAS) interface provides quick data transfer and greater throughput
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HXAF240CM6SNEXP |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Name | HyperFlex HX240C M6 Barebone System |
| Product Type | Server Barebone System |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Gold |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Intel Optane Memory Ready | Yes |
| Supported Storage Drive Interfaces | Serial ATA |
| Supported Storage Drive Interfaces | SAS |
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Types | SSD |
| Controller Type | Serial ATA |
| Controller Type | Serial Attached SCSI (SAS) |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Bays | 24 |
| Total Number of Expansion Slots | 8 |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of VGA Ports | 2 |
| Operating System Supported | Windows Server 2019 Standard |
| Operating System Supported | Windows Server 2019 Datacenter |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.42" (86.87 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 30" (762 mm) |
| Limited Warranty | 3 Year |
