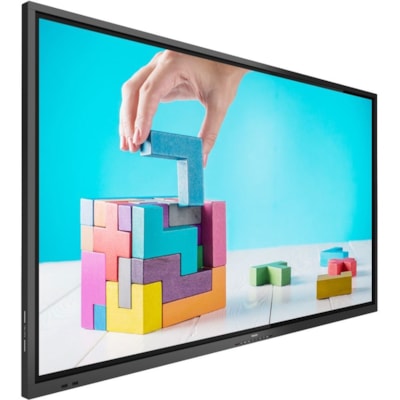

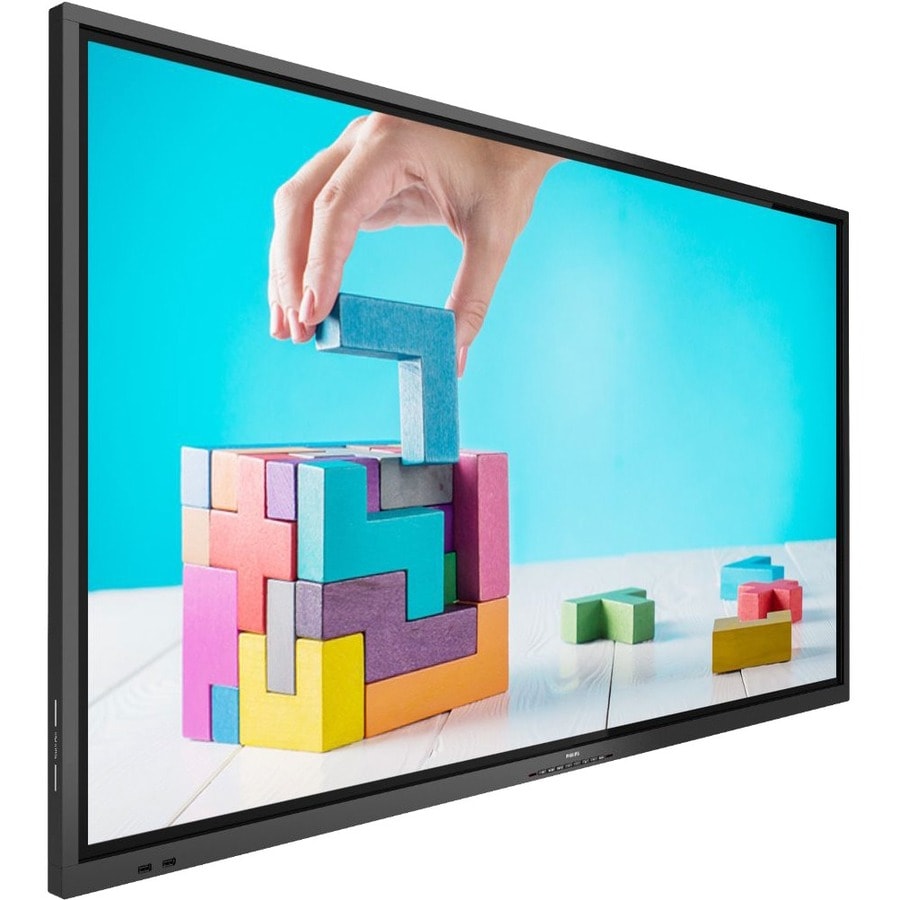

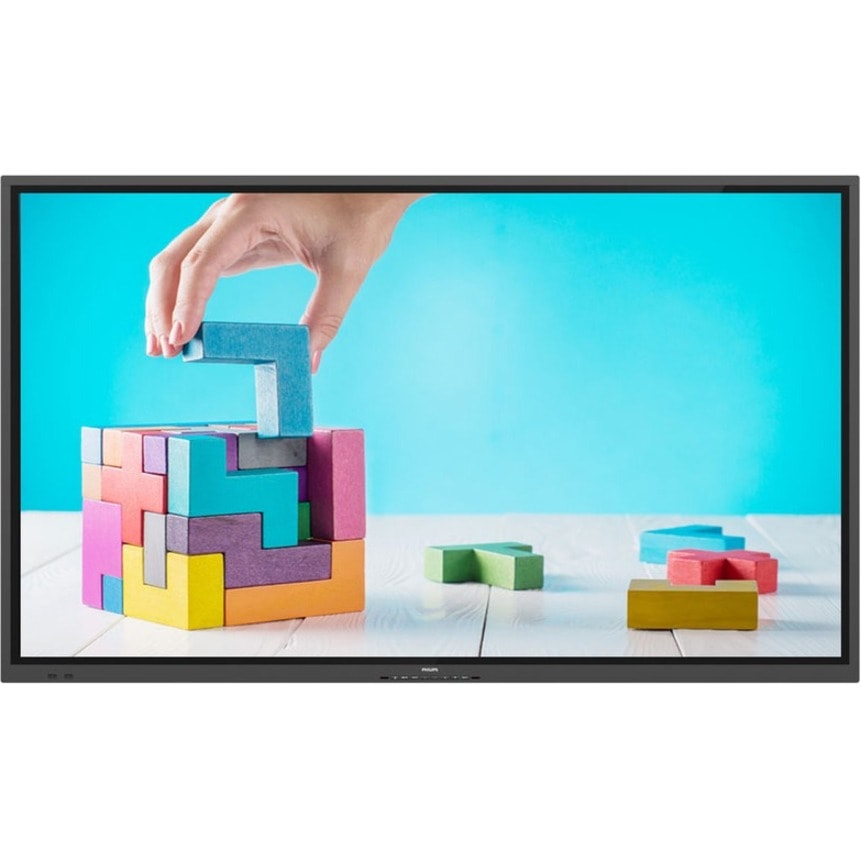

Philips Signage Solutions E-Line Display - 74.50" (1892.30 mm) LCD - Touchscreen Cortex A53 - 3 GB DDR3 SDRAM - 3840 x 2160 - 350 cd/m² - 2160p - HDMI - USB - DVI - SerialEthernet - Android 8.0 Oreo
75BDL3052E/00
Also known as SY6917400
MARKETING INFORMATION
Interactive education display | Featuring multi-touch technology
- 75"
- Powered by Android
- Multi-touch
OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
Operate, monitor and maintain with CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
Android: Run your own app or choose your favorite app to run
WIth Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto orientation feature, showing content in portrait or landscape is as simple as turning the display.
Multi-touch technology capable of 20 touchpoints
Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality, and retail settings. The touch panel is HID compliant, providing true plug-and-play operation.
Whiteboard mode built-in
Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on screen can then be captured for easy printing or file sharing.
DETAILS
- Bezel Width (Top) : 0.70" (17.80 mm)
- Bezel Width (Bottom) : 1.25" (31.70 mm)
- Bezel Width (Left) : 0.70" (17.80 mm)
- Bezel Width (Right) : 0.70" (17.80 mm)
- Processor Type : Cortex A53
- 2nd Processor Type : Cortex A73
- Standard Memory : 3 GB
- Memory Technology : DDR3 SDRAM
- Number of Screens : 1
- Viewable Screen Size : 74.50" (1892.30 mm)
- Display Screen Type : LCD
- Multi-touch Screen : Yes
- Touchscreen : Yes
- Display Resolution : 3840 x 2160
- Graphics Controller Model : Mali G51
- Scan Format : 2160p
- Brightness : 350 cd/m²
- Ethernet : Yes
- USB : Yes
- DVI : Yes
- HDMI : Yes
- Serial : Yes
- Number of USB 2.0 Ports : 4
- Number of HDMI Inputs : 3
- Number of DVI Ports : 1
- Operating System : Android 8.0 Oreo
- Input Voltage : 120 V AC,230 V AC
- VESA Mount Standard : 600 x 400
- Mount Type : Wall Mountable
- Height : 39.67" (1007.60 mm)
- Width : 67.54" (1715.50 mm)
- Depth : 4" (101.50 mm)
- Weight (Approximate) : 122.95 lb (55770 g)
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- Experience luminescent visual images with LCD display
- Features a 4k Ultra HD 3840 x 2160 resolution
- Features 3840 x 2160 resolution and 2160p scan format for producing sharp and bright images
SPECIFICATIONS
Manufacturer | Philips Electronics |
Manufacturer Part Number | 75BDL3052E/00 |
Manufacturer Website Address | http://www.philips.com |
Brand Name | Philips |
Product Line | E-Line |
Product Model | 75BDL3052E |
Product Name | Signage Solutions E-Line Display |
Product Type | Digital Signage Display |
Bezel Width (Bottom) | 1.25" (31.70 mm) |
Bezel Width (Top) | 0.70" (17.80 mm) |
Bezel Width (Left) | 0.70" (17.80 mm) |
Bezel Width (Right) | 0.70" (17.80 mm) |
Processor Type | Cortex A53 |
2nd Processor Type | Cortex A73 |
Standard Memory | 3 GB |
Memory Technology | DDR3 SDRAM |
Number of Screens | 1 |
Viewable Screen Size | 74.50" (1892.30 mm) |
Display Screen Type | LCD |
Touchscreen | Yes |
Multi-touch Screen | Yes |
Display Resolution | 3840 x 2160 |
Pixel Pitch | 16.91 mil (0.43 mm) |
Graphics Controller Model | Mali G51 |
Scan Format | 2160p |
Brightness | 350 cd/m² |
Ethernet | Yes |
USB | Yes |
DVI | Yes |
HDMI | Yes |
Serial | Yes |
Number of USB 2.0 Ports | 4 |
Number of HDMI Inputs | 3 |
Number of DVI Ports | 1 |
Operating System | Android 8.0 Oreo |
Input Voltage | 120 V AC |
Input Voltage | 230 V AC |
VESA Mount Standard | 600 x 400 |
Mount Type | Wall Mountable |
Height | 39.67" (1007.60 mm) |
Width | 67.54" (1715.50 mm) |
Depth | 4" (101.50 mm) |
Weight (Approximate) | 122.95 lb (55770 g) |
