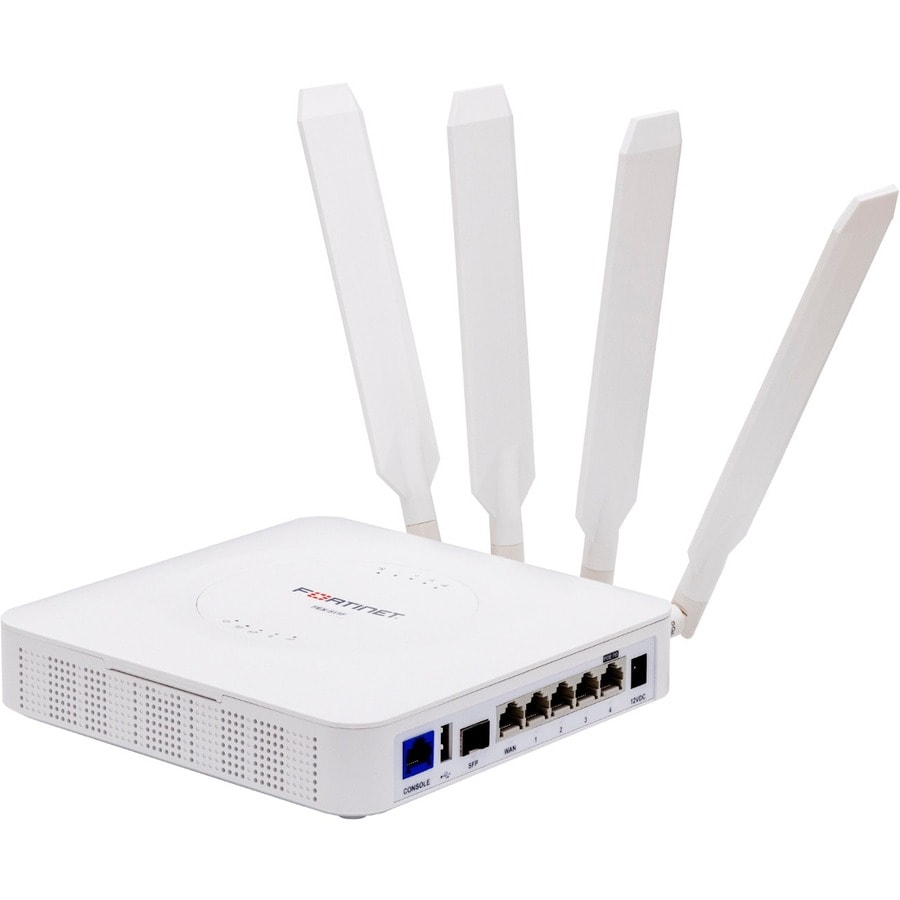

Fortinet FortiExtender FEX-511F 2 SIM Ethernet, Cellular Wireless Router - 5G - HSPA+, LTE, UMTS - Quad Band - 4 x Antenna - 4 x Network Port - 1 x Broadband Port - USB - PoE Ports - Gigabit Ethernet - Desktop, Wall Mountable

FEX-511F
Also known as SY6884862,IM908C1A

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Extend Connectivity and Improve Network Availability

FortiExtender offers scalable, cost-effective, and resilient 5G and LTE solutions. Driven by Fortinet's unique approach of Security-driven networking FortiExtender allows organizations business continuity, improved network availability while securing connectivity with wired broadband and cellular networks.

From secure point of sale (POS) systems to vehicle fleet communication, FortiExtender provides reliable broadband access to the internet and extends the value of the Fortinet Security Fabric to support fluid business operations dependent on remote device connectivity.

Security Fabric Integration

Integration with FortiGate appliances provides a single pane of glass management of the wired and wireless WAN connections and security which reduces Total Cost of Ownership for your WAN and improves manageability of remote connections in your network.

Designed for Optimal Signal Strength

Can be located to maximize 3G/4G/LTE/5G signal strength (via Ethernet up to 100m from the FortiGate appliance or network switch) without using lossy antenna cables or limited strength USB modems.

Simplified Management Options

Manage your FortiExtender from the FortiGate or the cloud. FortiExtender Cloud offers hosted management of an unlimited number of FortiExtenders anywhere in the world.

FEATURES | Superior Management, Security, and Control

FortiExtenders are a true plug-and-play device. Once connected to the FortiGate, they appear as a regular network interface in FortiOS, providing a single pane of glass management. This enables administrators to manage the connection as well as implement complete UTM security and control, just like any other FortiGate interface. In addition, FortiOS will display data quota usage on the wireless WAN interface, providing complete visibility of the connection to ensure costly carrier data limits are not exceeded. The superior management, security, and control of the FortiExtender ultimately reduces the Total Cost of Ownership for your WAN.

Flexible Deployment for Optimal Signal Strength

FortiExtender devices have been engineered to be installed in the best possible location to achieve the maximum 3G/4G/LTE/5G wireless signal strength. The unit is powered using Power over Ethernet, enabling the device to be located for optimal signal strength, even up to 100m away from the FortiGate or Network Switch.

DETAILS

  • Network Band : Quad Band
  • Broadband Transmission Technology : Ethernet,Cellular
  • Cellular Generation : 5G
  • Cellular Data Connectivity Technology : HSPA+,LTE,UMTS
  • Total Number of Antennas : 4
  • Number of Network (RJ-45) Ports : 4
  • USB : Yes
  • PoE (RJ-45) Port : Yes
  • Number of Broadband (RJ-45) Ports : 1
  • Ethernet Technology : Gigabit Ethernet
  • Multi-SIM Supported : Yes
  • Number of SIM Card Supported : 2
  • SIM Size Supported : Micro
  • Form Factor : Desktop,Wall Mountable
  • Height : 1.77" (44.96 mm)
  • Width : 7.09" (180.09 mm)
  • Depth : 7.09" (180.09 mm)
  • Weight (Approximate) : 1.10 lb (498.95 g)
  • Gigabit Ethernet port for ultra-fast wired network speeds
  • Electrical power and data are transmitted using a single cable to devices such as Access Points, IP cameras or IP phones
  • For USB-enabled devices accessibility, the router comes with a built-in USB port

SPECIFICATIONS

Manufacturer Fortinet, Inc
Manufacturer Part Number FEX-511F
Manufacturer Website Address http://www.fortinet.com
Brand Name Fortinet
Product Line FortiExtender
Product Series 200
Product Model FEX-511F
Product Name FortiExtender FEX-511F Wireless Router
Product Type Wireless Router
Network Band Quad Band
Broadband Transmission Technology Ethernet
Broadband Transmission Technology Cellular
Cellular Generation 5G
Cellular Data Connectivity Technology UMTS
Cellular Data Connectivity Technology LTE
Cellular Data Connectivity Technology HSPA+
Total Number of Antennas 4
Number of Network (RJ-45) Ports 4
USB Yes
PoE (RJ-45) Port Yes
Number of Broadband (RJ-45) Ports 1
Ethernet Technology Gigabit Ethernet
Multi-SIM Supported Yes
Number of SIM Card Supported 2
SIM Size Supported Micro
Form Factor Wall Mountable
Form Factor Desktop
Height 1.77" (44.96 mm)
Width 7.09" (180.09 mm)
Depth 7.09" (180.09 mm)
Weight (Approximate) 1.10 lb (498.95 g)
