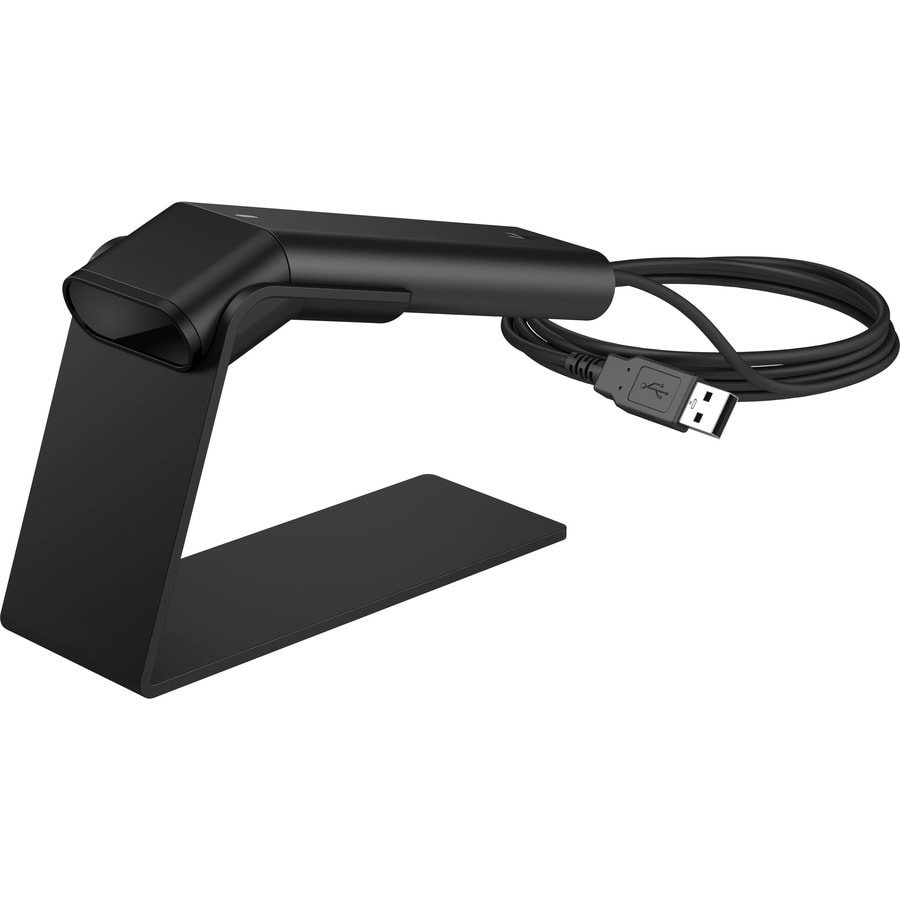

HP Barcode Scanner - 9.80" (248.92 mm) Scan Distance - 1D, 2D - LED - Linear, Imager - USB

638L9AA
Also known as SY6868794,IM271B8K

HP Barcode Scanner - 9.80" (248.92 mm) Scan Distance - 1D, 2D - LED - Linear, Imager - USB ANNER

New! Log in or create an account to see price and availability


DETAILS

  • Scanning Capability : 1D,2D
  • Light Source : LED
  • Image Sensor Type : Linear,Imager
  • Scanning Distance : 9.80" (248.92 mm)
  • Reading Angle (Skew) : 40°
  • Reading Angle (Pitch) : 45°
  • Reading Angle (Roll) : 360°
  • Minimum Print Contrast : 25%
  • Minimum Element Resolution (Code 39) : 5 mil (0.13 mm)
  • Maximum Element Resolution (Code 39) : 10 mil (0.25 mm)
  • Minimum Element Resolution (DataMatrix) : 10 mil (0.25 mm)
  • Maximum Element Resolution (DataMatrix) : 15 mil (0.38 mm)
  • Minimum Element Resolution (PDF417) : 6.70 mil (0.17 mm)
  • Maximum Element Resolution (PDF417) : 10 mil (0.25 mm)
  • Host Interface : USB
  • Height : 2.70" (68.58 mm)
  • Width : 5.70" (144.80 mm)
  • Depth : 3.97" (100.80 mm)
  • Weight (Approximate) : 4.06 oz (115 g)
  • Limited Warranty : 3 Year
  • Additional Warranty Information : Three (3) year limited warranty with advance exchange when purchased from HP. Additional HP Care Pack Services options are available to extend warranty coverage.

SPECIFICATIONS

Manufacturer HP Inc.
Manufacturer Part Number 638L9AA
Manufacturer Website Address http://www.hp.com
Brand Name HP
Product Name Barcode Scanner
Product Type Barcode Scanner
Scanning Capability 2D
Scanning Capability 1D
Barcode Symbology Supported 1D decode symbologies:
  • EAN-8
  • EAN-13
  • UPC-E
  • UPC-A
  • Code 128
  • UCC/EAN 128 I2Of5
  • ITF14
  • ITF6
  • Matrix 25
  • CodaBar Code 39
  • Code 93
  • ISSN ISBN
  • Industrial 25
  • Standard 25
2D decode symbologies:
  • Plessey Code 11
  • MSI Plessey UCC/EAN
  • Composite GS1
  • Databar
  • China Post 25
  • Code 49
  • Code 16K
  • PDF417
  • QR Code Micro
  • QR Data
  • Matrix Aztec
  • Maxicode
  • Chinese Sensible Code
  • GM Code MicroPDF417
  • Code One
Light Source LED
Image Sensor Type Imager
Image Sensor Type Linear
Scanning Distance 9.80" (248.92 mm)
Reading Angle (Skew) 40°
Reading Angle (Pitch) 45°
Reading Angle (Roll) 360°
Minimum Print Contrast 25%
Minimum Element Resolution (Code 39) 5 mil (0.13 mm)
Maximum Element Resolution (Code 39) 10 mil (0.25 mm)
Minimum Element Resolution (DataMatrix) 10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix) 15 mil (0.38 mm)
Minimum Element Resolution (PDF417) 6.70 mil (0.17 mm)
Maximum Element Resolution (PDF417) 10 mil (0.25 mm)
Host Interface USB
Height 2.70" (68.58 mm)
Width 5.70" (144.80 mm)
Depth 3.97" (100.80 mm)
Weight (Approximate) 4.06 oz (115 g)
Compatibility HP Engage One Prime
Limited Warranty 3 Year
Additional Warranty Information Three (3) year limited warranty with advance exchange when purchased from HP. Additional HP Care Pack Services options are available to extend warranty coverage.
