MARKETING INFORMATION

KEY FEATURES

• Ideal for remote office/branch office (ROBO) use and everyday business environments
• Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP

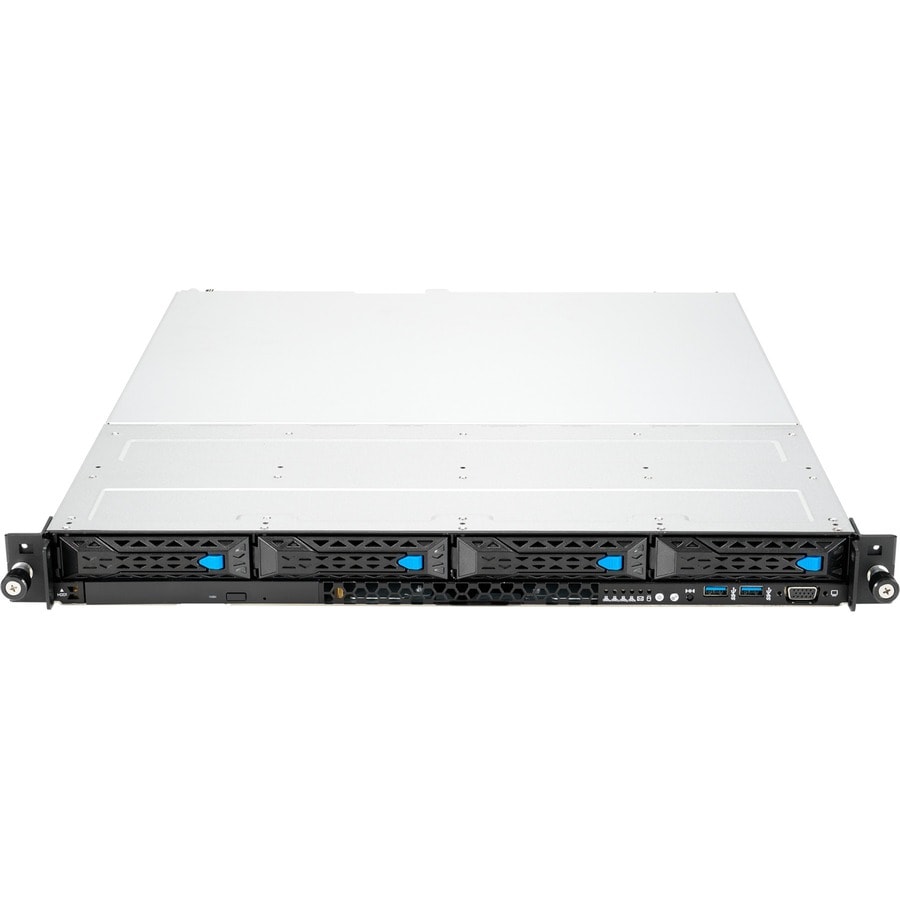

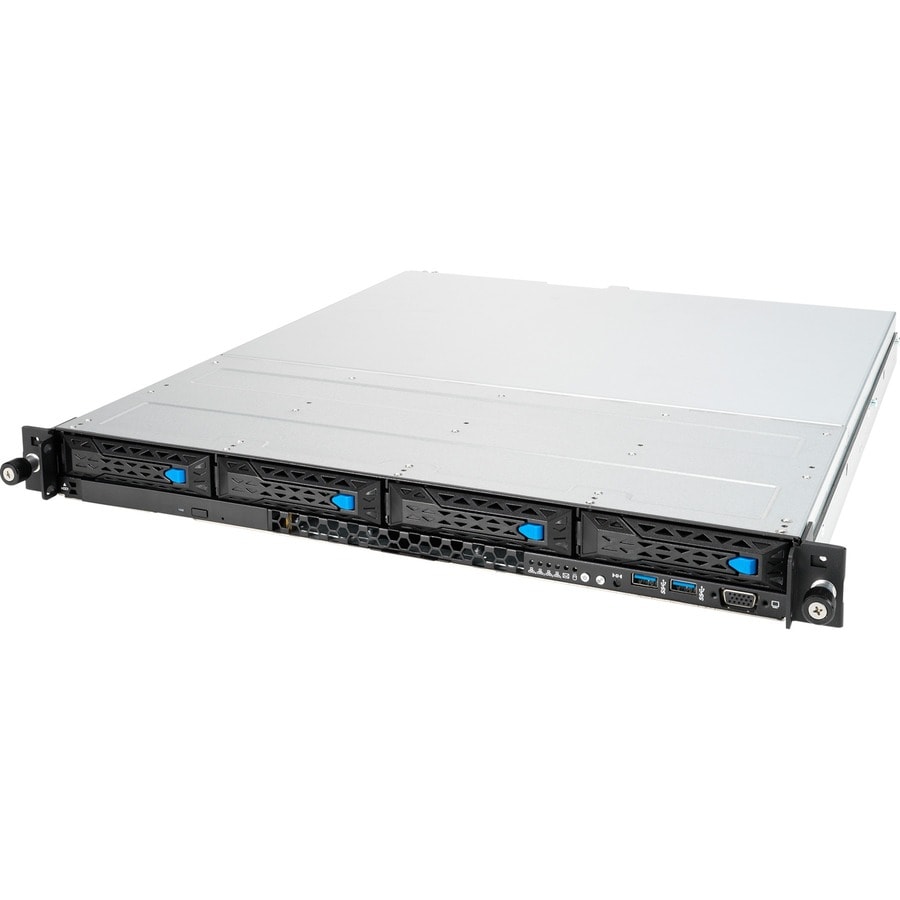

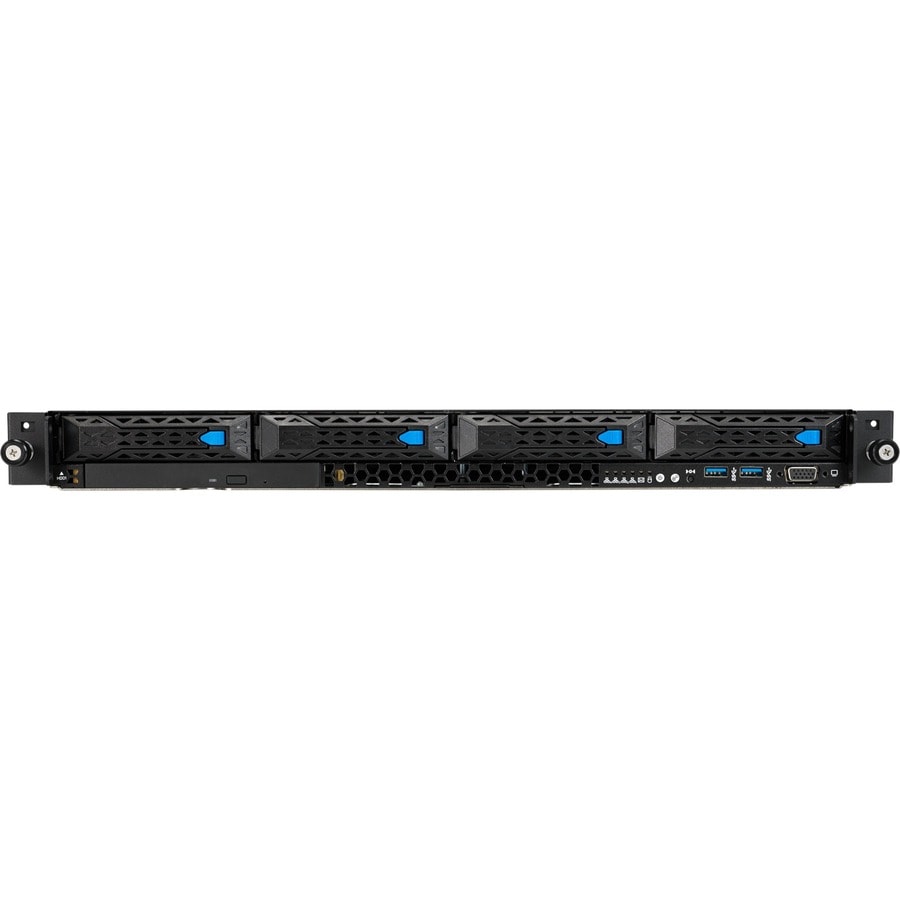

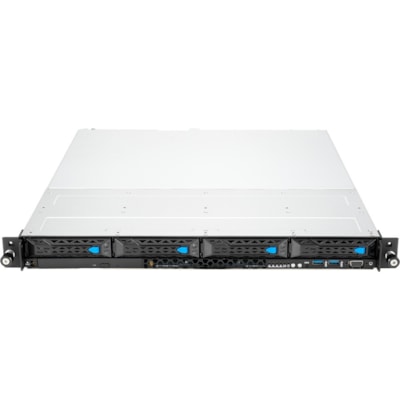

• Four 3.5" or 2.5" hot-swap drives on front panel and one M.2 to enable extensive storage
• Up to two PCIe® 4.0 slots and one PCIe® 3.0 proprietary slot to drive higher bandwidth
• High power efficiency with redundant 450 W 80 PLUS Platinum power supplies
• Dual Intel I210AT Gigabit Ethernet with teaming support
• Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
• Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

Intel Xeon E-2300 processors

Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.

PCIe 4.0 Ready

PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS300-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.

Redundant Platinum PSU support

RS300-E11-RS4 supports redundant 450W 80 PLUS Platinum power supplies, which are 96%+ efficient, directly reducing operating costs and capital expenses. The 1+1 power-supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation.

Enhanced security

ASUS RS300-E11 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

In addition, all RS300-E11 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

High-resolution HDMI monitoring

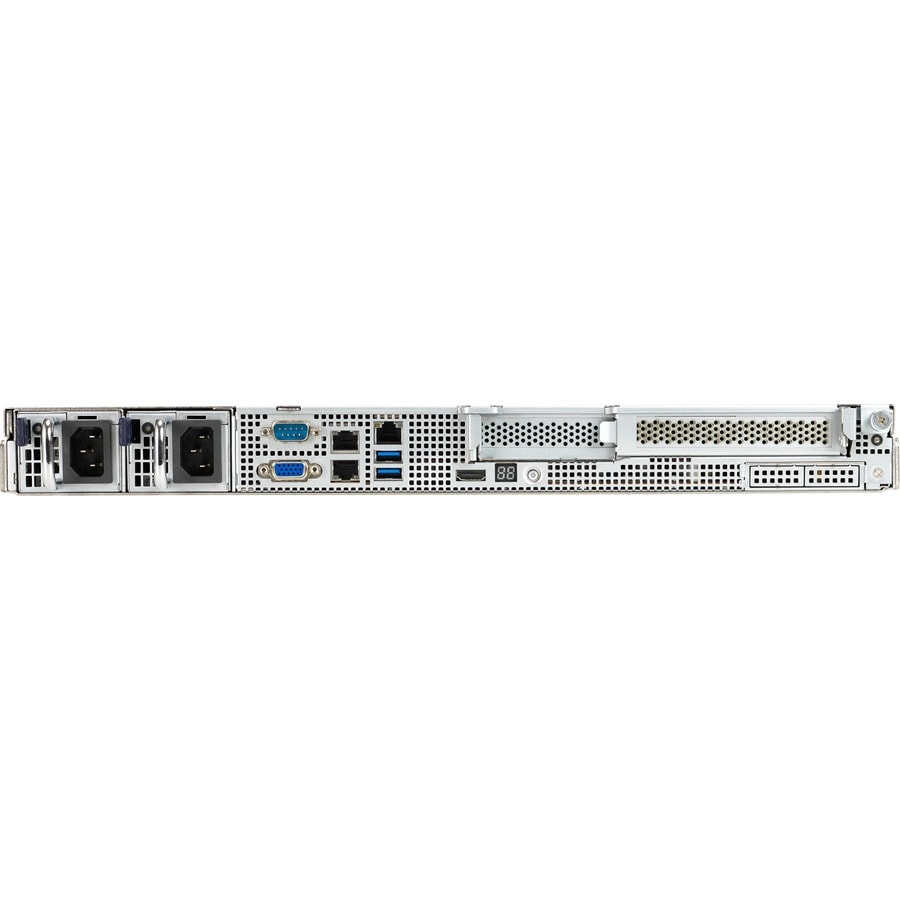

RS300-E11 server features a HDMI 1.4 port directed from CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.

DETAILS

• Number of Processors Supported : 1
• Processor Socket : Socket LGA-1200
• Processor Supported : Xeon,Pentium
• 64-bit Processing : Yes
• Chipset Manufacturer : Intel
• Chipset Model : C252
• Maximum Memory Supported : 128 GB
• Memory Technology : DDR4 SDRAM
• Memory Standard : DDR4-3200/PC4-25600
• Total Number of Memory Slots : 4
• Controller Type : Serial ATA/600
• RAID Supported : Yes
• Graphics Controller Model : AST2600
• Graphics Memory Capacity : 64 MB
• Ethernet Technology : Gigabit Ethernet
• Number of Total Expansion Bays : 5
• Number of External 5.25" Bays : 1
• Number of 3.5" Bays : 4
• Total Number of Expansion Slots : 3
• Number of PCI Express x4 Slots : 1
• Number of PCI Express x8 Slots : 1
• Number of PCI Express x16 Slots : 1
• Total Number of USB Ports : 4
• Number of USB 3.2 Gen 1 Ports : 2
• Number of USB 3.2 Gen 2 Ports : 2
• Number of SATA Interfaces : 6
• Number of VGA Ports : 2
• Input Voltage : 120 V AC,230 V AC
• Number of Power Supplies Installed : 2
• Maximum Power Supply Wattage : 450 W
• Form Factor : Rack-mountable
• Rack Height : 1U
• Height : 1.73" (44 mm)
• Width : 17.30" (439.50 mm)
• Depth : 19.57" (497 mm)
• Weight (Approximate) : 22.71 lb (10300 g)
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 1 Year

• With Intel Pentium processor, experience splendid PC performance; enjoy songs, movies and get your work completed concurrently
• DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
• Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
• Provides 4 USB ports for responsive and expanded device connections
• Serial ATA/600 interface provides quick data transfer and greater throughput
