LG 55'' 500 Nits FHD Slim Bezel Video Wall - 55" (1397 mm) LCD - In-plane Switching (IPS) Technology - 24 Hours/7 Days Operation - 1920 x 1080 - 16:9 - 8 ms - Direct LED - 500 cd/m² - 1080p - HDMI - USB - DVI - SerialEthernet - webOS 4.1 - Black - Energy Star
55VM5J-H
Also known as SY6808406,IM117A7P,DH55VM5JHCA
MARKETING INFORMATION
Artistic Immersion, Overwhelming Captivation | Seamless Large Screens with Extreme-Narrow Bezel

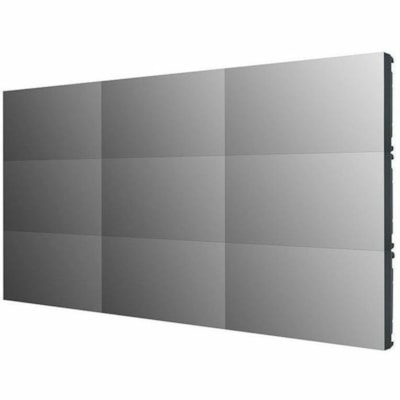

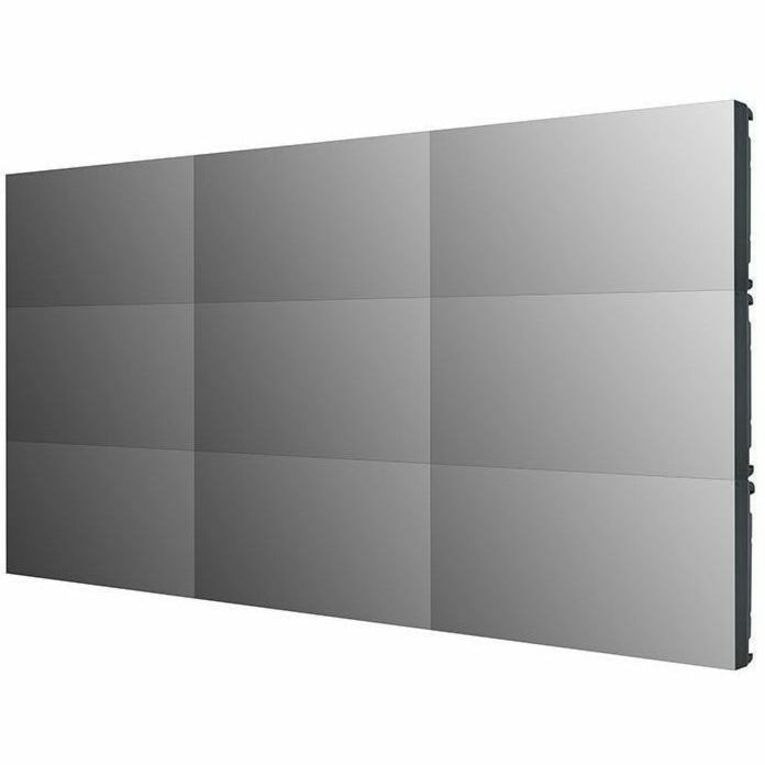

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
Image Gap Reduction

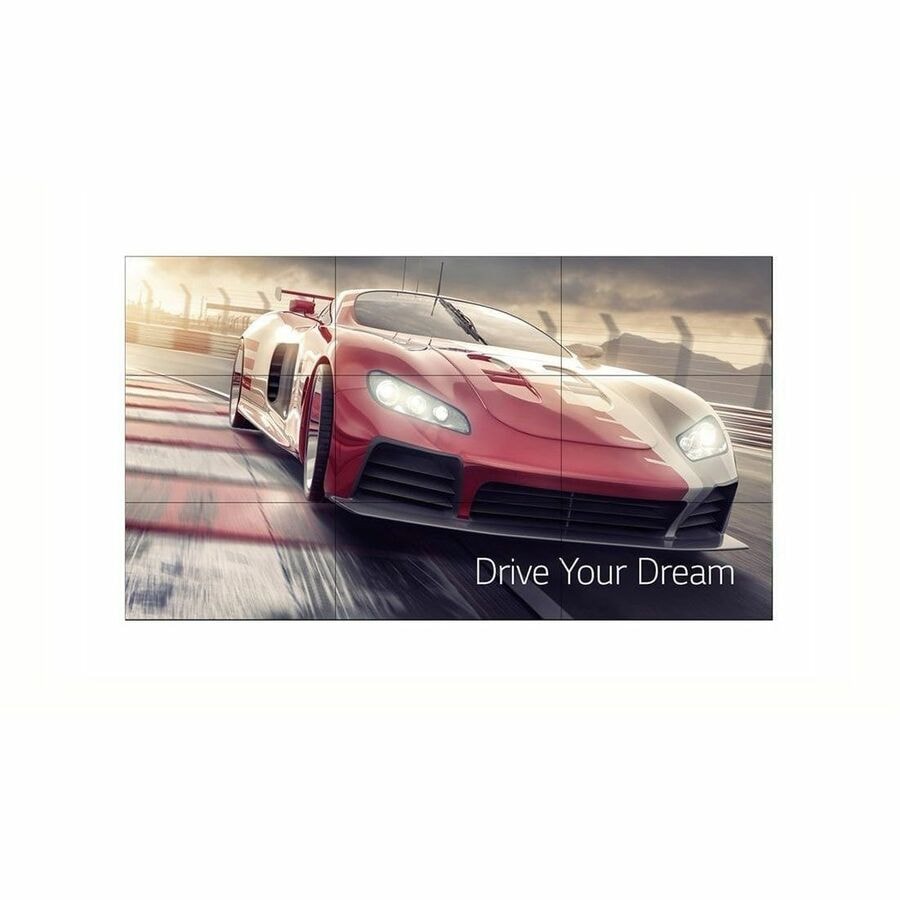

The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40°) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.
Wider Viewing Angle
LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in "full-white" mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.
High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
DETAILS
- Video Wall Compatible : Yes
- Bezel Width : 68.50 mil (1.74 mm)
- Bezel Width (Top) : 68.90 mil (1.75 mm)
- Bezel Width (Bottom) : 29.13 mil (0.74 mm)
- Bezel Width (Left) : 68.90 mil (1.75 mm)
- Bezel Width (Right) : 29.13 mil (0.74 mm)
- Ingress Protection (IP) Rating : IP5X
- Panel Technology : In-plane Switching (IPS) Technology
- Operation Hours : 24 Hours/7 Days
- Number of Screens : 1
- Viewable Screen Size : 55" (1397 mm)
- Display Screen Type : LCD
- Response Time : 8 ms
- Display Resolution : 1920 x 1080
- Orientation : Landscape/Portrait
- Backlight Technology : Direct LED
- Aspect Ratio : 16:9
- Scan Format : 1080p
- Native Contrast Ratio : 1,000:1
- Dynamic Contrast Ratio : 500,000:1
- Brightness : 500 cd/m²
- Color Gamut : 72% NTSC
- Ethernet : Yes
- USB : Yes
- DVI : Yes
- HDMI : Yes
- DisplayPort : Yes
- Audio Line Out : Yes
- Serial : Yes
- Number of USB 2.0 Ports : 1
- Number of HDMI Inputs : 2
- Number of DisplayPorts : 1
- Number of DVI Ports : 1
- RS-232C Input : Yes
- Number of DVI-D Ports : 1
- Operating System : webOS 4.1
- Input Voltage : 120 V AC,230 V AC
- Color Family : Black
- Product Color : Black
- Bezel Color : Black
- VESA Mount Compatible : Yes

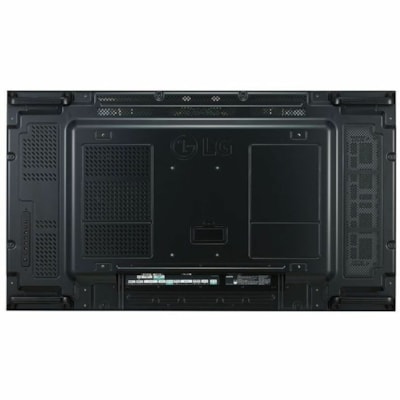

- VESA Mount Standard : 600 x 400
- Height : 26.89" (683 mm)
- Width : 47.72" (1212.20 mm)
- Depth : 3.42" (86.90 mm)
- Weight (Approximate) : 41.40 lb (18778.72 g)
- Minimum Operating Temperature : 32°F (0°C)
- Maximum Operating Temperature : 104°F (40°C)
- Minimum Operating Humidity : 10%
- Maximum Operating Humidity : 80%
- Energy Star : Yes
- Environmentally Friendly : Yes
- Energy Efficiency Certification : ENERGY STAR 8.0
- Energy Efficiency Compliance : Energy-related Products Directive (ErP)
- Brightness(Typ.) : 500 nit
- Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
- Depth : 86.9 mm

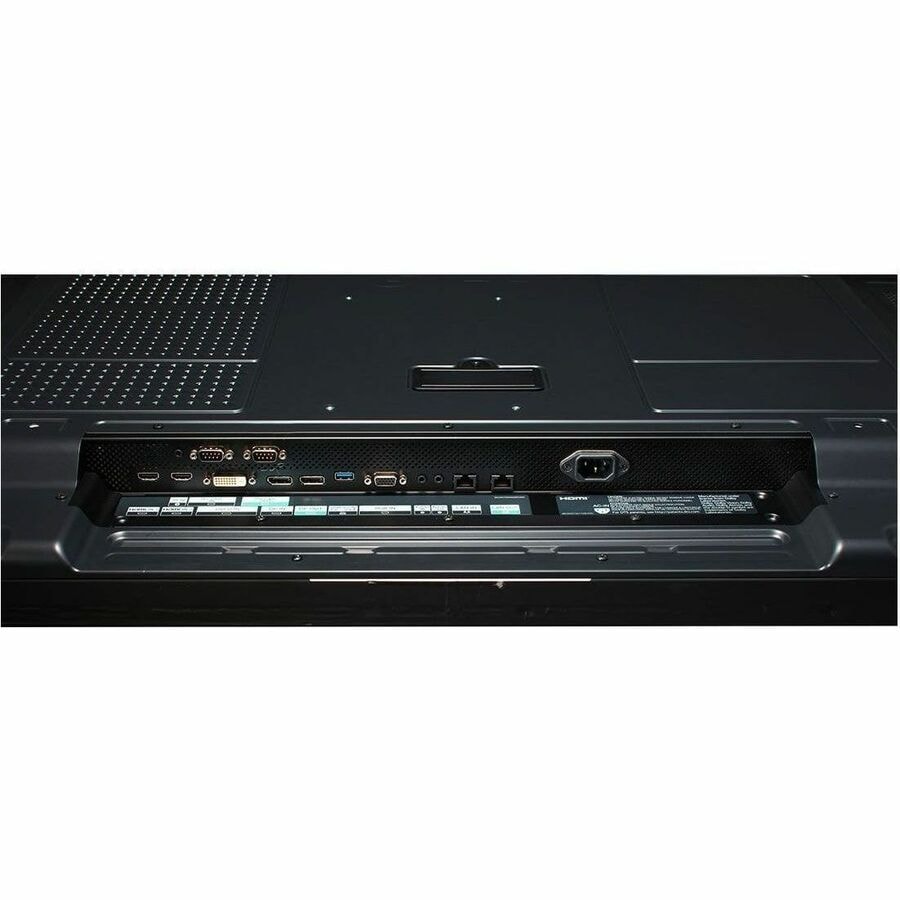

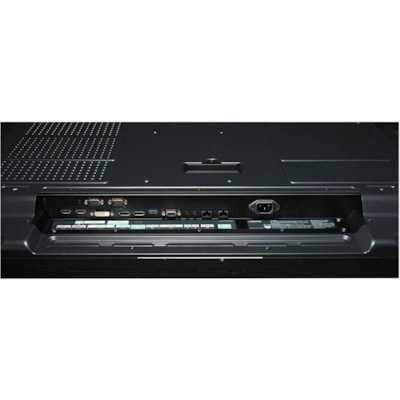

- Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
SPECIFICATIONS
Manufacturer | LG Electronics |
Manufacturer Part Number | 55VM5JH |
Manufacturer Website Address | http://www.lg.com |
Brand Name | LG |
Product Model | VM5J-H |
Product Name | 55'' 500 Nits FHD Slim Bezel Video Wall |
Product Type | Digital Signage Display |
Features | Crestron Inside |
Features | Wake on LAN (WOL) |
Features | Temperature Sensor |
Features | Tile Mode Setting (15 × 15) |
Features | FailOver |
Features | Auto Set ID |
Video Wall Compatible | Yes |
Bezel Width | 68.50 mil (1.74 mm) |
Bezel Width (Bottom) | 29.13 mil (0.74 mm) |
Bezel Width (Top) | 68.90 mil (1.75 mm) |
Bezel Width (Left) | 68.90 mil (1.75 mm) |
Bezel Width (Right) | 29.13 mil (0.74 mm) |
HDCP Version | 2.2 |
Ingress Protection (IP) Rating | IP5X |
Panel Technology | In-plane Switching (IPS) Technology |
Operation Hours | 24 Hours/7 Days |
Number of Screens | 1 |
Viewable Screen Size | 55" (1397 mm) |
Display Screen Type | LCD |
Display Resolution | 1920 x 1080 |
Response Time | 8 ms |
Aspect Ratio | 16:9 |
Backlight Technology | Direct LED |
HDCP Supported | Yes |
Orientation | Landscape/Portrait |
Scan Format | 1080p |
Standard Refresh Rate | 60 Hz |
Dynamic Contrast Ratio | 500,000:1 |
Native Contrast Ratio | 1,000:1 |
Color Depth | 10-bit |
Brightness | 500 cd/m² |
Color Gamut | 72% NTSC |
Ethernet | Yes |
USB | Yes |
USB Standard | USB 2.0 |
DVI | Yes |
HDMI | Yes |
DisplayPort | Yes |
Network (RJ-45) | Yes |
Audio Line In | Yes |
Audio Line Out | Yes |
Serial | Yes |
Number of USB 2.0 Ports | 1 |
Number of HDMI Inputs | 2 |
Number of DisplayPorts | 1 |
Number of DVI Ports | 1 |
Operating System | webOS 4.1 |
RS-232C Input | Yes |
Number of DVI-D Ports | 1 |
DVI-D In | Yes |
DisplayPort In | Yes |
Input Voltage | 230 V AC |
Input Voltage | 120 V AC |
Minimum Operating Temperature | 32°F (0°C) |
Maximum Operating Temperature | 104°F (40°C) |
Minimum Operating Humidity | 10% |
Maximum Operating Humidity | 80% |
Color Family | Black |
Product Color | Black |
Bezel Color | Black |
VESA Mount Compatible | Yes |
VESA Mount Standard | 600 x 400 |
Height | 26.89" (683 mm) |
Width | 47.72" (1212.20 mm) |
Depth | 3.42" (86.90 mm) |
Weight (Approximate) | 41.40 lb (18778.72 g) |
Package Contents | |
Additional Information | Crestron Inside : Yes | W/B Setting by Grey scale : Yes |
Certifications & Standards | Class "B" CE |
Energy Star | Yes |
Environmentally Friendly | Yes |
Energy Efficiency Certification | ENERGY STAR 8.0 |
Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
