MARKETING INFORMATION

Reliable Power Back Up for All IT Equipment Needs

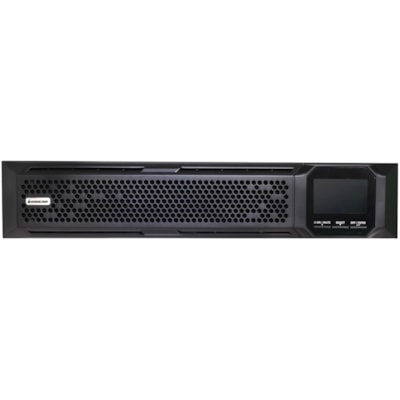

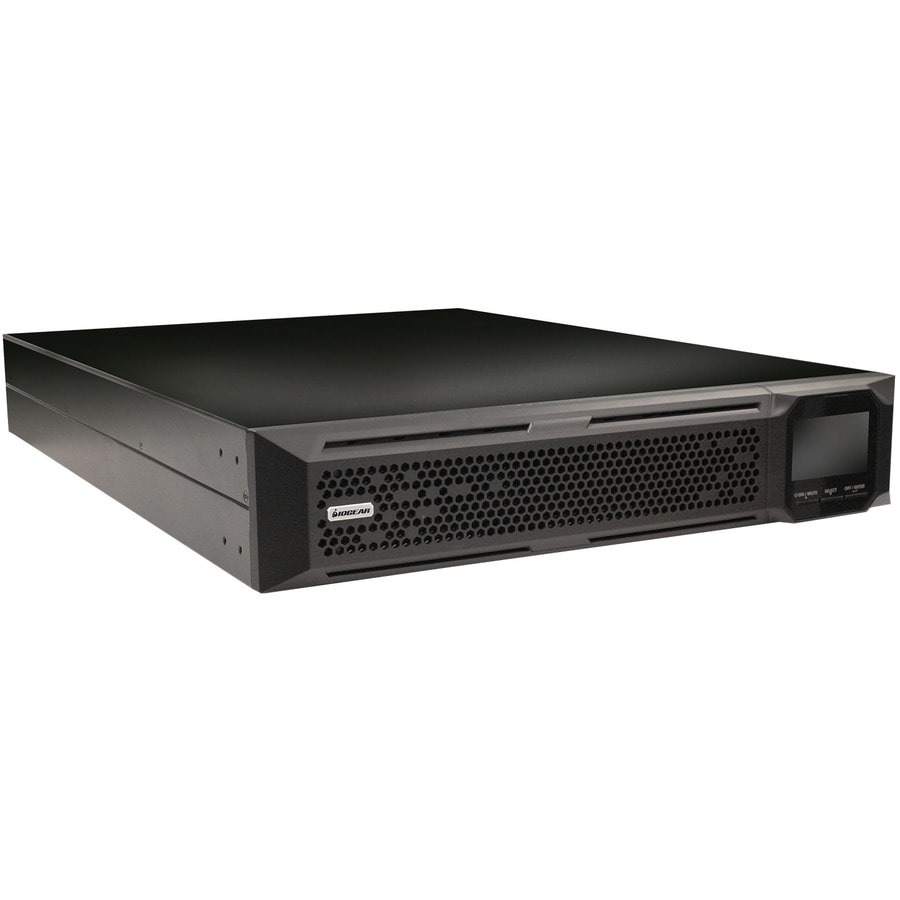

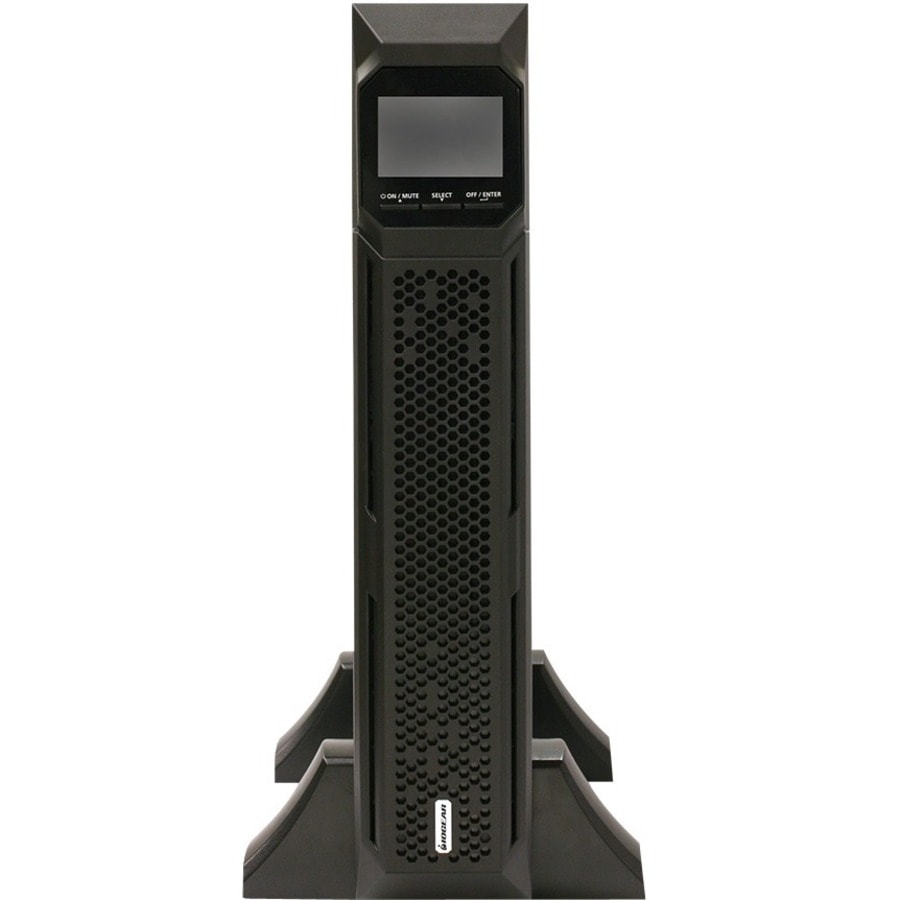

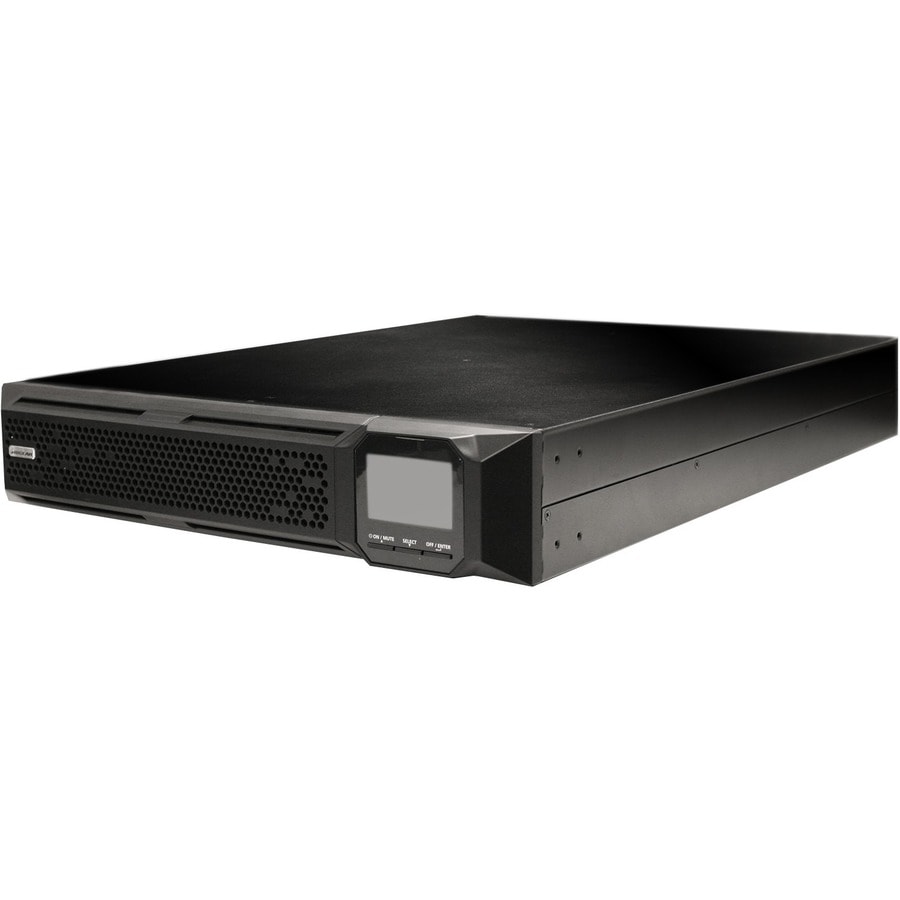

IOGEAR Online UPS Battery Back Up GBB1500N - 1500VA/1430 Watts is a high-performance UPS system with NEMA 5-15P input plug and 8 NEMA 5-15R outlets designed for most server rack configurations that support data, network and communication applications. It utilizes true double conversion with 95% power factor efficiency for all the power supplied by the UPS for critical IT equipment needs and output voltage regulation provides higher performance for critical applications. The rackmount form factor installs use only two rack spaces (2U). It ships with all mounting accessories for a four-post rackmount installation.

Online UPS Battery Design

IOGEAR Online UPS design utilizes true double conversion with 95% power factor efficiency over industry & competitor standards for all the power supplied by the UPS for critical server needs and output voltage regulation provides higher performance for critical applications.

Expandable Power Configurations

IOGEAR Online UPS provides expandable power solutions with External Battery Packs that can be daisy chained to increase system runtime.

Programmable Power Management Outlets

During a power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical applications and devices.

Emergency Power Off function

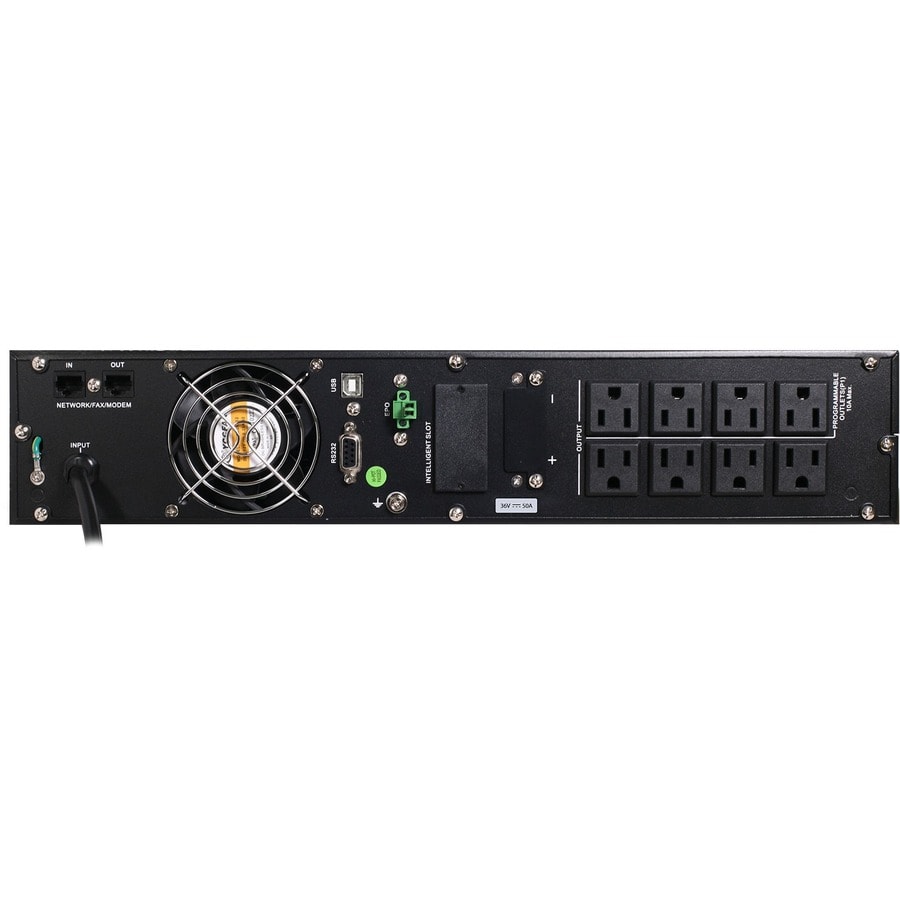

EPO connector at rear panel allows emergency UPS Power Off from a remote location.

SNMP + USB + RS-232 Multiple Communications

Use either USB or RS-232 communication ports to work with SNMP interface simultaneously.

Swappable Battery Design

IOGEAR Online UPS Battery Back Up swappable battery design allows for complete power module exchange without powering down connected equipment.

Efficient Power Modes

IOGEAR Online UPS batteries use ECO Mode to conserve energy and allow up to 97% efficiency cutting energy usage and cost. The unit provides over-voltage cut-off protection and surge immunity by MOV for full-time equipment protection. The Online UPS battery high power factor charging up to 1430W capacity with very low ripple current when charging the battery. The smart battery charger design allows the Online UPS to optimize battery performance by adjusting charging voltage according to outside temperatures and extends the useful service life of batteries.

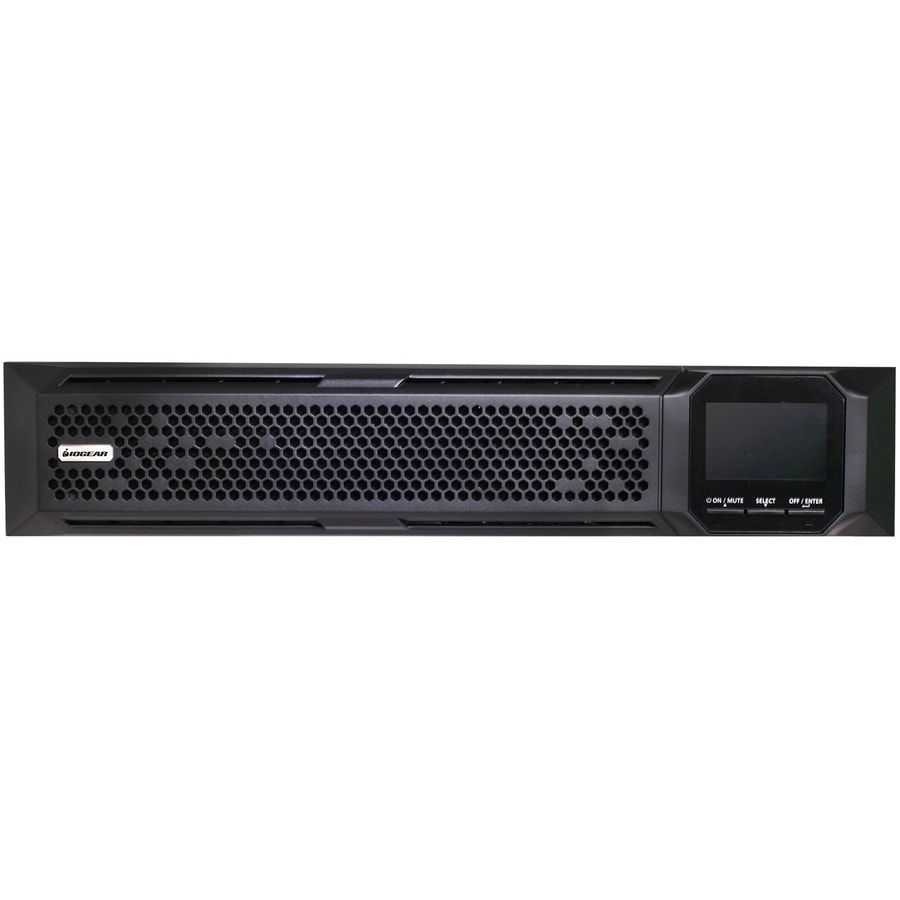

Multi-Functional LCD Interface

IOGEAR Online UPS features multi-function LCD interfaces for displaying detailed information on input voltage, battery capacity, power status, battery status, operating status, assessed backup runtime and more for IT system administrators.

More from the Manufacturer

DETAILS

• Plug/Connector Type : NEMA 5-15P
• Receptacle Type : NEMA 5-15R
• Receptacle Detail : 8 x NEMA 5-15R
• Transfer Time : 0 ns
• Energy Saving : >96%(ECO), >89%(AC), >88%(Batt)
• Application/Usage : IT Equipment
• Load Capacity (VA) : 1.50 kVA
• Load Capacity (Watt) : 1.45 kW
• Input Voltage : 120 V AC
• Input Frequency : 70 Hz
• Output Frequency : 60 Hz
• Waveform Type : Sine Wave
• Network Management : SNMP
• Status Indicators :

  Multi-Functional LCD Interface

• EPO Port : Yes
• USB (HID Compliant) Port : Yes
• DC System Voltage : 36 V DC
• Number of Batteries : 3
• Battery Chemistry : Lead Acid
• Backup/Run Time (Full Load) : 2.96 Minute
• Backup/Run Time (Half Load) : 10.30 Minute
• Hot Swappable : Yes
• Typical Battery Recharge Time : 3 Hour
• Storage Temperature : -4°F (-20°C) - 122°F (50°C)
• Maximum Operating Temperature : 104°F (40°C)
• Height : 3.50" (88.90 mm)
• Width : 17.30" (439.42 mm)
• Form Factor : Tower
• Weight (Approximate) : 32.20 lb (14605.67 g)
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
• Limited Warranty : 3 Year

• True double-conversion - Output power factor is 0.95, which means all of the power supplied is being used for productive work and makes work the most efficient.
• Output voltage regulation < 1% - Provides higher performance and efficiency for critical applications.
• Programmable power management outlets - Users can easily and independently control load segments. During power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical devices.
• Emergency Power Off function (EPO) - EPO connector at rear panel allows emergency UPS Power Off from a remote location.
• SNMP + USB + RS-232 multiple communications - Allows either USB or RS-232 communication ports to work with SNMP interface simultaneously.
