MARKETING INFORMATION

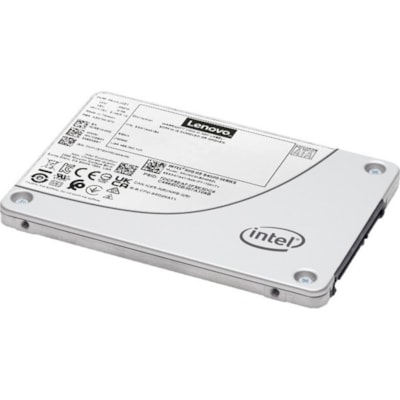

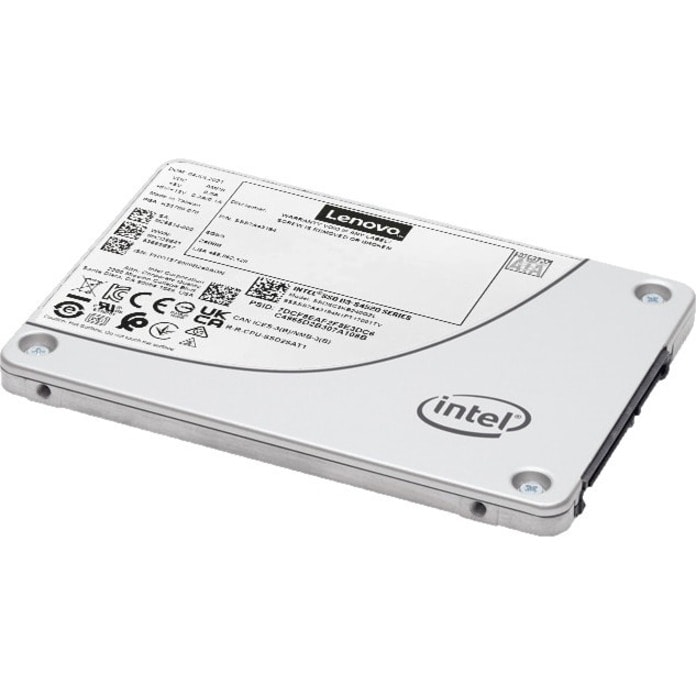

The ThinkSystem S4520 Read Intensive SATA SSDs are advanced 6Gb SATA solid-state drives that use 144-layer Intel 3D NAND TLC Flash Memory technology to provide an affordable solution with industry leading performance.

This product guide provides essential presales information to understand the S4520 SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4520 SSDs and consider their use in IT solutions.

Compared with the S4510 series, these new Read Intensive (Entry) drives offer improved endurance. The S4520 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.

DETAILS

• Storage Capacity : 1.92 TB
• Encryption Standard : 256-bit AES
• Maximum Read Transfer Rate : 550 MB/s
• Maximum Write Transfer Rate : 510 MB/s
• Random 4KB Read : 91000IOPS
• Random 4KB Write : 38000IOPS
• Endurance (DWPD) : 2.5
• Endurance (TBW) : 9011.20 TB
• Endurance Type : Read Intensive
• Wireless LAN : No
• Drive Interface : SATA
• Drive Interface Standard : SATA/600
• Drive Type : Internal
• Form Factor : 2.5"
• Hot Swappable : Yes
• Height : 0.28" (7 mm)
• Width : 2.76" (70 mm)
• Depth : 3.94" (100 mm)
• Device Supported : Server,Storage System

• Store as many documents, pictures and videos as you need with 1.92 TB capacity
• The high-read speed of 550 MB/s maximizes system performance and saves time while you are doing complex tasks
• With the high-write speed of 510 MB/s, get a quick response when updating or transferring files
• Have data stored faster with SATA/600 interface that optimizes burst performance
• With 256-bit AES encryption protect all your valuable data and keep your personal files safe & secure
