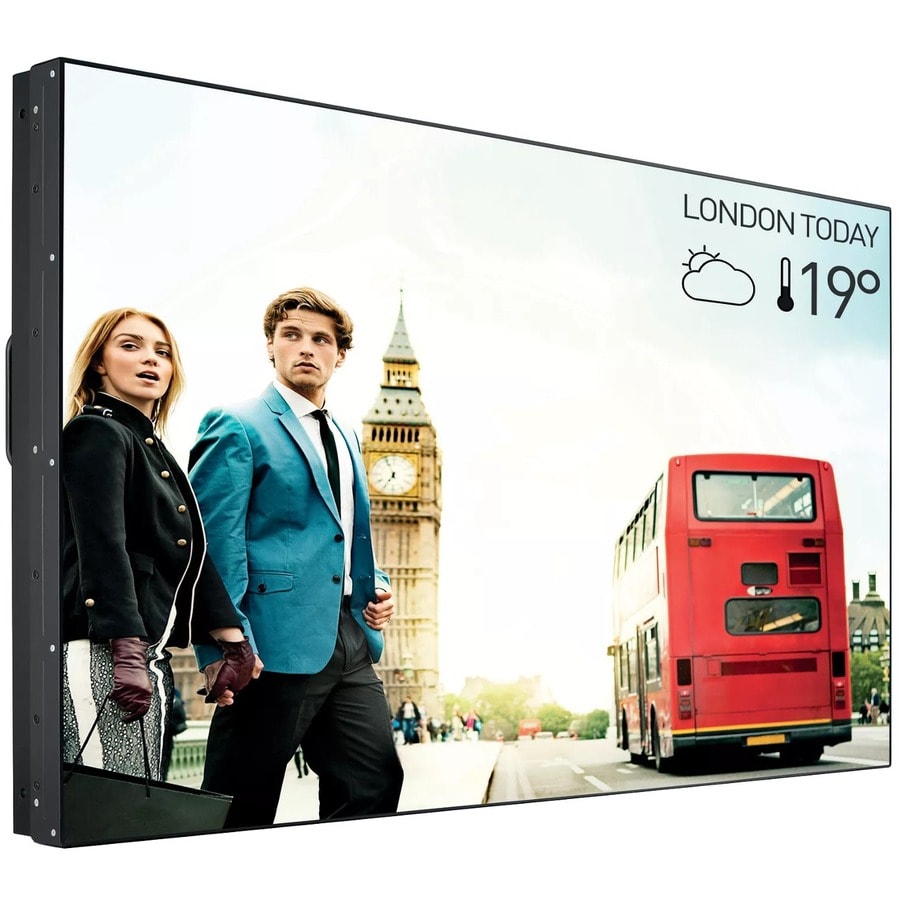

Philips Signage Solutions Video Wall Display - 54.60" (1386.84 mm) LCD - 1920 x 1080 - Direct LED - 700 cd/m² - 1080p - HDMI - USB - DVI - SerialEthernet

55BDL4007X/00
Also known as SY6801597

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Go big | Versatile videowall display.

Command attention with an X-Line professional videowall display. Crisp contrast and slim bezels enable clear, distraction-free imaging. Whether you're running an airport or hosting a conference

Effortless setup. Total control.
  • Operate, monitor and maintain with CMND & Control
  • CMND & Create. Develop and launch your own content
  • Remote system management through CMND
  • Add Android processing power with an optional CRD50 module
Brilliant images. Endless possibilities.
  • Full HD monitors. Brilliant images. Clear contrast
  • IPS panel: rich color consistency from every angle
  • Extra-narrow (1.8 mm) bezels. For distraction-free images
Powerful system solution
  • Energy-saving automatic backlight control
  • FailOver ensures content is always playing
  • OPS slot allows for PC embedding without cabling
  • Tiling mode. Create tiled 4K videowalls of any size
Highlights | CMND

Take control of your Philips Professional Display network. CMND lets you manage, update, maintain, and play via one easy-to-use interface. From installation to daily operation.

CMND & Control

Run your display network over a local (LAN) connection.CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

CMND & Create

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

OPS slot


Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Optional CRD50 module

Embed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

Tiling mode

Connect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you're showing that content on four screens you get the best possible dot-by-dot resolution

DETAILS

  • Video Wall Compatible : Yes
  • Bezel Width : 35.43 mil (0.90 mm)
  • Number of Screens : 1
  • Viewable Screen Size : 54.60" (1386.84 mm)
  • Display Screen Type : LCD
  • Display Resolution : 1920 x 1080
  • Backlight Technology : Direct LED
  • Scan Format : 1080p
  • Dynamic Contrast Ratio : 500,000:1
  • Brightness : 700 cd/m²
  • Ethernet : Yes
  • USB : Yes
  • DVI : Yes
  • HDMI : Yes
  • DisplayPort : Yes
  • Serial : Yes
  • Number of USB 2.0 Ports : 1
  • Number of HDMI Inputs : 2
  • Number of DisplayPorts : 2
  • Number of DVI Ports : 2
  • VESA Mount Standard : 400 x 400
  • Mount Type : Wall Mountable
  • Height : 26.86" (682.20 mm)
  • Width : 47.69" (1211.40 mm)
  • Depth : 3.87" (98.40 mm)
  • Weight (Approximate) : 54.90 lb (24900 g)
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
  • Experience luminescent visual images with LCD display
  • Features full 1920 x 1080 HD resolution enabling sharp and clear images
  • Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
  • Engages your customers and makes their viewing experience breathtaking with its 1080p content
  • Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
  • Direct LED backlight technology for a consistent picture quality from corner to corner
  • Direct LED backlighting technology enabled for a bright and sharp display

SPECIFICATIONS

Manufacturer Philips Electronics
Manufacturer Part Number 55BDL4007X/00
Manufacturer Website Address http://www.philips.com
Brand Name Philips
Product Line X-line
Product Model 55BDL4007X
Product Name Signage Solutions Video Wall Display
Product Type Digital Signage Display
Video Wall Compatible Yes
Bezel Width 35.43 mil (0.90 mm)
Number of Screens 1
Viewable Screen Size 54.60" (1386.84 mm)
Display Screen Type LCD
Display Resolution 1920 x 1080
Pixel Pitch 24.80 mil (0.63 mm)
Backlight Technology Direct LED
Scan Format 1080p
Dynamic Contrast Ratio 500,000:1
Brightness 700 cd/m²
Ethernet Yes
USB Yes
DVI Yes
HDMI Yes
DisplayPort Yes
Serial Yes
Number of USB 2.0 Ports 1
Number of HDMI Inputs 2
Number of DisplayPorts 2
Number of DVI Ports 2
VESA Mount Standard 400 x 400
Mount Type Wall Mountable
Height 26.86" (682.20 mm)
Width 47.69" (1211.40 mm)
Depth 3.87" (98.40 mm)
Weight (Approximate) 54.90 lb (24900 g)
Package Contents
  • Signage Solutions Video Wall Display
  • AC Switch Cover
  • 3 x Gap pad
  • 1 x Kit-1
  • 2 x Kit-2
  • Power Cable ( 3m )
  • 1 X Quick Start Guide
  • Remote Control
  • AAA Batteries
  • RS232 Cable ( 3m )
  • RS232 Daisy-Chain Cable
  • 3 x Wire Clamper
  • 1 x HDMI Cable (1.8 m)
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 3 Year
