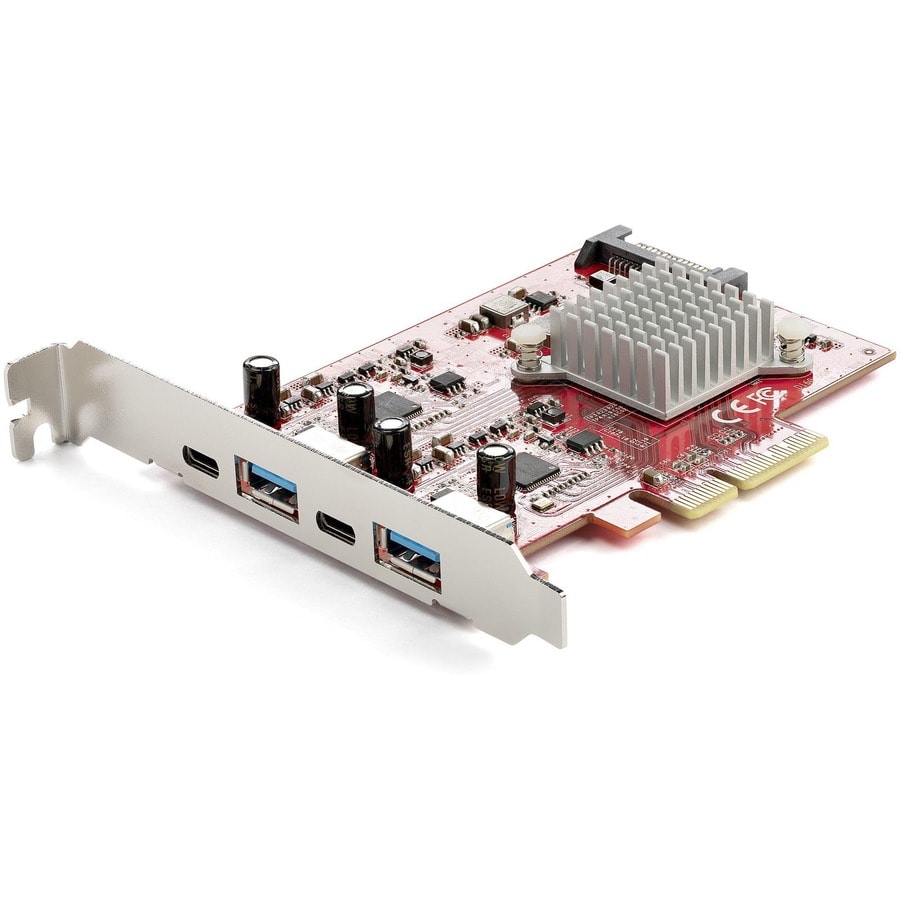

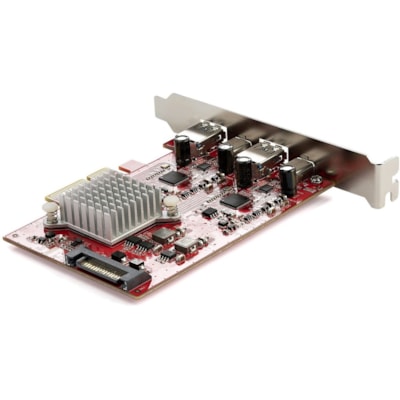

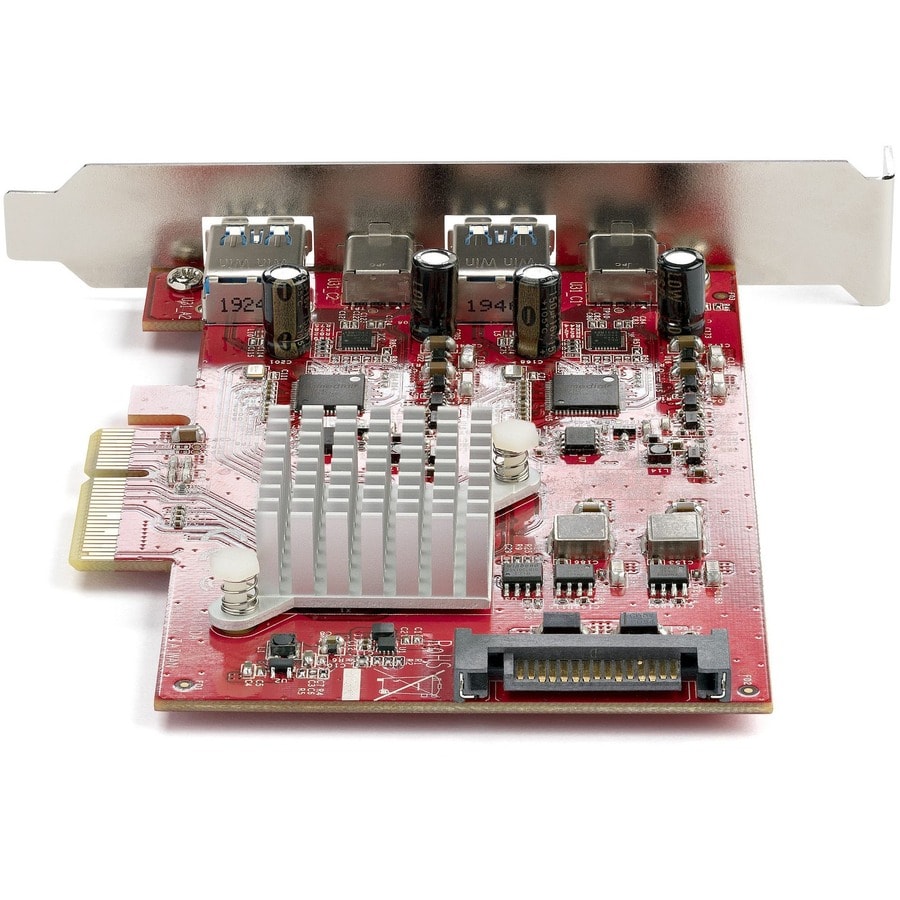

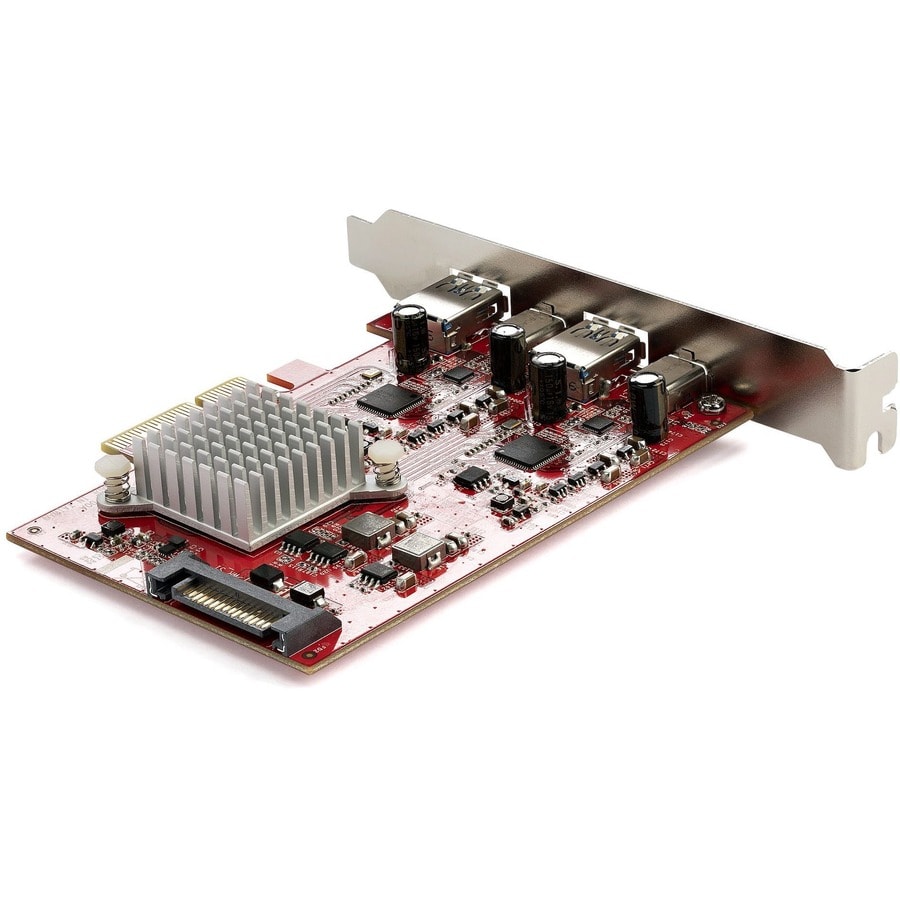

StarTech.com 4-Port USB PCIe Card, 10Gbps USB PCI Express Expansion Card with 2 Controllers, 2x USB-C & 2x USB-A ports (USB 3.2 Gen 2) - 4 Port USB PCIe Card (USB 3.1 Gen 2) - 2x ASM3142 controllers up to 20Gbps total - PCI Express expansion card; 10Gbps 2x USB-A/2x USB-C - Multiple INs - For USB/US

PEXUSB312A2C2V
Also known as SY6776242

New! Log in or create an account to see price and availability


MARKETING INFORMATION

This 4-port USB 3.2 Gen 2x1 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers two USB Type-C™ port (10Gbps), and two traditional USB Type-A ports (10Gbps).

By offering two different USB port types, you can easily connect a variety of USB devices to your desktop computer.

Because the card offers 10Gbps USB ports, you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.

USB 3.2 Gen 2x1 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps).

Work faster and prepare for the future

This versatile PCI Express combo card leverages the performance potential of USB 3.2 Gen 2x1 (10Gbps) to help you work faster. The USB ports offer a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals.

Connect different types of USB devices

Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server, using a single adapter card. The card features:

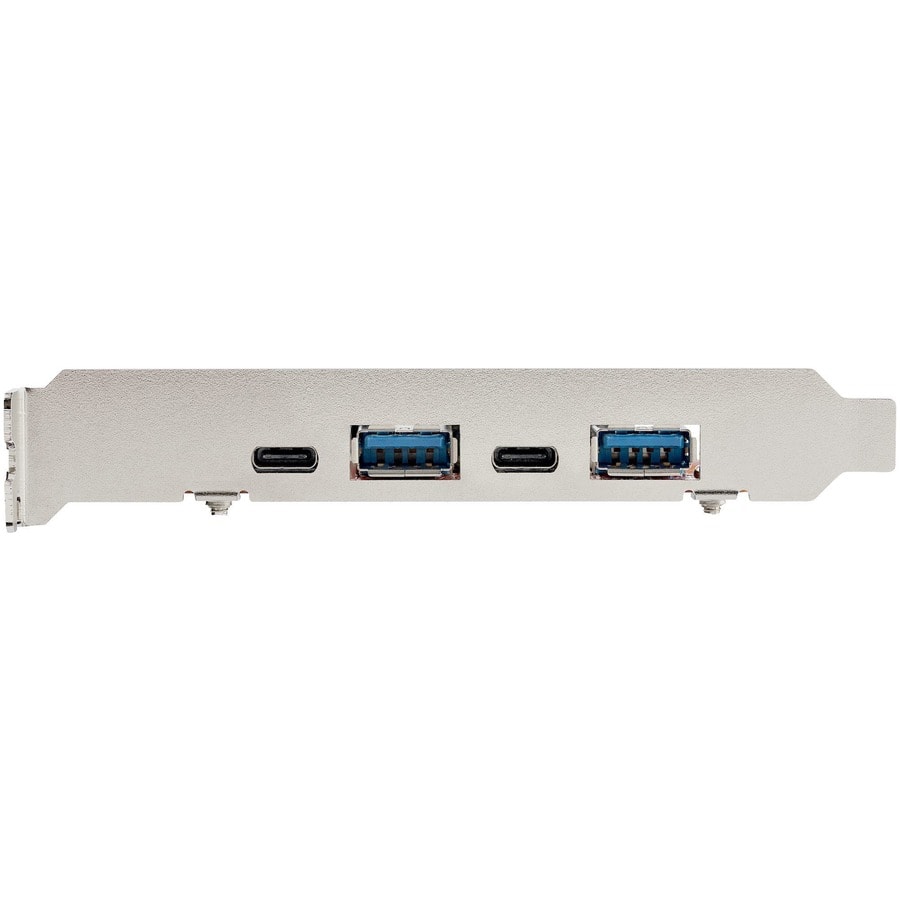

  • Two external USB-C port (USB 10Gbps)
  • Two external USB-A ports (USB 10Gbps)

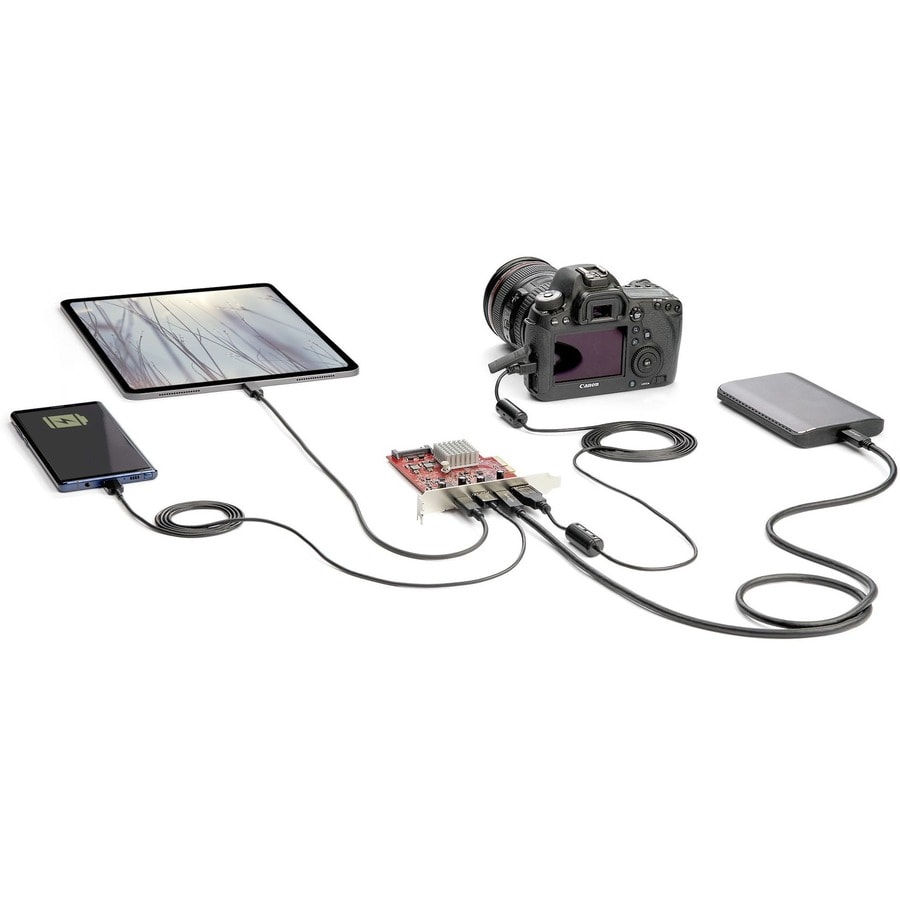

With a range of port types, the card lets you bridge the gap between devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices, while using only a single PCI Express expansion slot.

By adding two types of USB ports in one combo card, you can free up space in your PC case, and eliminate the nuisance of having different cards for different USB devices.

Connect your older USB devices

Connecting your older peripherals isn't a problem. This 4-port USB 3.2 card is backward compatible with legacy USB 3.0, 2.0 and 1.1 devices, so you can eliminate the added expense and aggravation of purchasing new devices.

USB 3.0 is also known as USB 3.2 Gen 1x1 (5Gbps) and USB 3.1 Gen 1 (5Gbps).

The PEXUSB312A2C2V is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: The card does not support DP alt mode or USB Power Delivery.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Host Interface : PCI Express x4
  • UASP Support : Yes
  • Total Number of USB Ports : 4
  • Number of USB 3.2 Ports : 4
  • Operating System Supported : Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019,Windows Server 2022,Linux 3.5,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura
  • Product Color : Red
  • Form Factor : Plug-in Card
  • Height : 0.90" (22.86 mm)
  • Width : 3.30" (83.82 mm)
  • Length : 4.40" (111.76 mm)
  • Weight (Approximate) : 2.80 oz (79.38 g)
  • Package Contents :
    • PCI Express USB Card
    • Full Profile Bracket (Installed)
    • Quick-Start Guide
  • Platform Supported : PC,Linux,Mac
  • Country of Origin : Taiwan
  • Limited Warranty : 2 Year
  • HIGH PERFORMANCE: 4 Port USB PCIe card with dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports; 2x USB-A (10Gbps) 2x USB-C (10Gbps) hub; Supports USB 3.1 Gen 2/USB 3.2 Gen 2x1
  • TRANSFER SPEEDS UP TO 10Gbps: USB-A & USB-C PCIe card adapter supports Multiple INs maintaining max bandwidth with mixed speed devices; UASP support; ideal for use with USB devices & external storage like SSDs, HDDs, NVMe drives; Works w/ USB 3.1/3.0/2.0
  • OPTIONAL POWER: USB PCIe expansion card with SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W per USB Type-C port & 5V 0.9A/4.5W per USB Type-A port
  • COMPATIBILITY: USB C add-on card installs in full-profile PCIe 3.0 (x4 slot) desktop/server; lower performance with PCI-e 2.0; Windows/Linux/macOS auto driver install (Windows 8 & up)
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; These this USB-A & USB-C combo PCI Express Host Controller card is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number PEXUSB312A2C2V
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name PCI Express USB Card
Product Type USB Adapter
Host Interface PCI Express x4
UASP Support Yes
Total Number of USB Ports 4
Number of USB 3.2 Ports 4
Operating System Supported Windows 11
Operating System Supported Mac OS X 13.0 Ventura
Operating System Supported Mac OS X 12.0 Monterey
Operating System Supported Mac OS X 11.0 Big Sur
Operating System Supported Mac OS X 10.15 Catalina
Operating System Supported Mac OS X 10.14 Mojave
Operating System Supported Mac OS X 10.13 High Sierra
Operating System Supported Linux 3.5
Operating System Supported Windows Server 2022
Operating System Supported Windows Server 2019
Operating System Supported Windows Server 2016
Operating System Supported Windows Server 2012
Operating System Supported Windows Server 2008 R2
Operating System Supported Windows 7
Operating System Supported Windows 8
Operating System Supported Windows 8.1
Operating System Supported Windows 10
Product Color Red
Form Factor Plug-in Card
Height 0.90" (22.86 mm)
Width 3.30" (83.82 mm)
Length 4.40" (111.76 mm)
Weight (Approximate) 2.80 oz (79.38 g)
Package Contents
  • PCI Express USB Card
  • Full Profile Bracket (Installed)
  • Quick-Start Guide
Additional Information

OS Compatibility:

  • Windows® 7, 8, 8.1, 10, 11
  • Windows Server® 2008 R2, 2012 R2, 2016, 2019
  • Linux® 3.5 and up - LTS Versions only
  • macOS Catalina (10.15)
  • macOS Mojave (10.14)
  • macOS High Sierra (10.13)
  • macOS Big Sur (11.0)
  • macOS Monterey (12.0)
  • macOS Ventura (13.0)
Platform Supported PC
Platform Supported Linux
Platform Supported Mac
Country of Origin Taiwan
Limited Warranty 2 Year
