MARKETING INFORMATION

Features

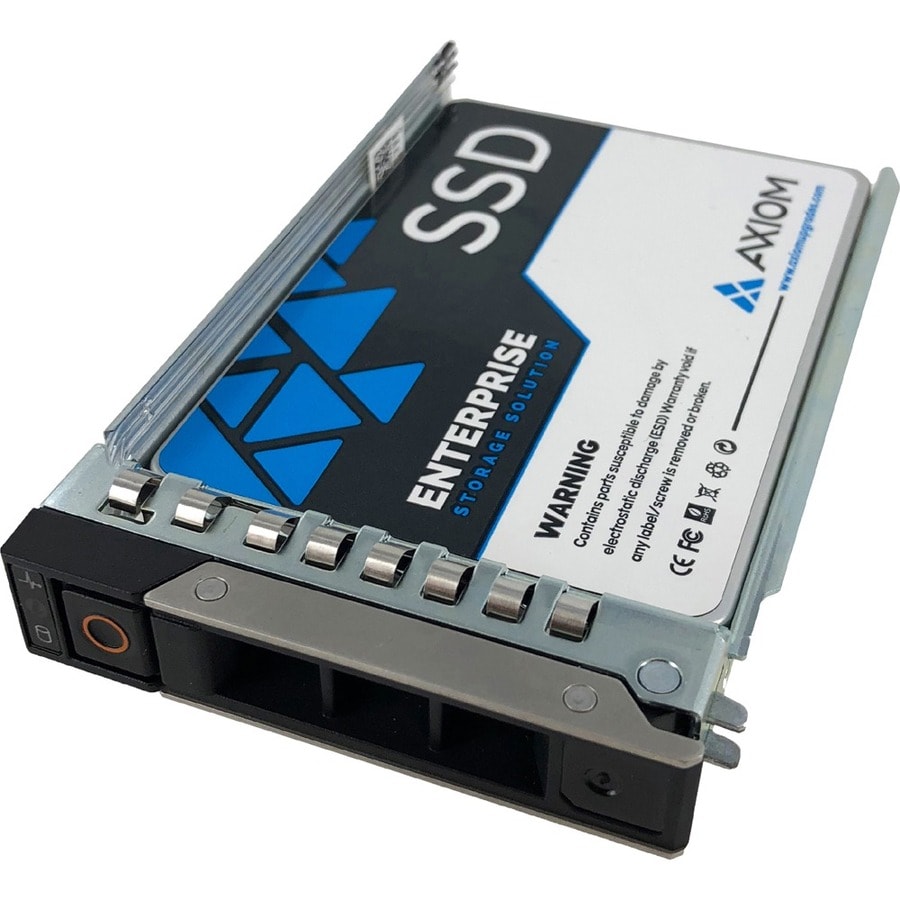

Optimized for latency-sensitive applications and mixed-use workloads the EV200 hot-swap solid state drive (SSD) utilizes V-NAND technology to deliver exceptional around the clock performance for growing data center demands. The SATA interface enables storage capacity to expand while utilizing the existing IT infrastructure - achieving the optimum price/performance for converged and virtualized architectures.
For use in data centers supporting enterprises that require 24/7 accessibility to cloud services and applications. Designed for read-intensive application workloads where high performance, reliable throughput, data integrity and data loss protection is at the forefront.

Product Spotlight:

• Low total cost of ownership (TCO)
• Proven quality and reliability
• Optimized for data center applications
• Enhanced enterprise endurance with 1.4 Drive Writes Per Day (DWPD)
• Sustained Read/Write IOPS up to 99K/18K

Product Features:

• Built with 3-bit MLC V-NAND Flash technology
• Strong IOPS consistency - low I/O latency and high I/O throughput performance
• Enterprise-grade power-loss protection and power failure protection
• Temperature sensor and monitoring
• Low power consumption
• Enhanced end-to-end data protection
• Innovative flash endurance and data integrity protection via 32-cell vertical NAND architecture

Specialized for the following workloads:

• Demanding Quality of Service (QoS), latency-sensitive applications and databases
• IaaS, PaaS, and SaaS Infrastructure
• NoSQL performance acceleration
• DBaas, MySQL, PostgreSQL transaction processing
• OpenStack cloud computing platforms
• Software-defined storage upgrades
• E-Commerce, micropayments

DETAILS

• Storage Capacity : 240 GB
• Encryption Standard : 256-bit
• Maximum Read Transfer Rate : 550 MB/s
• Maximum Write Transfer Rate : 320 MB/s
• Random 4KB Read : 98000IOPS
• Random 4KB Write : 14000IOPS
• Endurance (DWPD) : 1.3
• Endurance (TBW) : 341 TB
• Wireless LAN : No
• Drive Interface : SATA
• Drive Interface Standard : SATA/600
• Drive Type : Internal
• Form Factor : 2.5"
• Hot Swappable : Yes
• Device Supported : Server
• Compatibility :
  • Dell - PowerEdge MX740c compute sled
  • Dell - PowerEdge MX840c compute sled
  • Dell - PowerEdge XR2
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
• Limited Warranty : 5 Year

• Provides sufficient storage capacity of 240 GB for your computer
• The high-read speed of 550 MB/s maximizes system performance and saves time while you are doing complex tasks
• With the high-write speed of 320 MB/s, get a quick response when updating or transferring files
• Have data stored faster with SATA/600 interface that optimizes burst performance
• 256-bit encryption protects your PC from hackers and thieves by encoding all your data
