MARKETING INFORMATION

Features

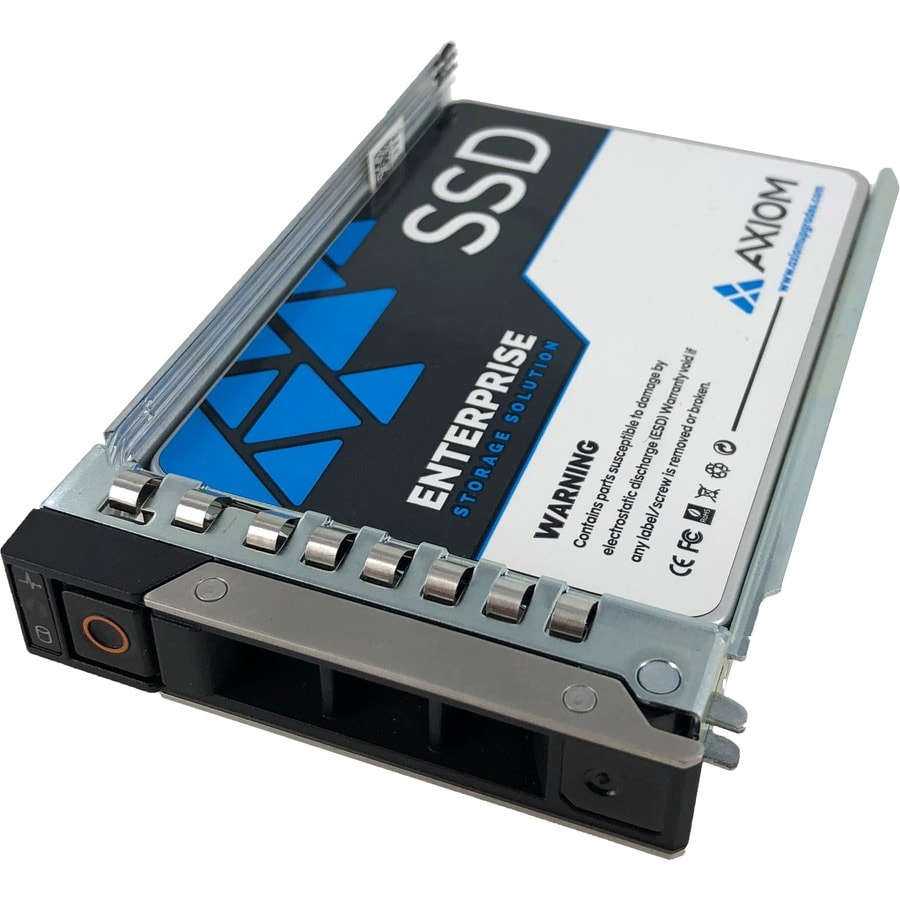

The EP400 enterprise hot-swap solid state drive (SSD) delivers enhanced Write/Read IOPS performance for mission-critical applications. Utilizing 2-bit MLC NAND with Charge Trap Flash (CTF) technology combines high performance, unprecedented power efficiency, and superior data integrity for direct-attach storage solutions.
Data center storage density requirements continue to accelerate and the EP400 enables organizations to transition to a leaner infrastructure model reducing total cost of ownership (TCO).

Product Spotlight:

• Low total cost of ownership (TCO) and better data center efficiency
• Proven quality and reliability
• Optimized for data center applications
• 256-bit AES Encryption
• Enhanced enterprise endurance with 3.6 Drive Writes Per Day (DWPD)
• Sustained Read/Write IOPS up to 95K/28K
• Lifetime Endurance - Up to 12.03 Petabytes Written

Product Features:

• 2-bit MLC V-NAND
• Built for sustained performance with low I/O latency and strong I/O consistency
• Enhanced power-loss protection and power failure protection
• Temperature sensor and dynamic thermal monitoring
• Low power consumption
• Enhanced end-to-end data protection
• Innovative flash endurance and data integrity protection platform

Specialized for the following workloads:

• Low latency and high Quality of Service (QoS) applications and databases
• On-Line Transactional Process (OLTP)
• Data Warehousing
• Customer Relationship Management (CRM)
• Media editing and delivery
• OpenStack cloud computing platforms
• Virtualized environments (VDI)
• E-Commerce, micropayments

DETAILS

• Storage Capacity : 960 GB
• Encryption Standard : 256-bit
• Maximum Read Transfer Rate : 540 MB/s
• Maximum Write Transfer Rate : 520 MB/s
• Random 4KB Read : 97000IOPS
• Random 4KB Write : 29000IOPS
• Endurance (DWPD) : 3
• Endurance (TBW) : 5133 TB
• Wireless LAN : No
• Drive Interface : SATA
• Drive Interface Standard : SATA/600
• Drive Type : Internal
• Form Factor : 2.5"
• Hot Swappable : Yes
• Device Supported : Server
• Compatibility :
  • Dell - PowerEdge MX740c compute sled
  • Dell - PowerEdge MX840c compute sled
  • Dell - PowerEdge XR2
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
• Limited Warranty : 5 Year

• With a capacity of 960 GB, you have large storage space for all your documents and data
• The high-read speed of 540 MB/s maximizes system performance and saves time while you are doing complex tasks
• With the high-write speed of 520 MB/s, get a quick response when updating or transferring files
• Have data stored faster with SATA/600 interface that optimizes burst performance
• With 256-bit encryption protect all your valuable data and keep your personal files safe & secure
