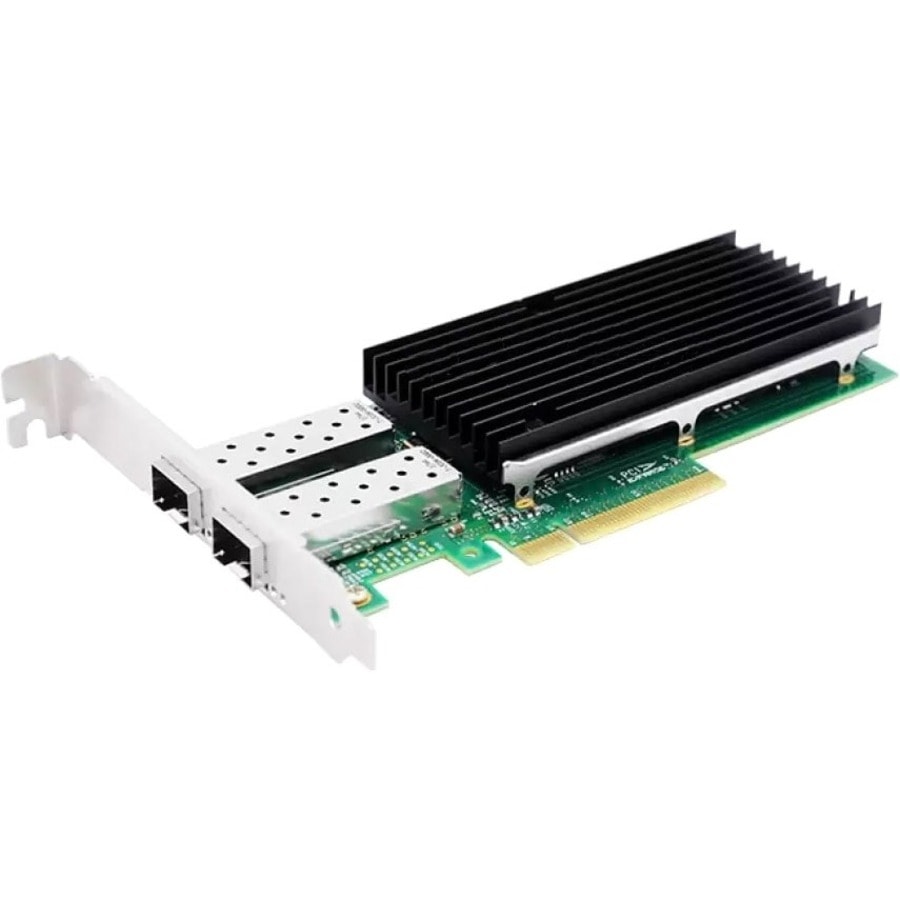

Axiom 25Gbs Dual Port SFP28 PCIe 3.0 x8 NIC Card for Dell - 540-BCDG - 25Gbs Dual Port SFP28 PCIe 3.0 x8 NIC Card
540-BCDG-AX
Also known as SY6773373
MARKETING INFORMATION
Axiom's 25Gb Fiber Network Adapters are the latest generation of high-performance PCIe 3.0 x8 Lane 25 Gigabit NIC Cards based on Intel XXV710 chipset. Our 25Gb server adapters meet the demands of next-generation data centers by providing unmatched features for both server and network virtualization and also providing a reliable performance in a flexible LAN and SAN network. Axiom 25Gb server adapters deliver an excellent performance for 25Gb connectivity that is backwards compatible with 1/10GbE, making migration from 1Gb or 10Gb to 25Gb even easier.
Key Features:
- Dual-port 1Gb/10Gb/25Gb Support
- PCI Express (PCIe) v3.0, 8.0 GT/s, x8 lanes
- SFP28 Connectivity
- PXE, iSCSI boot
- Network Virtualization
- IEEE 802.3by and 25GEthernet.org specification compliance
- Data Plane Development Kit (DPDK) support
- Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
- Low Profile and Full Height brackets are included
DETAILS
- Chipset Manufacturer : Intel
- Chipset Model : XXV710
- Host Interface : PCI Express 3.0 x8
- Total Number of Ports : 2
- Expansion Slot Type : SFP28
- Media Type Supported : Optical Fiber
- Network Technology : 25GBase-CR,10GBase-SR/LR,1000Base-SX/LX,25GBase-SR/LR
- Form Factor : Plug-in Card
- Bracket Height : Full
- Height : 6.50" (165 mm)
- Width : 0.51" (13 mm)
- Depth : 2.68" (68 mm)
- Weight (Approximate) : 4.96 oz (140.61 g)
- Package Contents :
- 10Gbs Dual Port SFP+ PCIe 3.0 x8 NIC Card for Dell - 540-BBUN
- Full Height Mounting Bracket
- Low Profile Mounting Bracket
- Limited Warranty : 3 Year
- This 25Gigabit Ethernet card will surely cater to the bandwidth requirements of the next-gen cloud and Web-scale environments
- Enjoy superfast data transfer of up to 8000 MB/s with PCI Express 3.0 x8 card, between the network card and motherboards
- For high bandwidth connectivity, add this efficient dual port 25gigabit ethernet card to your server or workstation
- With the 25GBase-CR technology get up to 1000Mbps data transfer rate over the optical fiber cable
SPECIFICATIONS
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 540-BCDG-AX |
| Manufacturer Website Address | http://search.axiomupgrades.com |
| Brand Name | Axiom |
| Product Name | 25Gbs Dual Port SFP28 PCIe 3.0 x8 NIC Card for Dell - 540-BCDG |
| Product Type | 25Gigabit Ethernet Card |
| Chipset Manufacturer | Intel |
| Chipset Model | XXV710 |
| Host Interface | PCI Express 3.0 x8 |
| Total Number of Ports | 2 |
| Expansion Slot Type | SFP28 |
| Media Type Supported | Optical Fiber |
| Network Technology | 25GBase-SR/LR |
| Network Technology | 25GBase-CR |
| Network Technology | 10GBase-SR/LR |
| Network Technology | 1000Base-SX/LX |
| Form Factor | Plug-in Card |
| Bracket Height | Full |
| Height | 6.50" (165 mm) |
| Width | 0.51" (13 mm) |
| Depth | 2.68" (68 mm) |
| Weight (Approximate) | 4.96 oz (140.61 g) |
| Package Contents |
|
| Limited Warranty | 3 Year |
