MARKETING INFORMATION

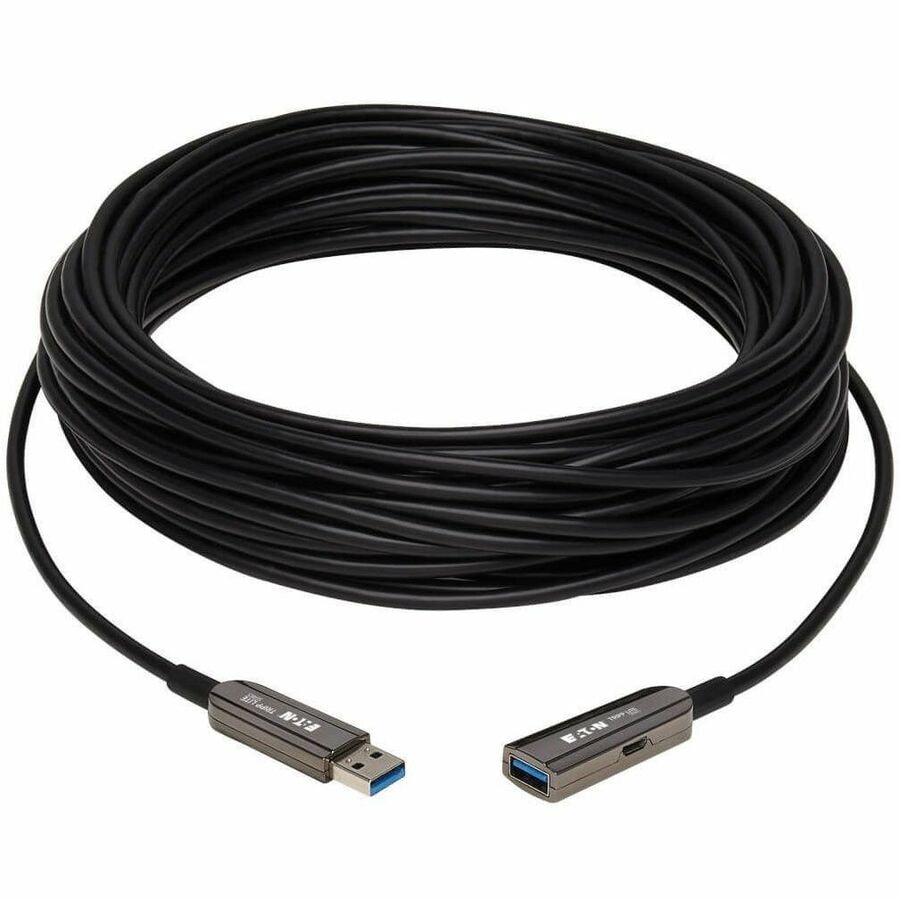

Active Optical Cable Extension Connects Servers, Hard Drives and Other USB Components
This USB 3.2 Gen 1 extension/repeater cable (M/F) attaches to your current USB cable to extend your USB connection by 30 meters (98 feet). The U330F-30M-G1 connects computers, servers, external hard drives, surveillance cameras and other devices with a USB-A port. Note: You must first connect the USB- A male connector, then the USB-A female connector.

Supports USB 3.2 Gen 1 Speeds for Reliably Fast Data Transfers

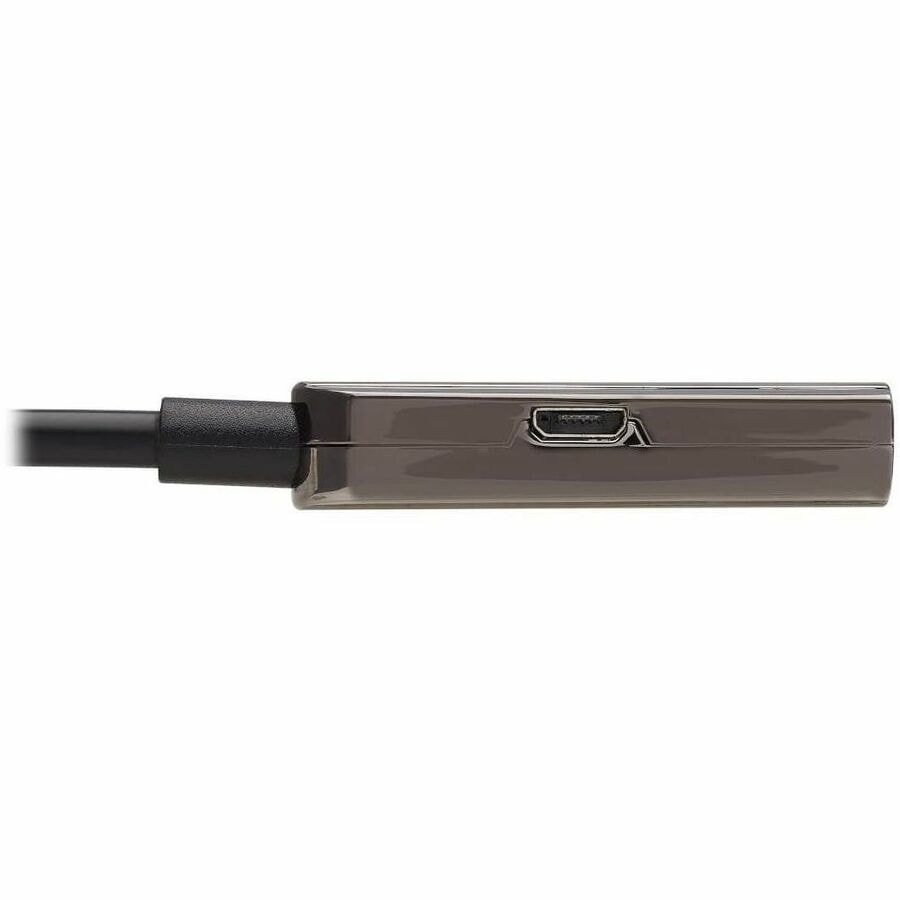

This cable supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. If you need an extra signal boost, connect the cable's USB Micro-B port to a laptop, hub or USB wall charger with the included cable. Note: This USB cable is not backward compatible with USB 2.0 or USB 1.1 devices.

Active Optical Cables Are Easier to Install than Copper
Because the fiber cable is slimmer and more flexible than standard copper USB cables, the U330F-30M- G1 is easier to install around corners and in hard-to-reach spaces behind equipment. It also transmits
USB signals over longer distances than copper with no signal loss.

30 m (98 ft.) Cable Lets You Design an Application to Your Custom Specifications
This long cable allows you greater flexibility in placing your USB components. For instance, your desktop computer may be connected to a security camera or a server located in a different room away from your office or in a central location where others have access to it.

Premium Construction for Superior Performance
The PVC jacket carries a CL3 rating, making it suitable for in-wall cable installation in residential or commercial settings. Gold-plated contacts provide maximum conductivity and minimum data loss to guarantee a clear transmission free of interference. The plug-and-play U330F-30M-G1 supports all major operating systems, including Windows, macOS and Linux

More from the Manufacturer

DETAILS

• Cable Type : Fiber Optic
• Cable Characteristic : Extension Cable
• Cable Length : 98 ft (29.87 m)
• Connector Type on First End : USB 3.2 (Gen 1) Type A - Male
• Connector on First End Details : 1 x USB 3.2 (Gen 1) Type A - Male
• Connector Type on Second End : USB 3.1 (Gen 1) Type A - Female,Micro USB Type B - Female
• Connector on Second End Details : 1 x USB 3.1 (Gen 1) Type A - Female,1 x Micro USB Type B - Female
• Connector Plating : Nickel
• Contact Plating : Gold
• Jacket Type : CL3
• Device Supported : Computer,Server,External Hard Drive,Surveillance Camera,Hub,Wall Charger,Home Theater System,Notebook
• American Wire Gauge : 24 AWG
• Data Transfer Rate : 5 Gbit/s
• Features : Flexible,AOC Technology,Signal Booster,Repeater
• Jacket Color : Black
• Connector Color : Light Gray
• Jacket Material : Polyvinyl Chloride (PVC)
• Package Contents :
  • U330F-30M-G1 Fiber Optic Extension Data Transfer Cable
  • USB Micro-B to USB-A booster Cable, M/M, 3 ft
• Environmentally Friendly : Yes
• Country of Origin : Vietnam
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty : 3 Year

• Allows easy connection between devices and helps transfer data quickly with accuracy
• Features Fiber Optic cable type
• Flexible enough to offer a variety of options to suit a specific need
