MARKETING INFORMATION

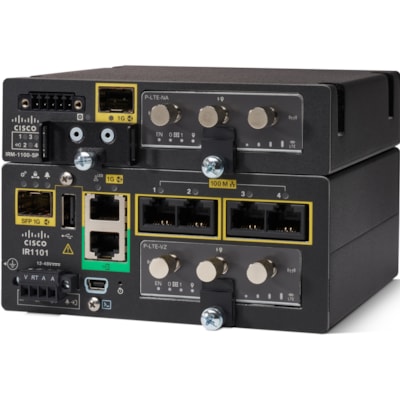

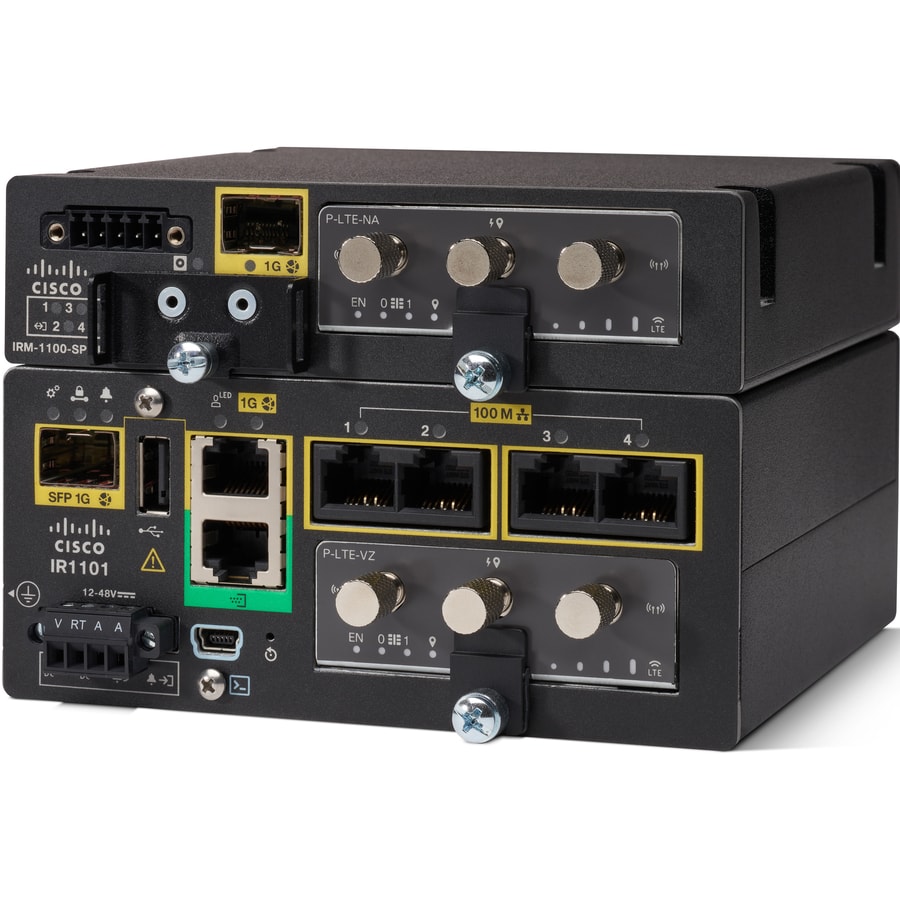

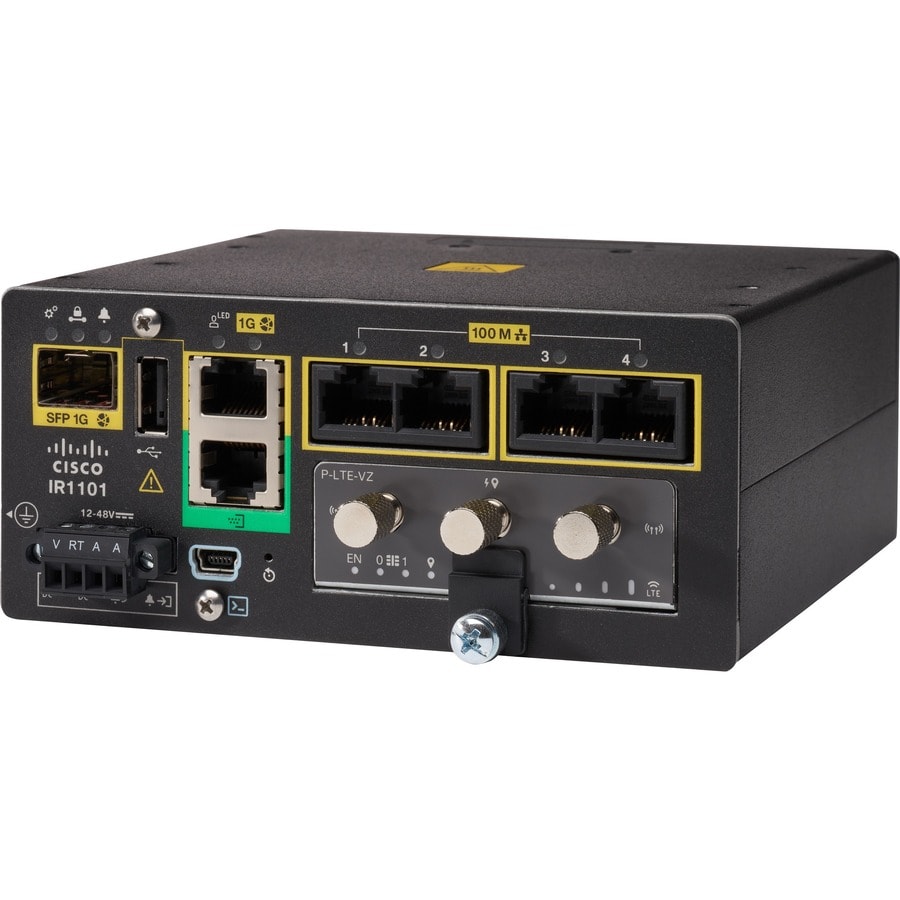

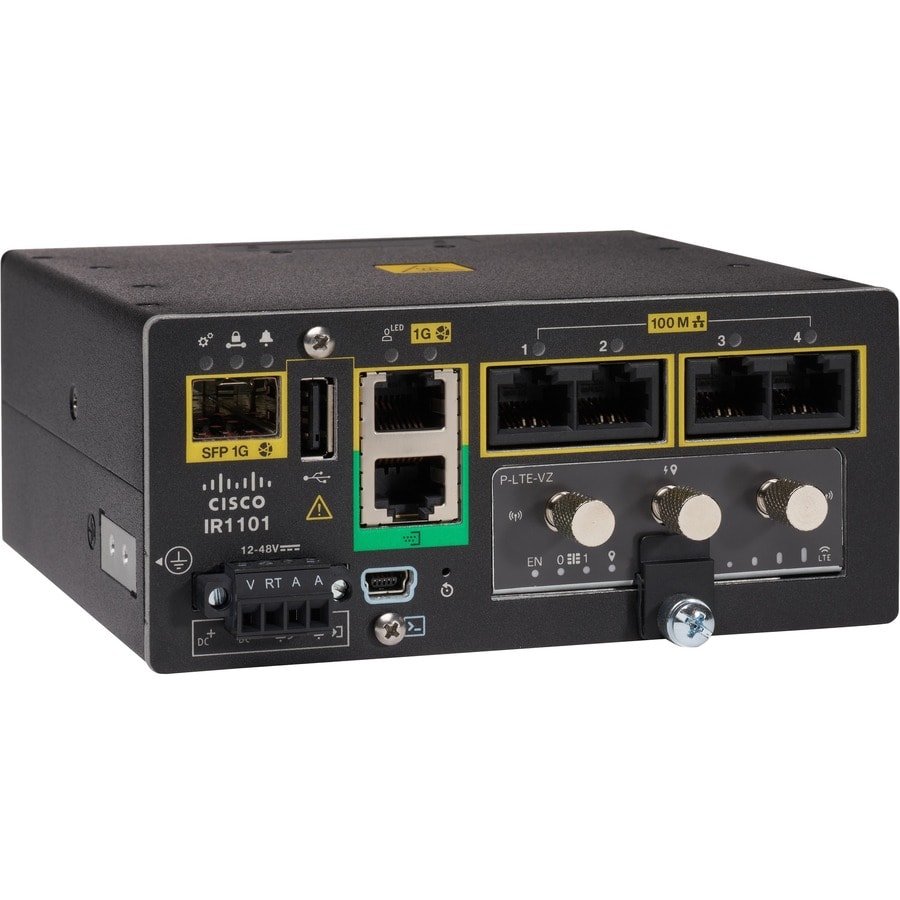

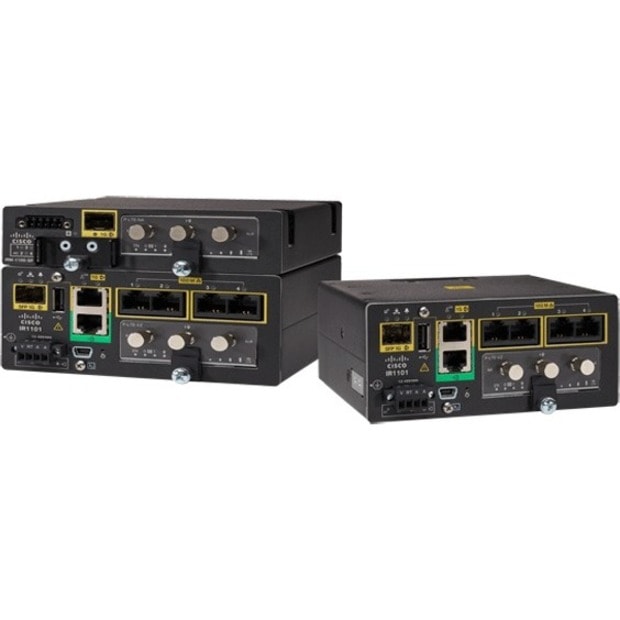

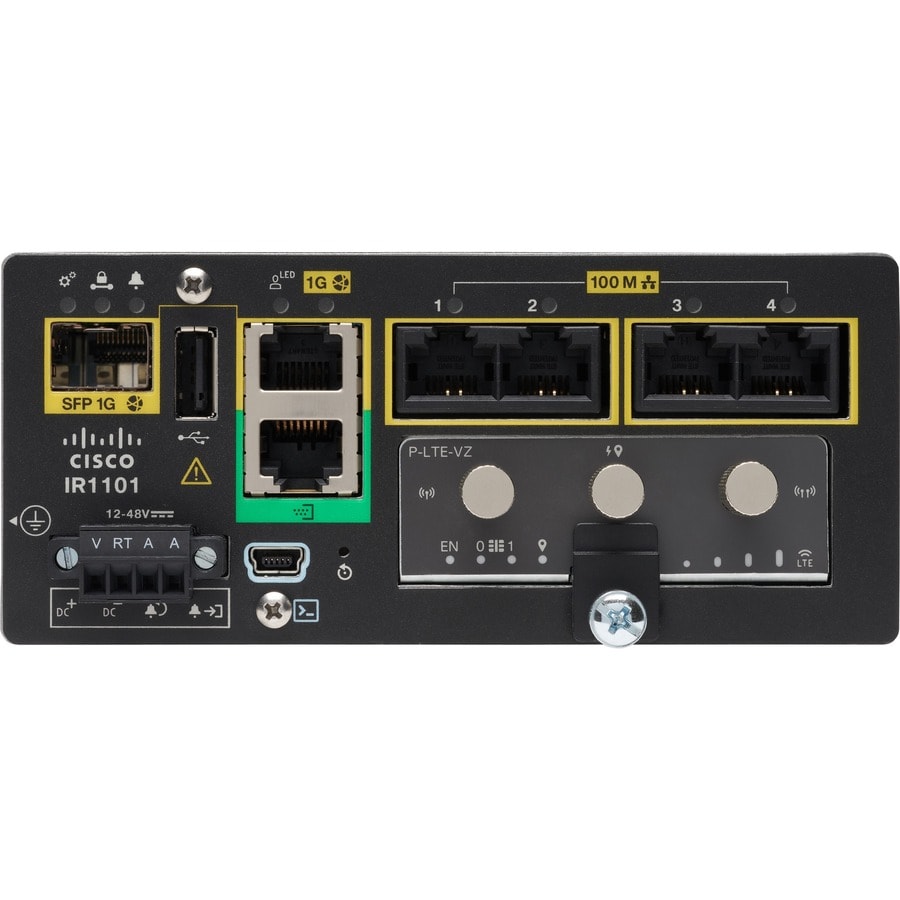

The Cisco^® IR1101 Integrated Services Router Rugged, or IR1101, is Cisco's smallest industrial router. Designed in a highly modular form factor makes it an ideal solution for remote asset management across multiple industrial vertical markets.

The IR1101 has an integrated 9.6 to 60V DC power input and is designed to withstand hostile environments, including shock, vibration, dust, humidity and electrostatic discharge (ESD). The IR1101 also supports a wide temperature range: -40 to 60°C standard operation, -40 to 75°C in a forced air enclosure with 200 LFM of air, and type-tested at 85°C for 16 hours. This durability makes it ideal for harsh industrial and distributed IoT deployments such as transportation, oil and gas, distribution substations, industrial automation, and financial institutions.

DETAILS

• Total Number of Ports : 5
• Management Port : Yes
• Total Number of Expansion Slots : 2
• Ethernet Technology : Gigabit Ethernet
• Network Technology : 1000Base-T,100Base-T
• Form Factor : Wall Mountable
• Height : 2.36" (59.94 mm)
• Width : 5.22" (132.59 mm)
• Depth : 4.92" (124.97 mm)
• Weight (Approximate) : 2.25 lb (1020.58 g)
• Country of Origin : China
• Limited Warranty : 5 Year

• With 1000Base-T technology, get up to 1000 mbps data transfer rate over twisted pair cable
• Features management port for a reliable networking
• With Gigabit Ethernet, retrieve up to 10x faster than standard Ethernet connectivity and provides high-performance
• Tuck the router out of the way with its wall mounting feature
