MARKETING INFORMATION

Get ready for the next innovation at the Point-of-Sale

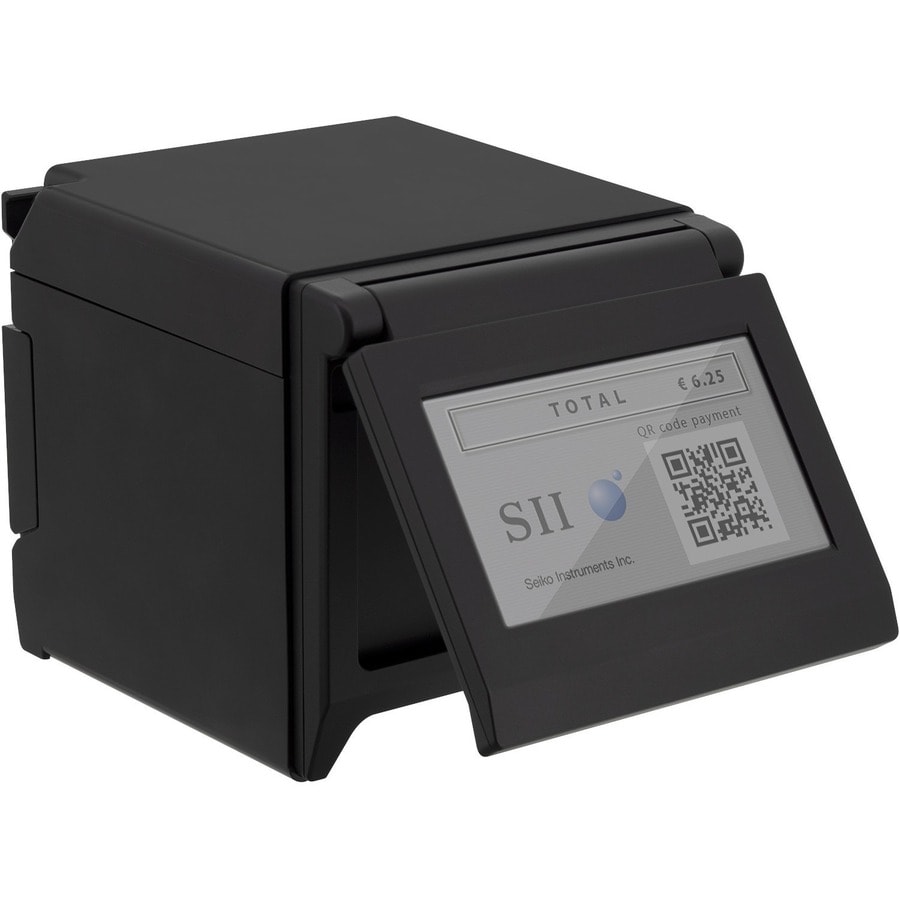

Our recently launched POS Printer RP-F10 series is the first of its kind in offering a dedicated 4.3 inch optional color TFT display. This innovative LCD screen can be mounted directly to the printer, stands alone and can even be wall-mounted. Simply connect via USB to the printer to show text, QR codes, graphics (jpg, png) or displaying the printer status. These features will help you to take customer communication to the next level when it comes to POS transactions.

DETAILS

• Recommended Use : Receipt Print
• Print Color Capability : Monochrome
• Maximum Mono Print Speed : 9.84 in/s (250 mm/s)
• Maximum Print Resolution (dpi) : 203
• Maximum Print Width : 2.83" (72 mm)
• Barcode Symbology Supported : QR Code,UPC-A/E,EAN/JAN-8,EAN/JAN-13,ITF,Codabar,Code 39,Code 93,Code 128,PDF417,GS1 DataBar
• Application/Usage : Desktop
• Features : Compact,Cash Drawer Port
• USB Host : Yes
• USB : Yes
• Bluetooth : Yes
• Near Field Communication (NFC) : Yes
• Display Screen : Yes
• Screen Size : 4.3"
• Display Screen Type : LCD
• Cutter : Yes
• Cutting Method : Automatic
• Cut Type : Full/Partial Cut
• Cutter Life : 1500000 Cuts
• Media Type : Receipt
• Maximum Roll Diameter : 3.3" (83 mm)
• Maximum Label Width : 3.15" (80 mm)
• Language Emulation : ESC/POS
• Power Source : Power Adapter
• Input Voltage : 24 V DC
• Operating Temperature : 41°F (5°C) - 113°F (45°C)
• Form Factor : Wall Mount
• Product Color : Black
• Height : 5" (127 mm)
• Width : 5" (127 mm)
• Depth : 5" (127 mm)
• Power Cable Localization : US

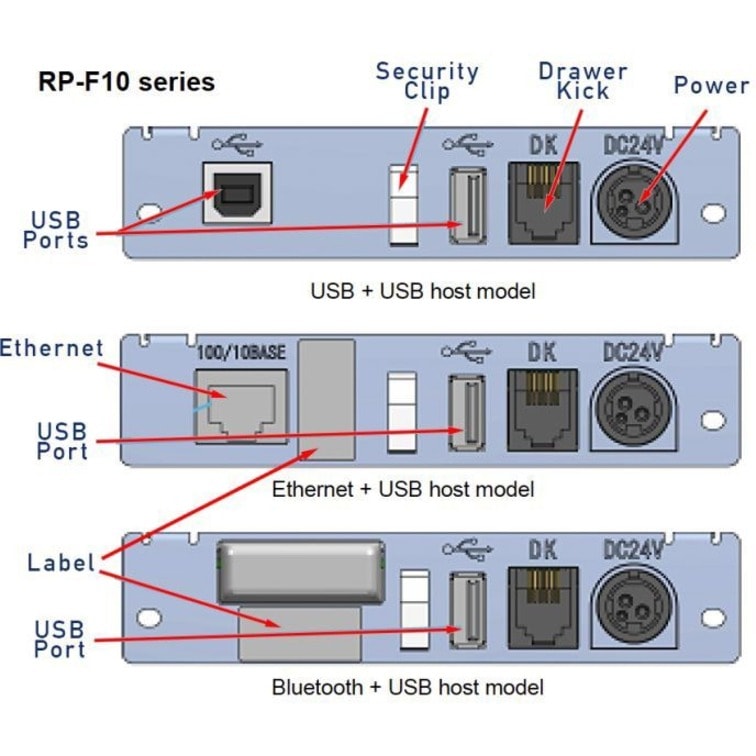

• Optional Connectivity : Ethernet
• Platform Supported : PC,Android,iOS

• Direct Thermal Printer provides you with all the features that you need to print quickly and easily
• The printer is capable of printing sharp and detailed monochrome documents quickly
• Save your space with the wall-mount option
