Axiom 100Gbs Dual Port QSFP28 PCIe 3.0 x16 NIC Card - PCIE3-2QSFP28-AX - PCI Express 3.0 x16 - 100 Gbit/s Data Transfer Rate - 2 Port(s) - Optical Fiber - 100GBase-CR4, 100GBase-LR4, 100GBase-CU - QSFP28 - Plug-in Card
PCIE3-2QSFP28-AX
Also known as SY6684524
MARKETING INFORMATION
Features

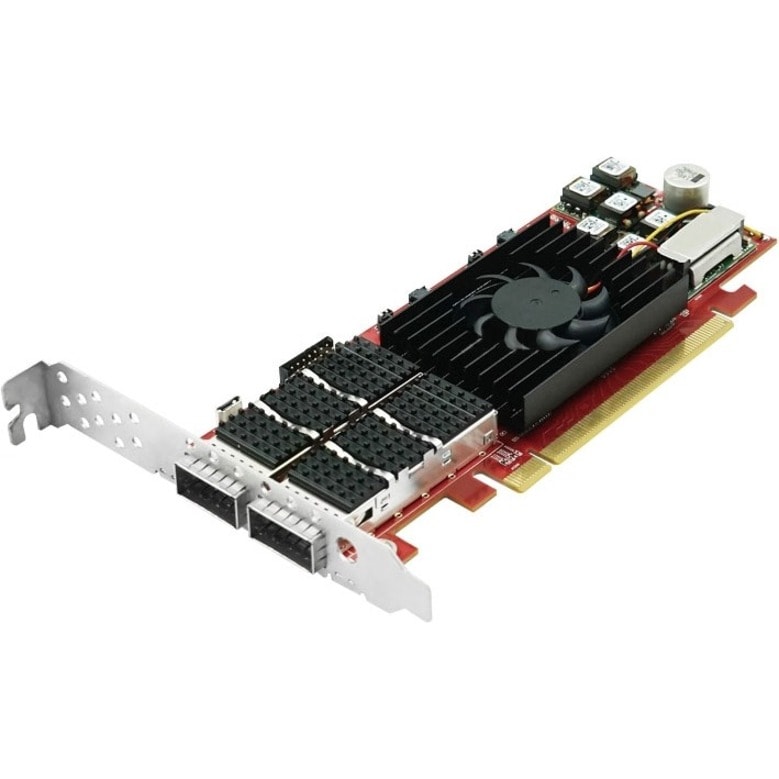

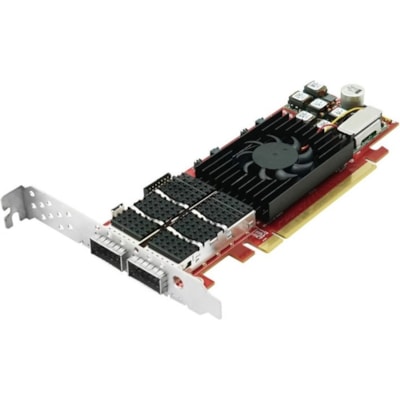

The Axiom QSFP28 PCIe 3.0 x16 100Gbs intelligent network card is designed for Servers and high-end Data Center applications. They provide simple integration into any PCI Express x16 to provide 100 Gigabit Network connectivity. Based on Xilinx Ultrascale+16nm VU3P chip solution, it offers low-latency network processing capability by utilizing the built in auxiliary CPU to perform network functions which results in reduced CPU usage and reduced power consumption in the host system.
Key Features
- P4-enabled with P4 compiler
- P4 featured programmable match-action policies
- Open vSwitch datapath offload
- SR-IOV
- DPDK, zero-copy
- SDN ready as well as supporting legacy network management systems
- High throughput monitoring & data export
- Multi purpose and adaptive fragile service offload & delivery
- Highly Programmable platform in hardware and software
- Includes Full Height and Half Height Mounting Brackets
DETAILS
- Host Interface : PCI Express 3.0 x16
- Total Number of Ports : 2
- Expansion Slot Type : QSFP28
- Media Type Supported : Optical Fiber
- Maximum Data Transfer Rate : 100 Gbit/s
- Network Technology : 100GBase-CR4,100GBase-LR4,100GBase-CU
- Form Factor : Plug-in Card
- Height : 6.81" (173 mm)
- Width : 0.83" (21 mm)
- Depth : 2.68" (68 mm)
- Weight (Approximate) : 3.84 oz (108.86 g)
- Package Contents :
- 100Gbs Dual Port QSFP28 PCIe 3.0 x16 NIC Card - PCIE3-2QSFP28-AX
- Full Height Mounting Brackets
- Half Height Mounting Brackets
- Device Supported : Server
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 3 Year
- 101 Gigabit Ethernet connectivity ensures a high-performance and flexible solution for Cloud, data analytics, database and storage platforms
- This 16000MB/s bandwidth adapter is ideal for PCs with PCI Express 3.0 x16 slots, ensuring top level network connectivity for your desktops
- For high bandwidth connectivity, add this efficient dual port 100gigabit ethernet card to your server or workstation
SPECIFICATIONS
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | PCIE3-2QSFP28-AX |
| Manufacturer Website Address | http://search.axiomupgrades.com |
| Brand Name | Axiom |
| Product Name | 100Gbs Dual Port QSFP28 PCIe 3.0 x16 NIC Card - PCIE3-2QSFP28-AX |
| Product Type | 100Gigabit Ethernet Card |
| Host Interface | PCI Express 3.0 x16 |
| Total Number of Ports | 2 |
| Expansion Slot Type | QSFP28 |
| Media Type Supported | Optical Fiber |
| Maximum Data Transfer Rate | 100 Gbit/s |
| Network Technology | 100GBase-CR4 |
| Network Technology | 100GBase-LR4 |
| Network Technology | 100GBase-CU |
| Form Factor | Plug-in Card |
| Height | 6.81" (173 mm) |
| Width | 0.83" (21 mm) |
| Depth | 2.68" (68 mm) |
| Weight (Approximate) | 3.84 oz (108.86 g) |
| Package Contents |
|
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
