MARKETING INFORMATION

High-Speed Cat6a STP Patch Cable Ideal for Your 10GBase-T Ethernet Network

Designed for fast transmission and excellent signal quality, this six-inch Cat6a cable ensures peak performance throughout your local area network (LAN). It transmits 10 Gbps data, voice and video through high-speed 10G equipment, including network switches, modems, routers, adapters, hubs and patch panels. At 500 MHz, it reduces impedance and structural return loss compared to standard 100 MHz wire.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices

Because this Cat6a shielded cable supports PoE, it can supply the power to operate compatible PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems. The N262-06N-BK shields against disruptive line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

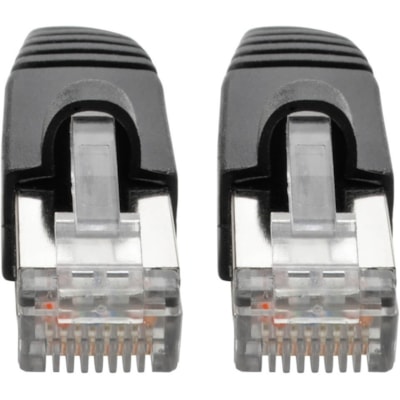

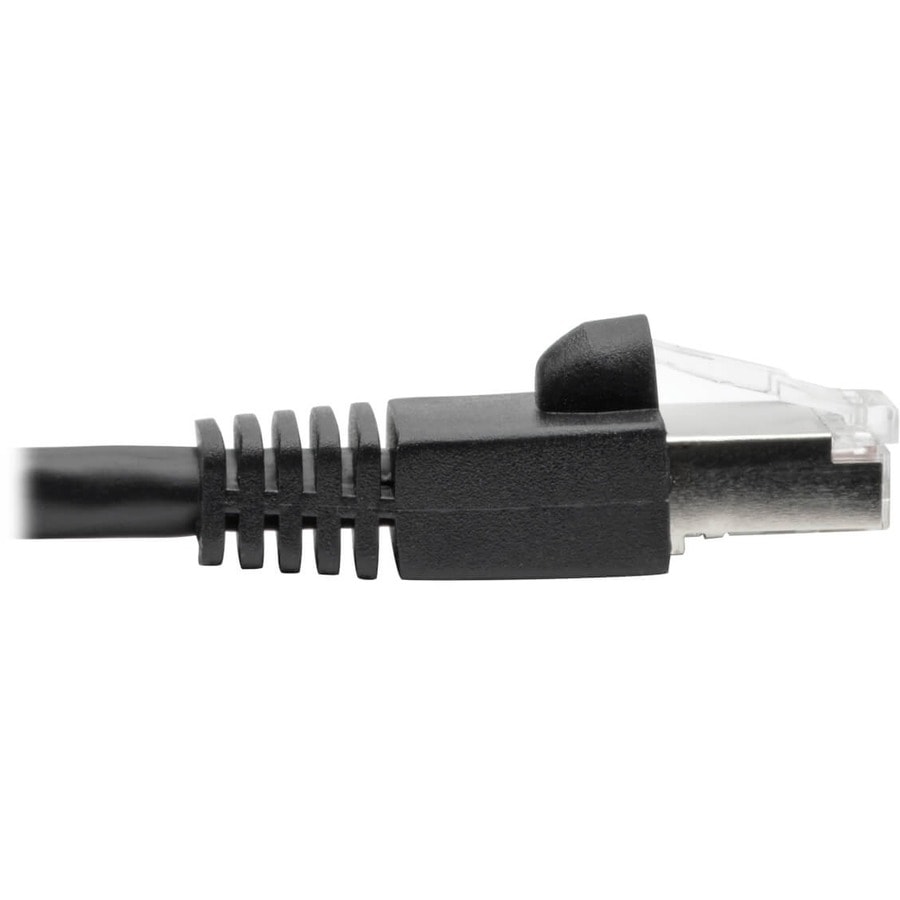

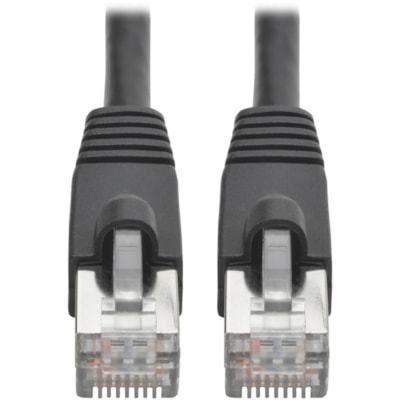

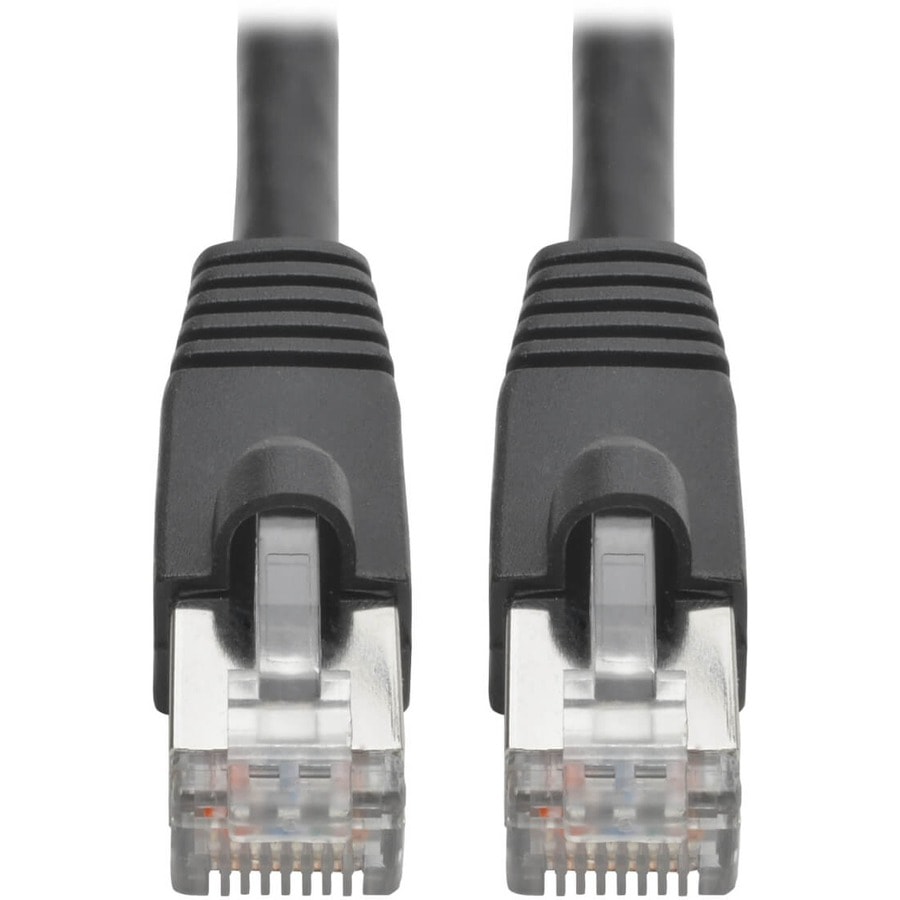

Snagless RJ45 Male Connectors Add Extra Protection During Installation

The RJ45 connectors' snagless design protects the locking tabs from being damaged or broken off during installation. The ends are shielded to minimize near-end crosstalk (NEXT) levels. Integral strain relief gives the N262-06N-BK extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector.

DETAILS

• Cable Type : Category 6a
• Cable Characteristic : Patch Cable
• Cable Length : 6" (152.40 mm)
• Connector Type on First End : RJ-45 Network - Male
• Connector on First End Details : 1 x RJ-45 Network - Male
• Connector Type on Second End : RJ-45 Network - Male
• Connector on Second End Details : 1 x RJ-45 Network - Male
• Contact Plating : Gold
• Shielding : Yes
• Jacket Type : CM
• Device Supported : Network Device,Switch,Hub,Patch Panel,Router,Modem,VoIP Device,Surveillance Camera,Server,PoE-enabled Device
• American Wire Gauge : 26 AWG
• Data Transfer Rate : 10 Gbit/s
• Boot Type : Snagless
• Features : EMI/RF Protection,PoE,Strain Relief,Minimized Near-End Crosstalk (NEXT),Stress Resistant,Flexible,Stranded,Damage Resistant,Crack Resistant,Break Resistant
• Color Family : Black
• Product Color : Black
• Jacket Material : Polyvinyl Chloride (PVC)
• Environmentally Friendly : Yes
• Country of Origin : China
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty : Lifetime

• Allows you to access all of the networked data, swiftly and securely
• Features Category 6a cable type
