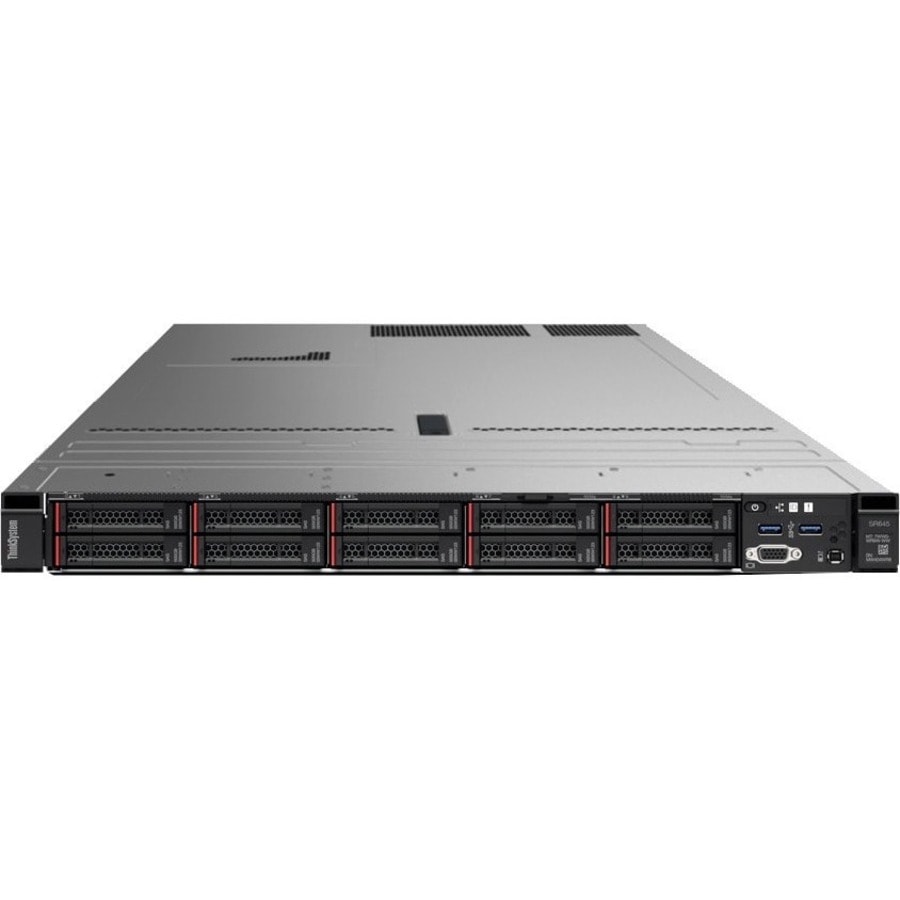

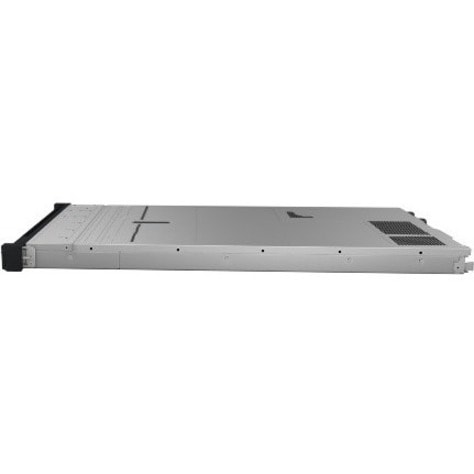

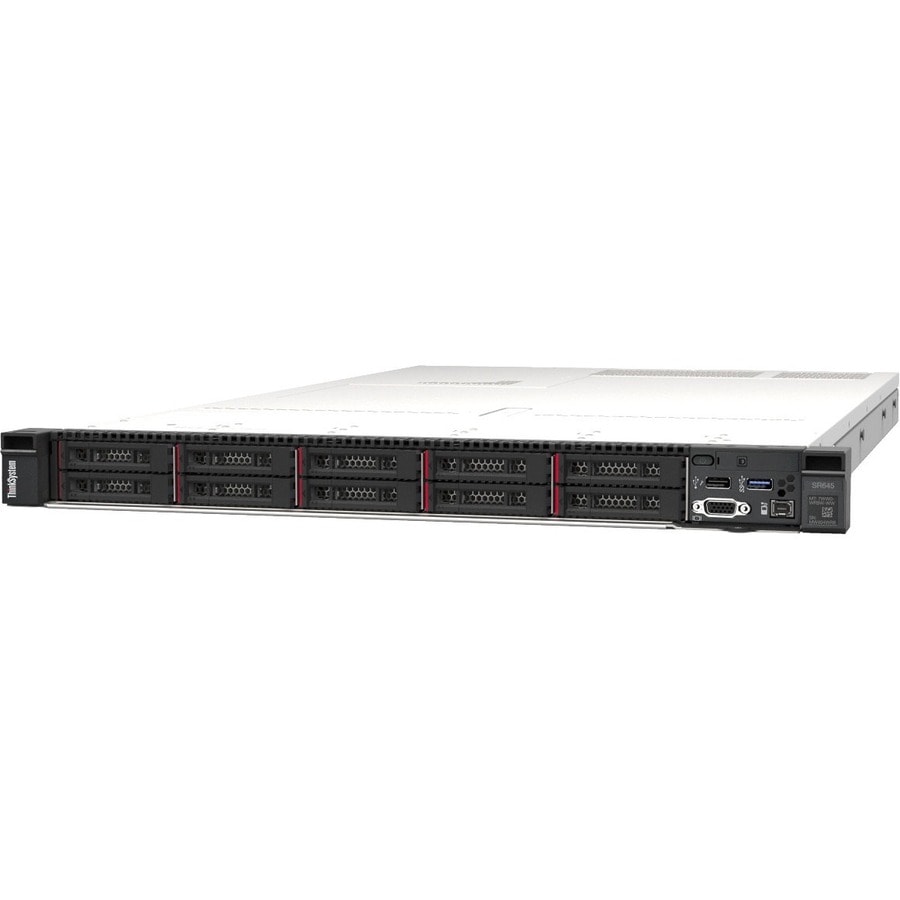

Lenovo ThinkSystem SR645 7D2XA016NA 1U Rack Server - 1 EPYC 7262 3.20 GHz - 16 GB RAM - Serial ATA/600, 12Gb/s SAS Controller - 2 Processor Support - 4 TB RAM Support - TruDDR4 - G200 Up to 16 MB Graphic Card - 25 Gigabit Ethernet - Hot Swappable Bays - 1 x 750 W
7D2XA016NA
Also known as SY6567444
MARKETING INFORMATION
The Lenovo ThinkSystem SR645 7D2XA016NA is a 2-socket 1U server that features the AMD EPYC 7002 "Rome" family of processors. With 8 cores per processor and support for the new PCIe 4.0 standard for I/O, the 7D2XA016NA offers the ultimate in two-socket server performance in a space-saving 1U form factor.
DETAILS
- Number of Processors Supported : 2
- Number of Processors Installed : 1
- Processor Type : EPYC
- Processor Generation : 2nd Gen
- Processor Model : 7262
- Processor Core : Octa-core (8 Core)
- Processor Speed : 3.20 GHz
- Standard Memory : 16 GB
- Maximum Memory Supported : 4 TB
- Memory Technology : TruDDR4
- Total Number of Memory Slots : 32
- Number of Occupied Memory Slots : 1
- Total Hard Drive Capacity : No
- Optical Drive Type : No
- Controller Type : Serial ATA/600,12Gb/s SAS
- Hot Swappable Bays : Yes
- Graphics Controller Model : G200
- Graphics Memory Capacity : 16 MB
- Ethernet Technology : 25 Gigabit Ethernet
- Operating System : No
- Input Voltage : 120 V AC,230 V AC
- Number of Power Supplies Supported : 2
- Number of Power Supplies Installed : 1
- Maximum Power Supply Wattage : 750 W
- Package Contents :
- ThinkSystem SR645 7D2XA016NA Server

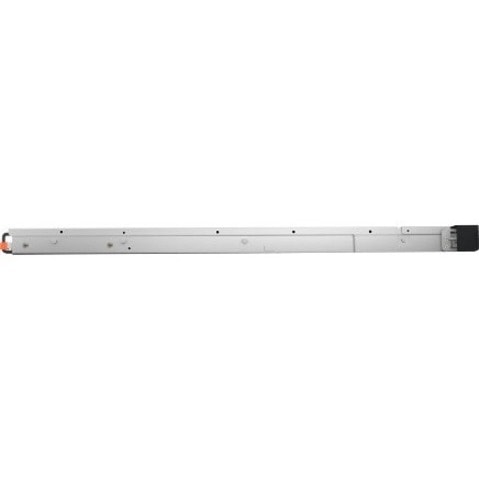

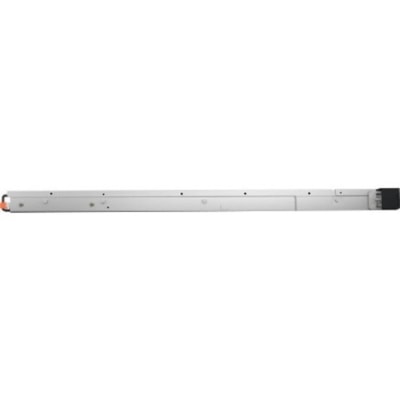

- Slide Rail Kit
- Energy Star : Yes
- Environmentally Friendly : Yes
- Energy Efficiency Certification : ENERGY STAR 3.0
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Form Factor : Rack
- Rack Height : 1U
- Height : 1.70" (43.18 mm)
- Width : 17.30" (439.42 mm)
- Depth : 30.40" (772.16 mm)
- Weight (Approximate) : 44.53 lb (20200 g)
- Limited Warranty : 3 Year
- 16 GB powerful memory for any computational task
- 750 W power supply unit (PSU) fulfills your system's power requirements
SPECIFICATIONS
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7D2XA016NA |
| Manufacturer Website Address | http://www.lenovo.com |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR645 |
| Product Model | 7D2XA016NA |
| Product Name | ThinkSystem SR645 7D2XA016NA Server |
| Product Type | Server |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | EPYC |
| Processor Generation | 2nd Gen |
| Processor Model | 7262 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 3.20 GHz |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 4 TB |
| Memory Technology | TruDDR4 |
| Total Number of Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Total Hard Drive Capacity | No |
| Optical Drive Type | No |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| Hot Swappable Bays | Yes |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| Ethernet Technology | 25 Gigabit Ethernet |
| Operating System | No |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 750 W |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 30.40" (772.16 mm) |
| Weight (Approximate) | 44.53 lb (20200 g) |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
