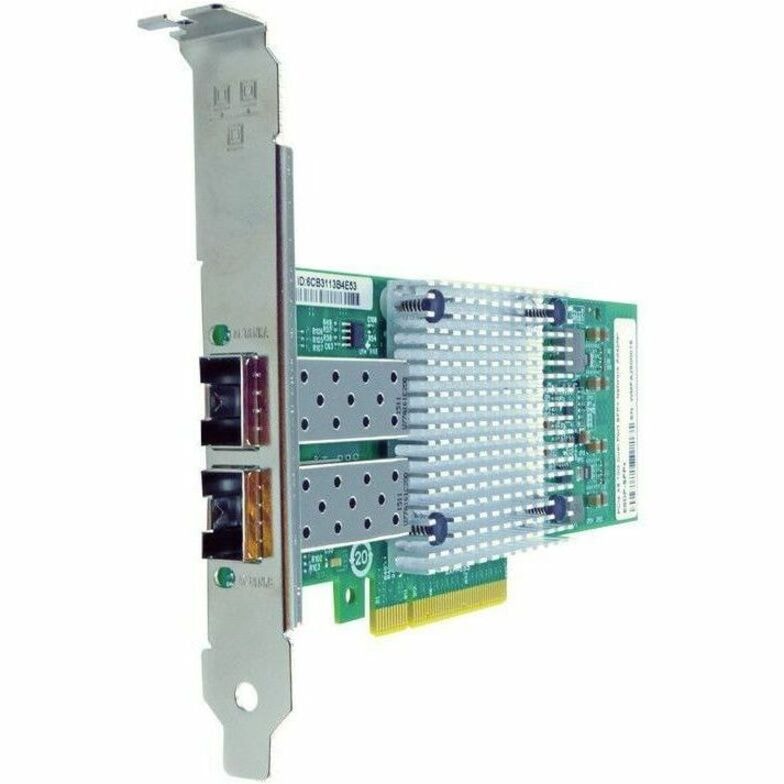

Axiom PCIe 3.0 x8 10Gbs Fiber Network Adapter - PCI Express 3.0 x8 - 10 Gbit/s Data Transfer Rate - Intel X710-BM2 - 2 Port(s) - Optical Fiber - SFP+ - Plug-in Card
P11338-B21-AX
Also known as SY6529269
MARKETING INFORMATION
Features
The Axiom PCIe 3.0 x8 10Gbs Fiber Network Adapter is a new generation of high-performance server adapter. Based on the Intel X710-BM2 controller, our server adapters address the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.
The PCIe 3.0 x8 10Gbs Fiber Network Adapter delivers superior performance in a PCI Express v3.0 x8 slot.
Key features include:
- Small Packet Performance: Achieves wire-rate throughput on smaller payload sizes (>64 Bytes for 10 GbE)
- Bulk Transfer Performance: Delivers line-rate performance with low CPU usage for large application buffers
- Network Virtualization: Network virtualization overlay offloads including Geneve, VXLAN, and NVGRE
- Storage Performance: Enables competitive performance with native OS drivers and intelligent offload for NAS (NFS, SMB), and SAN (iSCSI and FCoE)
- Includes Full Height and Half Height Mounting Brackets
DETAILS
- Chipset Manufacturer : Intel
- Chipset Model : X710-BM2
- Host Interface : PCI Express 3.0 x8
- Total Number of Ports : 2
- Expansion Slot Type : SFP+
- Media Type Supported : Optical Fiber
- Maximum Data Transfer Rate : 10 Gbit/s
- Color Family : Dual Color
- Product Color : Green,Silver
- Form Factor : Plug-in Card
- Height : 6.50" (165 mm)
- Width : 0.51" (13 mm)
- Depth : 2.68" (68 mm)
- Weight (Approximate) : 4.96 oz (140.61 g)
- Device Supported : Server
- Limited Warranty : 3 Year
- To accelerate IT services, increase data center efficiency and double your bandwidth without doubling your costs and complexity use this 10Gigabit Ethernet
- This 8000MB/s bandwidth adapter is ideal for PCs with PCI Express 3.0 x8 slots, ensuring top level network connectivity for your desktops
- For high bandwidth connectivity, add this efficient dual port 10gigabit ethernet card to your server or workstation
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
SPECIFICATIONS
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | P11338B21AX |
| Manufacturer Website Address | http://search.axiomupgrades.com |
| Brand Name | Axiom |
| Product Name | PCIe 3.0 x8 10Gbs Fiber Network Adapter |
| Product Type | 10Gigabit Ethernet Card |
| Chipset Manufacturer | Intel |
| Chipset Model | X710-BM2 |
| Host Interface | PCI Express 3.0 x8 |
| Total Number of Ports | 2 |
| Expansion Slot Type | SFP+ |
| Media Type Supported | Optical Fiber |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Color Family | Dual Color |
| Product Color | Silver |
| Product Color | Green |
| Form Factor | Plug-in Card |
| Height | 6.50" (165 mm) |
| Width | 0.51" (13 mm) |
| Depth | 2.68" (68 mm) |
| Weight (Approximate) | 4.96 oz (140.61 g) |
| Device Supported | Server |
| Limited Warranty | 3 Year |
