Tripp Lite series Cat6 Ethernet Cable - CMP-LP 0.5A Plenum, Gray, 1000 ft. - 1000 ft (304.80 m) Category 6 Network Cable for Network Device, Computer, Router, Modem, Surveillance Camera - First End: Bare Wire - Second End: Bare Wire - 1 Gbit/s - 23 AWG - Gray
N224-01K-GY-LP5
Also known as SY6499475
MARKETING INFORMATION
Premium High-Speed Cat6 Cable for Gigabit Ethernet Premise Applications

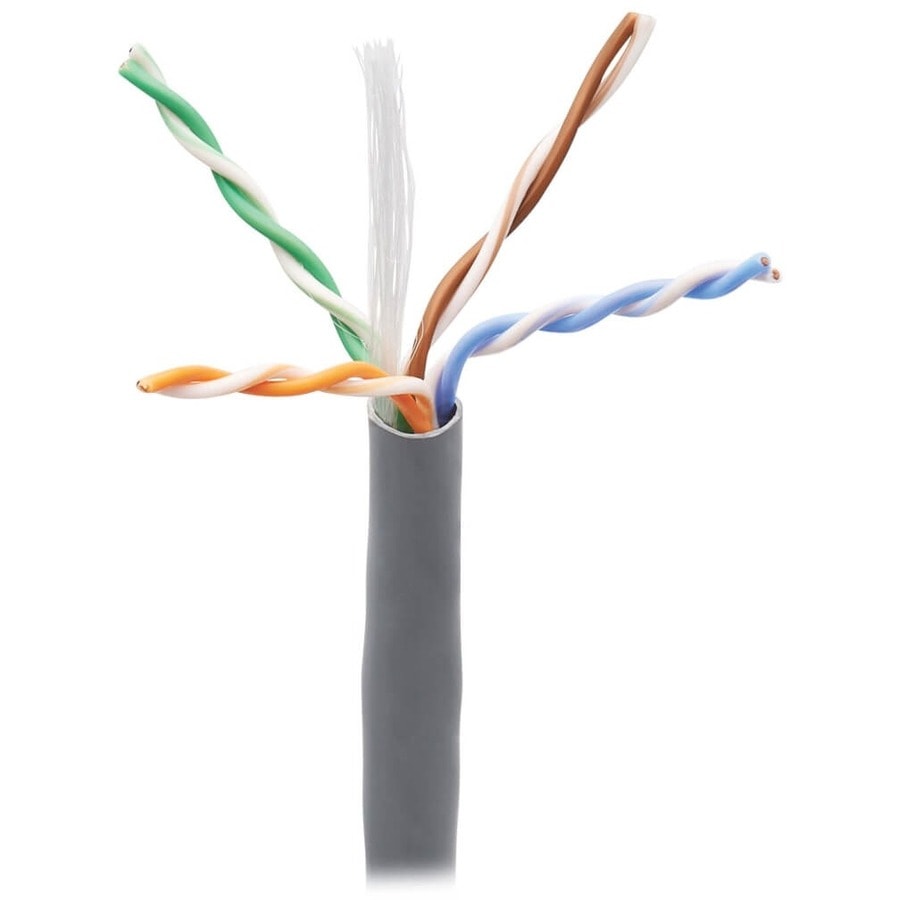

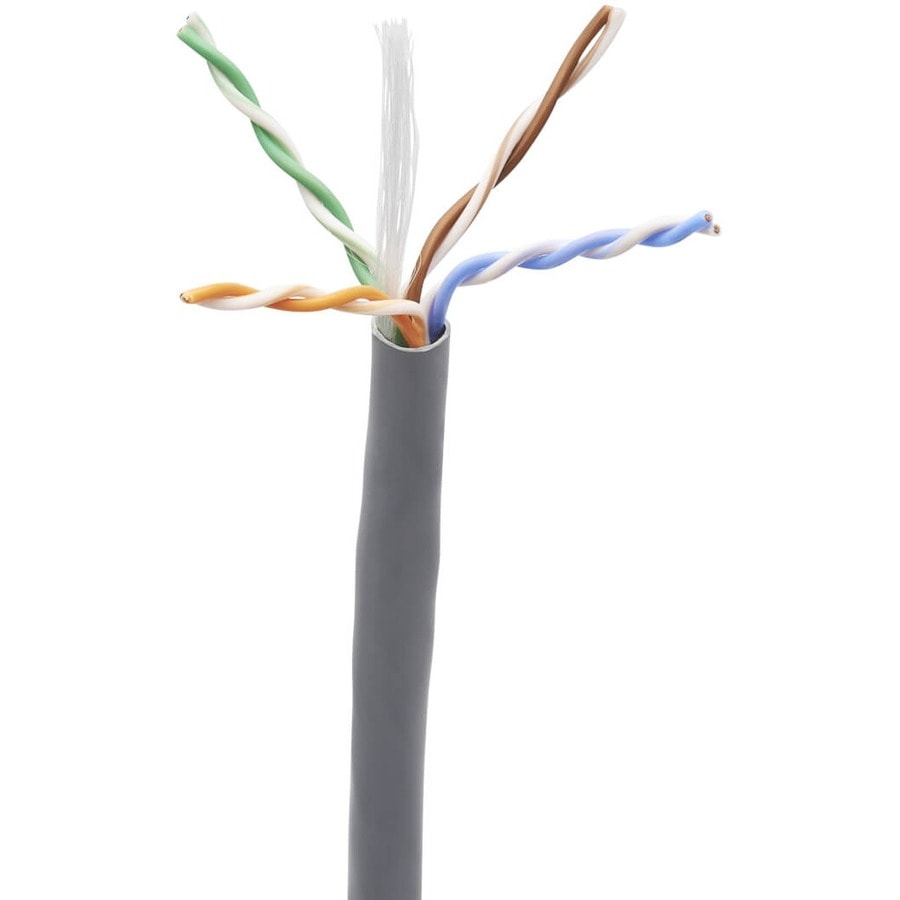

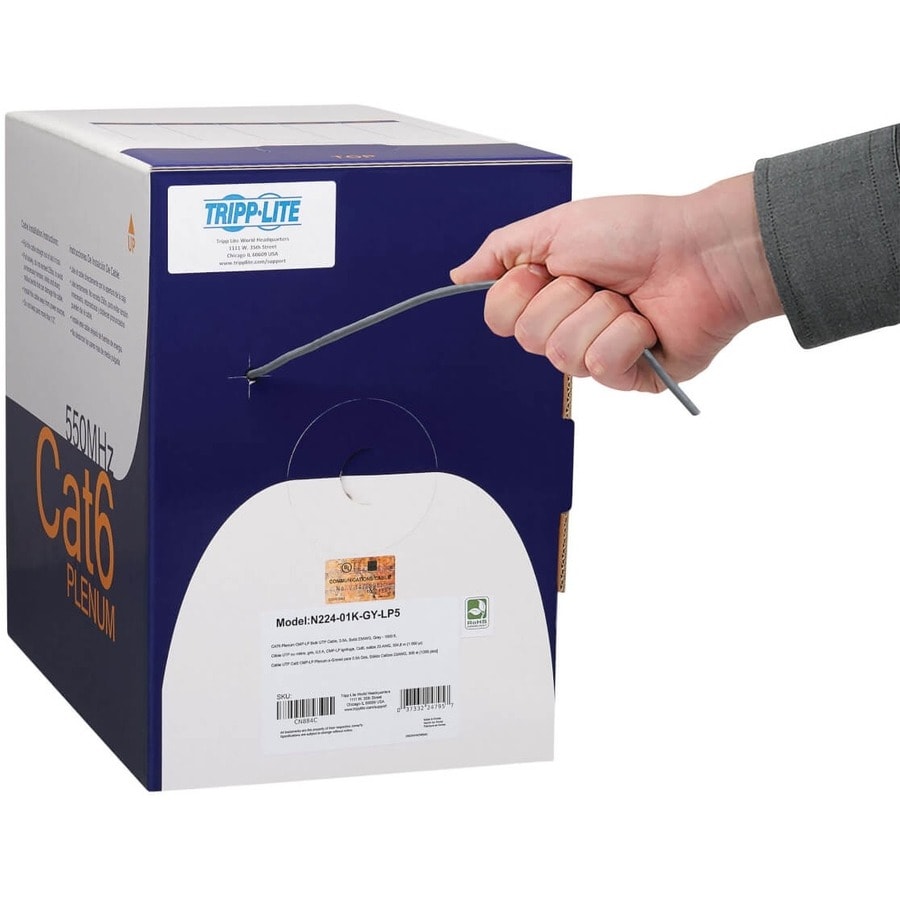

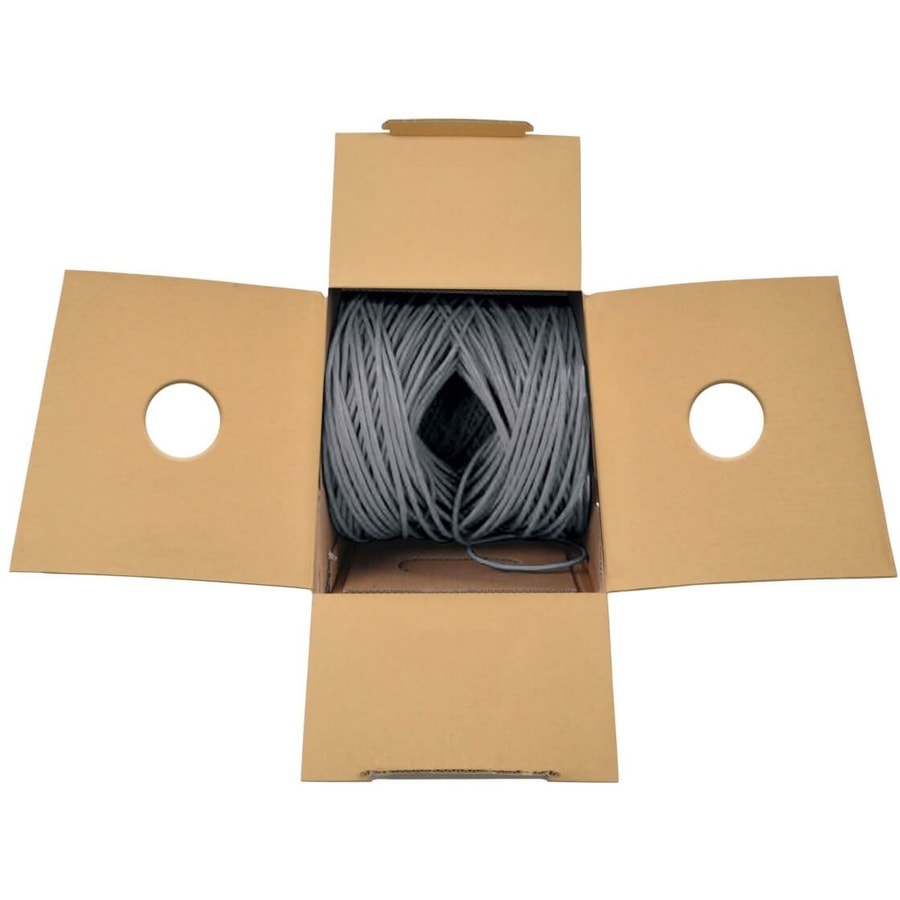

This high-speed bulk cable is ideal for Cat6 premise (in-wall) applications in air ducts and drop ceilings in commercial and residential installations. This includes the distribution of data, voice, security and audio/video across Gigabit Ethernet networks. Designed for fast transmission and excellent signal quality, this 1000-foot roll of gray cabling ensures peak performance through your LAN. Manufactured from 23 AWG copper wire, the N224-01K-GY-LP5 delivers speeds up to 550 MHz/1 Gbps.
Designed for PoE++ and High-Power PoE Applications
The plenum-rated CMP-LP jacket meets UL's latest Limited Power (LP) standards for 0.5A cables. This ensures the cable will withstand the heat required to power devices at PoE++ (60W) or High-Power (100W) PoE power levels, no matter the bundle size or environmental conditions, such as enclosed spaces.
DETAILS
- Cable Type : Category 6
- Cable Length : 1000 ft (304.80 m)
- Connector Type on First End : Bare Wire
- Connector on First End Details : Bare Wire
- Connector Type on Second End : Bare Wire
- Connector on Second End Details : Bare Wire
- Device Supported : Network Device,Computer,Router,Modem,Surveillance Camera
- American Wire Gauge : 23 AWG
- Data Transfer Rate : 1 Gbit/s
- Features : PoE,4-Pair Power over Ethernet (4PPoE) Support,PoE++,PoE+
- Color Family : Gray
- Product Color : Gray
- Jacket Material : Polyvinyl Chloride (PVC)
- Environmentally Friendly : Yes
- Country of Origin : South Korea
- Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- TAA Compliant : Yes
- Limited Warranty : Lifetime
- Experience a simpler way to connect devices with the entire business network
- Features Category 6 cable type
- Features PoE
SPECIFICATIONS
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N224-01K-GY-LP5 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | N224-01K-GY-LP5 |
| Product Name | Cat6 Ethernet Cable - CMP-LP 0.5A Plenum, Gray, 1000 ft. |
| Package Type | Bulk |
| Product Type | Network Cable |
| Cable Type | Category 6 |
| Cable Length | 1000 ft (304.80 m) |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Connector on Second End Details | Bare Wire |
| Device Supported | Surveillance Camera |
| Device Supported | Modem |
| Device Supported | Router |
| Device Supported | Computer |
| Device Supported | Network Device |
| American Wire Gauge | 23 AWG |
| Data Transfer Rate | 1 Gbit/s |
| Features | PoE |
| Features | 4-Pair Power over Ethernet (4PPoE) Support |
| Features | PoE++ |
| Features | PoE+ |
| Color Family | Gray |
| Product Color | Gray |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shipping Height | 14.80" (375.92 mm) |
| Shipping Width | 9.80" (248.92 mm) |
| Shipping Weight (Approximate) | 26.30 lb (11929.48 g) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | South Korea |
| TAA Compliant | Yes |
| Limited Warranty | Lifetime |
