MARKETING INFORMATION

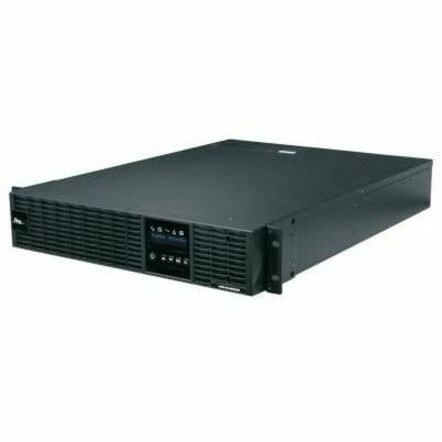

When failure is not an option, the Premium Online Series UPS Backup Power Systems provide the cleanest power for mission-critical, sensitive, and high-end systems. A completely isolated pure sine wave output provides perfect power free from noise and distortion for optimal system performance while the double conversion topology guarantees maximum system uptime. This UPSs front-accessible batteries and remote IP management simplify maintenance and put you in control. The Premium Online Series UPS Backup Power Systems have a wide range of capacities, safeguarding any application. It is equipped with features that ensure maximum uptime and optimal power delivery. It has a permanent connection to the battery for zero transfer time, eliminating system disruptions. The output power is completely isolated and conditioned with double conversion topology, providing the cleanest power possible. The UPS-OL2200R also features quiet variable speed fans, reducing ambient noise. With the capability to add up to 10 expansion battery packs, it has the longest run time available in this form factor. The front accessible, hot-swappable batteries eliminate downtime related to UPS power maintenance, making it a reliable choice for data centers, server rooms, and other critical applications. Its pure sine wave output waveform automatically corrects over-voltage and under-voltage conditions, ensuring clean power delivery to your sensitive equipment. The UPS-OL2200R also features non-critical load shedding and EMI/RFI filtering for further protection of connected equipment. With monitoring and reporting capabilities, real-time battery life notifications provide essential information for proactive maintenance. Its removable LCD display and power switch enable remote accessible functionality, making it a versatile and easy-to-use backup power solution. The UPS backup provides the flexibility to set the output frequency to match connected equipment, ensuring optimal performance. With the optional IP card, remote monitoring and control of power is possible, making it a convenient solution for data centers, server rooms, and other critical applications. The UPS-OL2200R also features 30A capability twist lock receptacles for larger equipment and is compatible with the UPS-OLEBPR-1 expansion battery pack and UPS-OLRBP-1 replacement battery pack, providing additional flexibility and scalability for your power protection needs.

DETAILS

• Plug/Connector Type : NEMA 5-20P
• Receptacle Type : NEMA 5-20R,NEMA L5-20R
• Receptacle Detail : 6 x NEMA 5-20R,1 x NEMA L5-20R
• Dataline Protection : RJ-11/RJ-45
• Overload Protection : Yes
• Transfer Time : 0 ns
• EMI/RFI Noise Filter : Yes
• Application/Usage : Mission Critical Equipment,High-end System
• Load Capacity (VA) : 2.20 kVA
• Load Capacity (Watt) : 1.80 kW
• Input Voltage : 120 V AC
• Input Voltage Range : 100 V AC - 125 V AC
• Output Voltage : 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC
• Input Frequency : 60 Hz
• Output Frequency : 60 Hz
• Waveform Type : Pure Sine Wave
• Alarm : Battery,Low Battery,Overload,UPS Fault
• Serial Port : Yes
• USB (HID Compliant) Port : Yes
• DC System Voltage : 72 V DC
• Number of Batteries : 6
• Battery Characteristics : Maintenance-free, Sealed
• Battery Size : 12V
• Battery Capacity : 9000 mAh
• Backup/Run Time (Full Load) : 7 Minute
• Backup/Run Time (Half Load) : 20 Minute
• Hot Swappable : Yes
• Typical Battery Recharge Time : 5 Hour
• Replaceable Battery : Yes
• Storage Relative Humidity : 0% - 90%
• Maximum Operating Temperature : 104°F (40°C)
• Sound Emission (A-Weighted) : 50 dB(A)
• Thermal Dissipation : 736 BTU/h
• Product Color : Black
• Height : 3.46" (87.88 mm)
• Width : 19" (482.60 mm)
• Depth : 22.26" (565.40 mm)
• Rack Height : 2U
• Form Factor : Rack-mountable
• Weight (Approximate) : 39.60 lb (17962.26 g)
• Package Contents :
  • 2 RU Premium Online Series UPS Backup Power, 2200VA
  • 10' Power Cord
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 3 Year
• Additional Warranty Information :

  Battery shall be warrantied for a period of 2 years

• Prevent critical data loss by staying powered during a blackout with up to 1.80 kW load capacity
• Up to 7 minute runtime on full load to preserve critical data from power shortage interruptions
• 2.20 kVA load capacity - work without any interruption during power outages

SPECIFICATIONS
