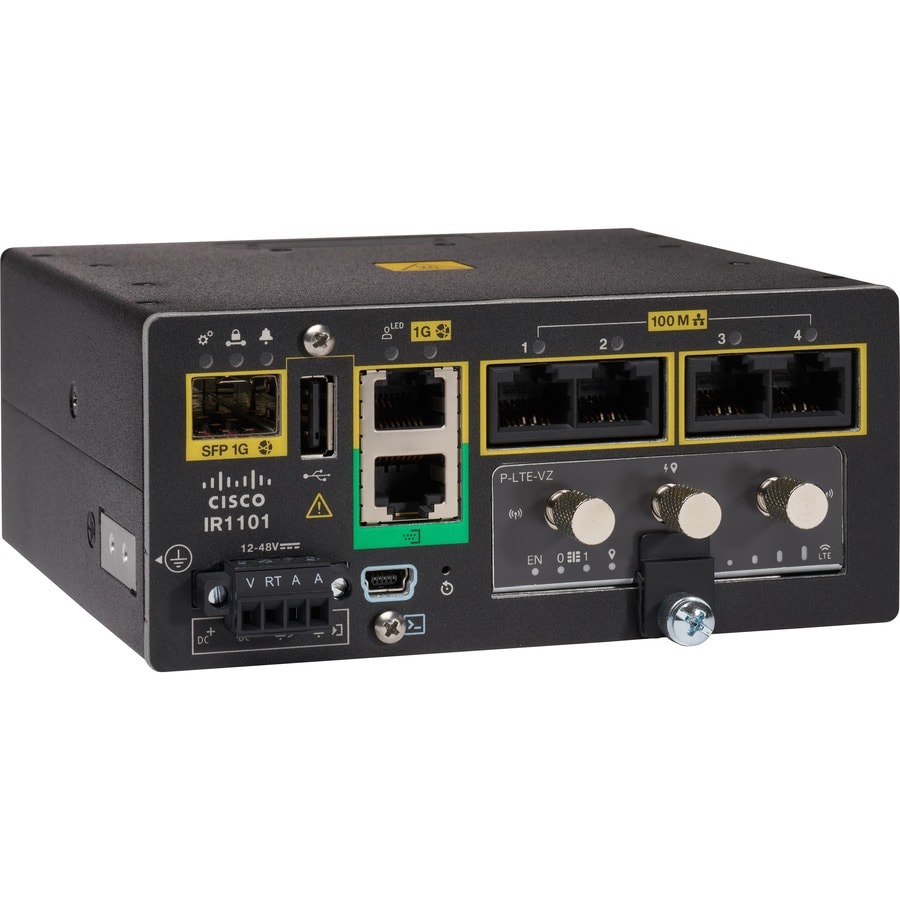

Cisco IR1101 Integrated Services Router Rugged - 5 Ports - 5 RJ-45 Port(s) - Management Port - 2 - Gigabit Ethernet - Wall Mountable - 5 Year
IR1101-K9
Also known as SY6438461
MARKETING INFORMATION
The Cisco® IR1101 Integrated Services Router Rugged, or IR1101, is Cisco's smallest industrial router. Designed in a highly modular form factor makes it an ideal solution for remote asset management across multiple industrial vertical markets.
The IR1101 has an integrated 9.6 to 60V DC power input and is designed to withstand hostile environments, including shock, vibration, dust, humidity and electrostatic discharge (ESD). The IR1101 also supports a wide temperature range: -40 to 60°C standard operation, -40 to 75°C in a forced air enclosure with 200 LFM of air, and type-tested at 85°C for 16 hours. This durability makes it ideal for harsh industrial and distributed IoT deployments such as transportation, oil and gas, distribution substations, industrial automation, and financial institutions.
DETAILS
- Total Number of Ports : 5
- Management Port : Yes
- Number of Network (RJ-45) Ports : 5
- Total Number of Expansion Slots : 2
- Ethernet Technology : Gigabit Ethernet
- Network Technology : 1000Base-T,100Base-T
- Form Factor : Wall Mountable
- Height : 2.36" (59.94 mm)
- Width : 5.22" (132.59 mm)
- Depth : 4.92" (124.97 mm)
- Weight (Approximate) : 2.25 lb (1020.58 g)
- Country of Origin : China
- Limited Warranty : 5 Year
- Offers high performance and reliable connectivity to the Internet and other offices
- With 100Base-T technology, get up to 100 mbps data transfer rate over twisted pair cable
- Features management port for a reliable networking
- Gigabit Ethernet port for ultra-fast network speeds
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | IR1101-K9 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Model | IR1101 |
| Product Name | IR1101 Integrated Services Router Rugged |
| Product Type | Router |
| Total Number of Ports | 5 |
| USB | Yes |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Total Number of Expansion Slots | 2 |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T |
| Network Technology | 100Base-T |
| Form Factor | Wall Mountable |
| Height | 2.36" (59.94 mm) |
| Width | 5.22" (132.59 mm) |
| Depth | 4.92" (124.97 mm) |
| Weight (Approximate) | 2.25 lb (1020.58 g) |
| Country of Origin | China |
| Limited Warranty | 5 Year |
