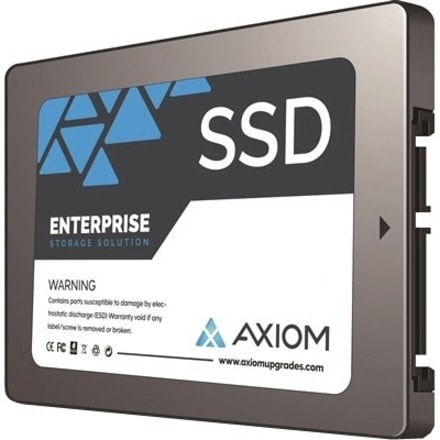

Axiom 3.84TB Enterprise Pro EP400 2.5-inch Bare SATA SSD - Server, Storage Server, Motherboard, Workstation Device Supported - 3.6 DWPD - 21024 TB TBW - 540 MB/s Maximum Read Transfer Rate - Hot Swappable - 256-bit Encryption Standard - 5 Year Warranty

SSDEP403T8-AX
Also known as SY6428162

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The EP400 enterprise hot-swap solid state drive (SSD) delivers enhanced Write/Read IOPS performance for mission-critical applications. Utilizing 2-bit MLC NAND with Charge Trap Flash (CTF) technology combines high performance, unprecedented power efficiency, and superior data integrity for direct-attach storage solutions.
Data center storage density requirements continue to accelerate and the EP400 enables organizations to transition to a leaner infrastructure model reducing total cost of ownership (TCO).

Product Spotlight:
  • Low total cost of ownership (TCO) and better data center efficiency
  • Proven quality and reliability
  • Optimized for data center applications
  • 256-bit AES Encryption
  • Enhanced enterprise endurance with 3.6 Drive Writes Per Day (DWPD)
  • Sustained Read/Write IOPS up to 95K/28K
  • Lifetime Endurance - Up to 12.03 Petabytes Written

Product Features:
  • 2-bit MLC V-NAND
  • Built for sustained performance with low I/O latency and strong I/O consistency
  • Enhanced power-loss protection and power failure protection
  • Temperature sensor and dynamic thermal monitoring
  • Low power consumption
  • Enhanced end-to-end data protection
  • Innovative flash endurance and data integrity protection platform

Specialized for the following workloads:
  • Low latency and high Quality of Service (QoS) applications and databases
  • On-Line Transactional Process (OLTP)
  • Data Warehousing
  • Customer Relationship Management (CRM)
  • Media editing and delivery
  • OpenStack cloud computing platforms
  • Virtualized environments (VDI)
  • E-Commerce, micropayments

DETAILS

  • Storage Capacity : 3.84 TB
  • Encryption Standard : 256-bit
  • Maximum Read Transfer Rate : 540 MB/s
  • Maximum Write Transfer Rate : 520 MB/s
  • Endurance (DWPD) : 3.6
  • Endurance (TBW) : 21024 TB
  • Wireless LAN : No
  • Drive Interface : SATA
  • Drive Interface Standard : SATA/600
  • Drive Type : Internal
  • Form Factor : 2.5"
  • Hot Swappable : Yes
  • Device Supported : Server,Storage Server,Motherboard,Workstation
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
  • Limited Warranty : 5 Year
  • Store as many documents, pictures and videos as you need with 3.84 TB capacity
  • The high-read speed of 540 MB/s maximizes system performance and saves time while you are doing complex tasks
  • With the high-write speed of 520 MB/s, get a quick response when updating or transferring files
  • Have data stored faster with SATA/600 interface that optimizes burst performance
  • With 256-bit encryption protect all your valuable data and keep your personal files safe & secure

SPECIFICATIONS

Manufacturer Axiom Memory Solutions
Manufacturer Part Number SSDEP403T8-AX
Manufacturer Website Address http://search.axiomupgrades.com
Brand Name Axiom
Product Model EP400
Product Name 3.84TB Enterprise Pro EP400 2.5-inch Bare SATA SSD
Product Type Solid State Drive
Storage Capacity 3.84 TB
Encryption Standard 256-bit
Maximum Read Transfer Rate 540 MB/s
Maximum Write Transfer Rate 520 MB/s
Endurance (DWPD) 3.6
Endurance (TBW) 21024 TB
Wireless LAN No
Drive Interface SATA
Drive Interface Standard SATA/600
Operating Power Consumption 3.70 W
Drive Type Internal
Form Factor 2.5"
Hot Swappable Yes
Compatibility
  • ASUS - Z10PE-D16/4L Motherboard
  • Cisco - C240 M5 Rack-Mount Server
  • Cisco - E160D / E160DP M1 Blade Server
  • Cisco - UCS B-Series B22 M3 Blade Server
  • Cisco - UCS B-Series B250 M2 Blade Server
  • Cisco - UCS B-Series B440 M2 Blade Server
  • Cisco - UCS B200 M3 Blade Server
  • Cisco - UCS B200 M4 Blade Server
  • Cisco - UCS B200 M5 Blade Server
  • Cisco - UCS B230 M1 Blade Server
  • Cisco - UCS C-Series C220 M5 Rack-Mount Server
  • Cisco - UCS C460 M1 Rack-Mount Server
  • Cisco - UCS C460 M4 Rack-Mount Server (DDR3)
  • Dell - PowerEdge C6220
  • Dell - PowerEdge C6220 II
  • Dell - PowerEdge C8220
  • Dell - PowerEdge R210
  • Dell - PowerEdge R220
  • Dell - PowerEdge T100Dell - PowerEdge T110
  • Dell - PowerEdge T110 II
  • Dell - PowerEdge T130
  • Dell - PowerEdge T140
  • Dell - PowerEdge T20
  • Dell - Precision 7920 Rack/Tower
  • Dell - Precision Tower 5810 Workstation (T5810)
  • Dell - Precision Tower 7810 Workstation (T7810)
  • Dell - Precision Tower 7910 Workstation (T7910)
  • Dell - Precision Workstation 5820 Tower
  • Dell - Precision Workstation T5610
  • Dell - Precision Workstation T7600
  • Fujitsu-Siemens - PRIMERGY RX200 S6
  • Fujitsu-Siemens - PRIMERGY RX200 S7
  • Fujitsu-Siemens - PRIMERGY RX200 S8
  • Fujitsu-Siemens - PRIMERGY RX300 S5
  • Fujitsu-Siemens - PRIMERGY RX300 S6
  • Fujitsu-Siemens - PRIMERGY RX600 S6
  • HP-Compaq - ProLiant BL490c G7
  • HP-Compaq - ProLiant DL120 G5
  • HP-Compaq - ProLiant DL20 Gen9 (G9)
  • HP-Compaq - ProLiant ML10
  • HP-Compaq - ProLiant ML10 (Gen9)
  • HP-Compaq - ProLiant MicroServer Gen8 (G8)
  • HP-Compaq - ProLiant SL165s G7
  • HP-Compaq - ProLiant SL230s Gen8 (G8)
  • HP-Compaq - Workstation Z400
  • HP-Compaq - Workstation Z420
  • HP-Compaq - Workstation Z440
  • HP-Compaq - Workstation Z600
  • HP-Compaq - Workstation Z620
  • HP-Compaq - Workstation Z640
  • HP-Compaq - Workstation Z8 G4
  • HP-Compaq - Workstation Z800
  • HP-Compaq - Workstation Z820
  • HP-Compaq - Workstation Z840
  • HP-Compaq - Workstation xw6400
  • HP-Compaq - Workstation xw8400
  • HP-Compaq - Z4 G4 Workstation (Core X)
  • HP-Compaq - Z4 G4 Workstation (Xeon)
  • IBM - IntelliStation Z Pro (9228-xxx)
  • IBM - System x iDataPlex dx360 M4 (E5-2600 v2)
  • IBM - System x iDataPlex dx360 M4 (E5-2600)
  • IBM - System x3100 M4 (2582-xxx)
  • IBM - System x3100 M5 (5457-xxx)
  • Intel - S2600CW Server
  • Intel - S2600KP Server
  • Intel - S2600TP Server
  • Intel - S2600WT Server
  • Intel - S3420GPLC Server Board
  • Intel - S3420GPLX Server Board
  • Intel - S3420GPRX Server Board
  • Intel - S3420GPV Server Board
  • Intel - Server System R2208WFQZS
  • Intel - Server System SR1630GPRX
  • Lenovo - ThinkServer RD220 (3729, 3779, 3797, 3798-xxx)
  • Lenovo - ThinkServer RS140
  • Lenovo - ThinkServer RS160
  • Lenovo - ThinkServer TD200x (3719, 3821, 3822, 3823-xxx)
  • Lenovo - ThinkServer TD340
  • Lenovo - ThinkServer TS140
  • Lenovo - ThinkServer TS440
  • https://www.axiomupgrades.com/productdetail/SSDEP403T8-AX/
Device Supported Motherboard
Device Supported Server
Device Supported Workstation
Device Supported Storage Server
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 5 Year
