Tripp Lite series KVM Cable - 10 ft (3.05 m) KVM Cable for KVM Switch, Computer, Monitor - First End: 1 x Mini-phone Audio - Male, 1 x DisplayPort 1.2 Digital Audio/Video - Male, 1 x USB 2.0 Type A - Male - Second End: 1 x Mini-phone Audio - Male, 1 x DisplayPort 1.2 Digital Audio/Video - Male, 1 x

P783-010-DP
Also known as SY6425494

Tripp Lite series KVM Cable - 10 ft (3.05 m) KVM Cable for KVM Switch, Computer, Monitor - First End: 1 x Mini-phone Audio - Male, 1 x DisplayPort 1.2 Digital Audio/Video - Male, 1 x USB 2.0 Type A - Male - Second End: 1 x Mini-phone Audio - Male, 1 x DisplayPort 1.2 Digital Audio/Video - Male, 1 x Port KVM Cable Kit - DP USB 3.5 mm Audio (3xM/3x

New! Log in or create an account to see price and availability


MARKETING INFORMATION

10 ft. Cables Connect Your Computer and 2 DisplayPort Monitors to a Tripp Lite NIAP KVM

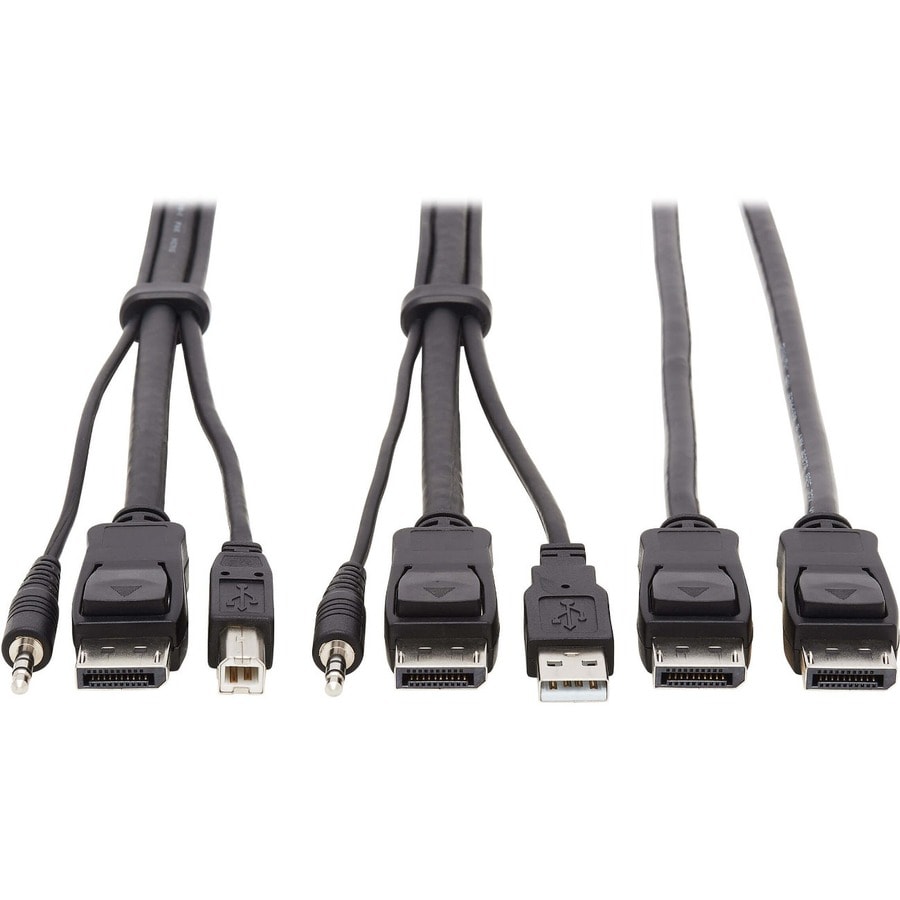

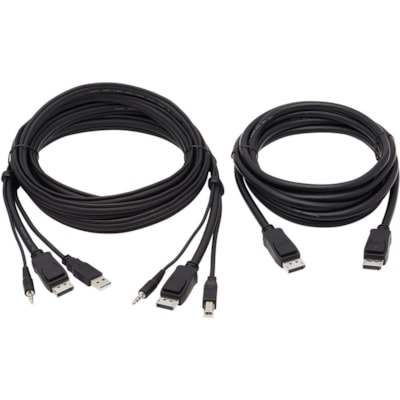

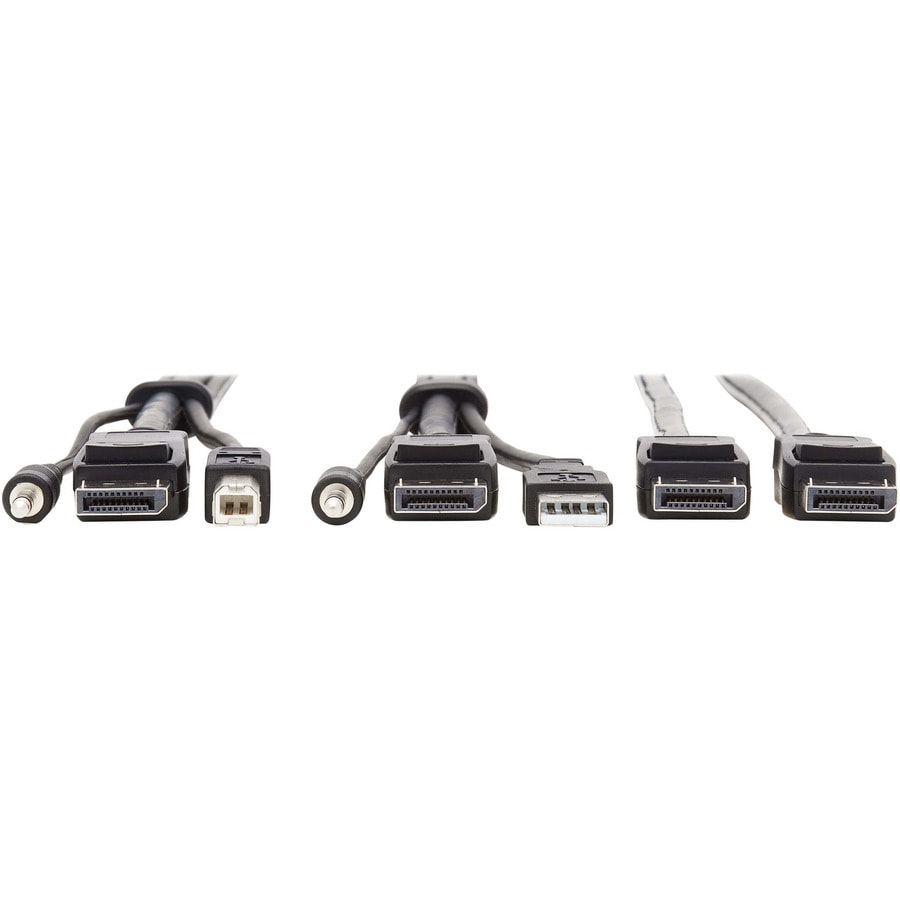

This DisplayPort cable kit includes two 10-foot cables for connecting a computer with two monitors to a KVM switch. The P783-010 features DisplayPort, USB A/B and 3.5 mm audio connectors on both ends for connecting your computer to a KVM switch. The P580-010 is a DisplayPort cable with male connectors on each end.

Specifically Designed for Select Tripp Lite KVMs to Save You Time and Money

Recommended for the Tripp Lite B002-DP2A4 NIAP KVM, the cables support DisplayPort video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with true 4:4:4 chroma subsampling. They are compatible with HDCP 2.2 and DisplayPort 1.2 standards. The P783-010 also supports USB 2.0 data transfer speeds up to 480 Mbps. By combining several different cables into one convenient kit, you cut down on unnecessary clutter and save money.

More from the Manufacturer

DETAILS

  • Cable Length : 10 ft (3.05 m)

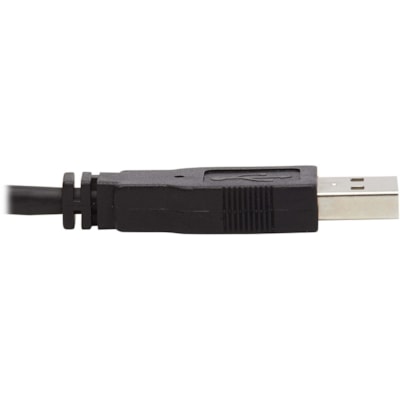

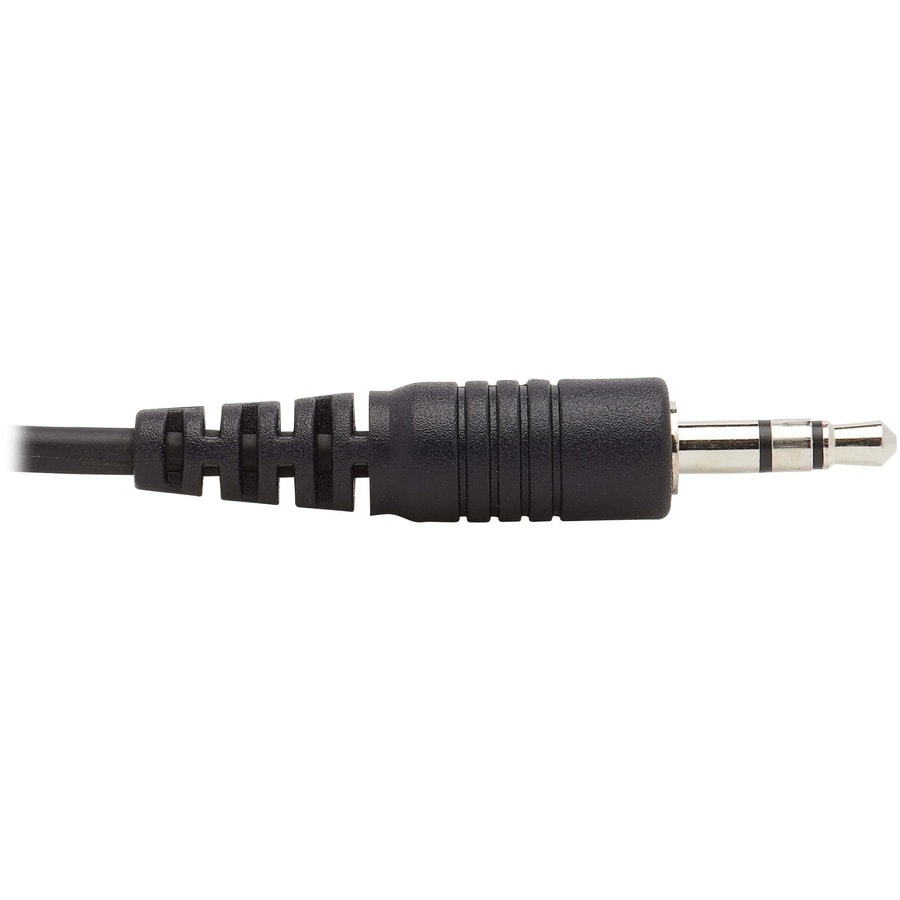

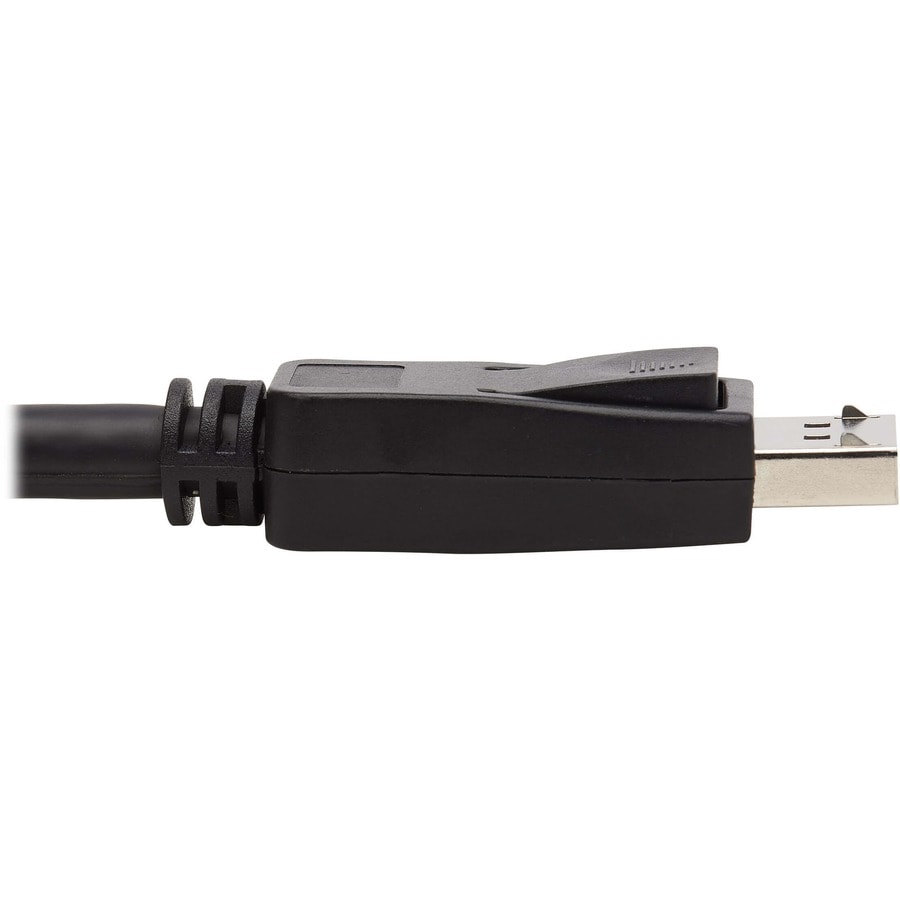

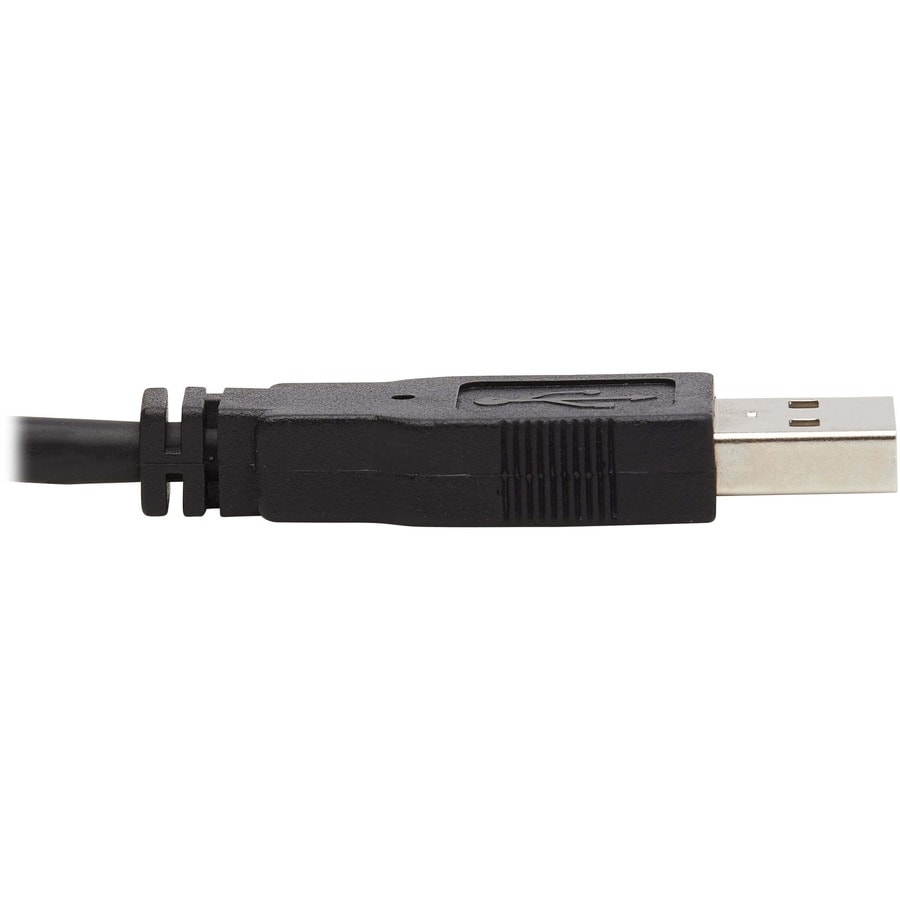

  • Connector Type on First End : Mini-phone Audio - Male,DisplayPort 1.2 Digital Audio/Video - Male,USB 2.0 Type A - Male
  • Connector on First End Details : 1 x Mini-phone Audio - Male,1 x DisplayPort 1.2 Digital Audio/Video - Male,1 x USB 2.0 Type A - Male

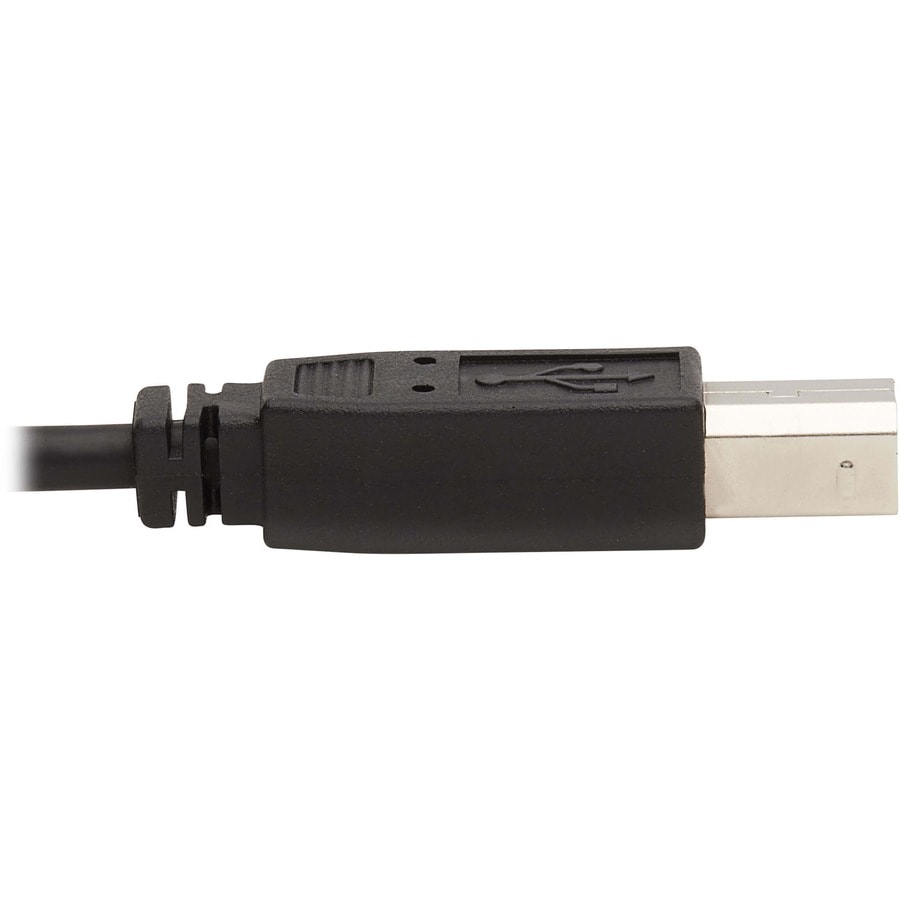

  • Connector Type on Second End : Mini-phone Audio - Male,DisplayPort 1.2 Digital Audio/Video - Male,USB 2.0 Type B - Male
  • Connector on Second End Details : 1 x Mini-phone Audio - Male,1 x DisplayPort 1.2 Digital Audio/Video - Male,1 x USB 2.0 Type B - Male
  • Contact Plating : Gold
  • Device Supported : KVM Switch,Computer,Monitor
  • Data Transfer Rate : 480 Mbit/s
  • Supported Resolution : 3840 x 2160
  • Features : HDCP 2.2
  • Color Family : Black
  • Product Color : Black
  • Package Contents :
    • KVM Cable
    • P580-010 DisplayPort Monitor Cable (M/M), 10 ft.
  • Compatibility : Tripp Lite B002-DP2A4 NIAP KVM Switch
  • Environmentally Friendly : Yes
  • Country of Origin : China
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : Lifetime
  • Conveniently provides connectivity to multiple devices and showcases splendid performance
  • Features HDCP 2.2
  • Fully compatible with KVM switches

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number P783-010-DP
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Model P783-010-DP
Product Name KVM Cable
Product Type KVM Cable
Cable Length 10 ft (3.05 m)
Connector Type on First End Mini-phone Audio - Male
Connector Type on First End DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on First End USB 2.0 Type A - Male
Connector on First End Details 1 x USB 2.0 Type A - Male
Connector on First End Details 1 x DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details 1 x Mini-phone Audio - Male
Connector Type on Second End DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End Mini-phone Audio - Male
Connector Type on Second End USB 2.0 Type B - Male
Connector on Second End Details 1 x DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details 1 x Mini-phone Audio - Male
Connector on Second End Details 1 x USB 2.0 Type B - Male
Contact Plating Gold
Device Supported Monitor
Device Supported Computer
Device Supported KVM Switch
Data Transfer Rate 480 Mbit/s
Supported Resolution 3840 x 2160
Features HDCP 2.2
Color Family Black
Product Color Black
Shipping Height 12" (304.80 mm)
Shipping Width 10" (254 mm)
Shipping Weight (Approximate) 1.22 lb (553.84 g)
Package Contents
  • KVM Cable
  • P580-010 DisplayPort Monitor Cable (M/M), 10 ft.
Compatibility Tripp Lite B002-DP2A4 NIAP KVM Switch
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin China
Limited Warranty Lifetime
