Tripp Lite series KVM Cable - 10 ft (3.05 m) KVM Cable for KVM Switch, Computer - First End: 1 x Mini-phone Audio - Male, 1 x DisplayPort 1.2 Digital Audio/Video - Male, 1 x USB 2.0 Type A - Male - Second End: 1 x Mini-phone Audio - Male, 1 x DisplayPort 1.2 Digital Audio/Video - Male, 1 x USB 2.0 T

P783-010
Also known as SY6425493

Tripp Lite series KVM Cable - 10 ft (3.05 m) KVM Cable for KVM Switch, Computer - First End: 1 x Mini-phone Audio - Male, 1 x DisplayPort 1.2 Digital Audio/Video - Male, 1 x USB 2.0 Type A - Male - Second End: 1 x Mini-phone Audio - Male, 1 x DisplayPort 1.2 Digital Audio/Video - Male, 1 x USB 2.0 T KVM Cable Kit 3 in 1 - 4K Dis playPort USB 3.5 m

New! Log in or create an account to see price and availability


MARKETING INFORMATION

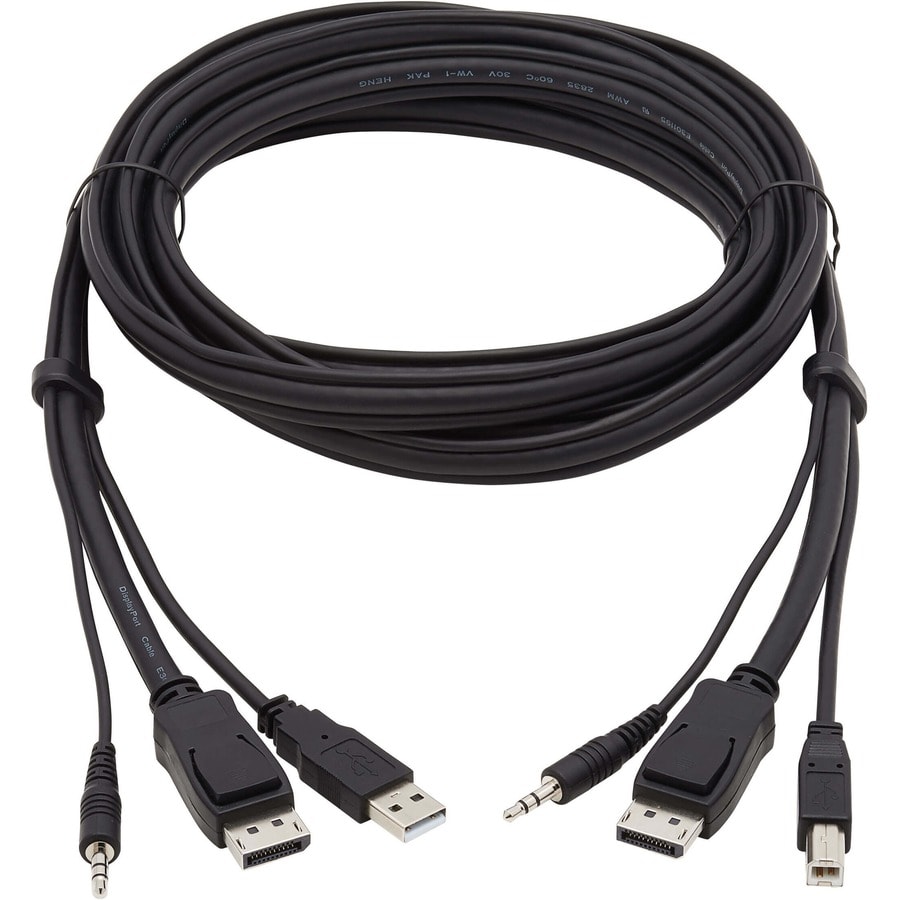

10 ft. 3-in-1 Cable Connects Your DisplayPort Computer to a Tripp Lite NIAP KVM Switch

This cable features DisplayPort, USB A/B and 3.5 mm audio connectors on both ends for connecting your computer to a KVM switch. Designed specifically for the Tripp Lite B002-DP1A4 NIAP KVM, the 10-foot cable supports DisplayPort video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with true 4:4:4 chroma subsampling. It's compatible with HDCP 2.2, DisplayPort 1.2 and USB 2.0 (480 Mbps) standards. By combining three different cables into one convenient cord, you cut down on unnecessary clutter and save money.

DETAILS

  • Cable Length : 10 ft (3.05 m)
  • Connector Type on First End : Mini-phone Audio - Male,DisplayPort 1.2 Digital Audio/Video - Male,USB 2.0 Type A - Male
  • Connector on First End Details : 1 x Mini-phone Audio - Male,1 x DisplayPort 1.2 Digital Audio/Video - Male,1 x USB 2.0 Type A - Male
  • Connector Type on Second End : Mini-phone Audio - Male,DisplayPort 1.2 Digital Audio/Video - Male,USB 2.0 Type B - Male
  • Connector on Second End Details : 1 x Mini-phone Audio - Male,1 x DisplayPort 1.2 Digital Audio/Video - Male,1 x USB 2.0 Type B - Male
  • Contact Plating : Gold
  • Device Supported : KVM Switch,Computer
  • Data Transfer Rate : 480 Mbit/s
  • Supported Resolution : 3840 x 2160
  • Features : HDCP 2.2
  • Color Family : Black
  • Product Color : Black
  • Compatibility : Tripp Lite B002-DP1A4 KVM Switch
  • Environmentally Friendly : Yes
  • Country of Origin : China
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : Lifetime
  • For exceptional quality, upright compatibility and reliability use this KVM Cable
  • Features HDCP 2.2

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number P783-010
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Model P783-010
Product Name KVM Cable
Product Type KVM Cable
Cable Length 10 ft (3.05 m)
Connector Type on First End DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on First End Mini-phone Audio - Male
Connector Type on First End USB 2.0 Type A - Male
Connector on First End Details 1 x Mini-phone Audio - Male
Connector on First End Details 1 x DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details 1 x USB 2.0 Type A - Male
Connector Type on Second End DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End USB 2.0 Type B - Male
Connector Type on Second End Mini-phone Audio - Male
Connector on Second End Details 1 x USB 2.0 Type B - Male
Connector on Second End Details 1 x DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details 1 x Mini-phone Audio - Male
Contact Plating Gold
Device Supported Computer
Device Supported KVM Switch
Data Transfer Rate 480 Mbit/s
Supported Resolution 3840 x 2160
Features HDCP 2.2
Color Family Black
Product Color Black
Compatibility Tripp Lite B002-DP1A4 KVM Switch
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin China
Limited Warranty Lifetime
