MARKETING INFORMATION

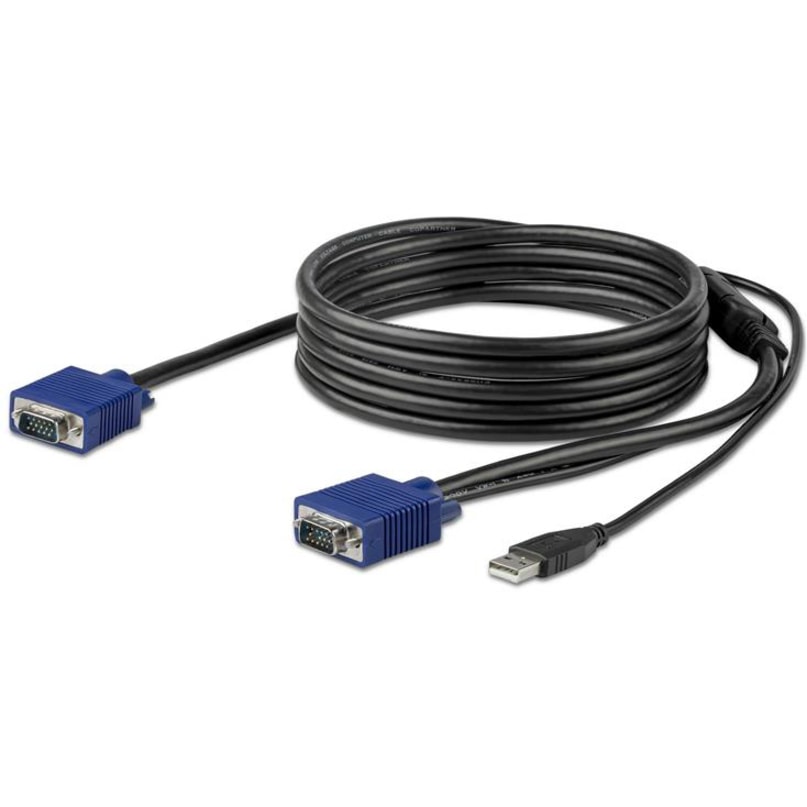

This 10 ft. (3 m) USB KVM Cable enables your StarTech.com Rackmount LCD console and KVM switch kit to conveniently operate your VGA and USB-equipped server.

This line of KVM cables are available in variable lengths, and are the only cables engineered for guaranteed compatibility with the StarTech.com line of RKCONS series of Rackmount Consoles and KVM switches. Supported models of Rackmount LCD Consoles are: RKCONS1701, RKCONS17HD, RKCONS1708K, RKCONS1716K, RKCONS1901, RKCONS1908K, RKCONS1916K.

Engineered to Keep Your Server Room Tidy

This KVM cable has been specifically designed for the StarTech.com line of Rackmount KVM and Console kit. The USB and VGA KVM cord is wired with a unique schematic that enables a single connector on the KVM to interface with both VGA and USB on your server. This space-saving design dramatically reduces cable-clutter in your server rack, and ensures a tidy, professional server room.

Crystal-Clear Picture Quality

When connected to an HD rackmount console, the 10 foot KVM cable supports HD resolutions up to 1920x1200 including 1080p, maintaining the quality of your server's video card to deliver every detail in high-definition.

Available in Different Lengths

To support the complexities and demands of your data center, this 10 foot (3 meter) KVM cable is also available as a 6 foot (1.8 meter KVM Cable (RKCONSUV6), and a 15 foot (4.8 meter) KVM cable (RKCONSUV15).

The RKCONSUV10 is backed by a StarTech.com Lifetime warranty and free technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

• Cable Length : 9.8 ft (3 m)
• Connector Type on First End : HD-15 - Male
• Connector Gender on First End : Male
• Connector on First End Details : 1 x 14-pin HD-15 - Male
• Connector Type on Second End : HD-15 - Male,USB 2.0 Type A - Male
• Connector Gender on Second End : Male
• Connector on Second End Details : 1 x 15-pin HD-15 - Male,1 x 4-pin USB 2.0 Type A - Male
• Connector Plating : Nickel
• Shielding : Yes
• Device Supported : KVM Console,Server,KVM Switch
• Supported Resolution : 1920 x 1200
• Color Family : Black
• Product Color : Black
• Jacket Material : Polyvinyl Chloride (PVC)
• Weight (Approximate) : 8.10 oz (229.63 g)
• Environmentally Friendly : Yes
• Country of Origin : China
• Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty : Lifetime

• Forgo the tangles of too many wires and connect multiple peripherals on a single KVM cable
• Fully compatible with servers
