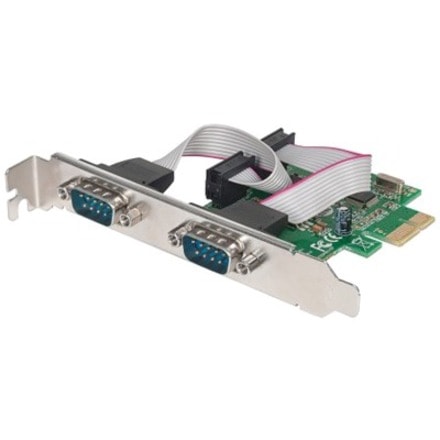

Manhattan PCI Express Card, 2x Serial DB9 ports, 2.5 Mbps, x1 x4 x8 x16 lane buses, Standard/Low Profile PCI, Three Year Warranty, Box - Low-profile Plug-in Card - PCI Express 1.1 x1 - PC - 2 x Number of Serial Ports External
152082
Also known as SY6392724
MARKETING INFORMATION
PCI Express balances cost, performance, compatibility and advanced features for computing platforms.
The Manhattan Serial PCI Express Card quickly and easily adds two DB9 ports to PCI Express-enabled desktop systems to connect and communicate with serial peripheral devices.
Fast Data Transfer
The Manhattan Serial PCI Express Card can be configured to achieve baud rates of up to 230,400 bps to take advantage of PCI Express data transfer speeds of up to 2.5 Gbps. Compliance with PCI Express 1.1 specifications ensures that most PCI Express Card-equipped desktop computers and devices can operate at peak performance.
Simple Installation
The Manhattan Serial PCI Express Card fits PCI Express x1, x4, x8 and x16 lane buses, and configurable COM port settings provide a flexible way to customize its use to various needs.
DETAILS
- Host Interface : PCI Express 1.1 x1
- Platform Supported : PC
- Number of Serial Ports (External) : 2
- Form Factor : Plug-in Card
- Card Height : Low-profile
- Height : 2.68" (68 mm)
- Width : 4.72" (120 mm)
- Depth : 0.79" (20 mm)
- Weight (Approximate) : 1.90 oz (53.80 g)
- Environmentally Friendly : Yes
- Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
SPECIFICATIONS
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 152082 |
| Manufacturer Website Address | http://www.icintracom.com |
| Brand Name | Manhattan |
| Product Name | Serial PCI Express Card |
| Product Type | Serial Adapter |
| Host Interface | PCI Express 1.1 x1 |
| Platform Supported | PC |
| Number of Serial Ports (External) | 2 |
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Height | 2.68" (68 mm) |
| Width | 4.72" (120 mm) |
| Depth | 0.79" (20 mm) |
| Weight (Approximate) | 1.90 oz (53.80 g) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
