CyberPower UPS Systems OL3000RTXL2UHVN Smart App Online - Capacity: 3000 VA / 2700 W - CyberPower OL3000RTXL2UHVN 3KVA Online UPS 2U sine wave LCD 200-240V RMCARD205 RT 3YR WTY

OL3000RTXL2UHVN
Also known as SY6348992,OL3000RTXL2UHVC

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

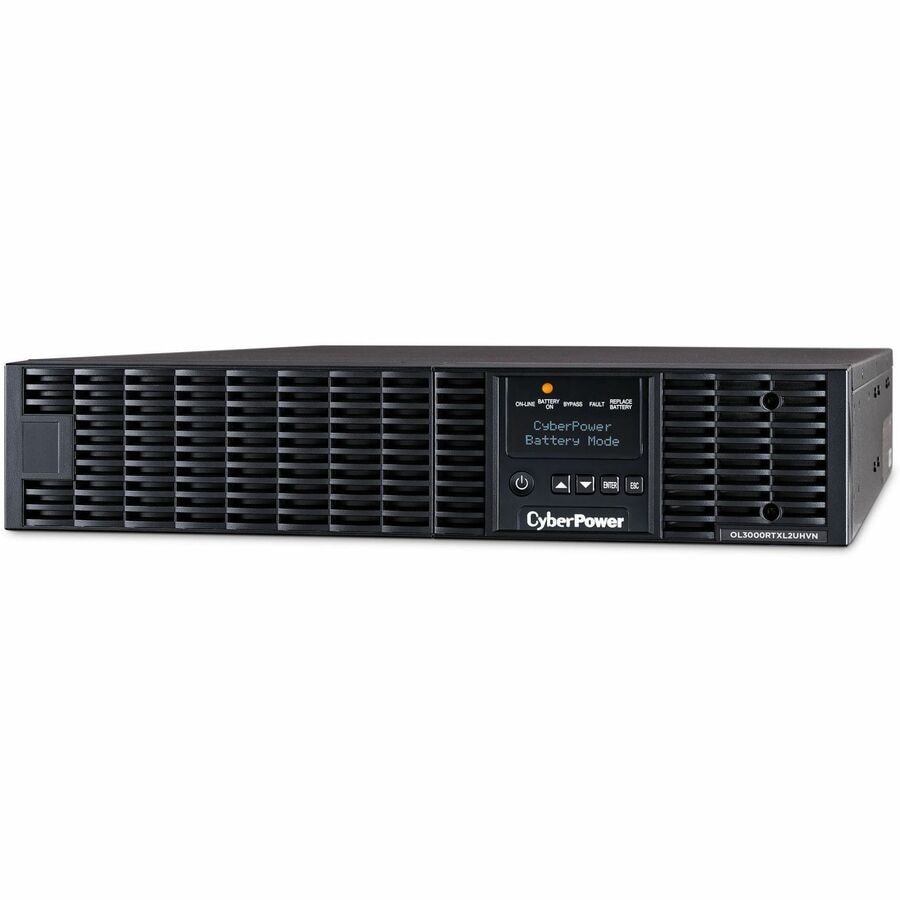

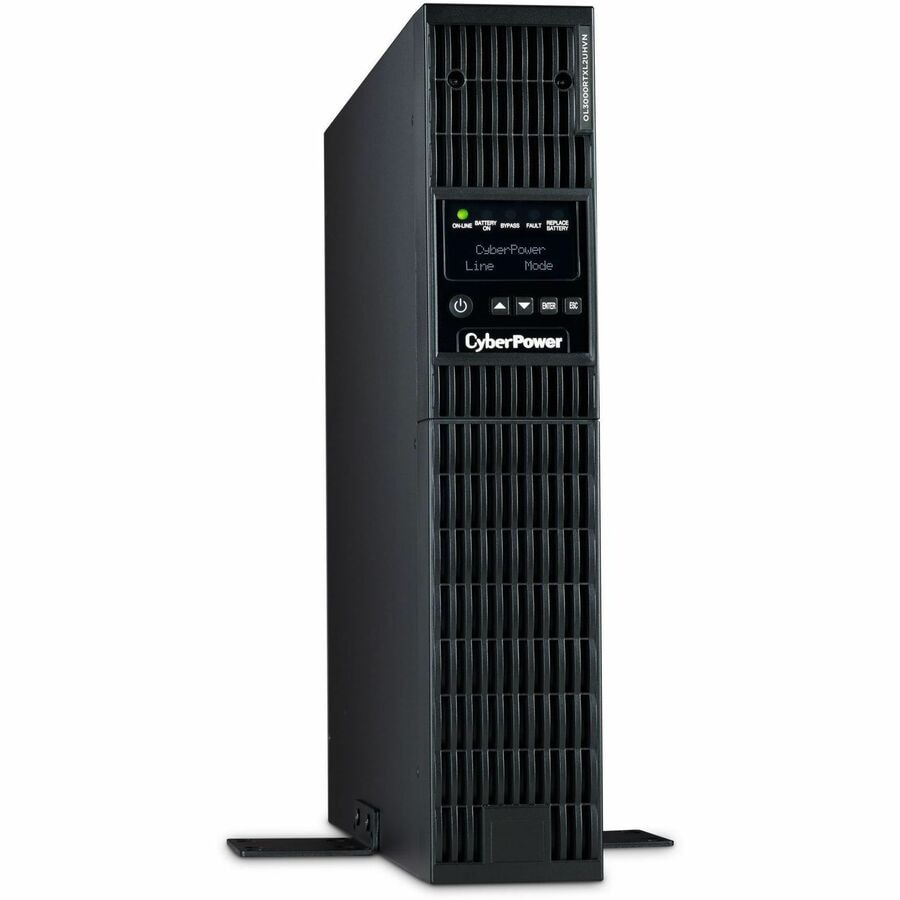

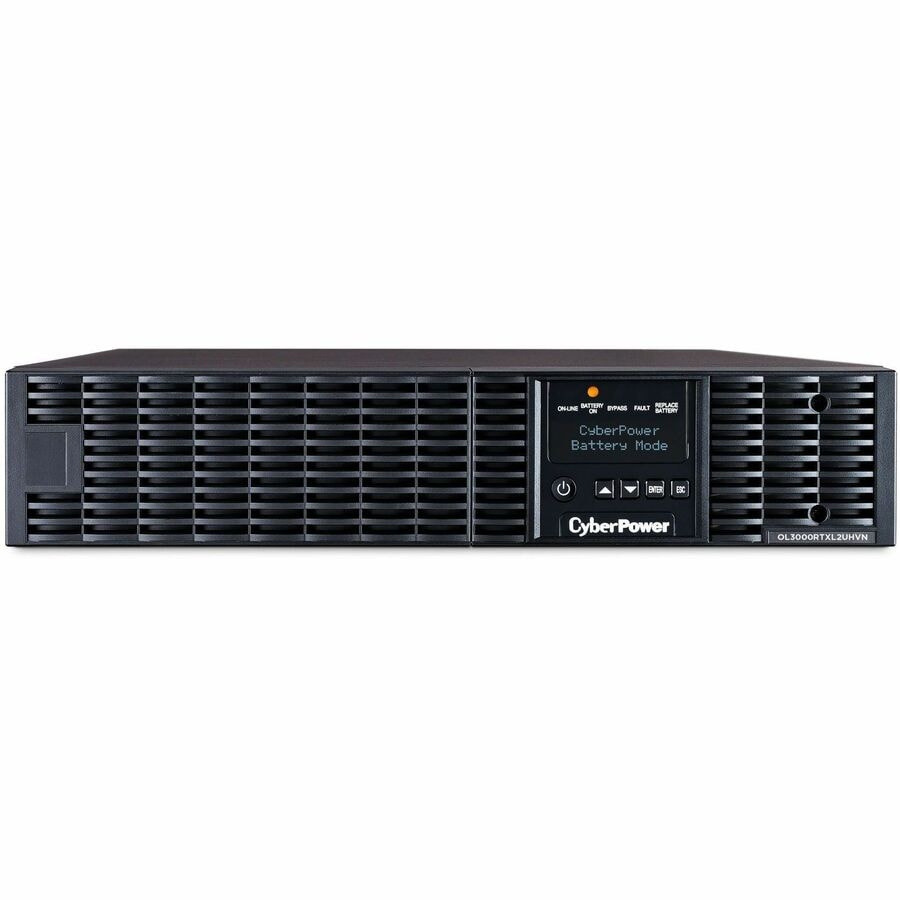

The CyberPower OL3000RTXL2UHVN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL3000RTXL2UHVN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

DETAILS

  • Plug/Connector Type : NEMA L6-20P
  • Receptacle Type : NEMA L6-20R,NEMA L6-30R
  • Receptacle Detail : 2 x NEMA L6-20R,1 x NEMA L6-30R
  • Transfer Time : 0 ns
  • Dataline Protection : RJ-11,RJ-45
  • Protection Type : Short Circuit
  • Overload Protection : Yes
  • EMI/RFI Noise Filter : Yes
  • Energy Saving : ECO Mode Efficiency >97%
  • Application/Usage : Server,Network Device,Lab Equipment,Electronic Device,High-end System Component,Edge Computing,PBX System,VoIP,Mission Critical Equipment,Generator
  • Cord Length : 10 ft (3048 mm)
  • Circuit Breaker Current Rating : 16 A
  • Crest Factor : 3:1
  • Load Capacity (VA) : 3 kVA
  • Load Capacity (Watt) : 2.70 kW
  • Input Voltage : 120 V AC,230 V AC
  • Input Voltage Range : 120 V AC - 139 V AC,200 V AC - 240 V AC
  • Output Voltage : 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
  • Input Frequency : 40 Hz,70 Hz
  • Output Frequency : 50 Hz,60 Hz
  • Waveform Type : Sine Wave
  • Surge Energy Rating : 445 J
  • Input Power Factor : 0.99
  • Output Power Factor : 0.9
  • Display : LCD
  • Network Management : Dry Contact,Relay Card,SNMP/HTTP/CLI Remote Monitoring
  • Alarm : Battery Mode,Low Battery,Overload,UPS Fault
  • Status Indicators :
    • Power On (white)
    • Line Mode (green)
    • Battery Mode (yellow)
    • Bypass Mode (yellow)
    • Fault (red)
    • Replace Battery (red)
  • Serial Port : Yes
  • USB : Yes
  • USB (HID Compliant) Port : Yes
  • EPO Port : Yes
  • DC System Voltage : 12 V DC
  • Number of Batteries : 6
  • Battery Characteristics : Sealed
  • Battery Chemistry : Lead Acid
  • Battery Size : 12V
  • Battery Capacity : 9000 mAh
  • Backup/Run Time (Full Load) : 4 Minute
  • Backup/Run Time (Half Load) : 12.50 Minute
  • Typical Battery Recharge Time : 4 Hour
  • Replaceable Battery : Yes
  • Maximum Operating Temperature : 104°F (40°C)
  • Storage Temperature : -4°F (-20°C) - 113°F (45°C)
  • Maximum Operating Elevation : 10000 ft (3048000 mm)
  • Maximum Storage Elevation : 50000 ft (15240000 mm)
  • Operating Humidity : 0% - 90%
  • Storage Relative Humidity : 0% - 95%
  • Sound Emission (A-Weighted) : 55 dB(A)
  • Thermal Dissipation : 790 BTU/h
  • Product Color : Black

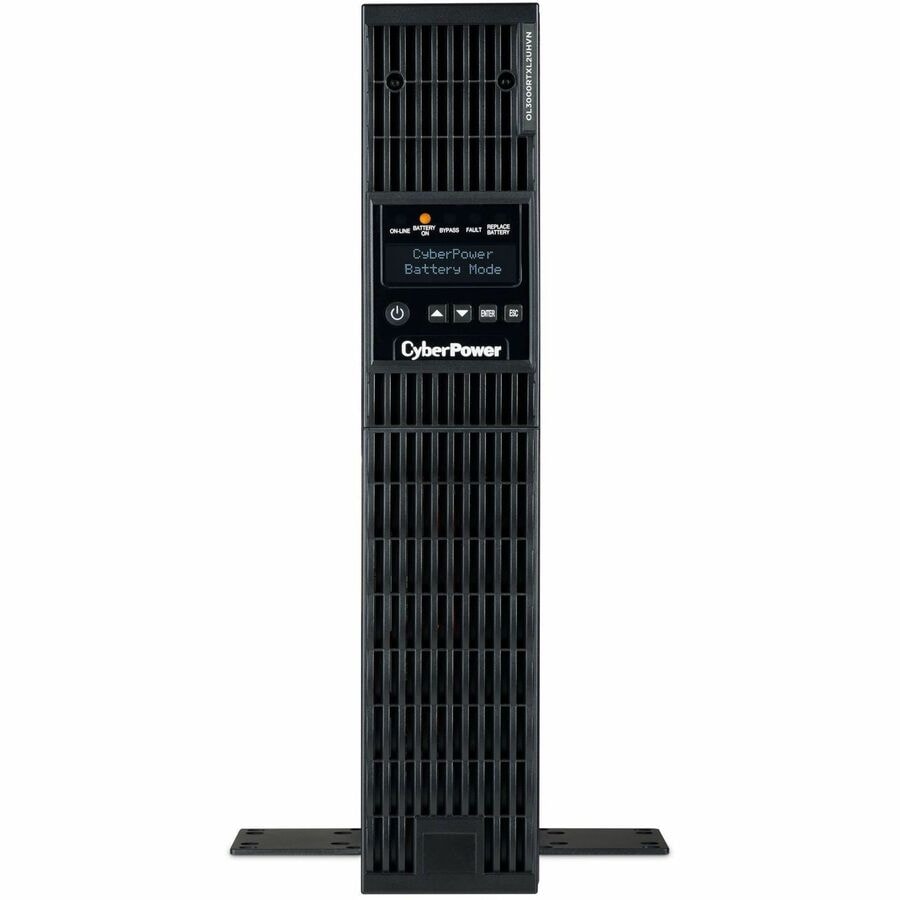

  • Form Factor : Rack/Tower
  • Rack Height : 2U
  • Height : 3.50" (88.90 mm)
  • Width : 17" (431.80 mm)
  • Depth : 23.62" (599.95 mm)
  • Weight (Approximate) : 68.20 lb (30935 g)
  • Software Included : PowerPanel® Business
  • Energy Star : Yes
  • Country of Origin : Philippines
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Capacity: 3000 VA / 2700 W
  • Power Factor (PF): 0.9
  • Topology: Double-Conversion
  • Waveform: Sine Wave
  • Output: 200, 208, 220, 230, 240 V ±2% (configurable)
  • Plug type & cord: NEMA L6-20P, 10 ft. cord

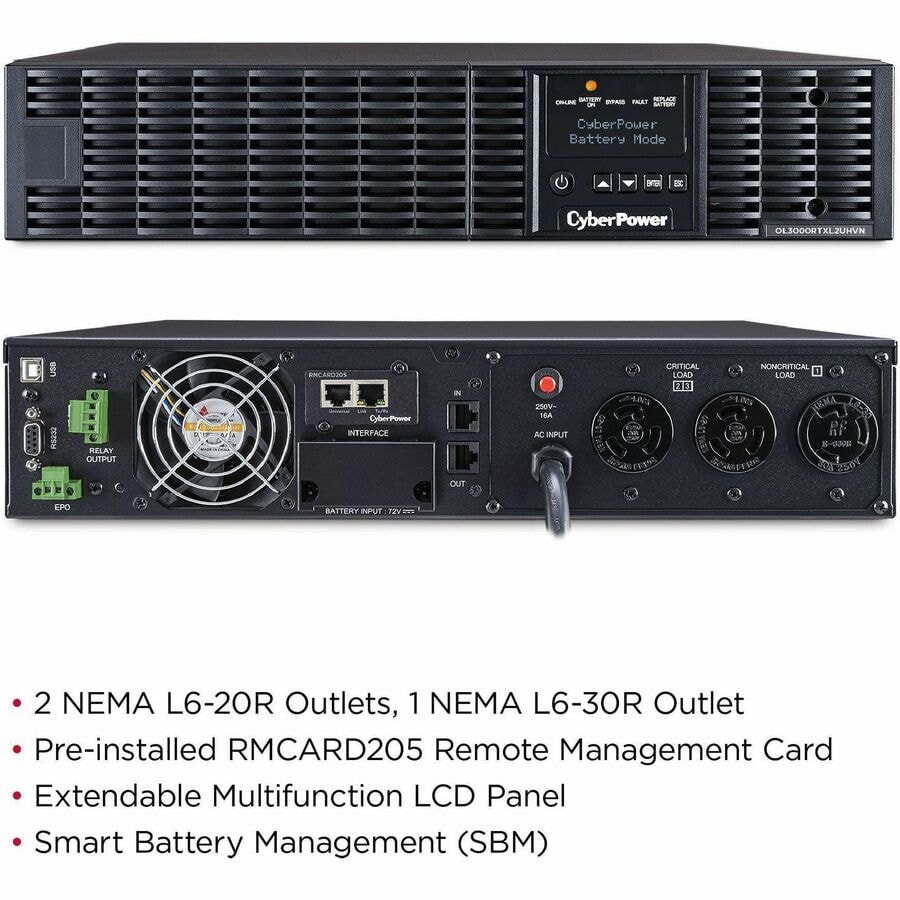

  • Outlet types: 2 × NEMA L6-20R, 1 × NEMA L6-30R
  • Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
  • Data line surge protection: Telephone, Network
  • Management software: PowerPanel® Business Edition

SPECIFICATIONS

Manufacturer CyberPower Systems, Inc
Manufacturer Part Number OL3000RTXL2UHVN
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series Smart App Online UPS
Product Model OL3000RTXL2UHVN
Product Name Smart App Online OL3000RTXL2UHVN 3KVA Rack/Tower UPS
Product Type Double Conversion Online UPS
Plug/Connector Type NEMA L6-20P
Receptacle Type NEMA L6-30R
Receptacle Type NEMA L6-20R
Receptacle Detail 1 x NEMA L6-30R
Receptacle Detail 2 x NEMA L6-20R
Transfer Time 0 ns
Dataline Protection RJ-45
Dataline Protection RJ-11
Protection Type Short Circuit
Overload Protection Yes
EMI/RFI Noise Filter Yes
Energy Saving ECO Mode Efficiency >97%
Application/Usage Electronic Device
Application/Usage Lab Equipment
Application/Usage Network Device
Application/Usage Server
Application/Usage High-end System Component
Application/Usage Generator
Application/Usage Mission Critical Equipment
Application/Usage Edge Computing
Application/Usage PBX System
Application/Usage VoIP
Cord Length 10 ft (3048 mm)
Crest Factor 3:1
Circuit Breaker Current Rating 16 A
Load Capacity (VA) 3 kVA
Load Capacity (Watt) 2.70 kW
Input Voltage 120 V AC
Input Voltage 230 V AC
Input Voltage Range 200 V AC - 240 V AC
Input Voltage Range 120 V AC - 139 V AC
Output Voltage 220 V AC
Output Voltage 230 V AC
Output Voltage 240 V AC
Output Voltage 208 V AC
Output Voltage 200 V AC
Input Frequency 40 Hz
Input Frequency 70 Hz
Output Frequency 60 Hz
Output Frequency 50 Hz
Waveform Type Sine Wave
Surge Energy Rating 445 J
Input Power Factor 0.99
Output Power Factor 0.9
Display LCD
Network Management Relay Card
Network Management Dry Contact
Network Management SNMP/HTTP/CLI Remote Monitoring
Alarm Overload
Alarm Low Battery
Alarm Battery Mode
Alarm UPS Fault
Status Indicators
  • Power On (white)
  • Line Mode (green)
  • Battery Mode (yellow)
  • Bypass Mode (yellow)
  • Fault (red)
  • Replace Battery (red)
Serial Port Yes
USB Yes
USB (HID Compliant) Port Yes
EPO Port Yes
DC System Voltage 12 V DC
Number of Batteries 6
Battery Characteristics Sealed
Battery Chemistry Lead Acid
Battery Size 12V
Battery Capacity 9000 mAh
Backup/Run Time (Full Load) 4 Minute
Backup/Run Time (Half Load) 12.50 Minute
Typical Battery Recharge Time 4 Hour
Replaceable Battery Yes
Maximum Operating Temperature 104°F (40°C)
Storage Temperature -4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation 10000 ft (3048000 mm)
Maximum Storage Elevation 50000 ft (15240000 mm)
Operating Humidity 0% - 90%
Storage Relative Humidity 0% - 95%
Sound Emission (A-Weighted) 55 dB(A)
Thermal Dissipation 790 BTU/h
Color Family Black
Product Color Black
Form Factor Rack/Tower
Rack Height 2U
Height 3.50" (88.90 mm)
Width 17" (431.80 mm)
Depth 23.62" (599.95 mm)
Weight (Approximate) 68.20 lb (30935 g)
Package Contents
  • Smart App Online OL3000RTXL2UHVN 3KVA Rack/Tower UPS
  • User Manual
  • Registration Card
  • 2 x Rackmount Rails
  • 2 x Rackmount Ears
  • 2 x Hanging Brackets
  • Phone Line
  • USB Communication Cable
  • Serial Interface Cable (RS-232)
  • 8 x M5X7L Black Flat Head Screws
  • 12 x M5X12L Black Pan Head Screws
  • 6 x M5X6L Silver Pan Head Screws
  • 8 x Plastic Washers
  • 12 x Screw Hole Dust Covers
  • 12 x Rubber Pads
  • Software Download Card
Additional Information
  • Replacement Battery Cartridge Quantity: 1
  • Smart Battery Management (SBM) Mode: Yes
  • Circuit Breaker: 20A
  • Cold Start: Yes
  • Input Power Factor: 0.99
  • Crest Factor: 3:1
  • ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
  • Harmonic Distortion: < 3% at Linear Load
  • Nominal Output Voltage: 200 - 240 VAC
  • On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
  • Output Power Factor: 0.9
  • Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
  • Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
  • Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
  • Dry Contacts: Yes
  • Expansion Slot: Yes - RMCARD205 pre-installed
  • LCD: Multifunction LCD
  • Management Cable: USB Cable
  • Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
  • Rotatable LCD Control Panel Option: Yes
  • Upgradeable firmware: Yes
  • Material of Construction: Metal
  • Mounting Hardware: Yes
  • ECO Mode Thermal Dissipation: 207 BTU/hr
Certifications & Standards UL 1778
Software Included PowerPanel® Business
Energy Star Yes
Country of Origin Philippines
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $400000 Lifetime
