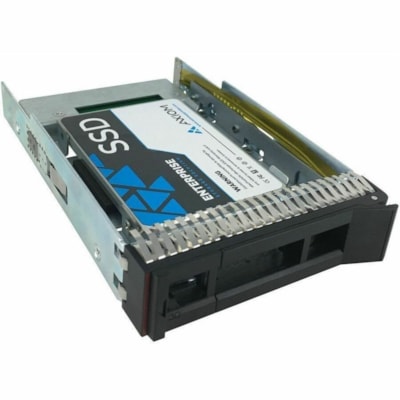

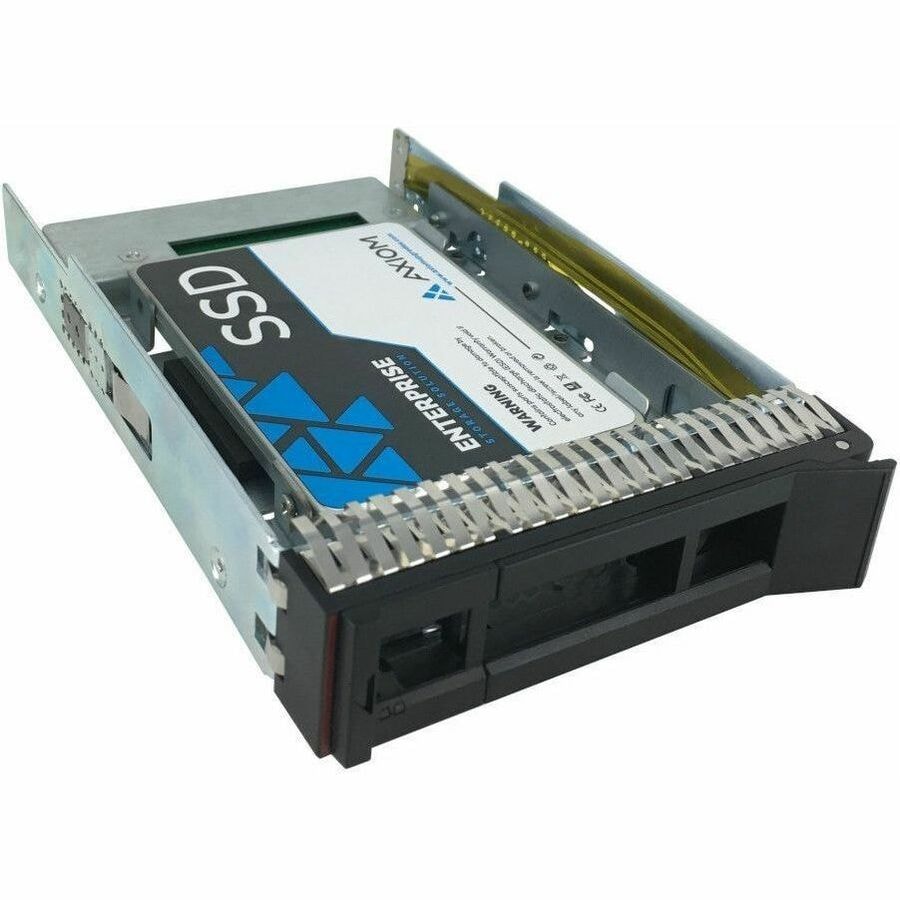

Axiom Enterprise EV200 3.84 TB Solid State Drive - 2.5" Internal - SATA (SATA/600) - Read Intensive/Mixed Use - Server Device Supported - 1.4 DWPD - 5466 TB TBW - 520 MB/s Maximum Read Transfer Rate - Hot Swappable - 256-bit AES Encryption Standard - 5 Year Warranty

SSDEV20SM3T8-AX
Also known as SY6339684

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Features

Optimized for latency-sensitive applications and mixed-use workloads the EV200 hot-swap solid state drive (SSD) utilizes V-NAND technology to deliver exceptional around the clock performance for growing data center demands. The SATA interface enables storage capacity to expand while utilizing the existing IT infrastructure - achieving the optimum price/performance for converged and virtualized architectures.

For use in data centers supporting enterprises that require 24/7 accessibility to cloud services and applications. Designed for read-intensive application workloads where high performance, reliable throughput, data integrity and data loss protection is at the forefront.

Product Spotlight:

  • Low total cost of ownership (TCO)
  • Proven quality and reliability
  • Optimized for data center applications
  • Enhanced enterprise endurance with 1.4 Drive Writes Per Day (DWPD)
  • Sustained Read/Write IOPS up to 99K/18K

Product Features:

  • Built with 3-bit MLC V-NAND Flash technology
  • Strong IOPS consistency - low I/O latency and high I/O throughput performance
  • Enterprise-grade power-loss protection and power failure protection
  • Temperature sensor and monitoring
  • Low power consumption
  • Enhanced end-to-end data protection
  • Innovative flash endurance and data integrity protection via 32-cell vertical NAND architecture

Specialized for the following workloads:

  • Demanding Quality of Service (QoS), latency-sensitive applications and databases
  • IaaS, PaaS, and SaaS Infrastructure
  • NoSQL performance acceleration
  • DBaas, MySQL, PostgreSQL transaction processing
  • OpenStack cloud computing platforms
  • Software-defined storage upgrades
  • E-Commerce, micropayments

DETAILS

  • Storage Capacity : 3.84 TB
  • Encryption Standard : 256-bit AES
  • Maximum Read Transfer Rate : 520 MB/s
  • Maximum Write Transfer Rate : 480 MB/s
  • Random 4KB Read : 97000IOPS
  • Random 4KB Write : 24000IOPS
  • Endurance (DWPD) : 1.4
  • Endurance (TBW) : 5466 TB
  • Endurance Type : Read Intensive/Mixed Use
  • Wireless LAN : No
  • Drive Interface : SATA
  • Drive Interface Standard : SATA/600
  • Drive Type : Internal
  • Form Factor : 2.5"
  • Hot Swappable : Yes
  • Device Supported : Server
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
  • Limited Warranty : 5 Year
  • Store as many documents, pictures and videos as you need with 3.84 TB capacity
  • The high-read speed of 520 MB/s maximizes system performance and saves time while you are doing complex tasks
  • With the high-write speed of 480 MB/s, get a quick response when updating or transferring files
  • Have data stored faster with SATA/600 interface that optimizes burst performance
  • With 256-bit AES encryption protect all your valuable data and keep your personal files safe & secure

SPECIFICATIONS

Manufacturer Axiom Memory Solutions
Manufacturer Part Number SSDEV20SM3T8-AX
Manufacturer Website Address http://search.axiomupgrades.com
Brand Name Axiom
Product Line Enterprise
Product Model EV200
Product Name 3.84TB Enterprise EV200 3.5-inch Hot-Swap SATA SSD for Lenovo
Product Type Solid State Drive
Storage Capacity 3.84 TB
Encryption Standard 256-bit AES
Maximum Read Transfer Rate 520 MB/s
Maximum Write Transfer Rate 480 MB/s
Random 4KB Read 97000IOPS
Random 4KB Write 24000IOPS
Endurance (DWPD) 1.4
Endurance (TBW) 5466 TB
Endurance Type Read Intensive/Mixed Use
Wireless LAN No
Drive Interface SATA
Drive Interface Standard SATA/600
Drive Type Internal
Form Factor 2.5"
Hot Swappable Yes
Compatibility

Lenovo Servers:

  • ThinkSystem SR250
  • ThinkSystem SR550
  • ThinkSystem SR590
  • ThinkSystem SR630
  • ThinkSystem SR630 V2
  • ThinkSystem SR645
  • ThinkSystem SR650
  • ThinkSystem SR650 V2
  • ThinkSystem ST250
  • ThinkSystem ST550
Device Supported Server
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 5 Year
