MARKETING INFORMATION

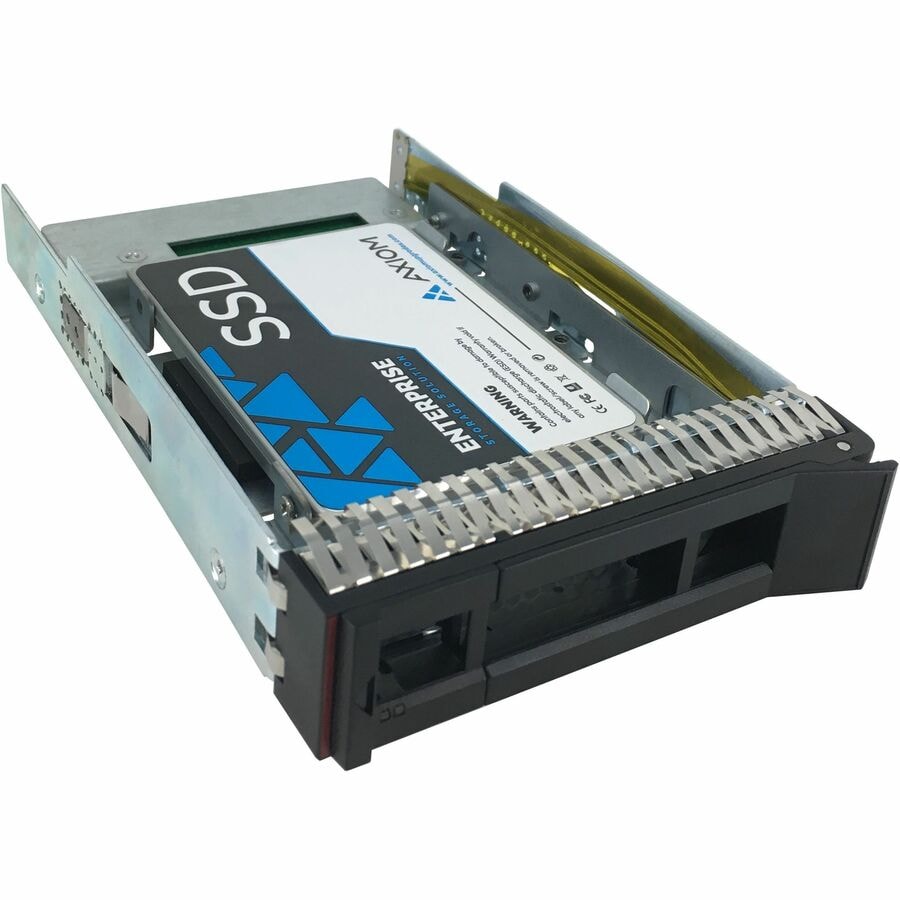

Optimized for latency-sensitive applications and mixed-use workloads the EV200 hot-swap solid state drive (SSD) utilizes V-NAND technology to deliver exceptional around the clock performance for growing data center demands. The SATA interface enables storage capacity to expand while utilizing the existing IT infrastructure - achieving the optimum price/performance for converged and virtualized architectures. For use in data centers supporting enterprises that require 24/7 accessibility to cloud services and applications. Designed for read-intensive application workloads where high performance, reliable throughput, data integrity and data loss protection is at the forefront.

Product Spotlight:

Low total cost of ownership (TCO)

Proven quality and reliability

Optimized for data center applications

Enhanced enterprise endurance with 1.4 Drive Writes Per Day (DWPD)

Sustained Read/Write IOPS up to 99K/18K

Product Features:

Built with 3-bit MLC V-NAND Flash technology

Strong IOPS consistency - low I/O latency and high I/O throughput performance

Enterprise-grade power-loss protection and power failure protection

Temperature sensor and monitoring

Low power consumption

Enhanced end-to-end data protection

Innovative flash endurance and data integrity protection via 32-cell vertical NAND architecture

Specialized for the following workloads:

Demanding Quality of Service (QoS), latency-sensitive applications and databases

IaaS, PaaS, and SaaS Infrastructure

NoSQL performance acceleration

DBaas, MySQL, PostgreSQL transaction processing

OpenStack cloud computing platforms

Software-defined storage upgrades

E-Commerce, micropayments

DETAILS

• Storage Capacity : 240 GB
• Encryption Standard : 256-bit AES
• Random 4KB Read : 98000IOPS
• Random 4KB Write : 14000IOPS
• Endurance (DWPD) : 1.3
• Endurance (TBW) : 341 TB
• Maximum Sequential Read : 550 MB/s
• Maximum Sequential Write : 320 MB/s
• Mean Time Between Failures (MTBF) : 228.2 Year
• Drive Interface : SATA
• Drive Interface Standard : SATA/600
• Drive Type : Internal
• Form Factor : 2.5"
• Drive Carrier Width : 3.5"
• Hot Swappable : Yes
• Device Supported : Server
• TCO Certified : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
• Limited Warranty : 5 Year

• With a capacity of 240 GB, you have large storage space for all your documents and data
• Have data stored faster with SATA/600 interface that optimizes burst performance
• With 256-bit AES encryption protect all your valuable data and keep your personal files safe & secure
