Tripp Lite series P760-010-DVI KVM Cable - 10 ft (3.05 m) KVM Cable for Monitor, Keyboard/Mouse, KVM Switch - First End: 1 x DVI-I (Dual-Link) Digital Video - Male - Second End: 1 x DVI-I (Dual-Link) Digital Video - Male, 2 x USB 2.0 Type A - Male - 480 Mbit/s - Supports up to 1920 x 1200 - 30 AWG -

P760-010-DVI
Also known as SY6336602

Tripp Lite series P760-010-DVI KVM Cable - 10 ft (3.05 m) KVM Cable for Monitor, Keyboard/Mouse, KVM Switch - First End: 1 x DVI-I (Dual-Link) Digital Video - Male - Second End: 1 x DVI-I (Dual-Link) Digital Video - Male, 2 x USB 2.0 Type A - Male - 480 Mbit/s - Supports up to 1920 x 1200 - 30 AWG - t -2x Male2x Male 1920 x 1200 1080p @ 60 Hz 10 ft

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Features

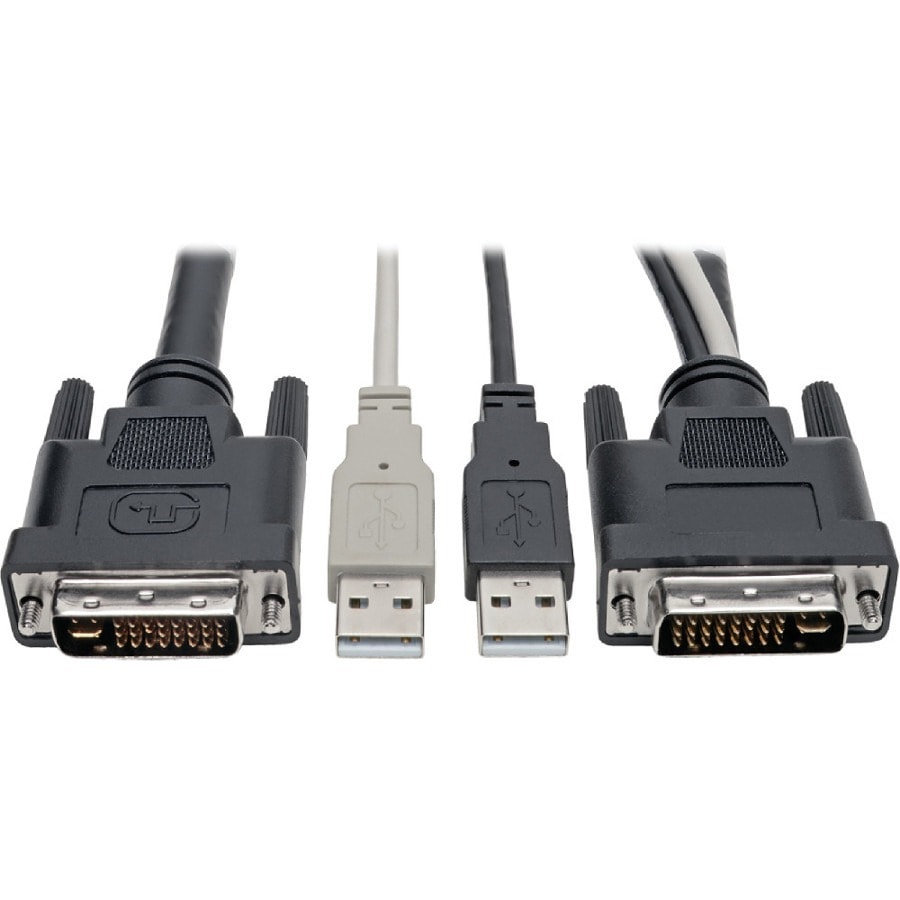

10 ft. Cable Kit with Dual DVI and USB Ports Connect Monitor/Keyboard/Mouse to Your KVM

This KVM cable Kit allows you to connect a DVI monitor and USB keyboard/mouse to your switch's DVI port. Designed as a replacement for the six-foot accessory cable included with Tripp Lite's B021-000-19-HD or B021-000-19-HD2 1U rack-mount consoles, the 10-foot P760-010-DVI is ideal for scenarios in which a longer cable is needed. It features two male DVI connectors and two male USB-A connectors, and supports DVI video resolutions up to 1920 x 1200, including 1080p, at 60 Hz. Its slim diameter cuts down on cable clutter around your rack.

Typical Applications

  • Connect a keyboard, mouse and DVI-enabled monitor to a KVM switch
  • Upgrade or replace a worn or lost KVM cable
  • Extend the distance between the switch and monitor/keyboard/mouse to 10 ft.

More from the Manufacturer

DETAILS

  • Cable Length : 10 ft (3.05 m)
  • Connector Type on First End : DVI-I (Dual-Link) Digital Video - Male
  • Connector on First End Details : 1 x DVI-I (Dual-Link) Digital Video - Male
  • Connector Type on Second End : DVI-I (Dual-Link) Digital Video - Male,USB 2.0 Type A - Male
  • Connector on Second End Details : 1 x DVI-I (Dual-Link) Digital Video - Male,2 x USB 2.0 Type A - Male
  • Device Supported : Monitor,Keyboard/Mouse,KVM Switch
  • American Wire Gauge : 30 AWG
  • Data Transfer Rate : 480 Mbit/s
  • Supported Resolution : 1920 x 1200
  • Color Family : Black
  • Product Color : Black
  • Environmentally Friendly : Yes
  • Country of Origin : China
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : Lifetime

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number P760010DVI
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Model P760-010-DVI
Product Name P760-010-DVI KVM Cable
Product Type KVM Cable
Cable Length 10 ft (3.05 m)
Connector Type on First End DVI-I (Dual-Link) Digital Video - Male
Connector on First End Details 1 x DVI-I (Dual-Link) Digital Video - Male
Connector Type on Second End DVI-I (Dual-Link) Digital Video - Male
Connector Type on Second End USB 2.0 Type A - Male
Connector on Second End Details 1 x DVI-I (Dual-Link) Digital Video - Male
Connector on Second End Details 2 x USB 2.0 Type A - Male
Device Supported Keyboard/Mouse
Device Supported KVM Switch
Device Supported Monitor
American Wire Gauge 30 AWG
Data Transfer Rate 480 Mbit/s
Supported Resolution 1920 x 1200
Color Family Black
Product Color Black
Environmentally Friendly Yes
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin China
Limited Warranty Lifetime
