INDUSTRIAL MANAGED AND UNMANAGED GIGABIT ETHERNET SWITCHES DATA SHEET

INTRODUCTION

The Industrial Managed and Unmanaged Gigabit Ethernet Switches include unmanaged switches that provide four (4) copper RJ-45 or RJ-45 PoE ports and one (1) multi-rate SFP slot and managed switches that provide six (6) or eight (8) copper RJ-45 or RJ-45 PoE ports and two (2) or four (4) multi-rate SFP slots.

Power over Ethernet

The LIE401A, LIE1014A, LIE1080A and LIE1082A switches support Power over Ethernet compliant to the IEEE 802.3af and IEEE 802.3at standard on all copper ports. These switches can be used to power standard PoE PD devices with up to 30 watts per port along with the Ethernet data on standard Ethernet Cabling.

Multi-rate SFP slots

The benefit of having multi-rate SFP slots is to be able to use 100-Mbps and 1-Gbps SFP Modules for either multi- or single-mode in a mix and match as needed. If requirements change, just replace the SFP module and protect your switch investment.

Power

The switches are powered from 12- to 58-VDC. The PoE models need 48 VDC for 802.3af and a minimum of 53 VDC for 802.3at.

Extended temperature range

All models are tested and released for operating temperatures from -40° up to +75° Celsius.

Management

The switches offer powerful features including Layer 2 routing and management with all advanced filter and multicast algorithms needed today to easily prioritize, partition, and organize a reliable high-speed network.

DETAILS

• Total Number of Network Ports : 6
• Network (RJ-45) : Yes

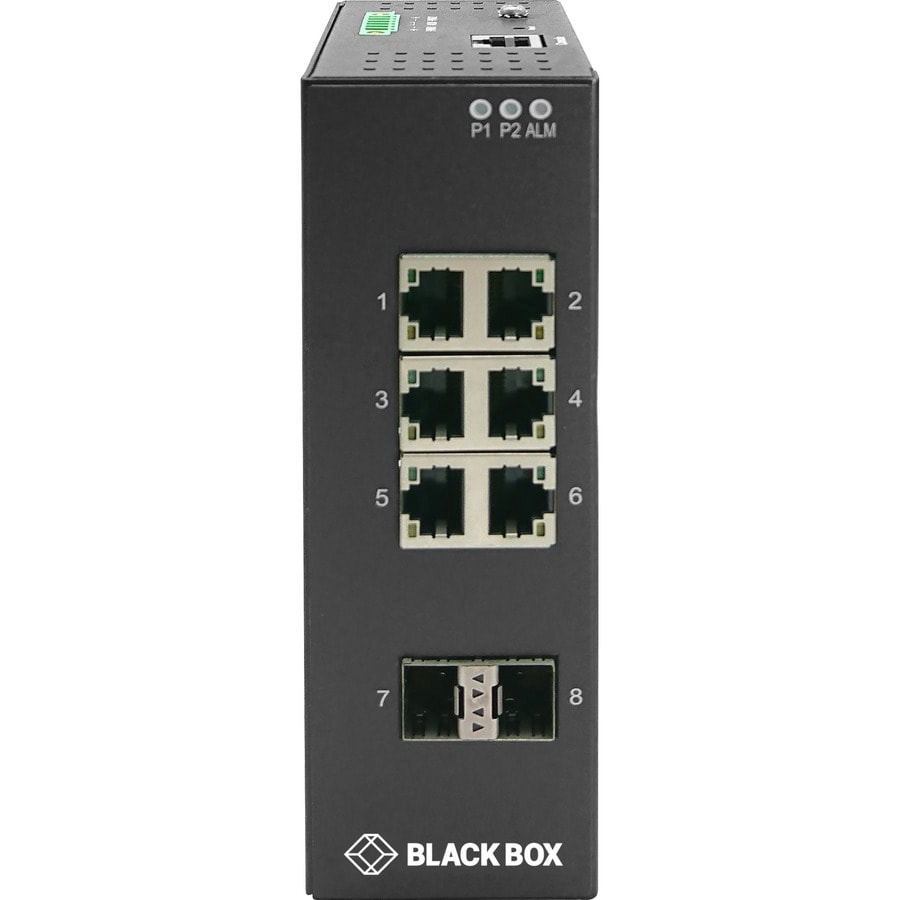

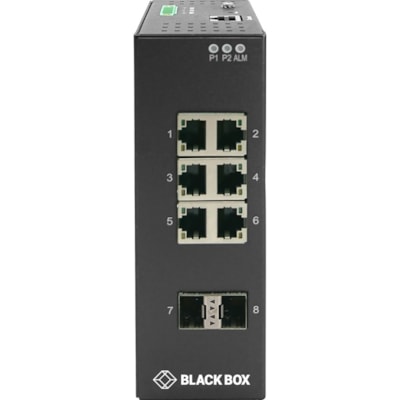

• Port/Expansion Slot Details : 6 x RJ-45 Gigabit Ethernet Network,2 x SFP Gigabit Ethernet Expansion Slot
• Media Type Supported : Twisted Pair,Optical Fiber
• Ethernet Technology : Gigabit Ethernet
• Network Technology : 1000Base-X,10/100/1000Base-T
• Total Number of Expansion Slots : 2.0
• Expansion Slot Type : SFP
• Number of SFP Slots : 2
• Layer Supported : 2
• Networking Standards : IEEE 802.3af,IEEE 802.3at
• Manageable : Yes
• PoE (RJ-45) Port : No
• Input Voltage : 12 V DC,58 V DC
• Power Source : DC
• Power Consumption : 10.50 W
• Form Factor : Wall Mountable,DIN Rail Mountable
• Height : 6" (152.40 mm)
• Width : 4.30" (109.22 mm)
• Depth : 2.30" (58.42 mm)
• Weight (Approximate) : 2.30 lb (1043.26 g)
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
• Country of Origin : Taiwan
• Limited Warranty : 1 Year

• Quickly and easily set up a wired network with 6 networking ports
• With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
• Management capability provides control over setup and configuration of your network
• Gigabit Ethernet port for ultra-fast network speeds
• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
