CyberPower UPS Systems OL3000RTXL2UN Smart App Online - Capacity: 3000 VA / 2700 W - CyberPower OL3000RTXL2UN 3KVA Online UPS 2U sine wave LCD 100-125V RMCARD205 RT 3YR WTY

OL3000RTXL2UN
Also known as SY6324820

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

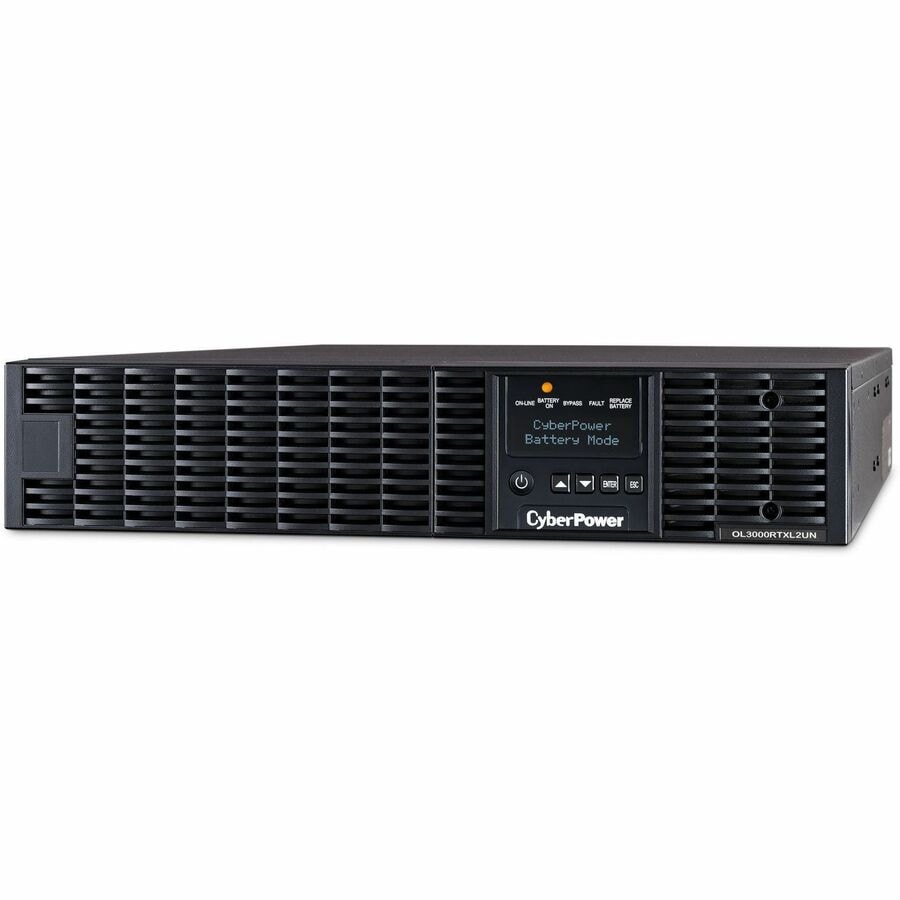

The CyberPower OL3000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL3000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

More from the Manufacturer

DETAILS

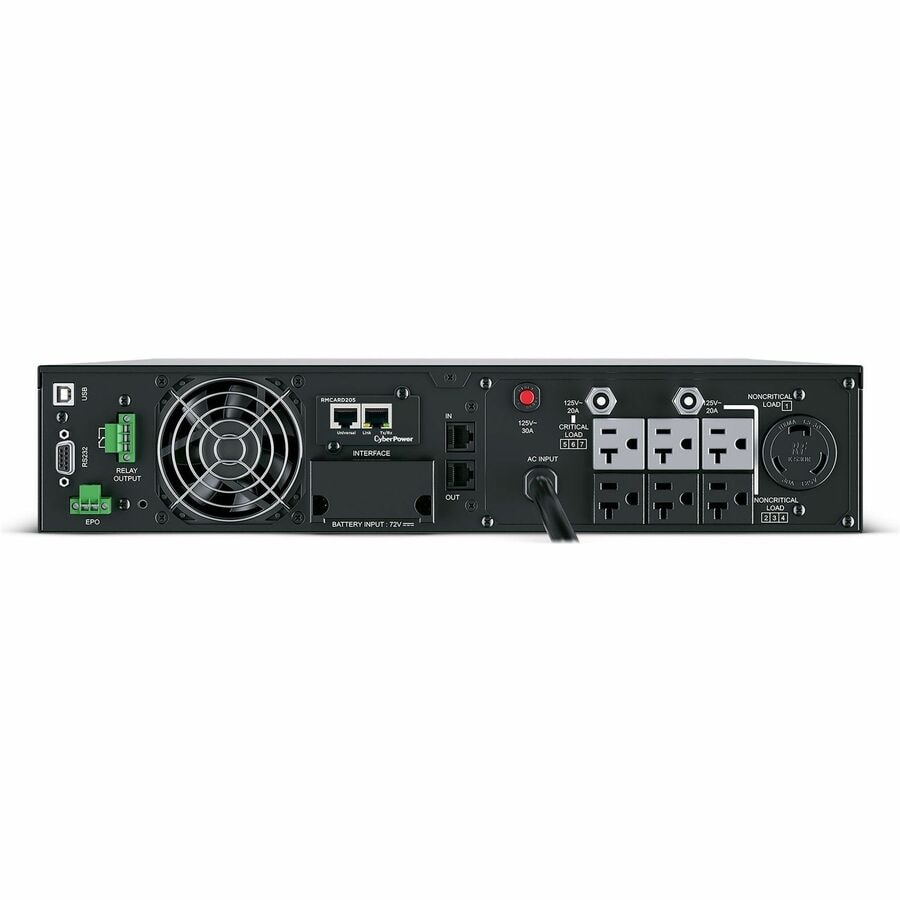

  • Plug/Connector Type : NEMA L5-30P
  • Receptacle Type : NEMA L5-30R,NEMA 5-20R
  • Receptacle Detail : 1 x NEMA L5-30R,6 x NEMA 5-20R
  • Number of Battery & Surge Outlets : 7
  • Transfer Time : 0 ns
  • Dataline Protection : RJ-11,RJ-45
  • Protection Type : Short Circuit
  • Overload Protection : Yes
  • EMI/RFI Noise Filter : Yes
  • Energy Saving : ECO Mode Efficiency >95%
  • Application/Usage : Server,Network Device,Storage Device,Network Closet,PBX System,VoIP Device,Mission Critical Equipment,Generator
  • Cord Length : 10 ft (3048 mm)
  • Circuit Breaker Current Rating : 30 A
  • Crest Factor : 3:1
  • Load Capacity (VA) : 3 kVA
  • Load Capacity (Watt) : 2.70 kW
  • Input Voltage : 120 V AC,230 V AC
  • Input Voltage Range : 60 V AC - 69 V AC,100 V AC - 125 V AC
  • Output Voltage : 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC
  • Input Frequency : 40 Hz,70 Hz
  • Output Frequency : 50 Hz,60 Hz
  • Waveform Type : Sine Wave
  • Surge Energy Rating : 1335 J
  • Input Power Factor : 0.99
  • Output Power Factor : 0.9

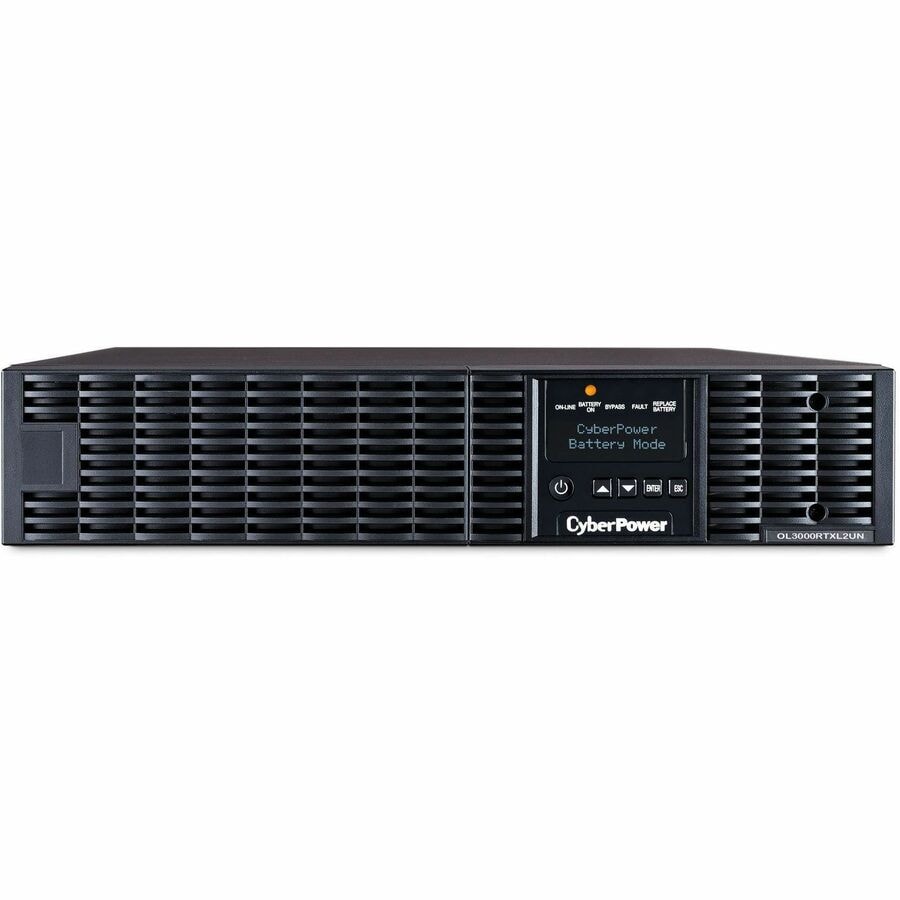

  • Display : LCD
  • Network Management : Dry Contact,Relay Card,SNMP Manageable
  • Alarm : Battery Mode
  • Serial Port : Yes
  • Network (RJ-45) : Yes
  • USB : Yes
  • USB (HID Compliant) Port : Yes
  • EPO Port : Yes
  • Number of Batteries : 6
  • Battery Characteristics : Sealed
  • Battery Chemistry : Lead Acid
  • Battery Size : 12V
  • Battery Capacity : 9000 mAh
  • Backup/Run Time (Full Load) : 4 Minute
  • Backup/Run Time (Half Load) : 12.50 Minute
  • Typical Battery Recharge Time : 4 Hour
  • Replaceable Battery : Yes
  • Maximum Operating Temperature : 104°F (40°C)
  • Storage Temperature : -4°F (-20°C) - 113°F (45°C)
  • Maximum Operating Elevation : 10000 ft (3048000 mm)
  • Maximum Storage Elevation : 50000 ft (15240000 mm)
  • Operating Humidity : 0% - 90%
  • Storage Relative Humidity : 0% - 95%
  • Sound Emission (A-Weighted) : 55 dB(A)
  • Thermal Dissipation : 889 BTU/h
  • Product Color : Black

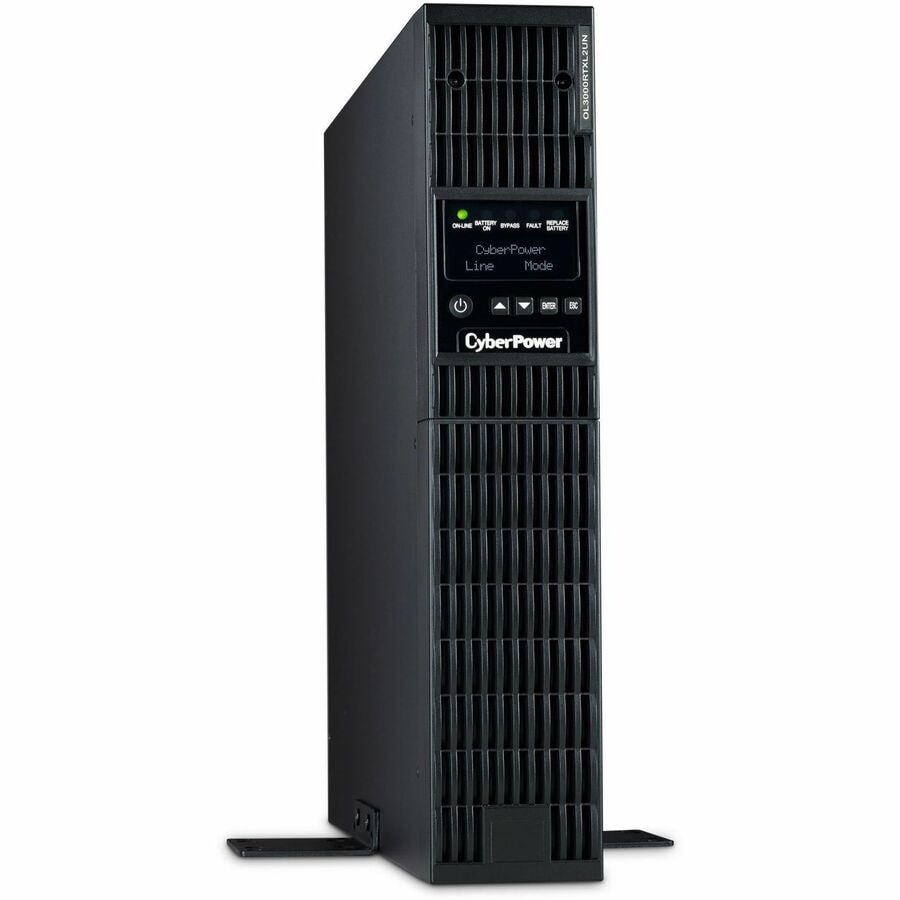

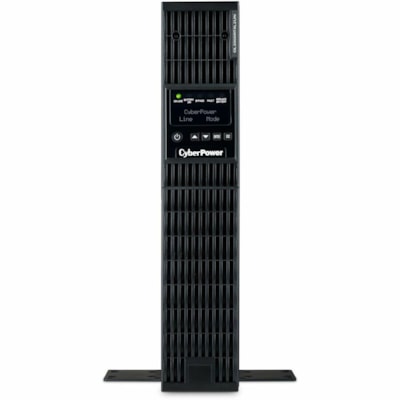

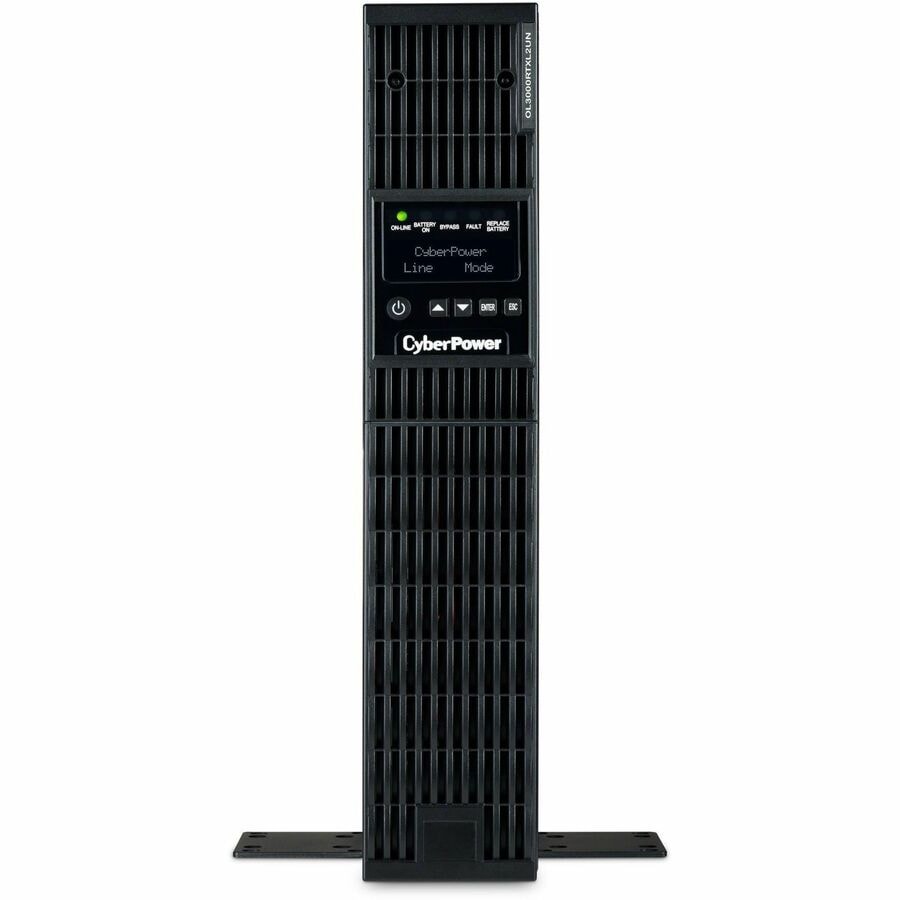

  • Form Factor : Rack/Tower
  • Rack Height : 2U

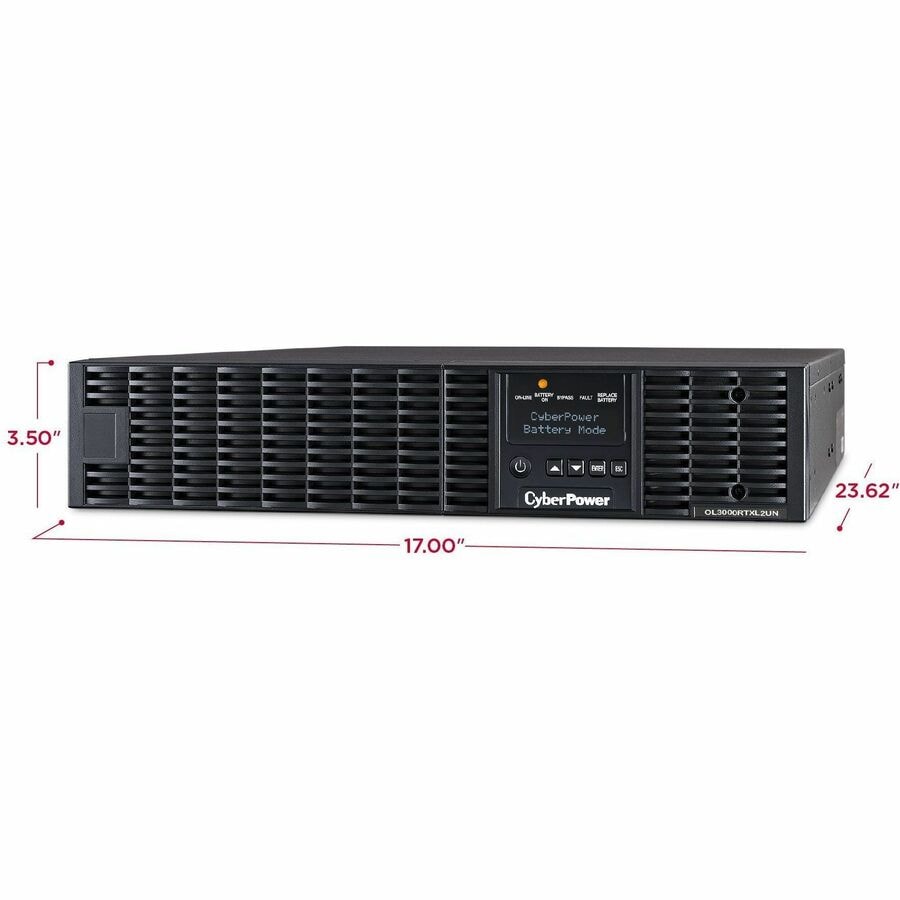

  • Height : 3.50" (88.90 mm)
  • Width : 17" (431.80 mm)
  • Depth : 23.62" (599.95 mm)
  • Weight (Approximate) : 68.20 lb (30935 g)
  • Software Included : PowerPanel® Business
  • Energy Star : Yes
  • Country of Origin : Taiwan
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Capacity: 3000 VA / 2700 W
  • Power Factor (PF): 0.9
  • Topology: Double-Conversion
  • Waveform: Sine Wave
  • Output: 100, 110, 115, 120, 125 V ±2% (configurable)
  • Plug type & cord: NEMA L5-30P, 10 ft. cord

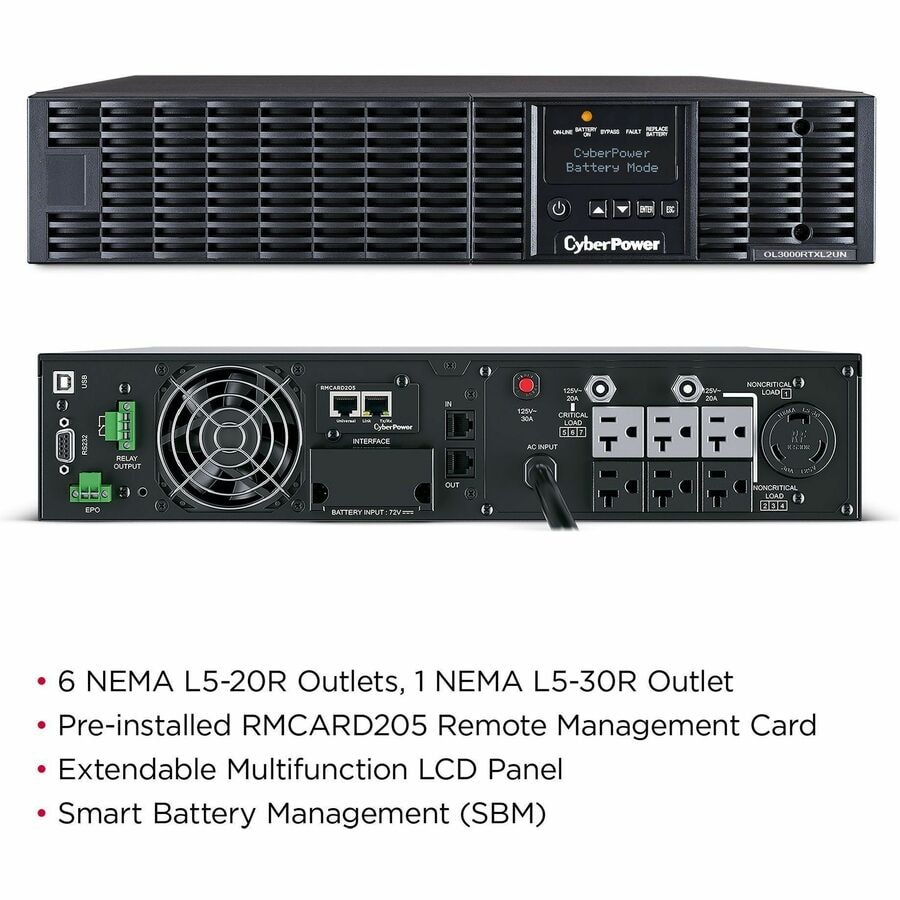

  • Outlet types: 6 × NEMA 5-20R, 1 L5-30R
  • Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
  • Data line surge protection: Telephone, Network
  • Management software: PowerPanel® Business Edition

SPECIFICATIONS

Manufacturer CyberPower Systems, Inc
Manufacturer Part Number OL3000RTXL2UN
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series Smart App Online UPS
Product Model OL3000RTXL2UN
Product Name Smart App Online OL3000RMXL2U 3000VA Rack/Tower UPS
Product Type Double Conversion Online UPS
Plug/Connector Type NEMA L5-30P
Receptacle Type NEMA 5-20R
Receptacle Type NEMA L5-30R
Receptacle Detail 6 x NEMA 5-20R
Receptacle Detail 1 x NEMA L5-30R
Number of Battery & Surge Outlets 7
Transfer Time 0 ns
Dataline Protection RJ-11
Dataline Protection RJ-45
Protection Type Short Circuit
Overload Protection Yes
EMI/RFI Noise Filter Yes
Energy Saving ECO Mode Efficiency >95%
Application/Usage Generator
Application/Usage Mission Critical Equipment
Application/Usage PBX System
Application/Usage Network Closet
Application/Usage Storage Device
Application/Usage Network Device
Application/Usage Server
Application/Usage VoIP Device
Cord Length 10 ft (3048 mm)
Crest Factor 3:1
Circuit Breaker Current Rating 30 A
Load Capacity (VA) 3 kVA
Load Capacity (Watt) 2.70 kW
Input Voltage 120 V AC
Input Voltage 230 V AC
Input Voltage Range 60 V AC - 69 V AC
Input Voltage Range 100 V AC - 125 V AC
Output Voltage 100 V AC
Output Voltage 110 V AC
Output Voltage 120 V AC
Output Voltage 125 V AC
Output Voltage 115 V AC
Input Frequency 40 Hz
Input Frequency 70 Hz
Output Frequency 60 Hz
Output Frequency 50 Hz
Waveform Type Sine Wave
Surge Energy Rating 1335 J
Input Power Factor 0.99
Output Power Factor 0.9
Display LCD
Network Management Dry Contact
Network Management Relay Card
Network Management SNMP Manageable
Alarm Battery Mode
Status Indicators LED Indicators:
  • Power On (White)
  • Line Mode (Green)
  • Battery Mode (Yellow)
  • Bypass Mode (Yellow)
  • Fault (Red)
  • Replace Battery (Red)
Serial Port Yes
Modem (RJ-11) Yes
Network (RJ-45) Yes
USB Yes
USB (HID Compliant) Port Yes
EPO Port Yes
Number of Batteries 6
Battery Characteristics Sealed
Battery Chemistry Lead Acid
Battery Size 12V
Battery Capacity 9000 mAh
Backup/Run Time (Full Load) 4 Minute
Backup/Run Time (Half Load) 12.50 Minute
Typical Battery Recharge Time 4 Hour
Replaceable Battery Yes
Maximum Operating Temperature 104°F (40°C)
Storage Temperature -4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation 10000 ft (3048000 mm)
Maximum Storage Elevation 50000 ft (15240000 mm)
Operating Humidity 0% - 90%
Storage Relative Humidity 0% - 95%
Sound Emission (A-Weighted) 55 dB(A)
Thermal Dissipation 889 BTU/h
Color Family Black
Product Color Black
Form Factor Rack/Tower
Rack Height 2U

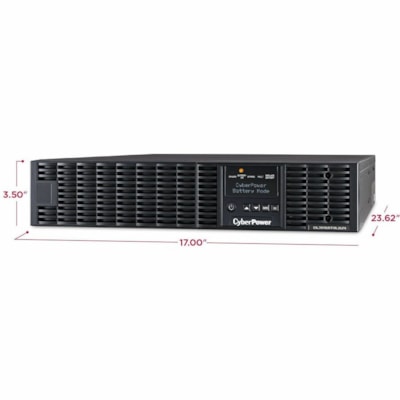

Height 3.50" (88.90 mm)
Width 17" (431.80 mm)
Depth 23.62" (599.95 mm)
Weight (Approximate) 68.20 lb (30935 g)
Package Contents
  • Smart App Online OL3000RMXL2U 3000VA Rack/Tower UPS
  • User Manual
  • Registration Card
  • 2 x Rackmount Rails
  • 2 x Rackmount Ears
  • 2 x Hanging Brackets
  • Phone Line
  • USB Communication Cable
  • Serial Interface Cable (RS-232)
  • 8 x M5X7L Black Flat Head Screws
  • 12 x M5X12L Black Pan Head Screws
  • 6 x M5X6l Silver Pan Head Screws
  • 8 x Plastic Washers
  • 12 x Screw Hole Dust Covers
  • 12 x Rubber Pads
  • Software Download Card
Additional Information
  • Replacement Battery Cartridge Quantity: 1
  • Smart Battery Management (SBM) Mode: Yes
  • Circuit Breaker: 30A
  • Cold Start: Yes
  • Input Power Factor: 0.99
  • Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
  • Crest Factor: 3:1
  • ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
  • Harmonic Distortion: < 3% at Linear Load
  • Nominal Output Voltage: 100 - 125 VAC
  • On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
  • Output Power Factor: 0.9
  • Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
  • Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
  • VA by Input Type: 3,000 (3.0 kVA) at 120, 125 V input
  • Watts by Input Type: 2,700 (2.7 kW) at 120, 125 V input
  • Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
  • Audible Alarms: Battery Mode
  • Dry Contacts: Yes
  • Expansion Slot: Yes - RMCARD205 pre-installed
  • HID Compliant USB Port: Yes
  • LCD: Multifunction LCD
  • Management Cable: USB Cable
  • Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
  • Rotatable LCD Control Panel Option: Yes
  • Upgradeable firmware: Yes
  • Material of Construction: Metal
  • Mounting Hardware: Yes
  • Audible noise at 1m from surface of unit: 38 dBA to 55 dBA (0 to 100% load)
  • ECO Mode Thermal Dissipation: 364 BTU/hr
  • Operating Relative Humidity: 0 - 90 % (non-condensing)
  • Operating Temperature: 32 - 104 °F (0 - 40 °C)
  • Storage Relative Humidity: 0 - 95% (non-condensing)
Certifications & Standards

UL 1778

Software Included PowerPanel® Business
Energy Star Yes
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $400000 Lifetime
