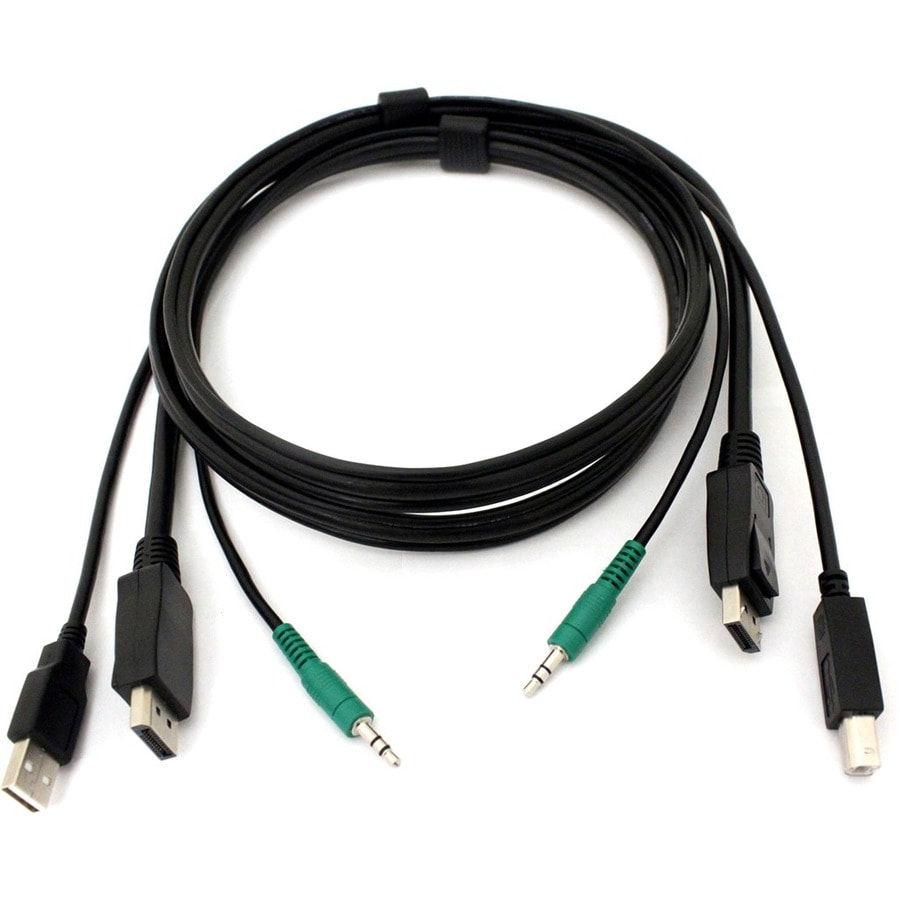

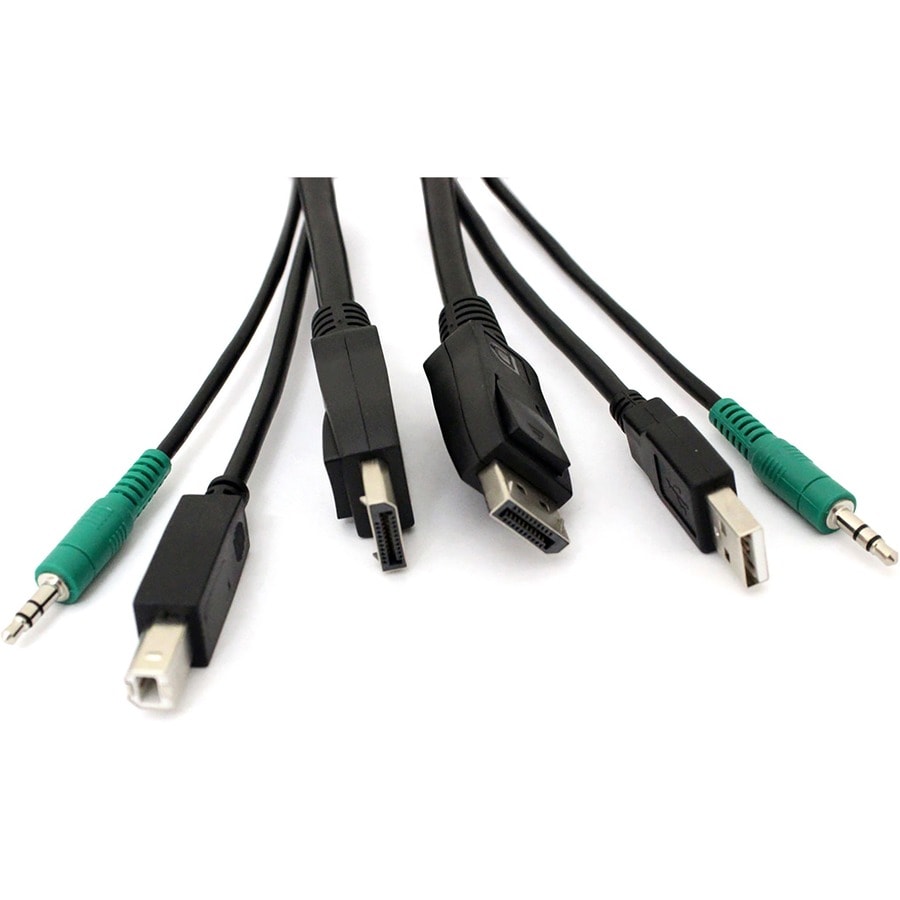

Black Box DisplayPort KVM Cable - USB A-B, 3.5mm Audio, 6-ft. (1.8-m) - 6 ft (1.83 m) DisplayPort/Mini-phone/USB Audio/Video/Data Transfer Cable for Audio/Video Device, KVM Switch - First End: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male, 1 x 4-pin USB 2.0 Type A - Male, 1 x Mini-phone Ster
SKVMCBL-DP-06
Also known as SY6255456
MARKETING INFORMATION
- This 3-in-1 DisplayPort/USB cable can be used to connect your CPU to a Secure KVM Switch, or anywhere you need to link two DisplayPort/USB devices together.
- Works with all NIAP 3.0 Certified Secure KVM DisplayPort models and includes USB (A and B), DisplayPort Video Connection, and 3.5mm audio connectors
DETAILS
- Cable Type : DisplayPort/Mini-phone/USB
- Cable Length : 6 ft (1.83 m)
- Connector Type on First End : DisplayPort 1.2 Digital Audio/Video - Male,USB 2.0 Type A - Male,Mini-phone Stereo Audio - Male
- Connector on First End Details : 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male,1 x 4-pin USB 2.0 Type A - Male,1 x Mini-phone Stereo Audio - Male
- Connector Type on Second End : DisplayPort 1.2 Digital Audio/Video - Male,Mini-phone Stereo Audio - Male,USB Type B - Male
- Connector on Second End Details : 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male,1 x Mini-phone Stereo Audio - Male,1 x 4-pin USB Type B - Male
- Device Supported : Audio/Video Device,KVM Switch
- Product Color : Black
- Weight (Approximate) : 8.80 oz (249.48 g)
- Package Contents :
- Secure DisplayPort KVM Cable - USB A-B, 3.5mm Audio, 6-ft.
- 1 x 12-VDC Power Supply with US power cord
- Quick Start Guide
- Environmentally Friendly : Yes
- Country of Origin : China
- Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 3 Year
- For exceptional quality, upright compatibility and reliability use this Audio/Video/Data Transfer Cable
- Features DisplayPort/Mini-phone/USB cable type
SPECIFICATIONS
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | SKVMCBL-DP-06 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | DisplayPort KVM Cable - USB A-B, 3.5mm Audio, 6-ft. (1.8-m) |
| Product Type | Audio/Video/Data Transfer Cable |
| Cable Type | DisplayPort/Mini-phone/USB |
| Cable Length | 6 ft (1.83 m) |
| Connector Type on First End | USB 2.0 Type A - Male |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on First End | Mini-phone Stereo Audio - Male |
| Connector on First End Details | 1 x 4-pin USB 2.0 Type A - Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x Mini-phone Stereo Audio - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | USB Type B - Male |
| Connector Type on Second End | Mini-phone Stereo Audio - Male |
| Connector on Second End Details | 1 x Mini-phone Stereo Audio - Male |
| Connector on Second End Details | 1 x 4-pin USB Type B - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Device Supported | Audio/Video Device |
| Device Supported | KVM Switch |
| Product Color | Black |
| Weight (Approximate) | 8.80 oz (249.48 g) |
| Shipping Height | 1" (25.40 mm) |
| Shipping Width | 8.50" (215.90 mm) |
| Shipping Weight (Approximate) | 9.02 oz (255.83 g) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Limited Warranty | 3 Year |
