MARKETING INFORMATION

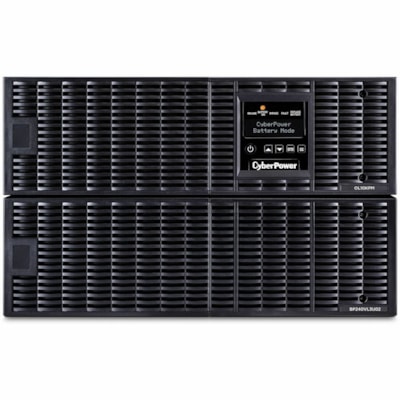

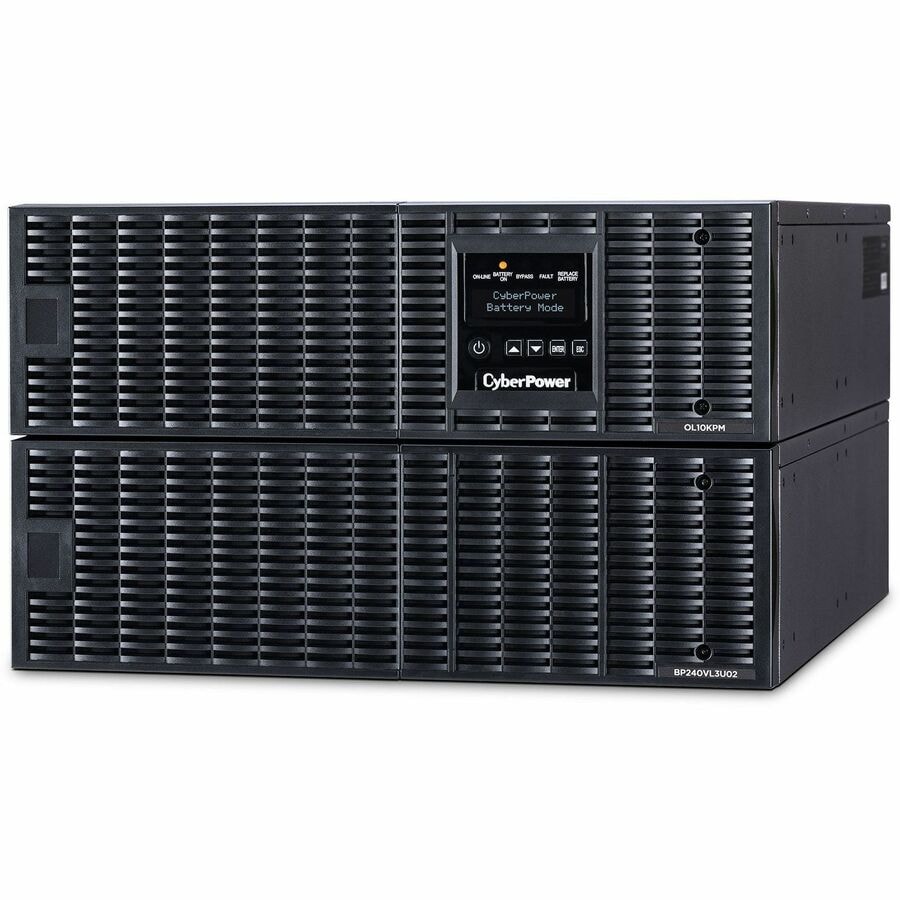

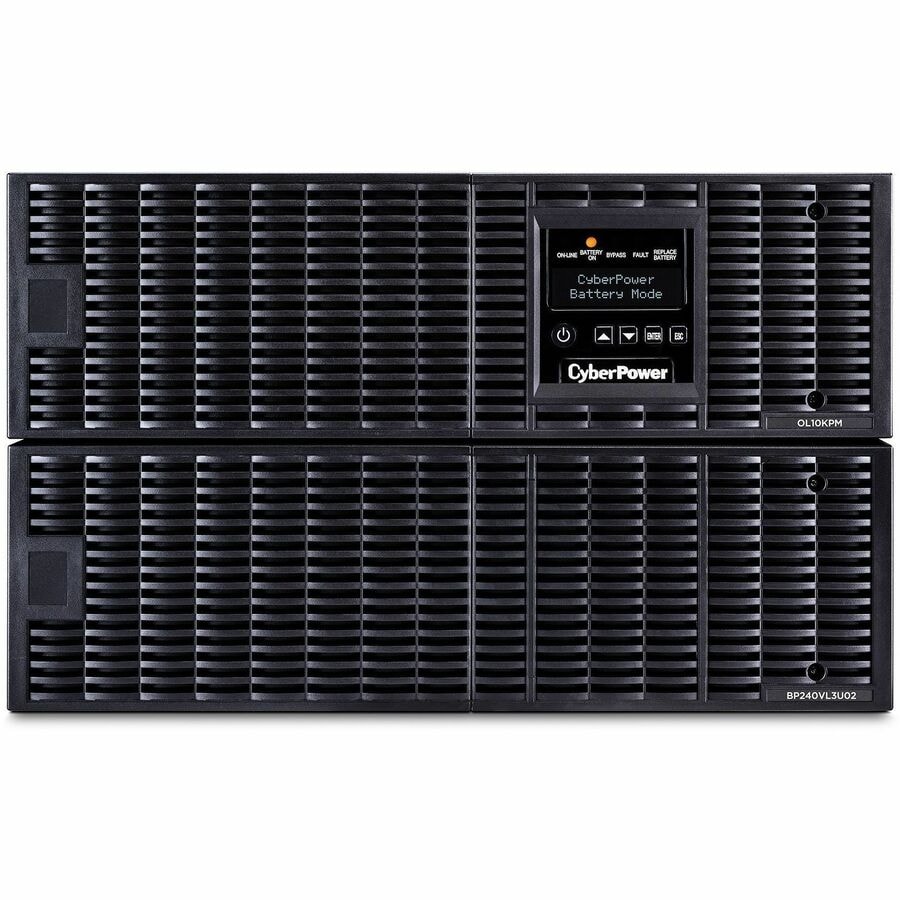

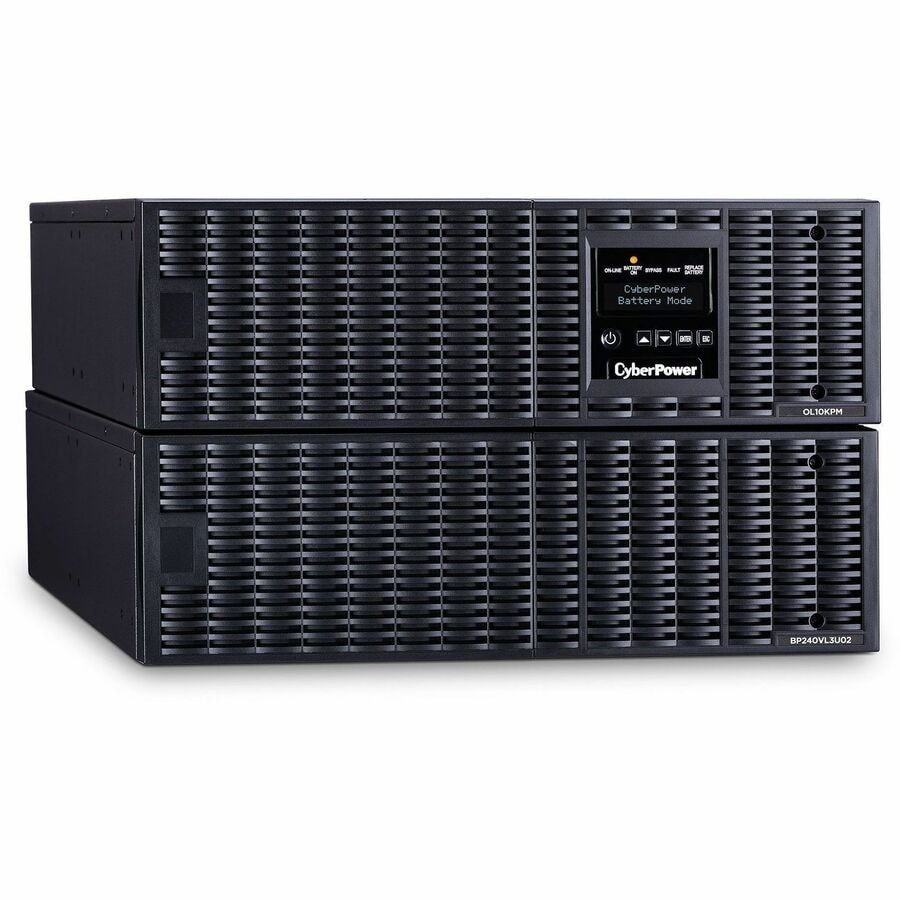

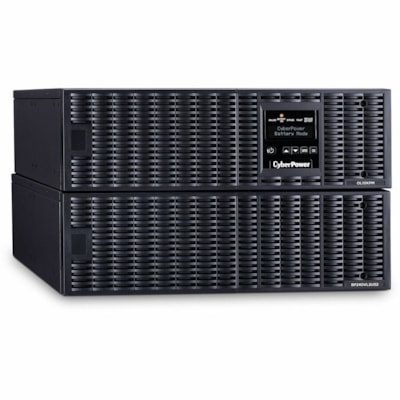

The CyberPower Smart App Online OL10KRT is a 6U rack/tower double-conversion UPS. It provides sine wave output to multiple types of critical IT infrastructure requiring seamless power protection. The OL10KRT is generator compatible and delivers consistent 200-240 V power with zero-transfer time. Automatic-bypass ensures connected equipment continues to operate seamlessly when an overload or internal fault is detected.

The OL10KRT features a removable LCD control panel to reposition it in a more convenient location (with optional DB-26 cable), and it has a RMCARD205 pre-installed network card. Smart-battery management charging technology increases battery life by up to 50%. Fast-charge technology helps replenish battery charge from 0-90% in five hours, regardless of the number of Extended Battery Modules (EBM) connected. The energy-saving GreenPower UPS™ ECO Mode allows the UPS to reach up to 97% efficiency to reduce power consumption and thermal dissipation.

This UPS can use the BP240VL3U01 extended battery module for more runtime. The OL10KRT comes with a three-year warranty (including batteries) and a $300,000 connected equipment guarantee.

DETAILS

• Plug/Connector Type : Hardwired
• Receptacle Type : NEMA L6-30R
• Receptacle Detail : 3 x NEMA L6-30R
• Transfer Time : 0 ns
• Dataline Protection : RJ-11,RJ-45
• Protection Type : Backfeed,Short Circuit
• EMI/RFI Noise Filter : Yes
• Application/Usage : Server,Network Device,Storage Device,VoIP
• Circuit Breaker Current Rating : 63 A
• Efficiency : 97%
• Load Capacity (VA) : 10 kVA
• Load Capacity (Watt) : 10 kW
• Input Voltage : 120 V AC,230 V AC
• Input Voltage Range : 120 V AC - 139 V AC,200 V AC - 240 V AC
• Output Voltage : 198 V AC,292 V AC,200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
• Input Frequency : 40 Hz,70 Hz
• Output Frequency : 49.75 Hz,50.25 Hz
• Waveform Type : Sine Wave
• Surge Energy Rating : 2430 J
• Input Power Factor : 0.99
• Output Power Factor : 1
• Display : LCD
• Network Management : Dry Contact
• Alarm : Battery Mode
• Serial Port : Yes
• Network (RJ-45) : Yes
• USB : Yes
• USB (HID Compliant) Port : Yes
• EPO Port : Yes
• Number of Batteries : 20
• Battery Characteristics : Sealed
• Battery Chemistry : Lead Acid
• Battery Size : 12V
• Battery Capacity : 9000 mAh
• Backup/Run Time (Full Load) : 3.60 Minute
• Backup/Run Time (Half Load) : 10 Minute
• Typical Battery Recharge Time : 5 Hour
• Replaceable Battery : Yes
• Maximum Operating Temperature : 104°F (40°C)
• Storage Temperature : -4°F (-20°C) - 113°F (45°C)
• Maximum Operating Elevation : 10000 ft (3048000 mm)
• Operating Humidity : 0% - 90%
• Storage Relative Humidity : 0% - 95%
• Sound Emission (A-Weighted) : 65 dB(A)
• Thermal Dissipation : 3211 BTU/h
• Product Color : Black
• Form Factor : Rack/Tower
• Rack Height : 6U
• Height : 10.50" (266.70 mm)
• Width : 17" (431.80 mm)
• Depth : 26" (660.40 mm)
• Weight (Approximate) : 226.59 lb (102780 g)
• Energy Star : No
• Country of Origin : China
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 3 Year

• Capacity: 10,000 VA / 10,000 W
• Output Power Factor (PF): 1
• Topology: Double-Conversion
• Waveform: Sine Wave
• Output: 200, 208, 220, 230, 240 V ±2% User Configurable
• Runtime (half/full): 10 minutes / 3.6 minutes
• Plug type: Hardwire
• Outlets: 4

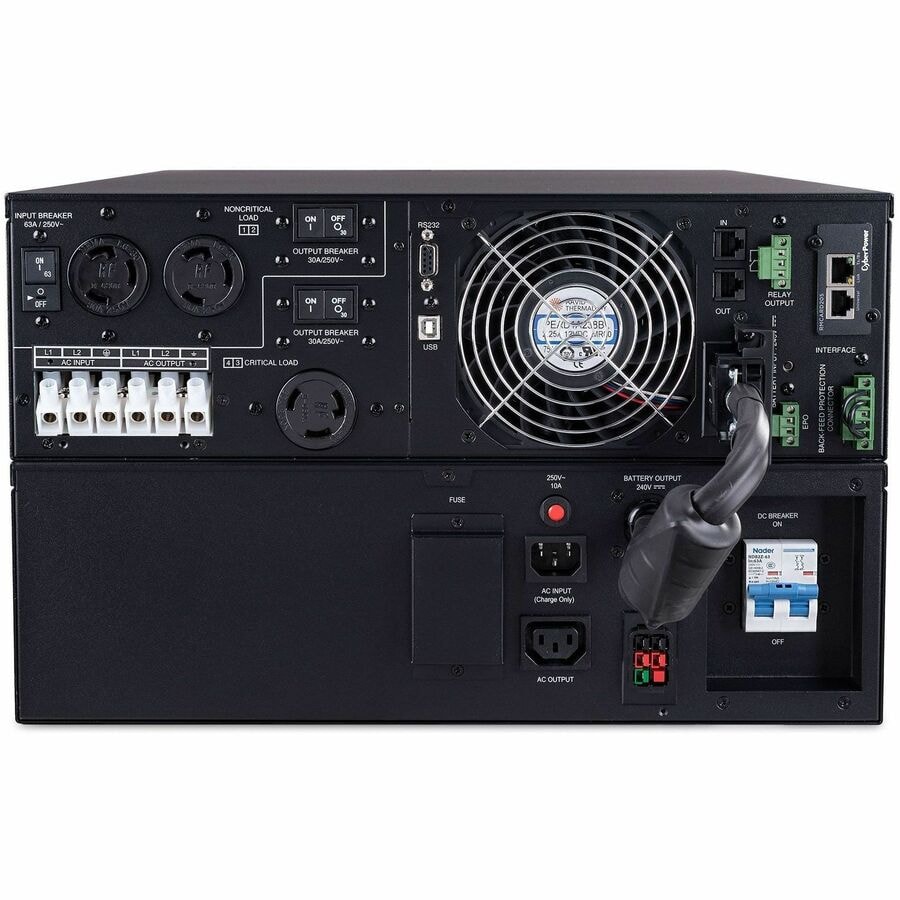

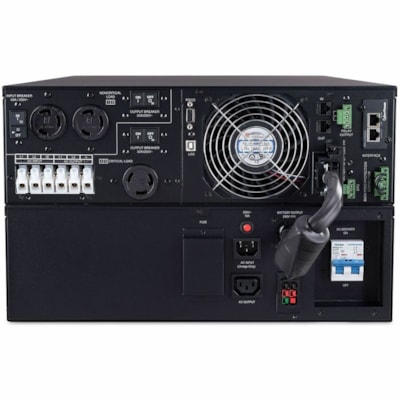

• Outlet types: 3 × NEMA L6-30R, 1 × Hardwire Terminal Block
• Communication ports: USB, Serial, Ethernet, Relay, EPO
• Data line surge protection: Yes, 1 x RJ-45 In/Out
• Management software: PowerPanel® Business Edition
• Energy Saving: ECO Mode Efficiency up to 97%
• Remote management: Yes, RMCARD205 pre-installed
• Smart Battery Management: Yes
• Fast Charge Technology: Yes
• Environmental sensor: Optional
• Warranty: Three-Year Limited
• Connected Equipment Guarantee: $300,000
