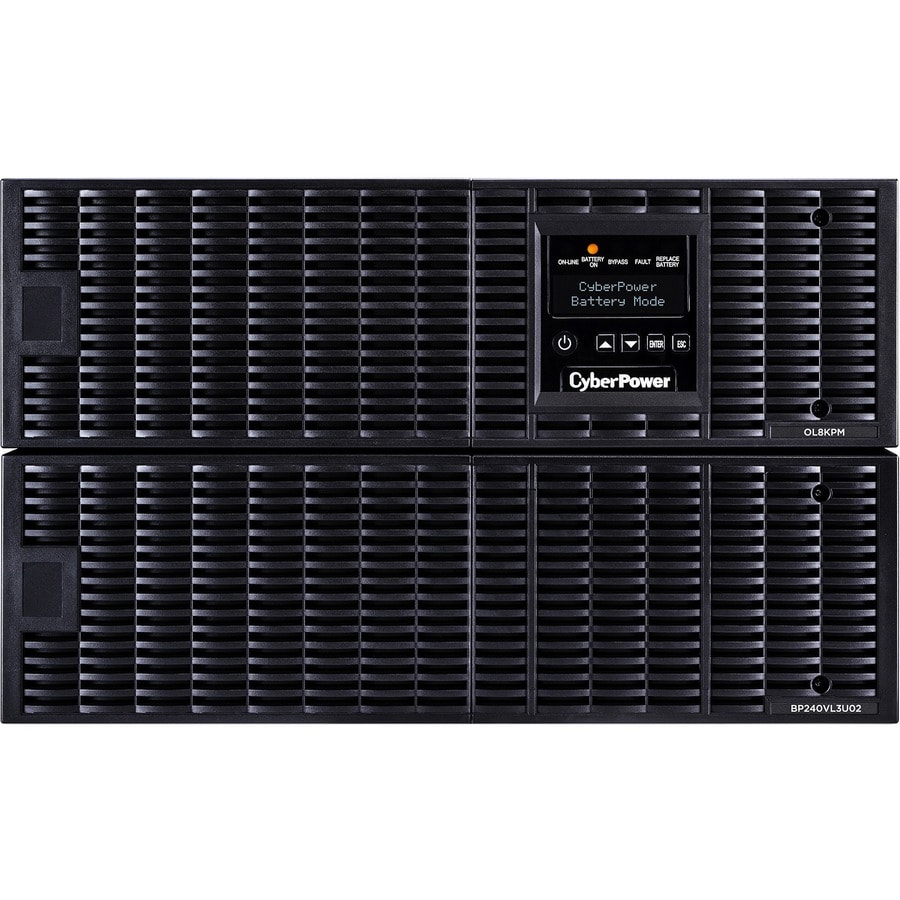

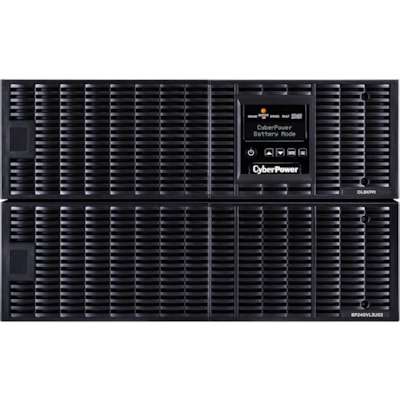

CyberPower Smart App Online OL8KRT 8KVA Tower/Rack Mountable UPS - 6U Rack/Tower - 4.70 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 3 x NEMA L6-30R, 1 x Terminal Block

OL8KRT
Also known as SY6188858

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The CyberPower Smart App Online OL8KRT is a 6U rack/tower UPS with double-conversion. It provides sine wave output to multiple types of critical IT infrastructure requiring seamless power protection. The OL8KRT is generator compatible and delivers consistent 200-240 V power with zero-transfer time. Automatic-bypass ensures connected equipment continues to operate seamlessly when an overload or internal fault is detected.

The OL8KRT features a removable LCD control panel to reposition it in a more convenient location (with optional DB-26 cable), and it has a RMCARD205 pre-installed network card. Smart-battery management charging technology increases battery life by up to 50%. Fast-charge technology helps replenish battery charge from 0-90% in five hours, regardless of the number of Extended Battery Modules (EBM) connected. The energy-saving GreenPower UPS™ ECO Mode allows the UPS to reach up to 96% efficiency to reduce power consumption and thermal dissipation.

This UPS can use the BP240V30ART3U or BP240VL3U01 extended battery module for more runtime. The OL6KRT comes with a three-year warranty (including batteries) and a $300,000 connected equipment guarantee.

  • Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
  • 8000 VA load capacity provides sufficient backup during power failures
  • 8000 W load capacity - backup power for your valuable electronics
  • Up to 4.70 minute runtime on full load to preserve critical data from power shortage interruptions

DETAILS

  • Plug/Connector Type : Hardwired
  • Receptacle Type : NEMA L6-30R,Terminal Block
  • Receptacle Detail : 3 x NEMA L6-30R,1 x Terminal Block
  • Transfer Time : 0 ns
  • Application/Usage : Server Room,Network Device,Storage Device,VoIP Device,IT System
  • Load Capacity (VA) : 8 kVA
  • Input Voltage : 230 V AC
  • Input Voltage Range : 200 V AC - 240 V AC
  • Output Voltage : 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
  • Waveform Type : Sine Wave
  • Network (RJ-45) : Yes
  • Backup/Run Time (Full Load) : 4.70 Minute
  • Product Color : Black
  • Form Factor : Rack/Tower
  • Rack Height : 6U
  • Height : 10.50" (266.70 mm)
  • Width : 17" (431.80 mm)
  • Depth : 26" (660.40 mm)
  • Weight (Approximate) : 227.08 lb (103000 g)
  • Energy Star : No
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Gives you a high level of protection by isolating the equipment from raw utility power
  • Up to 4.70 minute runtime on full load to preserve critical data from power shortage interruptions

SPECIFICATIONS

Manufacturer CyberPower Systems, Inc
Manufacturer Part Number OL8KRT
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series Smart App Online UPS
Product Model OL8KRT
Product Name Smart App Online OL8KRT 8KVA Tower/Rack Mountable UPS
Product Type Double Conversion Online UPS
Plug/Connector Type Hardwired
Receptacle Type Terminal Block
Receptacle Type NEMA L6-30R
Receptacle Detail 3 x NEMA L6-30R
Receptacle Detail 1 x Terminal Block
Transfer Time 0 ns
Application/Usage Server Room
Application/Usage VoIP Device
Application/Usage Network Device
Application/Usage Storage Device
Application/Usage IT System
Load Capacity (VA) 8 kVA
Input Voltage 230 V AC
Input Voltage Range 200 V AC - 240 V AC
Output Voltage 240 V AC
Output Voltage 220 V AC
Output Voltage 208 V AC
Output Voltage 200 V AC
Output Voltage 230 V AC
Waveform Type Sine Wave
Network (RJ-45) Yes
Backup/Run Time (Full Load) 4.70 Minute
Color Family Black
Product Color Black
Form Factor Rack/Tower
Rack Height 6U
Height 10.50" (266.70 mm)
Width 17" (431.80 mm)
Depth 26" (660.40 mm)
Weight (Approximate) 227.08 lb (103000 g)
Package Contents
  • Smart App Online OL8KRT 8KVA Tower/Rack Mountable UPS
  • Extended Battery Module (EBM)
  • Left & Right Rackmount Rails
  • Left & Right Hanging Brackets
  • Phone Cable
  • USB Communication Cable
  • Serial Interface Cable (RS-232)
  • NEMA L6-30P to IEC-320-C13 Power Cord
  • Quick Start Guide
  • Safety Instructions
  • Registration Warranty Card
  • PowerPanel Management Software Download Card
  • 4 x Rackmount Ears
  • Tie Plate
  • 16 x Black M5X7L Flat Head Screws
  • 24 x Black M5X12L Pan Head Screws
  • 12 x Silver M5X6L Pan Head Screws
  • 16 x Plastic Washers 28 x Screw Hole Dust Covers
  • 24 x Rubber Pads
Energy Star No
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $300000
