StarTech.com 2.5 to 3.5 Hard Drive Adapter - For SATA and SAS SSD / HDD - 2.5 to 3.5 Hard Drive Enclosure - 2.5 to 3.5 SSD Adapter - 2.5 to 3.5 HDD Adapter - Turn almost any 2.5" SATA/SAS drive into a 3.5" drive - 2.5" to 3.5" Hard Drive Adapter - 2.5 to 3.5 Hard Drive Enclosure - 2.5 to 3.5 SSD Ada

25SATSAS35HD
Also known as SY6169315

New! Log in or create an account to see price and availability


MARKETING INFORMATION

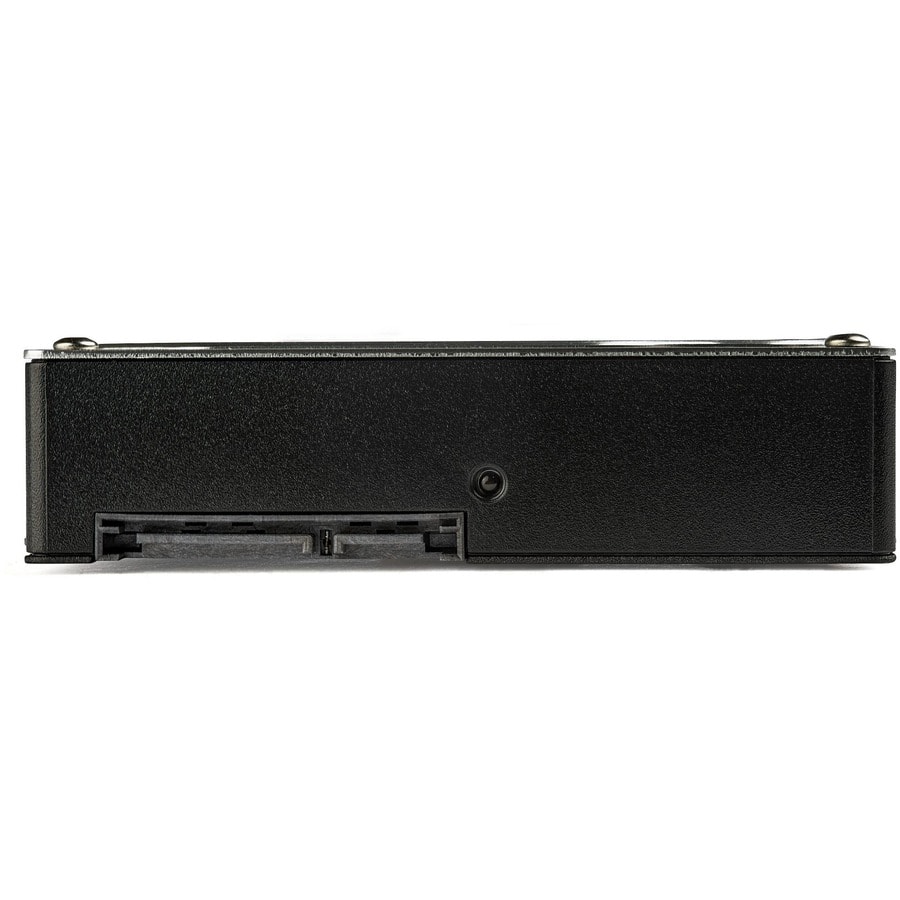

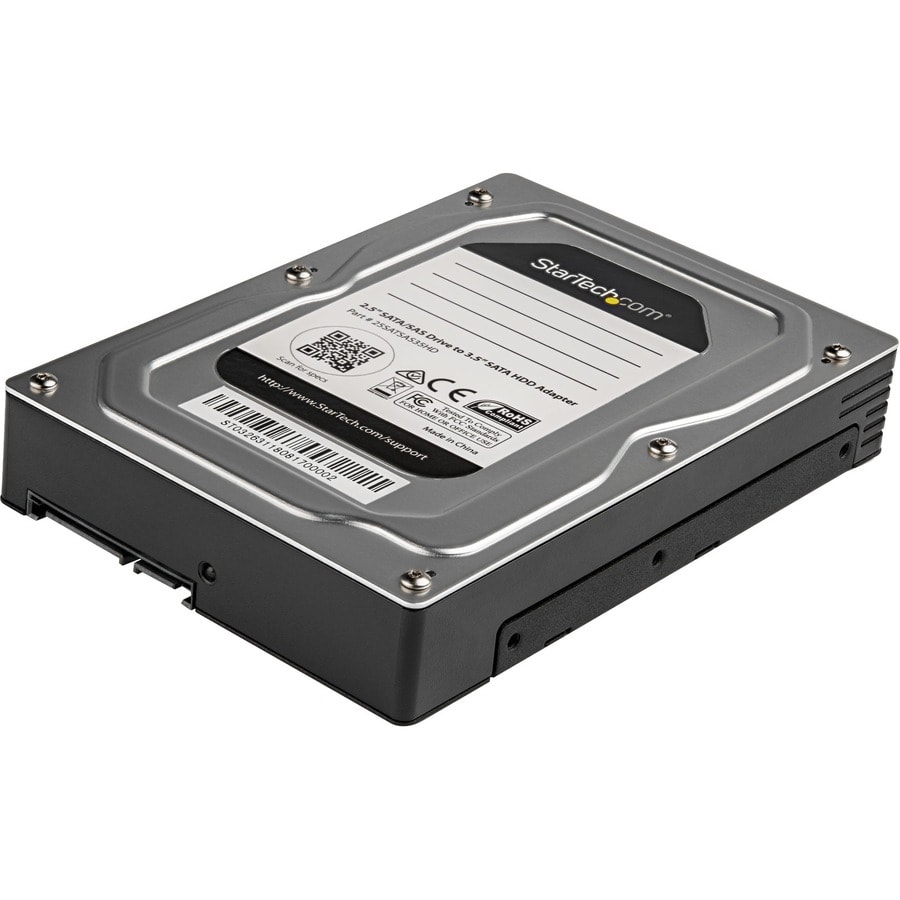

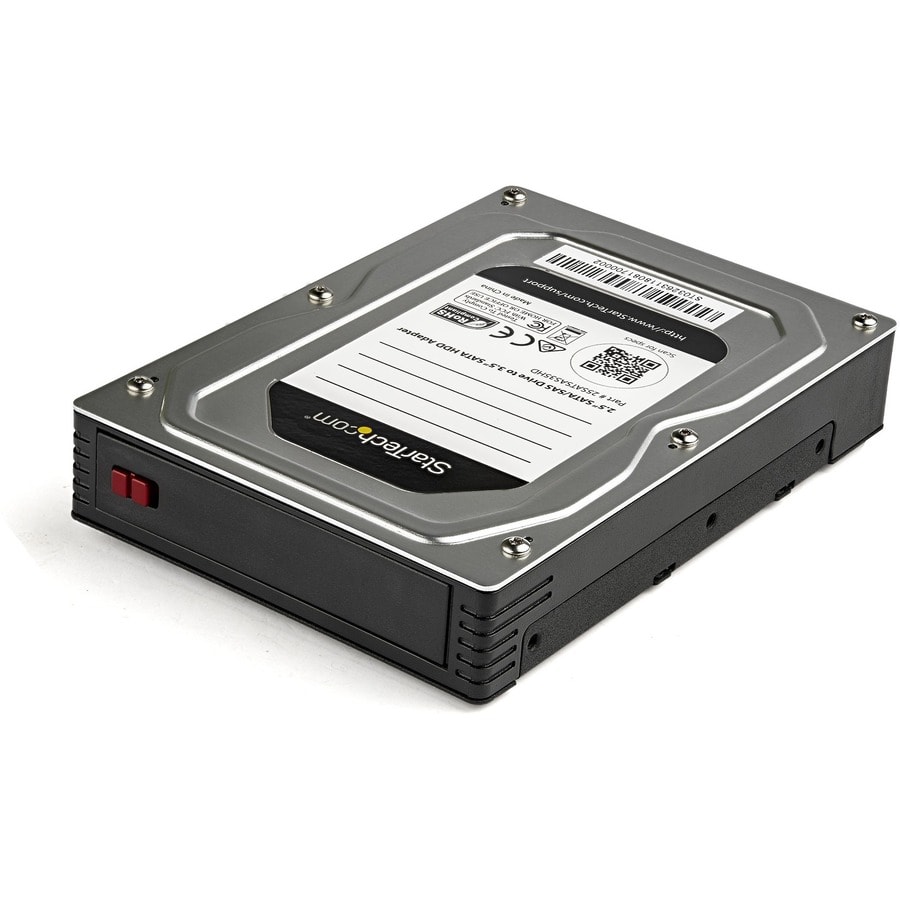

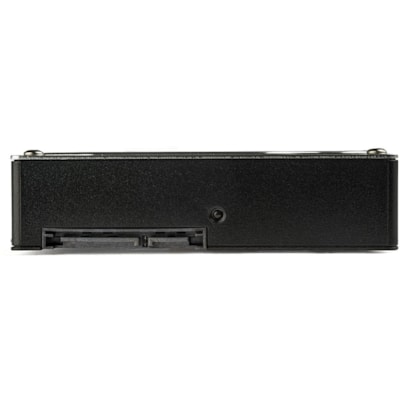

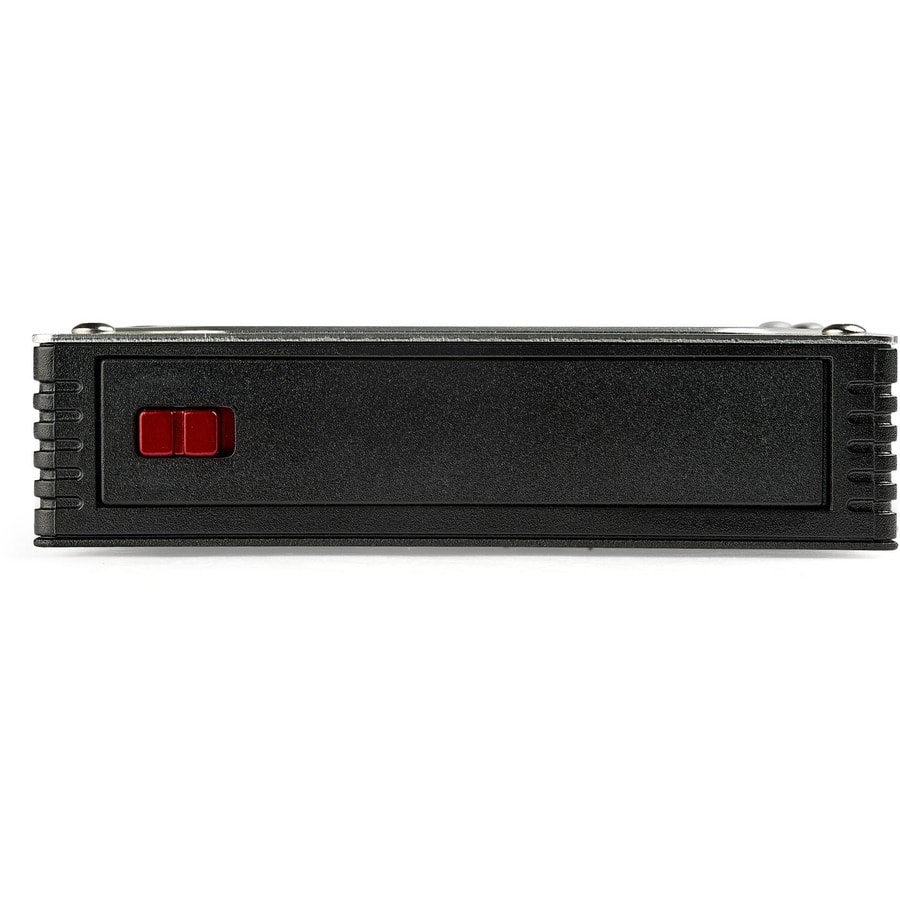

This 2.5" to 3.5" hard drive adapter lets you install a 2.5" SATA or SAS hard drive (HDD) or solid-state drive (SSD) into an internal or external 3.5" drive bay, using standard drive-mounting holes.

Convert a 2.5" drive into a 3.5" drive

The 2.5" to 3.5" hard drive bay adapter lets you install a newer, higher performance drive such as an SSD into a legacy system that may only support a 3.5" hard drive. It provides a cost-efficient way to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators who want to build a system that takes advantage of the increased performance of a 2.5" HDD/SSD.

To utilize the full speed potential of your SATA/SAS drive, the adapter supports transfer speeds up to 6Gbps.

Easy and flexible installation

You can install the adapter into a desktop, server, storage-array, hot-swap bay, and drive drawer. It offers permanent installation in a 3.5" drive bay with standard mounting holes. When the adapter is installed, you simply slide a 2.5" HDD/SSD into the adapter enclosure, with no tools required.

The adapter is suitable for drives with a height of up to 15 mm. Virtually any 2.5" SATA/SAS drive can be made to look and function like a 3.5" drive.

Identify and track your drives

The adapter includes a label you can use to track and record information about the installed drive.

The 25SATSAS35HD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Number of Hard Drives Supported : 1
  • Number of Hard Drives Installed : No
  • Number of Solid State Drive Supported : 1
  • Number of Solid State Drive Installed : No
  • Number of Total Expansion Bays : 1
  • Number of 2.5" Bays : 1
  • Wireless LAN : No
  • Drive Interface : SATA/600,Serial Attached SCSI (SAS)
  • Host Interface : 6Gb/s SAS
  • Color Family : Dual Color
  • Product Color : Silver,Black
  • Product Material : Aluminum,Plastic
  • Form Factor : Internal
  • Compatible Drive Bay Width : 3.5"
  • Height : 1" (25.40 mm)
  • Width : 4" (101.60 mm)
  • Depth : 5.70" (144.78 mm)
  • Weight (Approximate) : 8.90 oz (252.31 g)

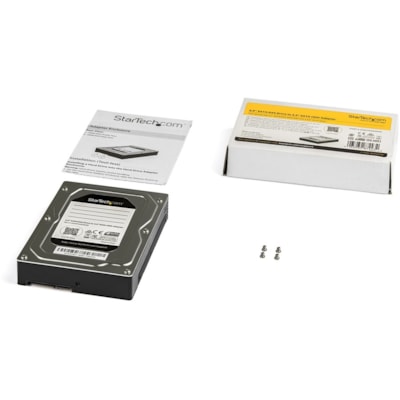

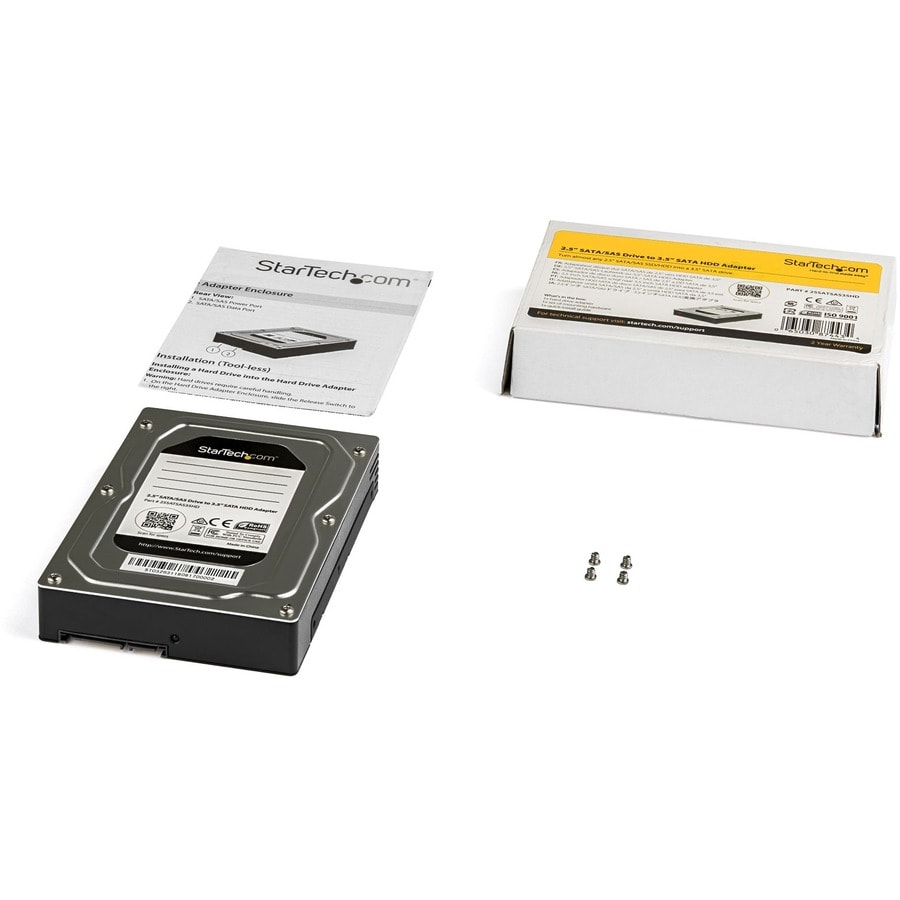

  • Package Contents :
    • 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
    • 1 x Set of Mounting Hardware
    • 1 x Quick-start Guide
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Limited Warranty : 2 Year
  • Supports 2.5" form factor drives up to 15 mm in height
  • Installs into an internal or external 3.5" drive bay; uses standard mounting holes for internal installs
  • Tool-less 2.5" drive installation
  • Supports SATA I, II and III (up to 6Gbps) and SAS I and II (up to 6Gbps)

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number 25SATSAS35HD
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
Packaged Quantity 1 Each
Product Type Drive Bay Adapter
Number of Hard Drives Supported 1
Number of Hard Drives Installed No
Number of Solid State Drive Supported 1
Number of Solid State Drive Installed No
Number of Total Expansion Bays 1
Number of 2.5" Bays 1
Wireless LAN No
Drive Interface SATA/600
Drive Interface Serial Attached SCSI (SAS)
Host Interface 6Gb/s SAS
Color Family Dual Color
Product Color Silver
Product Color Black
Product Material Plastic
Product Material Aluminum
Form Factor Internal
Compatible Drive Bay Width 3.5"
Height 1" (25.40 mm)
Width 4" (101.60 mm)
Depth 5.70" (144.78 mm)
Weight (Approximate) 8.90 oz (252.31 g)
Package Contents
  • 2.5" to 3.5" Hard Drive Adapter - For SATA and SAS SSDs/HDDs
  • 1 x Set of Mounting Hardware
  • 1 x Quick-start Guide
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty 2 Year
