StarTech.com USB to RS232/RS485/RS422 8 Port Serial Hub Adapter - Industrial Metal USB 2.0 to DB9 Serial Converter - Din Rail Mountable - Industrial 8 port serial hub 15kV Level 4 ESD - IP30 rating Metal USB to serial adapter converter w/ each DB9 port set to RS232/RS422/RS485(2wire/4wire) baud rate

ICUSB234858I
Also known as SY6085562

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.

Supports multiple serial protocols

The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.

Ideal for harsh environments

With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.

Fast data transfers

The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485operating modes.

The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Host Interface : USB
  • Platform Supported : PC,Linux
  • Number of Serial Ports (External) : 8
  • Form Factor : External
  • Height : 1" (25.40 mm)
  • Width : 5" (127 mm)
  • Weight (Approximate) : 1.52 lb (688.89 g)
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Limited Warranty : 2 Year
  • RUGGED & RELIABLE: This industrial metal USB to serial adapter hub adds 8 RS-232/422/485 ports & 1 USB 2.0 port w/ 15kV ESD surge protection (level 4), IP30 rating & locking connectors on all ports
  • 8 SERIAL PORTS: The ports on this USB to serial converter can be individually configured to RS232, RS422 or RS485 (2wire/4wire) at baud rates up to 921.6Kbps for devices like barcode scanners/printers
  • MOUNTING OPTIONS: This metal mountable 8-port serial hub w/ 6ft (1.8 m) screw-lock USB cable incl. installs securely to a desk, wall or DIN rail using the built-in mounting ears & incl. DIN brackets
  • FLEXIBLE POWER: This serial hub can be powered with either the 12V screw-locking power adapter or the 5V USB input, while each serial port (pin 9) can be set to 5V, 12V (power adapter required), or 0V
  • WIDELY COMPATIBLE: To connect industrial grade equipment to any terminal, the USB to multiple DB9 male serial converter supports current and legacy Windows, Linux, macOS, as well as embedded platforms

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number ICUSB234858I
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name USB Serial Hub
Packaged Quantity 1
Product Type Serial Hub
Host Interface USB
Platform Supported Linux
Platform Supported PC
Number of Serial Ports (External) 8
Form Factor External
Height 1" (25.40 mm)
Width 5" (127 mm)
Weight (Approximate) 1.52 lb (688.89 g)

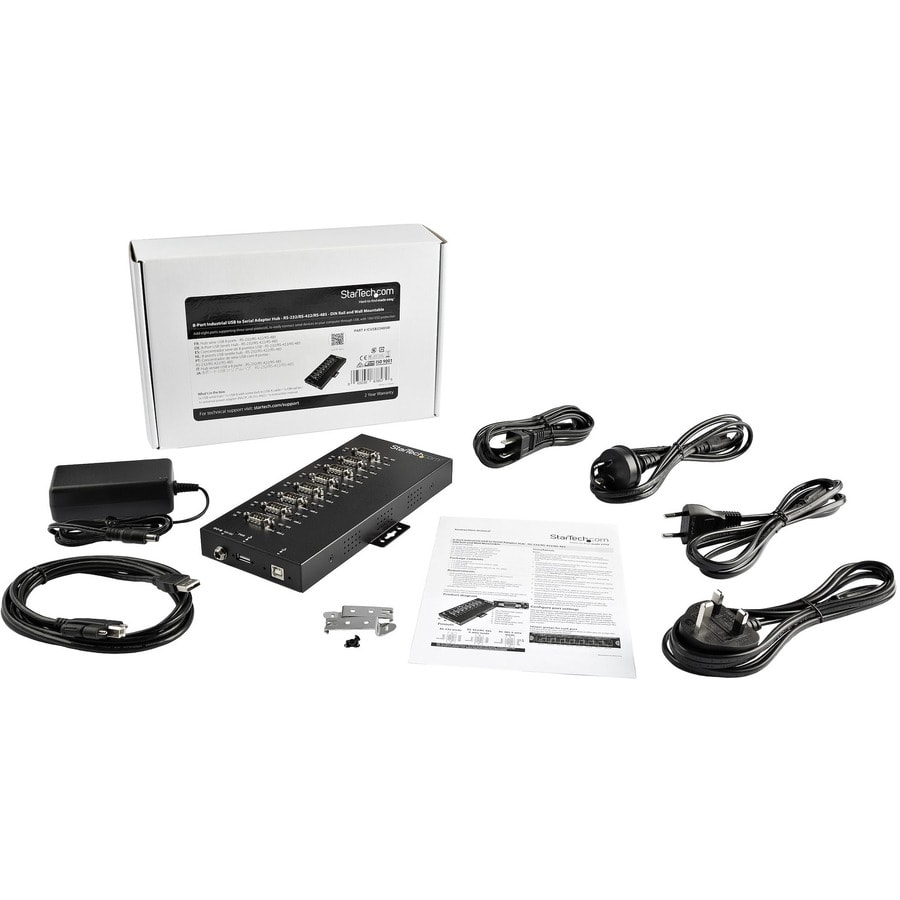

Package Contents
  • USB Serial Hub
  • 1 x USBxB with Screw Lock to USBxA Cable
  • 1 x DIN Rail Kit
  • 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
  • 1 x Instruction Manual
Additional Information

OS Compatibility:

  • Windows® 7, 8, 8.1, 10, 11
  • Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
  • macOS 10.9 to 10.15, 11.0, 12.0, 13.0
  • Linux 2.4.x and up  - LTS Versions only
Environmentally Friendly Yes
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin Taiwan
TAA Compliant Yes
Limited Warranty 2 Year
