MARKETING INFORMATION

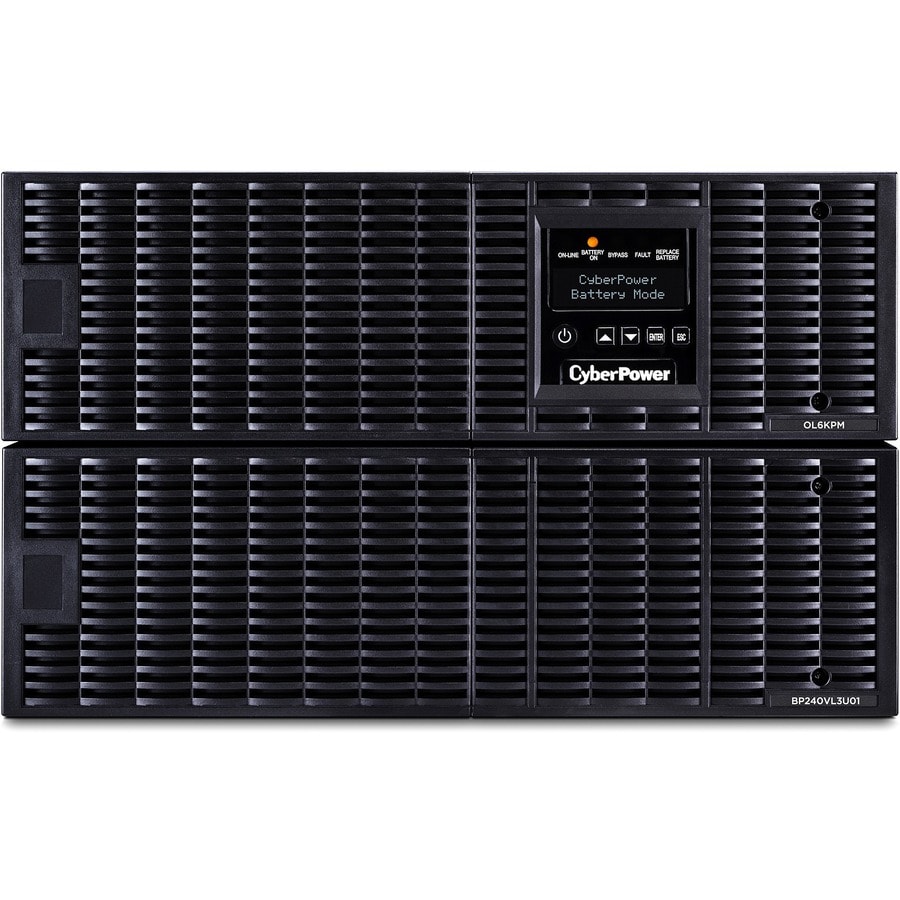

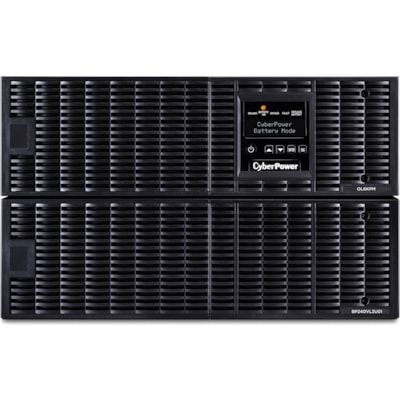

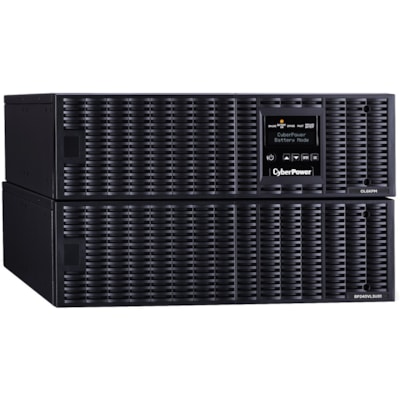

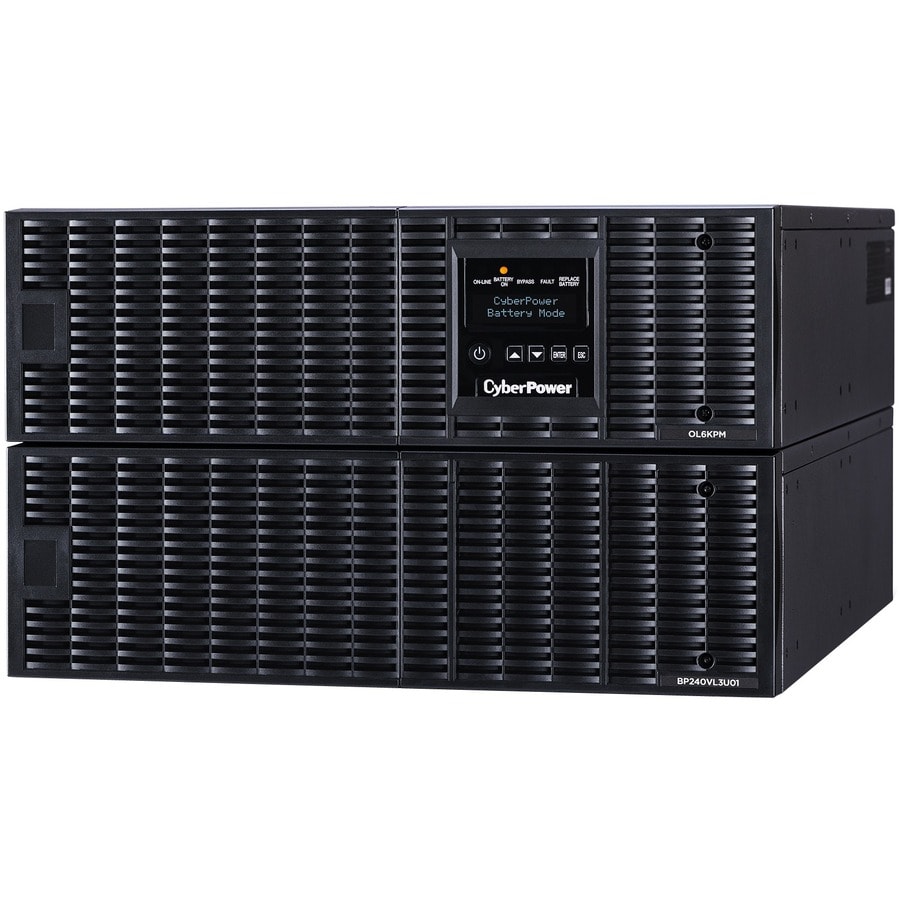

The CyberPower Smart App Online OL6KRT is a 6U rack/tower UPS with double-conversion. It provides sine wave output to multiple types of critical IT infrastructure requiring seamless power protection. Generator-compatible, the OL6KRT delivers consistent 200-240 V power with zero-transfer time. Automatic-bypass ensures connected equipment continues to operate seamlessly when an overload or internal fault is detected.

The OL6KRT features a removable LCD control panel to reposition it in a more convenient location (with optional DB-26 cable). Smart-battery management charging technology increases battery life by up to 50%. Fast-charge technology helps replenish battery charge from 0-90% in four hours, regardless of the number of Extended Battery Modules (EBM) connected. The energy-saving GreenPower UPS™ ECO Mode allows the UPS to reach up to 96% efficiency to reduce power consumption and thermal dissipation.

This UPS can use the BP240V30ART3U or BP240VL3U01 extended battery module for more runtime. The OL6KRT comes with a three-year warranty (including batteries) and a $300,000 connected equipment guarantee.

• 6,000 VA / 5,400 W - Online Double Conversion Topology UPS
• LCD control panel with remote display option
• Remote management card (RMCARD205) pre-installed
• GreenPower UPS™ ECO Mode
• PowerPanel Business Edition monitoring, management, and auto-shutdown software for physical and virtual infrastructure

More from the Manufacturer

DETAILS

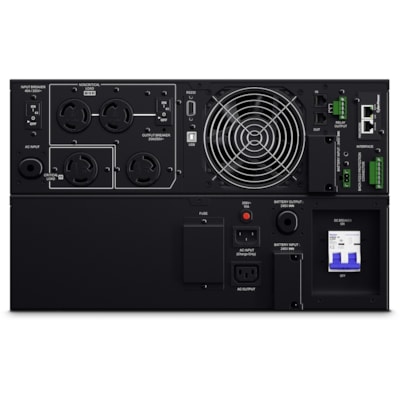

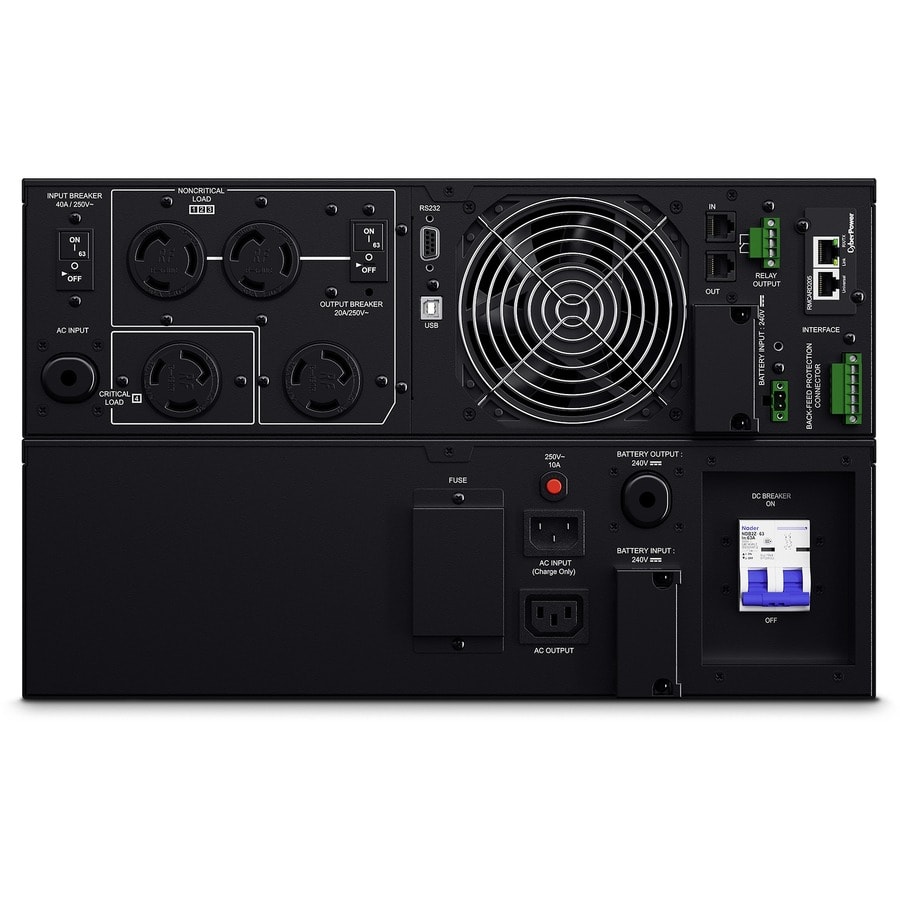

• Plug/Connector Type : NEMA L6-30P
• Receptacle Type : NEMA L6-20R,NEMA L6-30R
• Receptacle Detail : 2 x NEMA L6-20R,2 x NEMA L6-30R
• Application/Usage : Server Room,Network,IT Infrastructure
• Load Capacity (VA) : 6 kVA
• Input Voltage : 230 V AC
• Input Voltage Range : 180 V AC - 280 V AC
• Output Voltage : 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
• Waveform Type : Sine Wave
• Backup/Run Time (Full Load) : 5.40 Minute
• Backup/Run Time (Half Load) : 15 Minute
• Product Color : Black
• Form Factor : Rack/Tower
• Height : 10.50" (266.70 mm)
• Width : 17" (431.80 mm)
• Depth : 26" (660.40 mm)
• Weight (Approximate) : 222.20 lb (100788.22 g)
• Package Contents :
  • Smart App Online OL6KRT 6000VA Tower/Rack Mountable UPS
  • Rack Mounting Hardware
  • USB Cable
  • Serial Cable
  • Phone Cable
• Energy Star : No
• Country of Origin : China
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 3 Year

• 6,000 VA / 5,400 W - Online Double Conversion Topology UPS
• LCD control panel with remote display option
• Remote management card (RMCARD205) pre-installed
• GreenPower UPS™ ECO Mode
• PowerPanel Business Edition monitoring, management, and auto-shutdown software for physical and virtual infrastructure
