MARKETING INFORMATION

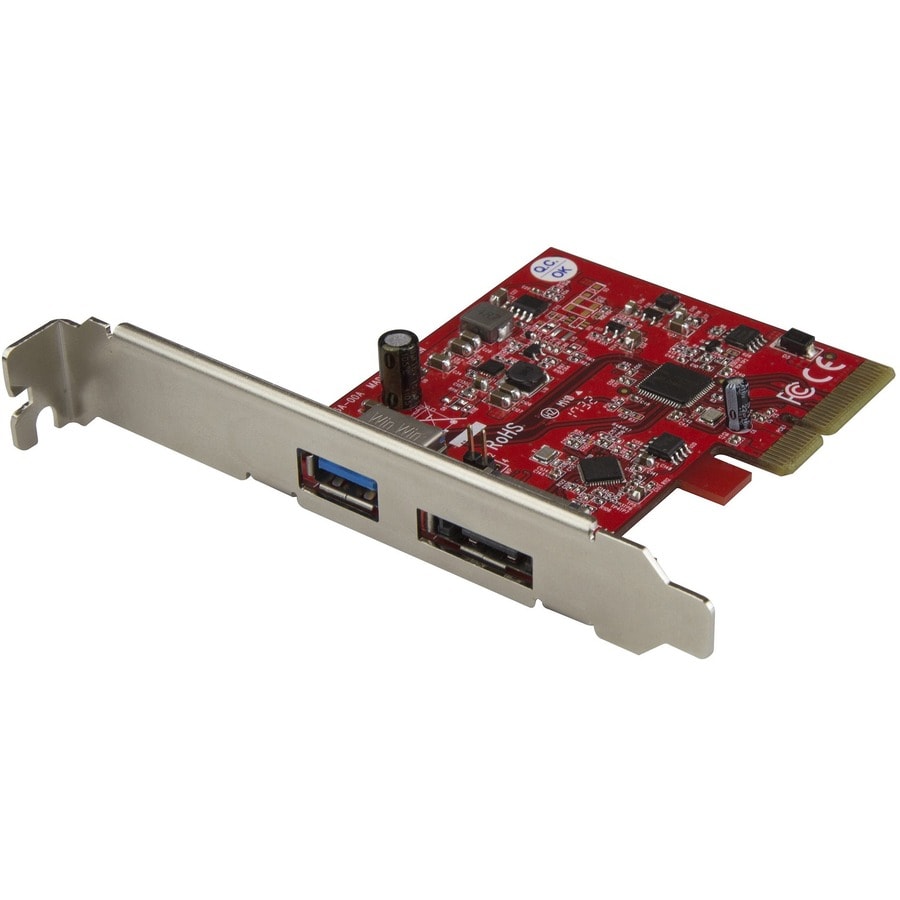

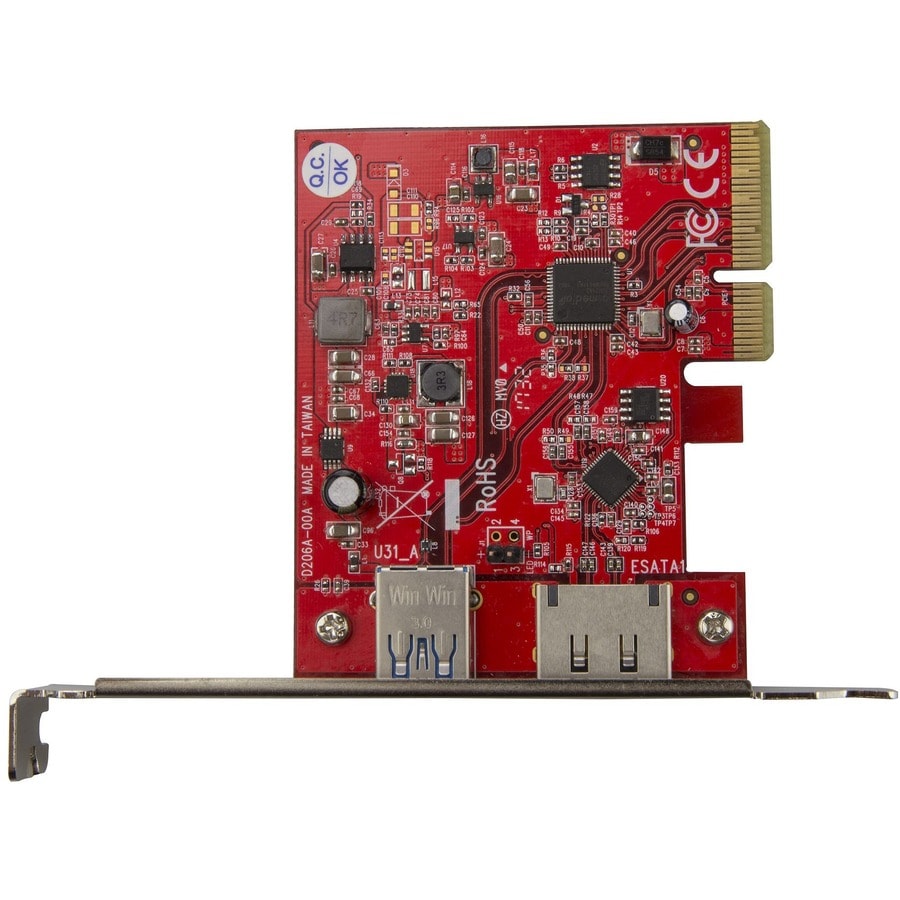

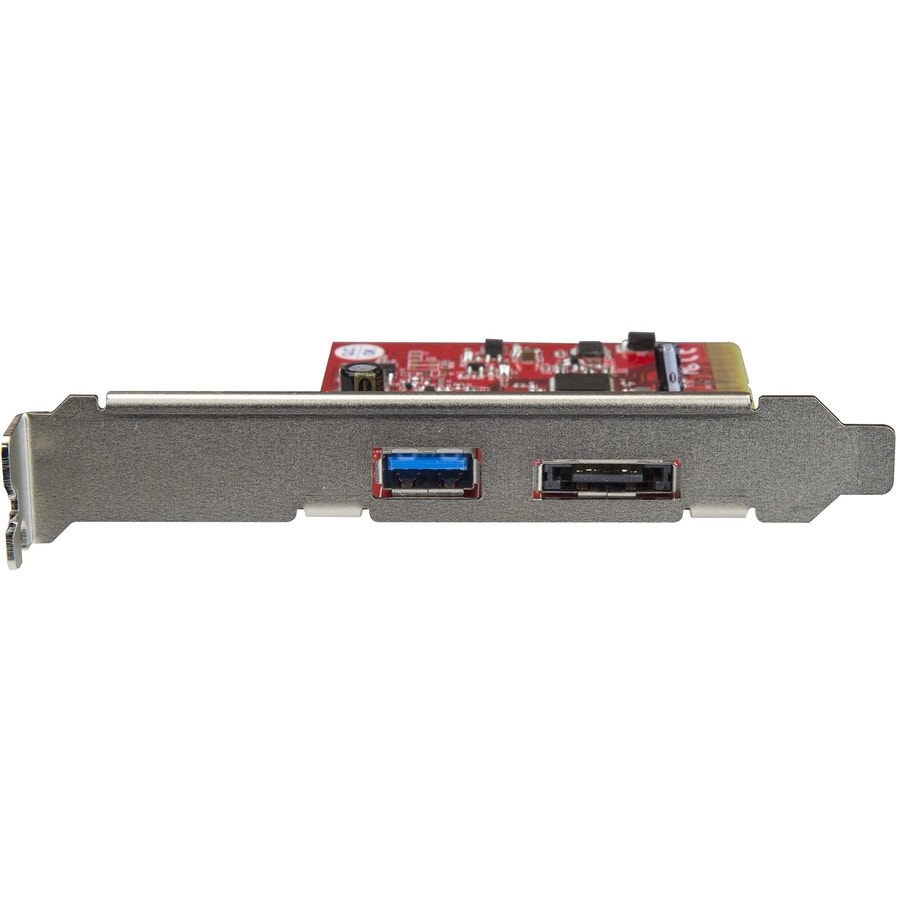

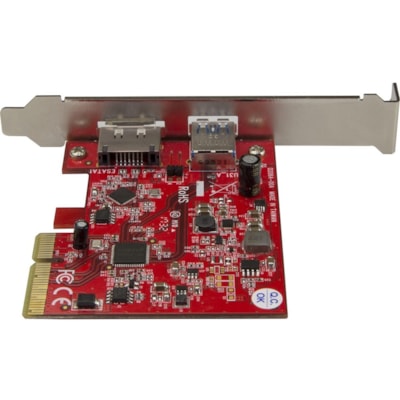

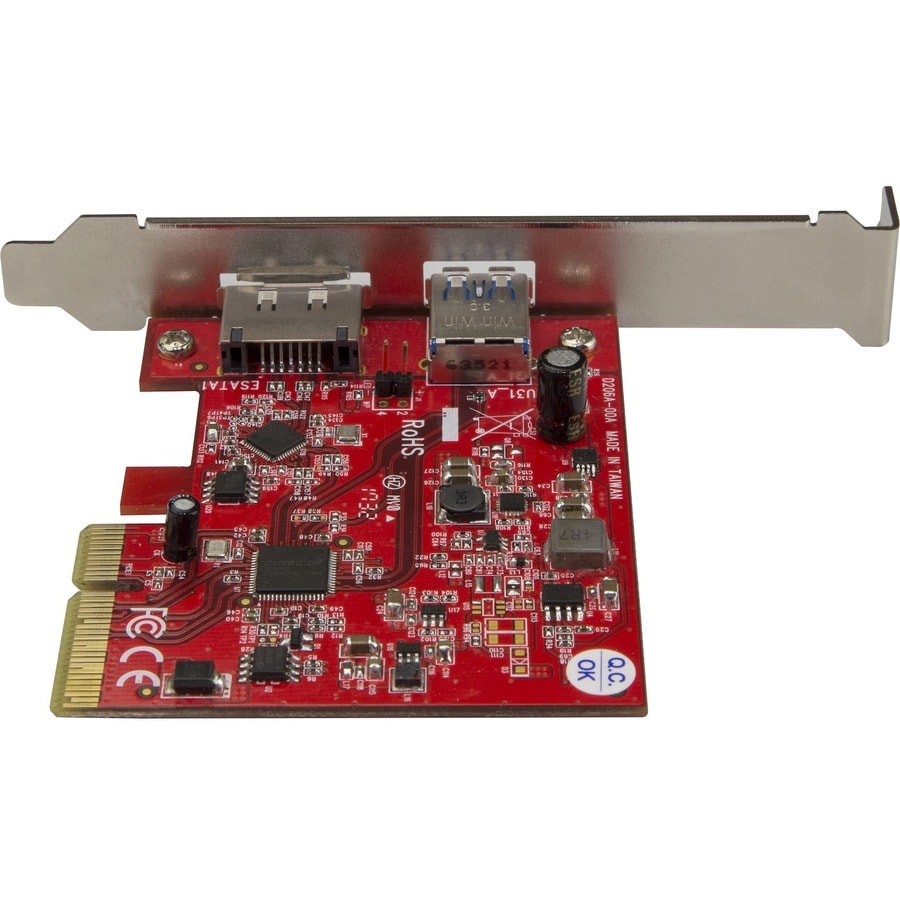

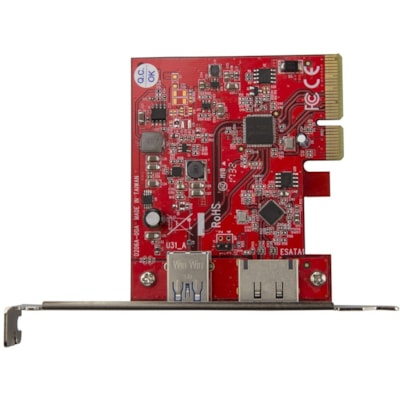

This combination PCI Express controller card lets you add both a USB 3.2 Gen 2 port and an eSATA port to your desktop PC, through a single PCIe slot. The versatile controller card offers a cost-effective way to add high-performance connectivity to your computer, with support for newer USB 3.2 devices as well as eSATA hard drives.
At up to 10Gbps, the USB 3.2 PCIe card delivers the speed you need for seamless performance from your compatible devices. It's also backward compatible with previous versions of USB, so you can connect your existing USB 3.2 Gen 1 / 2.0 / 1.1 equipment.
The controller card also connects your computer to an eSATA device, providing a hot-pluggable, high-speed storage solution for backing up or archiving data. With support for SATA I, II and III hard drives, and data transfer speeds of up to 6Gbps, the controller card offers reliable performance for your external SATA storage applications.
For added versatility, the controller card is equipped with a standard-profile bracket and includes a low-profile bracket for installation in small form-factor computers.
The PEXUSB311A1E is backed by a StarTech.com 2-year warranty and free lifetime technical support.

DETAILS

• Host Interface : PCI Express x4
• UASP Support : Yes
• Total Number of USB Ports : 1
• Number of USB 3.2 Ports : 1
• Number of eSATA/USB Combo Ports : 1
• Operating System Supported : Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2012,Windows Server 2016,Windows Server 2008 R2,Windows Server 2019,Linux
• Color Family : Red
• Product Color : Red
• Form Factor : Plug-in Card
• Height : 3.90" (99.06 mm)
• Width : 3.10" (78.74 mm)
• Length : 3.70" (93.98 mm)
• Weight (Approximate) : 1.60 oz (45.36 g)
• Package Contents :
  • 2-Port USB 3.1 (10Gbps) and eSATA PCIe Card - 1x USB-A and 1x eSATA
  • 1 x Low-profile Bracket
  • 1 x Quick-start Guide
• Platform Supported : Linux,PC
• Country of Origin : Taiwan
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty : 2 Year

• Enhance your connectivity by adding one USB 3.1 Gen 2 and one eSATA port to your computer, through a single PCIe slot
• Supports USB 3.1 data rates up to 10Gbps
• Supports SATA I, II, and III up to 6Gbps
• PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0
• Backward compatible with USB 3.0, USB 2.0 and USB 1.0/1.1 devices
• Includes a low-profile/half-height installation bracket
