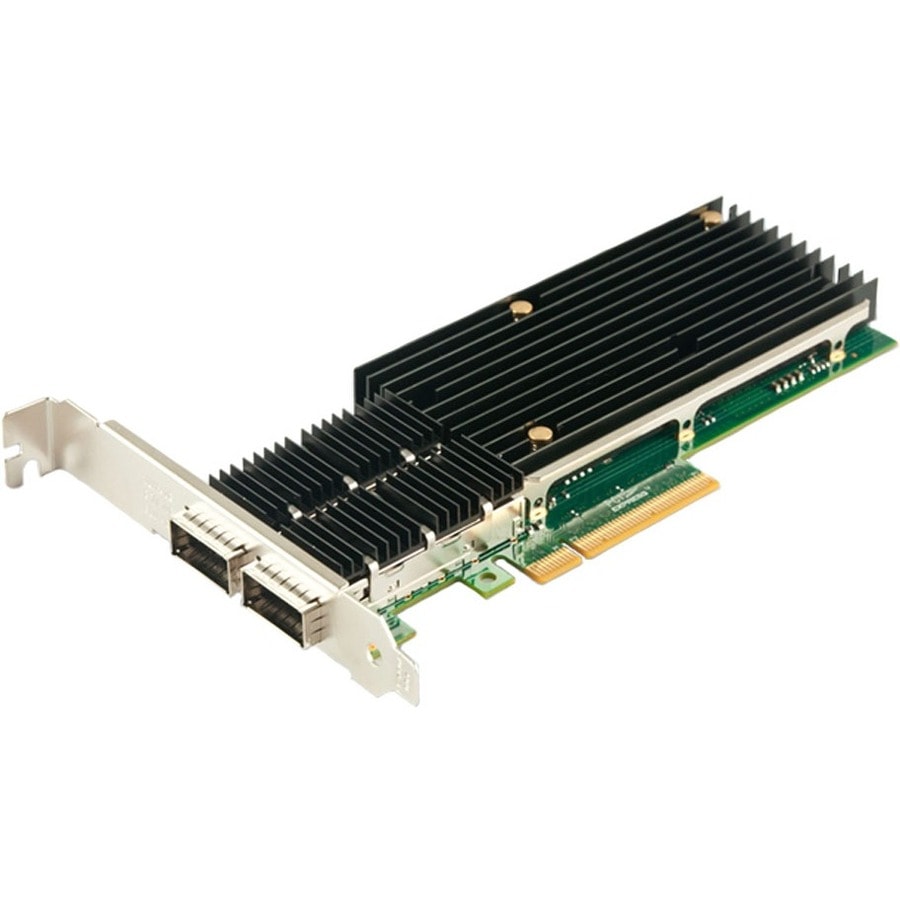

Axiom 40Gbs Dual Port QSFP+ PCIe 3.0 x8 NIC Card for Lenovo - 00FP650 - 40Gbs Dual Port QSFP+ PCIe 3.0 x8 NIC Card
00FP650-AX
Also known as SY6017959
MARKETING INFORMATION
The Axiom QSFP+ PCIe 3.0 x8 40Gbs Fiber Network Adapter is designed for Servers and high-end appliances. They offer simple integration into any PCI Express X8 to 40 Gigabit Networks. Based on Intel XL710AM Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interfaces, the Axiom QSFP+ NIC cards are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.
Key Features:
- Network Virtualization offloads for VXLAN and NVGRE
- Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI,FCoE)
- Virtual Bridging Support - VEPA/802.1Qbg,BPE/802.1Qbh
- Physical Functions - Up to 8 per port
- Support for 128 Virtual Device Queues (VMDq) per port
- Hardware Queue Pairs - Up to 1.5K (non-RDMA); up to 256K (RDMA)
- Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines
- Includes Full Height and Half Height Mounting Brackets
DETAILS
- Host Interface : PCI Express 3.0 x8
- Total Number of Ports : 2
- Expansion Slot Type : QSFP+
- Media Type Supported : Optical Fiber
- Network Technology : 40GBase-X
- Form Factor : Plug-in Card
- Height : 6.50" (165 mm)
- Width : 0.51" (13 mm)
- Depth : 2.68" (68 mm)
- Weight (Approximate) : 4.96 oz (140.61 g)
- Package Contents :
- Lenovo 40Gigabit Ethernet Card
- Full Height and Half Height Mounting Brackets
- Device Supported : Server
- Limited Warranty : 3 Year
- 40Gigabit Ethernet card has an impressive performance that enables an affordable solution for trouble-free networking, clustering, or storage
- This 8000 MB/s bandwidth PCI Express 3.0 x8 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- This dual port 40gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
- With the 40GBase-X technology get up to 40Gbps data transfer rate over the supported network cable
SPECIFICATIONS
Manufacturer | Axiom Memory Solutions |
Manufacturer Part Number | 00FP650-AX |
Manufacturer Website Address | http://search.axiomupgrades.com |
Brand Name | Axiom |
Product Name | Lenovo 40Gigabit Ethernet Card |
Product Type | 40Gigabit Ethernet Card |
Host Interface | PCI Express 3.0 x8 |
Total Number of Ports | 2 |
Expansion Slot Type | QSFP+ |
Media Type Supported | Optical Fiber |
Network Technology | 40GBase-X |
Form Factor | Plug-in Card |
Height | 6.50" (165 mm) |
Width | 0.51" (13 mm) |
Depth | 2.68" (68 mm) |
Weight (Approximate) | 4.96 oz (140.61 g) |
Package Contents |
|
Device Supported | Server |
Limited Warranty | 3 Year |
