MARKETING INFORMATION

Flexible and Scalable 10/25GbE Network Adapter with Hardware Optimizations and Intelligent Offloads for Cloud and Network Virtualization Deployment

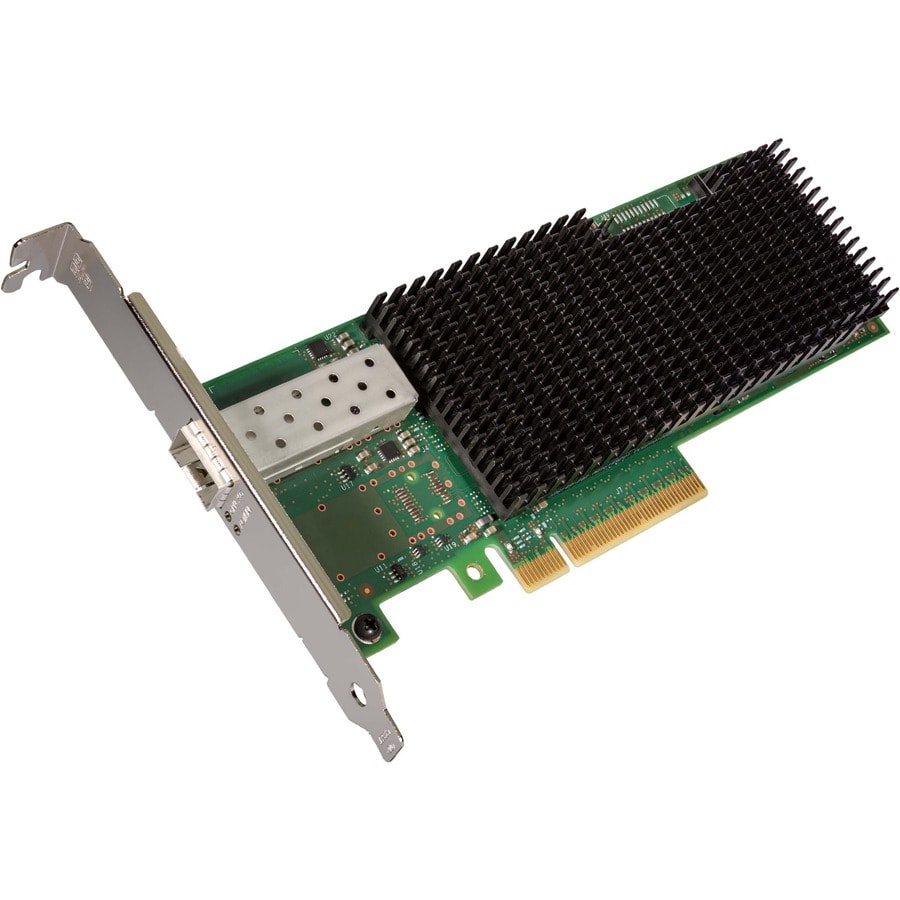

The Intel® Ethernet Network Adapter XXV710 is a new addition to the Intel® Ethernet 700 Series network adapters.
The Intel® Ethernet 700 Series network adapters address the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.

Leading 10/25GbE Performance
The Intel Ethernet Network Adapter XXV710 delivers excellent performance with a theoretical throughput of 50Gb/s (25Gb/s single-port bi-directional), in a PCI Express v3.0 x8 slot.

Optimized performance vectors and key uses include:

• Small Packet Performance: Achieves wire-rate throughput on smaller payload sizes (>69 bytes for 25GbE and 64 bytes for 10GbE in single port).
• Bulk Transfer Performance: Delivers line-rate performance with low CPU usage for large application buffers.
• Virtualized Performance: Alleviates hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs).
• Network Virtualization: Network virtualization overlay offloads including VXLAN, NVGRE, GENEVE, MPLS, VXLAN-GPE with NSH.

DETAILS

• Host Interface : PCI Express 3.0 x8
• Total Number of Ports : 1
• Expansion Slot Type : SFP+
• Media Type Supported : Optical Fiber
• Network Technology : 10GBase-SR,10GBase-LR,25GBase-SR,25GBase-LR
• Width : 6.58" (167.08 mm)
• Depth : 2.70" (68.65 mm)
• Device Supported : Server

• PCI Express* (PCIe) v3.0, x8
• IEEE 802.3by and 25GEthernet.org specification compliance
• Network Virtualization offloads including VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE with Network Service Headers (NSH)
• Intel® Ethernet Flow Director for hardware based application traffic steering
• Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
• Data Plane Development Kit (DPDK) optimized for efficient packet processing
• Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
• Intelligent offloads to enable high performance on servers with Intel® Xeon® processors
• I/O virtualization innovations for maximum performance in a virtualized server
• Adaptive link establishment enables increased interoperability with other 25GbE capable switches and host controllers
