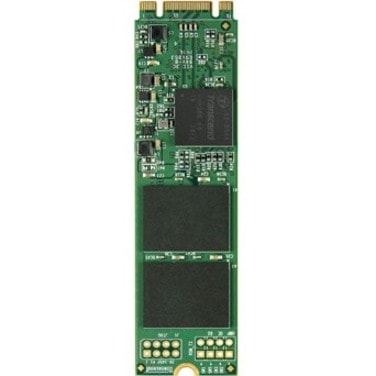

Transcend MTS MTS800 256 GB Solid State Drive - M.2 2280 Internal - SATA (SATA/600) - Desktop PC Device Supported - 560 MB/s Maximum Read Transfer Rate - 3 Year Warranty

TS256GMTS800S
Also known as SY6007420

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Transcend's MTS800 M.2 SSD's next generation SATA III 6Gb/s interface and ultra compact dimensions make it best suited to address the high performance needs and strict size limitations of small form factor devices. This means it is perfect for use in today's modern Ultrabooks and thin, light notebooks. Meeting the latest SATA III 6Gb/s specifications, and featuring a powerful controller and exceptional transfer speeds of up to 560MB/s read and 460MB/s write*, the M.2 SSD easily handles everyday computing tasks as well as demanding multimedia applications.

Intel Smart Response Technology

Transcend's SATA III 6Gb/s MTS800 M.2 SSD supports Intel® Smart Response Technology (ISRT), which allows you to configure your computer system with an SSD used as cache memory between the hard disk drive and system memory. This provides the advantage of having a hard disk drive for maximum storage capacity with SSD-like overall system performance.

ISRT works by monitoring which programs and files you access most frequently and storing them on the SSD. As a result, application launch speed and overall system responsiveness are significantly improved, while space on your large-capacity hard drive is freed up for other programs and files. In this configuration, only one drive letter is displayed; no additional drive letter is required for the SSD used as cache.

DETAILS

  • Storage Capacity : 256 GB
  • Maximum Read Transfer Rate : 560 MB/s
  • Maximum Write Transfer Rate : 460 MB/s
  • Wireless LAN : No
  • Drive Interface : SATA
  • Drive Interface Standard : SATA/600
  • Drive Type : Internal
  • Form Factor : M.2 2280
  • Height : 0.14" (3.58 mm)
  • Width : 0.87" (22 mm)
  • Depth : 3.15" (80.01 mm)
  • Weight (Approximate) : 0.32 oz (9 g)
  • Device Supported : Desktop PC,Notebook
  • Limited Warranty : 3 Year
  • Provides sufficient storage capacity of 256 GB for your computer
  • The high-read speed of 560 MB/s maximizes system performance and saves time while you are doing complex tasks
  • With the high-write speed of 460 MB/s, get a quick response when updating or transferring files
  • Have data stored faster with SATA/600 interface that optimizes burst performance

SPECIFICATIONS

Manufacturer Transcend Information, Inc
Manufacturer Part Number TS256GMTS800S
Manufacturer Website Address http://uk.transcend-info.com
Brand Name Transcend
Product Series MTS
Product Model MTS800
Product Name SATA III 6Gb/s MTS800 M.2 SSD
Product Type Solid State Drive
Storage Capacity 256 GB
Maximum Read Transfer Rate 560 MB/s
Maximum Write Transfer Rate 460 MB/s
Wireless LAN No
Drive Interface SATA
Drive Interface Standard SATA/600
Drive Type Internal
Form Factor M.2 2280
Height 0.14" (3.58 mm)
Width 0.87" (22 mm)
Depth 3.15" (80.01 mm)
Weight (Approximate) 0.32 oz (9 g)
Device Supported Desktop PC
Device Supported Notebook
Limited Warranty 3 Year
