Tripp Lite series Gigabit N261-S02-BL Cat.6a UTP Patch Network Cable - 2 ft (0.61 m) Category 6a Network Cable for PC, Server, Router, Printer, Patch Panel, Switch, Network Device - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Patch Cable - 28 AWG - Blue

N261-S02-BL
Also known as SY5939888

New! Log in or create an account to see price and availability


MARKETING INFORMATION

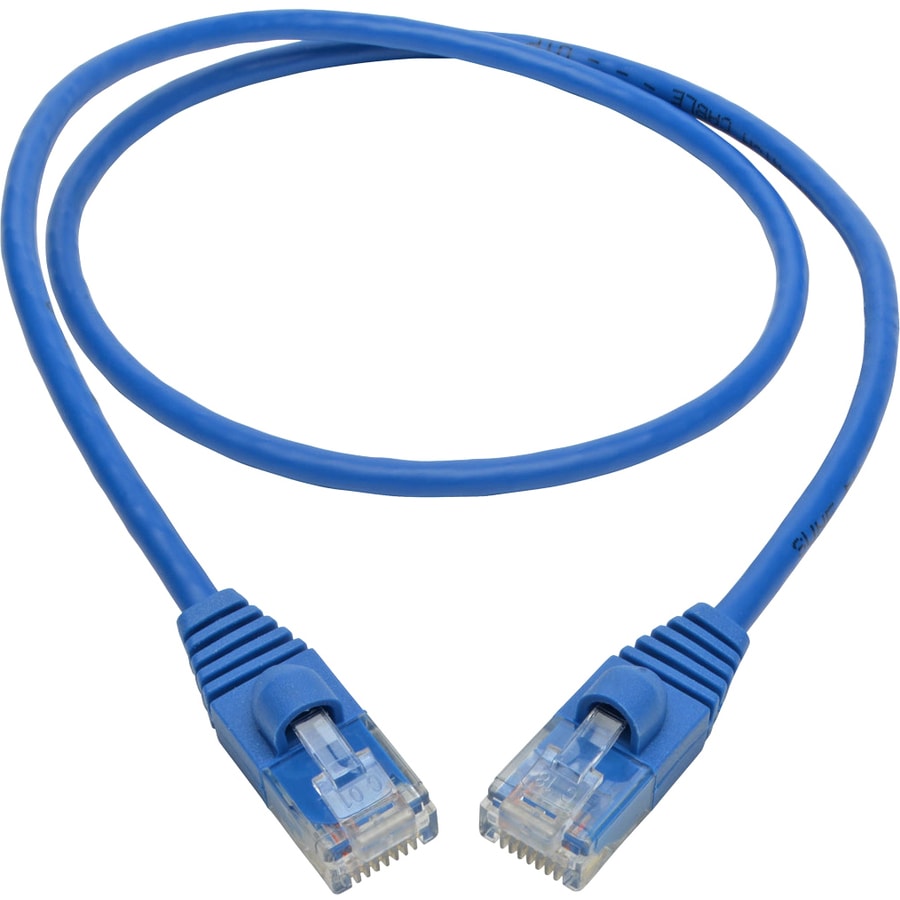

The N261-S02-BL Cat6a 10G Snagless Molded Slim UTP Network Patch Cable (M/M) is ideal for connecting network components like computers, servers, routers, printers, patch panels and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this two-foot blue cable ensures peak performance throughout your local area network (LAN).

Manufactured from 28 AWG copper wire, the four-pair stranded UTP N261-S02-BL delivers Gigabit Ethernet speeds up to 10 Gbps. Protected by a PVC jacket, this cable is more than 38% smaller in diameter than standard Cat6a cable, which increases airflow in tight spaces and makes it easier to install around corners and through cable management panels.

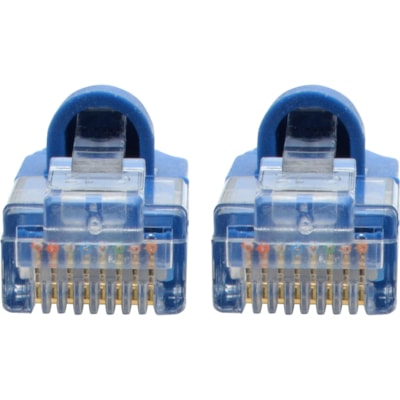

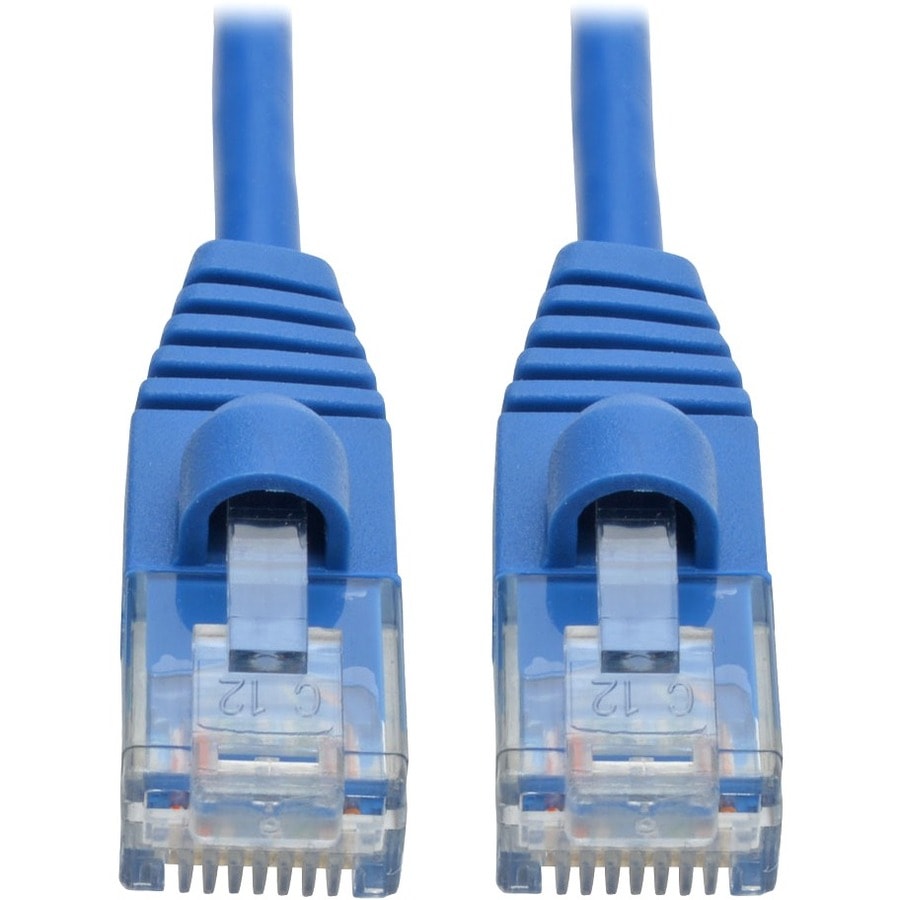

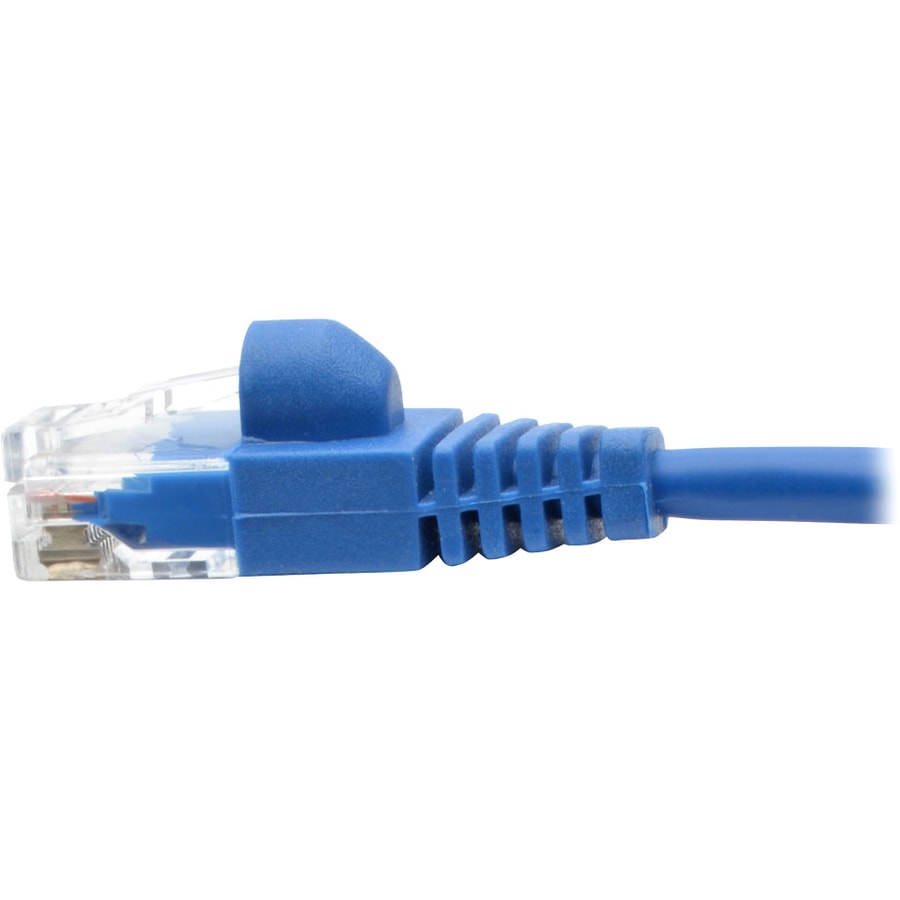

RJ45 male connectors are conducive to an accurate signal transfer, improving near-end crosstalk (NeXT) performance to 650 MHz. The snagless design protects the locking tabs against being damaged or broken off during installation. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.

Each cable has been tested and certified using Fluke® test equipment. Test results are available upon request. It supports IEEE 802.3af, is DTE power compliant and is compatible with T568A/T568B wiring.

More from the Manufacturer

DETAILS

  • Cable Type : Category 6a
  • Cable Characteristic : Patch Cable
  • Cable Length : 2 ft (0.61 m)
  • Connector Type on First End : RJ-45 Network - Male
  • Connector on First End Details : 1 x RJ-45 Network - Male
  • Connector Type on Second End : RJ-45 Network - Male
  • Connector on Second End Details : 1 x RJ-45 Network - Male
  • Device Supported : PC,Server,Router,Printer,Patch Panel,Switch,Network Device
  • American Wire Gauge : 28 AWG
  • Data Transfer Rate : 10 Gbit/s
  • Boot Type : Snagless
  • Features : Molded,Stranded,Strain Relief,Minimized Near-End Crosstalk (NEXT)
  • Color Family : Blue
  • Product Color : Blue
  • Environmentally Friendly : Yes
  • Country of Origin : China
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : Lifetime
  • Experience a simpler way to connect devices with the entire business network
  • Features Category 6a cable type
  • Fully compatible with patch panels

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number N261-S02-BL
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Line Gigabit
Product Model N261-S02-BL
Product Name Gigabit N261-S02-BL Cat.6a UTP Patch Network Cable
Product Type Network Cable
Cable Type Category 6a
Cable Characteristic Patch Cable
Cable Length 2 ft (0.61 m)
Connector Type on First End RJ-45 Network - Male
Connector on First End Details 1 x RJ-45 Network - Male
Connector Type on Second End RJ-45 Network - Male
Connector on Second End Details 1 x RJ-45 Network - Male
Device Supported PC
Device Supported Server
Device Supported Router
Device Supported Printer
Device Supported Patch Panel
Device Supported Switch
Device Supported Network Device
American Wire Gauge 28 AWG
Data Transfer Rate 10 Gbit/s
Boot Type Snagless
Features Stranded
Features Strain Relief
Features Minimized Near-End Crosstalk (NEXT)
Features Molded
Color Family Blue
Product Color Blue
Shipping Height 0.50" (12.70 mm)
Shipping Width 7" (177.80 mm)
Shipping Weight (Approximate) 3.20 oz (90.72 g)
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin China
Limited Warranty Lifetime
